High Energy

Specifications

Surge ratings enable protected equipment to thrive in environments exposed to the most severe disturbances. Bourns® High Energy Varistors have customizable metal blocks with rigid terminals.

Conflict Mineral Source Reporting for Varistor products CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Description	Packing Types	Sizes (mm) or Pkg	Customized Packaging Available	Max Continuous Voltage (V_rms)	Max Continuous Voltage (Vdc)	Peak Single Pulse Current 8/20 µs (I_max)	Response Time	Temperature Rating °C	Agency Listing	RoHS Compliant

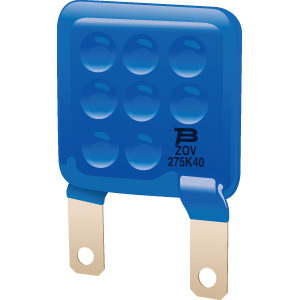

ZOV	High energy square shaped	Epoxy coated with rigid terminals and metalized blocks	23, 25, 32, 40, 60	Yes	60 – 680 V	85 – 895 V	18 – 80 kA	<25 ns	–40 to +85	UL 1449 E313168	Yes

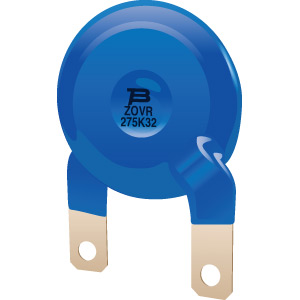

ZOVR	High energy round shape	Epoxy coated with rigid terminals and metalized blocks	25, 32, 40	Yes	60 – 680 V	85 – 900 V	18 – 40 kA	<25 ns	–40 to +85	UL 1449 E313168	Yes
ZOVS/ZOVA/ZOVH	Square shaped high energy stacked	Epoxy coated with rigid terminals	40	Yes	275 – 440 V	350 – 385 V	40 kA	<25 ns	–40 to +85	UL 1449 E313168	Yes

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS
AV	1	See Data Sheet	TBD	e3	Var2	Request Report	AV
BVR0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR0805
BVR1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR1206
BVR1210	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1210
BVR1812	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1812
BVRA0402	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0402
BVRA0603	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0603
BVRA0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0805
BVRA1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1206
CV	1	See Data Sheet	TBD	e3	Var2	Request Report	CV
CVQ	1	See Data Sheet	TBD	e3	Var2	Request Report	CVQ
DV	1	See Data Sheet	TBD	e3	Var2	Request Report	DV
EV	1	See Data Sheet	TBD	e3	EV CoC	Request Report	EV
MV	1	See Data Sheet	TBD	e3	Var1	Request Report	MV
PV	1	See Data Sheet	TBD	e3	Var2	Request Report	PV
SV	1	See Data Sheet	TBD	e3	Var2	Request Report	SV
ZV	1	See Data Sheet	TBD	e3	Var2	Request Report	ZV
ZV50S2220452NIR1	1	See Data Sheet	TBD	e3	Var3	Request Report	ZV50S2220452NIR1
ZV-TH	1	See Data Sheet	TBD	e3	Var1	Request Report	ZV-TH

File	Type	Size	Uploaded on	Download
Protecting High Speed Communication Ports	PDF	843.57 KB	28 May, 2015	Download
