Modular Contacts

Specifications

Bourns® Modular Contacts are off-the-shelf interconnect devices that can be used in cellular telephones, PDAs, laptop computers, portable medical and test equipment, anywhere a rechargeable battery pack is required.

Because they can be used as either compression or sliding Modular Contacts, they can function as connectors for many other non-battery related applications.

Conflict Mineral Source Reporting for Trimpot®, Switch, and Modular Contact products CFSI_CMRT4-01

Bourns offers a Design Kit for this product line.

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Insulator	Contact	Current Rating	Voltage Rating (V)	Contact Resistance	Dielectric Voltage	Insulating Resistance	Operating Temperature	Mechanical Durability	RoHS Compliant	MDS	Design Files	Buy Now
70AA-Female	Glass reinforced thermoplastic, UL 94 V-0 listed, black	Copper Alloy	3 A/contact	60 V	30 mΩ max.	AC 500 V	1000 MΩ min.	-55 °C to 125 °C	50,000 cycles min.	70AA-Female	70AAF 6pin MDS 70AAF 5pin MDS 70AAF 4pin MDS 70AAF 3pin MDS 70AAF 2pin MDS	Downloads	Buy

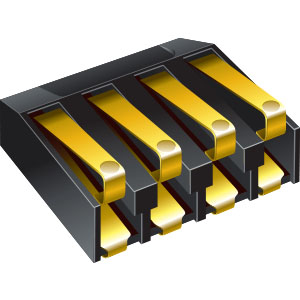

70AA-Male	Glass reinforced thermoplastic, UL 94 V-0 listed, black	Copper Alloy	DC 3 A/contact	DC 60 V	30 mΩ max.	AC 500 V	1000 MΩ min.	-55 °C to 125 °C	50,000 cycles min.		70AAM 6pin MDS 70AAM 5pin MDS 70AAM 4pin MDS 70AAM 3pin MDS 70AAM 2pin MDS	Downloads	Buy
70AB-Female	Glass reinforced thermoplastic, UL 94 V-0 listed, black	Copper Alloy	DC 3 A/contact	DC 60 V	30 mΩ max.	AC 500 V	1000 MΩ min.	-55 °C to 125 °C	50,000 cycles min.		70ABF 4pin MDS 70ABF 3pin MDS 70ABF 2pin MDS	Downloads	Buy
70AB-Male	Glass reinforced thermoplastic, UL 94 V-0 listed, black	Copper Alloy	DC 3 A/contact	DC 60 V	30 mΩ max.	AC 500 V	1000 MΩ min.	-55 °C to 125 °C	50,000 cycles min.		70ABM 4pin MDS 70ABM 3pin MDS 70ABM 2pin MDS	Downloads	Buy

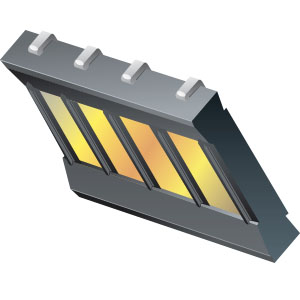

70AD-Female	Glass reinforced thermoplastic, UL 94 V-0 listed, black	Copper Alloy	DC 3 A/contact	DC 30 V	25 mΩ max.	AC 500 V	500 MΩ min.	-55 °C to 125 °C	50,000 cycles min.		70ADF 6pin MDS 70ADF 5pin MDS 70ADF 4pin MDS 70ADF 3pin MDS 70ADF 2pin MDS	Downloads	Buy

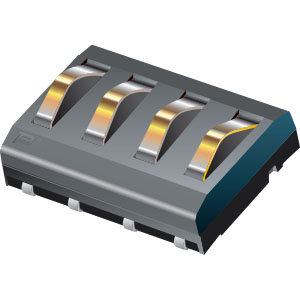

70AD-Male	Glass reinforced thermoplastic, UL 94 V-0 listed, black	Copper Alloy	DC 3 A/contact	DC 30 V	25 mΩ max.	AC 500 V	500 MΩ min.	-55 °C to 125 °C	50,000 cycles min.		70ADM 6pin MDS 70ADM 5pin MDS 70ADM 4pin MDS 70ADM 3pin MDS 70ADM 2pin MDS	Downloads	Buy
