Automotive

Specifications

Qualified for use in the harsh environments found in automotive and industrial applications. Customers are able to choose their own combination of electrical parameters, including capacitance, operating voltages and surge currents. Compared to common disc varistors, automotive varistors and varistor + capacitor EMI filters offer better electrical performance in much smaller case sizes.

Conflict Mineral Source Reporting for Varistor products CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Description	Technology & Package	Sizes (mm) or Pkg	Max Continuous Voltage (V_rms)	Max Continuous Voltage (Vdc)	Peak Single Pulse Current 8/20µs (I_max)	Load Dump Energy (WLD)	Temperature Rating ⁰C	RoHS Compliant	AEC-Q200
AV-SMD	Automotive grade varistors	SMD	0805, 1206, 1812, 2220, 3225	14 – 40 V	16 – 56 V	200 – 2000 A	1 – 25 J	–55 to +125	Yes	Grade 1 qualified

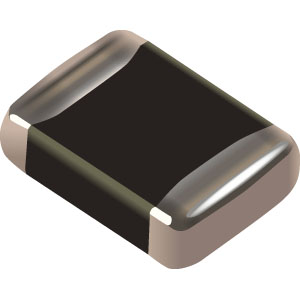

AV HT-SMD	Automotive grade varistors high temperature rated	SMD	0805, 1206, 1812, 2220, 3225	14 – 40 V	16 – 56 V	200 – 2000 A	1 – 25 J	–55 to +150	Yes	Grade 1 qualified

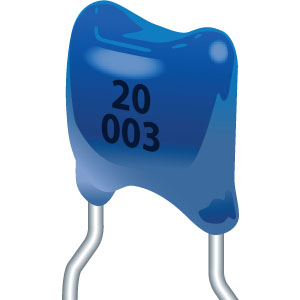

AV-TH	Automotive grade through-hole multilayer	MLV-through-hole	602, 802, 902, 1103	14 – 40 V	16 – 56 V	400 – 2000 A	3 – 50 J	–55 to +125	Yes	Grade 1 qualified
MV	Dual function MLV & filter cap	MLV capacitor through-hole	9 mm	2 – 95 V	3 – 125 V	150 A		–55 to +125	Yes
OV	Automotive grade dual-function varistor	Hybrid MLV-capacitor through-hole	9 mm, 12 mm	14 – 40 V	16 – 56 V	800 A, 1200 A	6 – 12 J	–55 to +125	Yes	Grade 1 qualified
BVRA0402	Automotive Grade Low Voltage Varistors	MLV SMD	0402	4 – 14 V	5.5 – 18 V	10 – 20 A		–40 to +125	Yes	Yes
BVRA0603	Automotive Grade Low Voltage Varistors	MLV SMD	0603	4 – 30 V	5.5 – 38 V	20 – 30 A		–40 to +125	Yes	Yes
BVRA0805	Automotive Grade Low Voltage Varistors	MLV SMD	0805	4 – 35 V	5.5 – 45 V	30 – 120 A		–40 to +125	Yes	Yes
BVRA1206	Automotive Grade Low Voltage Varistors	MLV SMD	1206	4 – 60 V	5.5 – 85 V	100 – 200 A		–40 to +125	Yes	Yes

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS
AV	1	See Data Sheet	TBD	e3	Var2	Request Report	AV
BVR0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR0805
BVR1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR1206
BVR1210	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1210
BVR1812	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1812
BVRA0402	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0402
BVRA0603	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0603
BVRA0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0805
BVRA1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1206
CV	1	See Data Sheet	TBD	e3	Var2	Request Report	CV
CVQ	1	See Data Sheet	TBD	e3	Var2	Request Report	CVQ
DV	1	See Data Sheet	TBD	e3	Var2	Request Report	DV
EV	1	See Data Sheet	TBD	e3	EV CoC	Request Report	EV
MV	1	See Data Sheet	TBD	e3	Var1	Request Report	MV
PV	1	See Data Sheet	TBD	e3	Var2	Request Report	PV
SV	1	See Data Sheet	TBD	e3	Var2	Request Report	SV
ZV	1	See Data Sheet	TBD	e3	Var2	Request Report	ZV
ZV50S2220452NIR1	1	See Data Sheet	TBD	e3	Var3	Request Report	ZV50S2220452NIR1
ZV-TH	1	See Data Sheet	TBD	e3	Var1	Request Report	ZV-TH

File	Type	Size	Uploaded on	Download
Protecting High Speed Communication Ports	PDF	843.57 KB	28 May, 2015	Download
