車載製品 – AEC-Q200車載用規格対応

技術仕様

Conflict Mineral Source Reporting for Varistor products CMRT

製品

パラメトリック検索

RoHS

コラタラル

ビデオ

サンプル請求

お問い合わせ

Series	Data Sheet	Description	Technology & Package	Sizes (mm) or Pkg	Max Continuous Voltage (V_rms)	Max Continuous Voltage (Vdc)	Peak Single Pulse Current 8/20µs (I_max)	Load Dump Energy (WLD)	Temperature Rating ⁰C	RoHS Compliant	AEC-Q200
MV	MV Series	Dual function MLV & filter cap	MLV capacitor through-hole	9 mm	2 – 95 V	3 – 125 V	150 A		–55 to +125	Yes
BVRA0603	BVRA0603	Automotive Grade Low Voltage Varistors	MLV SMD	0603	4 – 30 V	5.5 – 38 V	20 – 30 A		–40 to +125	Yes	Yes
BVRA1206	BVRA1206	Automotive Grade Low Voltage Varistors	MLV SMD	1206	4 – 60 V	5.5 – 85 V	100 – 200 A		–40 to +125	Yes	Yes
BVRA0805	BVRA0805	Automotive Grade Low Voltage Varistors	MLV SMD	0805	4 – 35 V	5.5 – 45 V	30 – 120 A		–40 to +125	Yes	Yes
BVRA0402	BVRA0402	Automotive Grade Low Voltage Varistors	MLV SMD	0402	4 – 14 V	5.5 – 18 V	10 – 20 A		–40 to +125	Yes	Yes
BVRA1812	BVRA1812	Automotive Grade Low Voltage Varistors	MLV SMD	1812	10 – 75 V	14 – 100 V	400 – 800 A		–40 to +125	Yes	Yes
BVRA1210	BVRA1210	Automotive Grade Low Voltage Varistors	MLV SMD	1210	9 – 75 V	11 – 100 V	200 – 500 A		–40 to +125	Yes	Yes
OV	OV Series	Automotive grade dual-function varistor	Hybrid MLV-capacitor through-hole	9 mm, 12 mm	14 – 40 V	16 – 56 V	800 A, 1200 A	6 – 12 J	–55 to +125	Yes	Grade 1 qualified
AV-TH	AV-TH Series	Automotive grade through-hole multilayer	MLV-through-hole	602, 802, 902, 1103	14 – 40 V	16 – 56 V	400 – 2000 A	3 – 50 J	–55 to +125	Yes	Grade 1 qualified
AV-SMD	AV Series	Automotive grade varistors	SMD	0805, 1206, 1812, 2220, 3225	14 – 40 V	16 – 56 V	200 – 2000 A	1 – 25 J	–55 to +125	Yes	Grade 1 qualified
AV HT-SMD	AVHT Series	Automotive grade varistors high temperature rated	SMD	0805, 1206, 1812, 2220, 3225	14 – 40 V	16 – 56 V	200 – 2000 A	1 – 25 J	–55 to +150	Yes	Grade 1 qualified

モデル/データシート	MSL	はんだ付けプロファイル	梱包ラベル	端子	適合証明書	サードパーティテストレポート	MDS
CVQ	1	See Data Sheet	TBD	e3	Var2	Request Report	CVQ
AV	1	See Data Sheet	TBD	e3	Var2	Request Report	AV
CV	1	See Data Sheet	TBD	e3	Var2	Request Report	CV
DV	1	See Data Sheet	TBD	e3	Var2	Request Report	DV
MV	1	See Data Sheet	TBD	e3	Var1	Request Report	MV
PV	1	See Data Sheet	TBD	e3	Var2	Request Report	PV
SV	1	See Data Sheet	TBD	e3	Var2	Request Report	SV
ZV	1	See Data Sheet	TBD	e3	Var2	Request Report	ZV
ZV-TH	1	See Data Sheet	TBD	e3	Var1	Request Report	ZV-TH
EV	1	See Data Sheet	TBD	e3	EV CoC	Request Report	EV
BVR1812	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1812
BVR1210	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1210
BVR1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR1206
BVR0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR0805
BVRA1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1206
BVRA0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0805
BVRA0603	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0603
BVRA0402	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0402
ZV50S2220452NIR1	1	See Data Sheet	TBD	e3	Var3	Request Report	ZV50S2220452NIR1

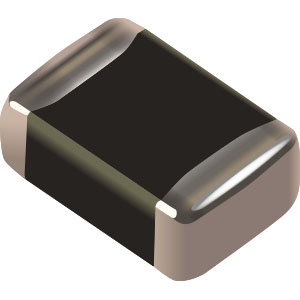

BVRA1812	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1812

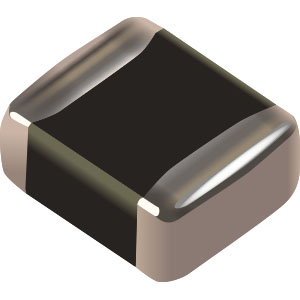

BVRA1210	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1210
