Specifications

Traditional PCB products provide rugged protection in the industry standard form factor. Bourns® CVQ Series plastic encapsulated SMD varistors offer very high energy capabilities compared to standard disc varistors of the same size. These plastic encapsulated SMD size 3225 and 4032 varistors represent an exact performance equivalent to through-hole disc varistors of 5 and 7 mm diameter, respectively.

Conflict Mineral Source Reporting for Varistor products CMRT

Product Series
Parametric Table
RoHS Files
Collateral
Videos
Request Samples
Contact Us
Series Data Sheet Description Product Photo Device Symbol Technology & Package Sizes (mm) or Pkg Max Continuous Voltage (Vrms) Max Continuous Voltage (Vdc) Peak Single Pulse Current 8/20µs (Imax) Response Time Temperature Rating ⁰C Agency Listing Engineering RoHS Compliant
CV CV Medium voltage disk varistors cv_th_part device_symbol_through_hole MOV round disk 5, 7, 10, 14, 20, 23 50 – 680 V 65 – 895 V 400 – 6,500 A <25 ns –40 to +85 UL 1449
E313168
Yes
CVQ CVQ Extended medium voltage varistors disk cvq_th_part device_symbol_through_hole MOV round disk 7, 10, 14, 20, 23 60 – 550 V 85 – 745 V 1,750 – 15,000 A <25 ns –40 to +85 UL 1449
E313168
Yes
SV SV Special medium voltage varistors sv_th_part device_symbol_through_hole MOV square disk 5, 7, 10, 14, 20, 23 60 – 500 V 60 – 550 V 600 – 15,000 A <25 ns –40 to +85 UL 1449
E313168
Yes
ZV ZV Low voltage leaded style varistors ZV-TH Series device_symbol_through_hole MLV leaded 5, 7, 10, 14, 20 11 – 40 V 15 – 56 V 100 – 2,000 A <25 ns –55 to +125 UL 1449
E313168
Yes
MOV-07D MOV-07D Extended temperature and voltage varistors mov07_part device_symbol_through_hole MOV round disk 7 11 – 510 V 14 – 675 V 250 – 1,200 A <25 ns –40 to +105 UL 1449
E313168
Yes

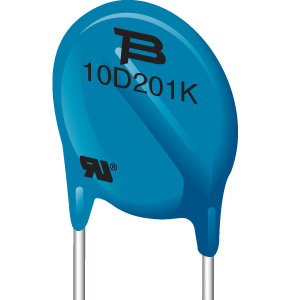

MOV-10D MOV-10D Extended temperature and voltage varistors mov10_part device_symbol_through_hole MOV round disk 10 11 – 510 V 14 – 675 V 500 – 2500 A <25 ns –40 to +105 UL 1449
E313168
Yes
MOV-14D MOV-14D Extended temperature and voltage varistors mov14_part device_symbol_through_hole MOV round disk 14 11 – 1100 V 14 – 1465 V 1,000 – 4,500 A <25 ns –40 to +105 UL 1449
E313168
Yes

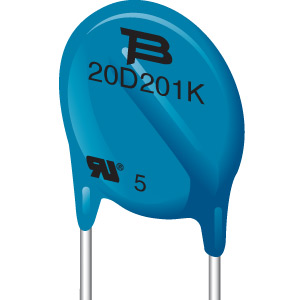

MOV-20D MOV-20D Extended temperature and voltage varistors mov20_part device_symbol_through_hole MOV round disk 20 11 – 1100 V 14 – 1465 V 2,000 – 6,500 A <25 ns –40 to +105 UL 1449
E313168
Yes

Conflict Mineral Source Reporting for Varistor products CMRT

Rated Voltage (AC) min
2
max
1100
Rated Voltage (DC) min
3
max
1465
Nominal Voltage @ 1mA (V) min
4
max
1800
 Not Specified Check this box to include products for which a Nominal Voltage @ 1mA rating is not specifically called out on the data sheet
Max. Clamping Voltage (V) min
10
max
2970
Clamping Current (A) min
1
max
500
 Not Specified Check this box to include products for which a Clamping Current (A) rating is not specifically called out on the data sheet
Nominal Current (multiple pulses) (A) min
3000
max
8000
 Not Specified Check this box to include products for which a Nominal Current (multiple pulses) (A) rating is not specifically called out on the data sheet
Max. Surge Current (8/20us pulse shape - Imax) (A) min
30
max
80000
 Not Specified Check this box to include products for which a Max. Surge Current (8/20us pulse shape - Imax) (A) rating is not specifically called out on the data sheet
Max. Surge Current (10/350us pulse shape - Iimp) (A) min
4000
max
6500
 Not Specified Check this box to include products for which a Max. Surge Current (10/350us pulse shape - Iimp) (A) rating is not specifically called out on the data sheet
Typical Capacitance @ 1kHz (nF) min
0.004
max
1500
Mounting Style
Body Size SMD (EIA)
Body Diameter TH (mm)
Automotive Compliance
Min. Operating Temperature (°C)
Max. Operating Temperature (°C)
Packaging
Technology
FileTypeSizeUploaded onDownload
