MLV

Specifications

Bourns® MLVs provide excellent on-board ESD and surge protection for consumer and vehicle electronics, as they provide very good overcurrent and overvoltage protection. They come in a broad range of current and energy handling capabilities, as well as extended temperature ranges.

Conflict Mineral Source Reporting for Varistor products CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Description	Technology & Package	Package Sizes	Max Continuous Voltage (V_rms)	Max Continuous Voltage (Vdc)	Peak Single Pulse Current 8/20 µs (I_max)	Response Time	Temperature Rating ⁰C	Agency Listing	Design Files	RoHS Compliant
ZV SMD	Low voltage varistors	MLV SMD	0603, 0805, 1206, 1210, 1812, 2220	11 – 130 V	14 – 170 V	30 – 1200 A	<2 ns	–55 to +125	N/A	Design Files	Yes
ZV HT	High temperature low voltage varistors	MLV SMD	0603, 0805, 1206, 1210, 1812, 2220	11 – 130 V	14 – 170 V	30 – 1200 A	<2 ns	–55 to +150	N/A	Design Files	Yes
ZV50S2220452NIR1	High surge multilayer varistor	MLV SMD	2220	50 V	63 V	4500 A	<2 ns	–55 to +125	N/A	Design Files	Yes

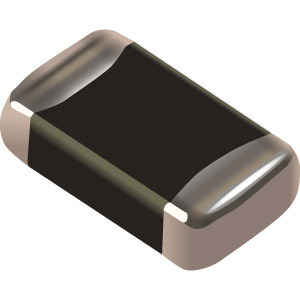

ZVX	Low capacitance & low energy varistors	MLV SMD	0603, 0805, 1206,	11 – 30 V	14 – 38 V	30 – 40 A	<1 ns	–55 to +125	N/A	Design Files	Yes

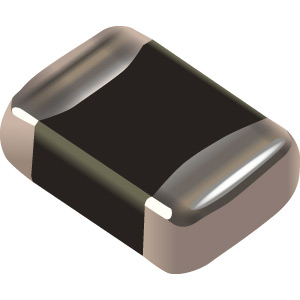

ZVE	ESD suppression varistors	MLV SMD	0603, 0805, 1206,1210	14 V	18 V	20 – 30 A	<1 ns	–55 to +125	N/A	Design Files	Yes
BVR0805	Low voltage varistors	MLV SMD	0805	4 – 14 V	5.5 – 18 V	80 – 120 A	<0.5 ns	–40 to +125	N/A	Design Files	Yes

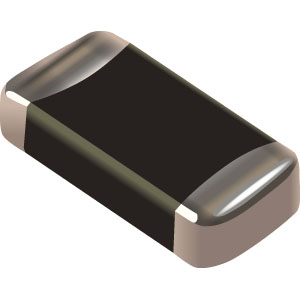

BVR1206	Low voltage varistors	MLV SMD	1206	4 – 14 V	5.5 – 16 V	200 A	<0.5 ns	–40 to +125	N/A	Design Files	Yes
BVR1210	Low voltage varistors	MLV SMD	1210	4 – 14 V	5.5 – 18 V	400 – 500 A	<0.5 ns	–40 to +125	N/A	Design Files	Yes
BVR1812	Low voltage varistors	MLV SMD	1812	4 – 10 V	5.5 – 14 V	800 A	<1 ns	–40 to +125	N/A	Design Files	Yes
BVRA0402	Automotive Grade Low Voltage Varistors	MLV SMD	0402	4 – 14 V	5.5 – 18 V	10 – 20 A	<0.5 ns	–40 to +125	N/A	Design Files	Yes
BVRA0603	Automotive Grade Low Voltage Varistors	MLV SMD	0603	4 – 30 V	5.5 – 38 V	20 – 30 A	<0.5 ns	–40 to +125	N/A	Design Files	Yes
BVRA0805	Automotive Grade Low Voltage Varistors	MLV SMD	0805	4 – 35 V	5.5 – 45 V	30 – 120 A	<0.5 ns	–40 to +125	N/A	Design Files	Yes
BVRA1206	Automotive Grade Low Voltage Varistors	MLV SMD	1206	4 – 60 V	5.5 – 85 V	100 – 200 A	<0.5 ns	–40 to +125	N/A	Design Files	Yes
BVRA1210	Automotive Grade Low Voltage Varistors	MLV SMD	1210	9 – 75 V	11 – 100 V	200 – 500 A	< 1.0 ns	–40 to +125	N/A	Design Files	Yes
BVRA1812	Automotive Grade Low Voltage Varistors	MLV SMD	1812	10 – 75 V	14 – 100 V	400 – 800 A	< 1.0 ns	–40 to +125	N/A	Design Files	Yes

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS

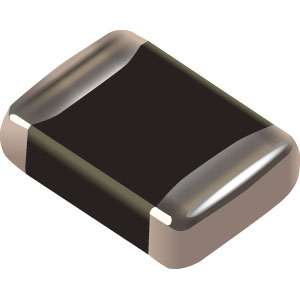

AV	1	See Data Sheet	TBD	e3	Var2	Request Report	AV
BVR0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR0805
BVR1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR1206
BVR1210	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1210
BVR1812	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1812
BVRA0402	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0402
BVRA0603	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0603
BVRA0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0805
BVRA1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1206
BVRA1210	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1210
BVRA1812	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1812

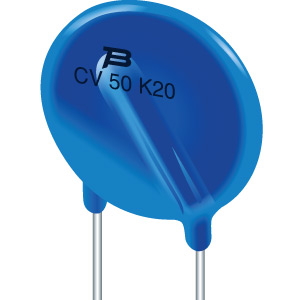

CV	1	See Data Sheet	TBD	e3	Var2	Request Report	CV

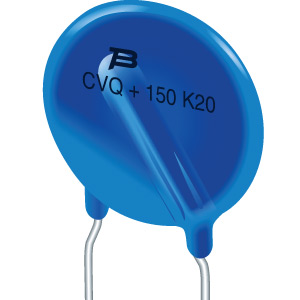

CVQ	1	See Data Sheet	TBD	e3	Var2	Request Report	CVQ

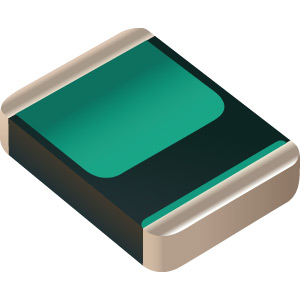

DV	1	See Data Sheet	TBD	e3	Var2	Request Report	DV
EV	1	See Data Sheet	TBD	e3	EV CoC	Request Report	EV
MV	1	See Data Sheet	TBD	e3	Var1	Request Report	MV

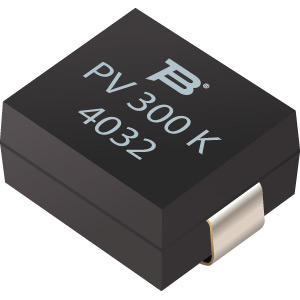

PV	1	See Data Sheet	TBD	e3	Var2	Request Report	PV

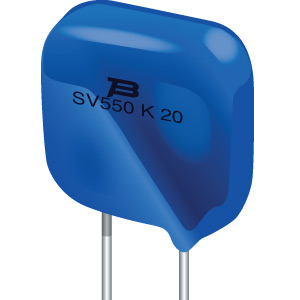

SV	1	See Data Sheet	TBD	e3	Var2	Request Report	SV
ZV	1	See Data Sheet	TBD	e3	Var2	Request Report	ZV
ZV50S2220452NIR1	1	See Data Sheet	TBD	e3	Var3	Request Report	ZV50S2220452NIR1

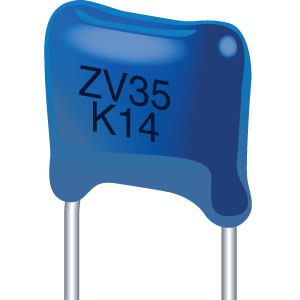

ZV-TH	1	See Data Sheet	TBD	e3	Var1	Request Report	ZV-TH
