Power TVS Products (PTVS)

Specifications

Power supplies, both AC and DC, used in telecommunications and other exposed applications often need protection from hostile events such as power line surges and indirect lightning strikes. It is critical to avoid damage to the power supply by limiting the peak surge voltage to an acceptable level without short-circuiting the line for an extended period of time in order to minimize the downtime of critical systems and avoid costly maintenance calls. Power TVS diodes are the only ones that can fulfill the requirements of these applications.

Power TVS diodes provide outstanding protection for both alternating current and direct current power line applications by a Power TVS diode in a surface mount package. When compared to other devices, such as MOVs, power TVS diodes provide much better protection. Bourns provides a broad voltage range of devices with surge current ratings ranging from 3, 6, 10, and 15 kA to suit a variety of applications.

• PTVS Product Training Modules
• PTVS Technical Library
• PTVS Material Information (Soldering Profile, RoHS, MDS, etc )
• Conflict Mineral Source Reporting for Diodes, PTVS CFSI_CMRT4-01

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Description	Repetitive Standoff Voltage V_wm	Peak Surge Current 8/20 µs(A)	RoHS Compliant	Design Files	Buy Now
PTVS1-xxxC-H	High Current PTVS Product	22–86	1000	PTVS1-xxxC-H	Downloads	Buy
PTVS2-xxxC-H	High Current PTVS Product	22-86	2000	PTVS2-xxxC-H	Downloads	Buy
PTVS1-xxxC-TH	High Voltage Series PTVS Product	66–380	1000	PTVS1-xxxC-TH	Downloads	Buy

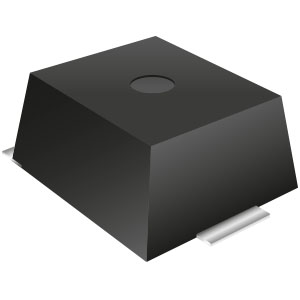

PTVS1-240C-M	High Temperature PTVS Product	240	1000	PTVS1-240C-M	Downloads	Buy
PTVS3-015C-TH	High Temperature Series PTVS Product	15	3000	PTVS3-015C-TH	Downloads	Buy
PTVS3-058C-TH PTVS3-076C-TH	High Temperature Series PTVS Product	58-76	3000	PTVS3-058C-TH PTVS3-076C-TH	Downloads	Buy (PTVS3-058C-TH) Buy (PTVS3-076C-TH)
PTVS3-380C-TH PTVS3-430C-TH	High Temperature Series PTVS Product	380-430	3000	PTVS3-380C-TH PTVS3-430C-TH	Downloads	Buy (PTVS3-380C-TH) Buy (PTVS3-430C-TH)
PTVS3-xxxC-SH	High Temperature Series PTVS Product	58-76	3000	PTVS3-xxxC-SH	Downloads	Buy
PTVS3-xxxC-M	High Current Surface Mount Series PTVS Product	66-76	3000	PTVS3-xxxC-M	Downloads	Buy (PTVS3-066C-M ) Buy ( PTVS3-076C-M)
PTVS6-058C-SH PTVS6-076C-SH	High Temperature Series PTVS Product	58-76	6000	PTVS6-058C-SH PTVS6-076C-SH	Downloads	Buy (PTVS6-058C-SH) Buy (PTVS6-076C-SH)

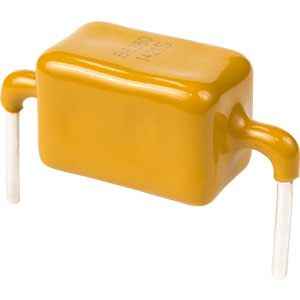

PTVS6-xxxC-TH	High Temperature Series PTVS Product	58-76	6000	PTVS6-xxxC-TH	Downloads	Buy
PTVS6-380C-TH PTVS6-430C-TH	High Temperature Series PTVS Product	380-430	6000	PTVS6-380C-TH PTVS6-430C-TH	Downloads	Buy (PTVS6-380C-TH) Buy (PTVS6-430C-TH)
PTVS6-xxxC-M	High Current Surface Mount Series PTVS Product	66-76	6000	PTVS6-xxxC-M	Downloads	Buy
PTVS10-058C-TH PTVS10-076C-TH	High Temperature Series PTVS Product	58-76	10000	PTVS10-058C-TH PTVS10-076C-TH	Downloads	Buy (PTVS10-058C-TH) Buy (PTVS10-076C-TH)
PTVS10-170C-TH PTVS10-320C-TH PTVS10-380C-TH PTVS10-430C-TH PTVS10-470C-TH	High Temperature Series PTVS Product	170-470	10000	PTVS10-170C-TH PTVS10-320C-TH PTVS10-380C-TH PTVS10-430C-TH PTVS10-470C-TH	Downloads	Buy (PTVS10-170C-TH) Buy (PTVS10-320C-TH) Buy (PTVS10-380C-TH) Buy (PTVS10-430C-TH) Buy (PTVS10-470C-TH)
PTVS10-xxxC-SH	High Temperature Series PTVS Product	58-76	10000	PTVS10-xxxC-SH	Downloads	Buy
PTVS10-xxxC-M	High Current Surface Mount Series PTVS Product	58-76	10000	PTVS10-xxxC-M	Downloads	Buy
PTVS10-086C-M	High Current Surface Mount Series PTVS Product	86	10000	PTVS10-086C-M	Downloads	Buy
PTVS15-xxxC-SH	High Temperature Series PTVS Product	58-76	15000	PTVS15-xxxC-SH	Downloads	Buy
PTVS15-xxxC-TH	High Temperature Series PTVS Product	58-76	15000	PTVS15-xxxC-TH	Downloads	Buy
PTVS20-015C-H	20 kA, 15 V Bidirectional PTVS Diode in a DFN Package	15	20000	PTVS20-015C-H	Downloads	Buy
PTVS20-015C-TH	20 kA, 15 V Bidirectional PTVS Diode	15	20000	PTVS20-015C-TH	Downloads	Buy

Rated Voltage - DC V_WM (V)	min 15	15 16 17 18 20 22 24 26 28 30 33 36 40 43 45 48 51 54 58 66 76 86 170 190 320 380 380.0 430.0 430 470 Drag Drag	max 470
Nominal Voltage - V_BR (V)	min 17.5	17.5 18.0 19.1 20.2 22.4 24.6 27.0 29.2 31.5 33.7 37.2 40.4 44.9 48.3 50.6 53.9 57.4 60.7 65.2 66.0 67.0 73.2 75 76.0 90.0 92.0 101.0 200.0 206 352.0 422 422.0 465.0 500.0 Drag Drag	max 500.0
Max. Clamping Voltage (10/1000 us)	min 23.9	23.9 27 28.4 31.6 34.1 37.4 40.5 43.7 46.6 50.3 55 60.5 64.2 67.3 71.5 76.3 80.7 86.3 96.9 Drag Drag	max 96.9
Max. Clamping Voltage (10/1000 us)	Not Specified Check the "Not Specified" box to include products that do not have this particular parameter specified.
Max. Clamping Current (10/1000us)	min 143.3	143.3 161 172.2 182.1 194.3 206.3 233.6 247.8 272.7 298.1 321.7 343.3 370.6 400.7 439.6 475.5 527.8 556.6 599 Drag Drag	max 599
Max. Clamping Current (10/1000us)	Not Specified Check the "Not Specified" box to include products that do not have this particular parameter specified.

Clamping Voltage (8/20us)	min 26	26 28 86 110 120 135 140 150 157 227 260 440 520 580 630 Drag Drag	max 630
	Not Specified Check the "Not Specified" box to include products that do not have this particular parameter specified.
Surge Current (8/20us) - Ippm	min 1000	1000 3000 6000 10000 15000 20000 Drag Drag	max 20000
Function
Mounting Style
Uni/Bi Directional
Automotive Compliance

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS	China RoHS
CD0201-T2.0LC		SMD (Semiconductor Packages)	Label Diodes1	e4	CD 1	Request Report	CD0201-T2.0LC	China RoHS2 - TVS Diodes
CD0201-T20C		SMD (Semiconductor Packages)	Label Diodes1	e4	CD 1	Request Report	CD0201-T20C	China RoHS2 - TVS Diodes
CDDFN2-T3.3B		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDDFN2-T3.3B CDDFN2-T33B 051716	China RoHS2 - TVS Diodes
CDDFN2-T5.0LC		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDDFN2-T50LC	China RoHS2 - TVS Diodes
CDSOD323-TxxC Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	SOD323 Package	China RoHS2 - TVS Diodes
CDSOD323-TxxLC Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	SOD323 Package	China RoHS2 - TVS Diodes
CDSOD323-TxxC-DSL Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDSOD323	China RoHS2 - TVS Diodes
CDSOD323-TxxSC Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	SOD323 Package	China RoHS2 - TVS Diodes
SMF4L Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMF4L	China RoHS2 EFUP50 - TVS Diodes
SMF4L-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMF4L-Q	China RoHS2 EFUP50 - TVS Diodes
SMAJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMAJ5.0A~350A, SMAJ5.0CA~130CA SMAJ400A~495A, SMAJ150CA~495CA	China RoHS2 EFUP50 - TVS Diodes
SMAJ-Q Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMAJ-Q	China RoHS2 EFUP50 - TVS Diodes
SMA6J Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMA6J	China RoHS2 EFUP50 - TVS Diodes
SMA6J-Q Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMA6J-Q	China RoHS2 EFUP50 - TVS Diodes
SMBJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMBJ5.0A~376A, SMBJ5.0CA~170CA SMBJ400A~495A, SMBJ180CA~495CA	China RoHS2 EFUP50 - TVS Diodes
SMBJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMBJ-Q	China RoHS2 EFUP50 - TVS Diodes
1.5SMBJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	1.5SMBJ12A~64A, 1.5SMBJ12CA~33CA 1.5SMBJ70A~85A, 1.5SMBJ36CA~58CA	China RoHS2 EFUP50 - TVS Diodes
SMCJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMCJ5.0A~350A, SMCJ5.0CA~170CA SMCJ400A~495A, SMCJ180CA~495CA	China RoHS2 EFUP50 - TVS Diodes
SMCJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMCJ-Q	China RoHS2 EFUP50 - TVS Diodes

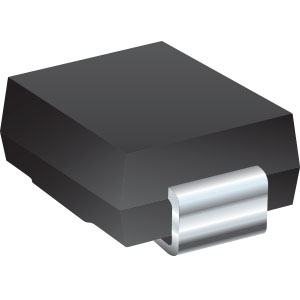

SMLJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMLJ5.0A~170A, 5.0CA~43CA SMLJ45CA~170CA	China RoHS2 EFUP50 - TVS Diodes
SMLJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMLJ-Q	China RoHS2 EFUP50 - TVS Diodes

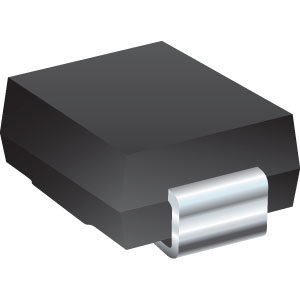

5.0SMDJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	5.0SMDJ	China RoHS2 EFUP50 - TVS Diodes
5.0SMDJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	5.0SMDJ-Q
SM8S-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SM8S-Q	China RoHS2 EFUP50 - TVS Diodes
15KPA-SD-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	15KPA-SD-Q	China RoHS2 EFUP50 - TVS Diodes
SM8SF-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SM8SF-Q	China RoHS2 EFUP50 - TVS Diodes
P4SMA Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P4SMA480A~550A, P4SMA160CA~550CA P4SMA6.8A~440A, P4SMA6.8CA~150CA	China RoHS2 EFUP50 - TVS Diodes
P4SMA-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P4SMA-Q	China RoHS2 EFUP50 - TVS Diodes
P6SMB Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P6SMB6.8A~440A, P6SMB6.8CA~120CA P6SMB480A~550A, P6SMB130CA~550CA	China RoHS2 EFUP50 - TVS Diodes
P6SMB-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P6SMB-Q	China RoHS2 EFUP50 - TVS Diodes
1.5SMC Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	1.5SMC480A~550A, 1.5SMC130CA~550CA 1.5SMC6.8A~440A, 1.5SMC6.8CA~120CA	China RoHS2 EFUP50 - TVS Diodes
1.5SMC-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	1.5SMC-Q	China RoHS2 EFUP50 - TVS Diodes
CD1005-S01575	1	SMD - Semiconductor Packages	Label Diodes1	e3	CD 1	Request Report	CD1005 MDS	China RoHS2 - TVS Diodes
CD1005-S0180	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS	China RoHS2 - TVS Diodes
CD1005-S0180R	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS	China RoHS2 - TVS Diodes
CD214A-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214A-T150CA~T170CA MDS CD214A-T5.0A T170A T5.0CA T130CA MDS	China RoHS2 EFUP50 - TVS Diodes
CD214B-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214B-Tx_MDS	China RoHS2 EFUP50 - TVS Diodes
CD214C-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214C-Tx_MDS	China RoHS2 EFUP50 - TVS Diodes
CD214L-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214L-T5.0A T170A T5.0CA T43CA MDS CD214L-T45CA_170CA MDS	China RoHS2 EFUP50 - TVS Diodes
CDSOD323-T05S-Q Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDSOD323	China RoHS2 - TVS Diodes
