Power TVS-Produkte

Spezifikationen

Bourns® Power TVS (PTVS) Products are high current bidirectional Transient Voltage Suppressor (TVS) diodes designed for use in AC line protection and high power DC bus clamping applications. These devices offer bidirectional port protection from 58 volts to 470 volts, and are RoHS and UL listed while also meeting IEC 61000-4-5 8/20 μs current surge requirements.

The use of silicon technology in the Power TVS products offers lower clamping voltage under surge compared to competing MOV technology.

The devices are provided in through-hole packages and meet industry standard requirements such as RoHS and Pb Free solder reflow profiles.

Please have a look at the Power TVS Products online training module.

For more information please download the Surface Mount Power TVS Diodes Deliver Optimal Protection for Power Supplies Application Note.

Herkunftsbericht für Diodes, PTVS ：CMRT

Produkte

Parametrische

RoHS

Produktinformation

Videos

Muster anfordern

Kontaktieren

Serie	Datenblatt	Beschreibung	Periodische Spitzensperrspannung, Symbol: _DRM/Einheit: V	Spitzenstoßstrom 8/20us (A)	RoHS-konform	Design Dateien
PTVS1-xxxC-H	PTVS1-xxxC-H	High Current PTVS Product	22–86	1000	PTVS1-xxxC-H
PTVS2-xxxC-H	PTVS2-xxxC-H	High Current PTVS Product	22-86	2000	PTVS2-xxxC-H
PTVS1-xxxC-TH	PTVS1-xxxC-TH	High Voltage Series PTVS Product	66–380	1000	PTVS1-xxxC-TH
PTVS1-240C-M	PTVS1-240C-M	High Temperature PTVS Product	240	1000	PTVS1-240C-M

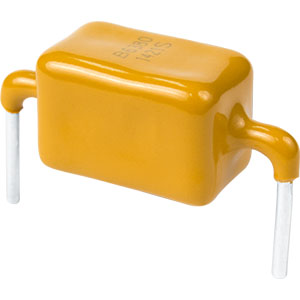

PTVS3-015C-TH	PTVS3-015C-TH	High Temperature Series PTVS Product	15	3000	PTVS3-015C-TH
PTVS3-058C-TH PTVS3-076C-TH	PTVS3-0xxC-TH	High Temperature Series PTVS Product	58-76	3000	PTVS3-058C-TH PTVS3-076C-TH
PTVS3-380C-TH PTVS3-430C-TH		High Temperature Series PTVS Product	380-430	3000	PTVS3-380C-TH PTVS3-430C-TH	Downloads
PTVS3-xxxC-SH	PTVS3-0xxC-SH	High Temperature Series PTVS Product	58-76	3000	PTVS3-xxxC-SH
PTVS3-xxxC-M	PTVS3-M	High Current Surface Mount Series PTVS Product	66-76	3000	PTVS3-xxxC-M
PTVS6-058C-SH PTVS6-076C-SH		High Temperature Series PTVS Product	58-76	6000	PTVS6-058C-SH PTVS6-076C-SH	Downloads
PTVS6-058C-TH PTVS6-076C-TH	PTVS6-TH	High Temperature Series PTVS Product	58-76	6000	PTVS6-058C-TH PTVS6-076C-TH
PTVS6-380C-TH PTVS6-430C-TH		High Temperature Series PTVS Product	380-430	6000	PTVS6-380C-TH PTVS6-430C-TH	Downloads
PTVS6-xxxC-M	PTVS6-M	High Current Surface Mount Series PTVS Product	66-76	6000	PTVS6-xxxC-M

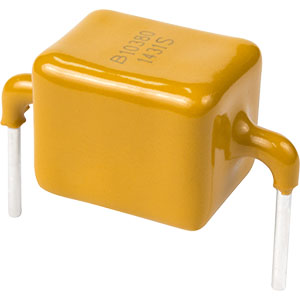

PTVS10-058C-TH PTVS10-076C-TH	PTVS10-TH	High Temperature Series PTVS Product	58-76	10000	PTVS10-058C-TH PTVS10-076C-TH
PTVS10-170C-TH PTVS10-320C-TH PTVS10-380C-TH PTVS10-430C-TH PTVS10-470C-TH		High Temperature Series PTVS Product	170-470	10000	PTVS10-170C-TH PTVS10-320C-TH PTVS10-380C-TH PTVS10-430C-TH PTVS10-470C-TH	Downloads
PTVS10-xxxC-SH		High Temperature Series PTVS Product	58-76	10000	PTVS10-xxxC-SH	Downloads
PTVS10-xxxC-M	PTVS10-M	High Current Surface Mount Series PTVS Product	58-76	10000	PTVS10-xxxC-M
PTVS10-086C-M	PTVS10-086C-M	High Current Surface Mount Series PTVS Product	86	10000	PTVS10-086C-M
PTVS15-xxxC-SH		High Temperature Series PTVS Product	58-76	15000	PTVS15-xxxC-SH	Downloads
PTVS15-xxxC-TH	PTVS15-TH	High Temperature Series PTVS Product	58-76	15000	PTVS15-xxxC-TH
PTVS20-015C-H	PTVS20-015C-H	20 kA, 15 V Bidirectional PTVS Diode in a DFN Package	15	20000	PTVS20-015C-H
PTVS20-015C-TH	PTVS20-015C-TH	20 kA, 15 V Bidirectional PTVS Diode	15	20000	PTVS20-015C-TH

Peak Pulse Power (10/1000us) - P_PP (W)	min 400	400 600 1500 3000 5000 6600 7000 15000 Drag Drag	max 15000
Working Reverse Voltage – V_RWM (V)	min 5	5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 22 24 26 28 30 33 36 40 43 45 48 51 53 54 58 60 64 66 70 75 78 85 90 94 100 110 120 130 145 150 160 170 180 185 200 220 250 256 300 342 350 376 400 434 440 477 486 495 Drag Drag	max 495
Max. V_C @ 10/1000us (V)	min 9.2	9.2 10.5 11.3 12.1 13.4 14.4 15.4 16.7 18.2 21.2 22.5 23.9 25.2 26 27.6 28.4 30.6 32.4 34.1 37.4 38.9 41.4 43.7 45.7 48.4 50.3 53.9 58.1 60.5 64.5 67.3 70.1 72.7 77 80.7 85 87.1 93.6 96.9 113 125 137 152 165 179 207 219 243 259 275 324 344 405 482 548 602 658 713 740 760 Drag Drag	max 760
Max. I_PP @ 10/1000us (A)	min 0.5	0.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 125 150 175 200 225 250 300 400 500 599 Drag Drag	max 599

Max. V_C @ 8/20us (V)	min 12	12 14 15 16 17 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 125 150 175 200 300 400 500 600 700 800 900 988 Drag Drag	max 988
	Not Specified Check the "Not Specified" box to include products that do not have this particular parameter specified.
Max. I_PP @ 8/20us (A)	min 2.6	2.6 3 4 5 6 7 8 9 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 125 150 175 200 300 400 500 600 700 800 900 1000 2000 3000 4000 4077 Drag Drag	max 4077
	Not Specified Check the "Not Specified" box to include products that do not have this particular parameter specified.
Function
Package
Uni/Bi Directional
AEC-Q Compliance

Model/Datasheet	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB	China RoHS
CD0201-T2.0LC		SMD (Semiconductor Packages)	Label Diodes1	e4	CD 1	Request Report	CD0201-T2.0LC	China RoHS2 - TVS Diodes
CD0201-T20C		SMD (Semiconductor Packages)	Label Diodes1	e4	CD 1	Request Report	CD0201-T20C	China RoHS2 - TVS Diodes
CDDFN2-T3.3B		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDDFN2-T3.3B CDDFN2-T33B 051716	China RoHS2 - TVS Diodes
CDDFN2-T5.0LC		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDDFN2-T50LC	China RoHS2 - TVS Diodes
CDSOD323-TxxC Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	SOD323 Package	China RoHS2 - TVS Diodes
CDSOD323-TxxLC Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	SOD323 Package	China RoHS2 - TVS Diodes
CDSOD323-TxxC-DSL Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDSOD323	China RoHS2 - TVS Diodes
CDSOD323-TxxSC Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	SOD323 Package	China RoHS2 - TVS Diodes
SMF4L Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMF4L	China RoHS2 EFUP50 - TVS Diodes
SMF4L-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMF4L-Q	China RoHS2 EFUP50 - TVS Diodes
SMAJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMAJ5.0A~350A, SMAJ5.0CA~130CA SMAJ400A~495A, SMAJ150CA~495CA	China RoHS2 EFUP50 - TVS Diodes
SMAJ-Q Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMAJ-Q	China RoHS2 EFUP50 - TVS Diodes
SMA6J Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMA6J	China RoHS2 EFUP50 - TVS Diodes
SMA6J-Q Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMA6J-Q	China RoHS2 EFUP50 - TVS Diodes
SMBJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMBJ5.0A~376A, SMBJ5.0CA~170CA SMBJ400A~495A, SMBJ180CA~495CA	China RoHS2 EFUP50 - TVS Diodes
SMBJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMBJ-Q	China RoHS2 EFUP50 - TVS Diodes
1.5SMBJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	1.5SMBJ12A~64A, 1.5SMBJ12CA~33CA 1.5SMBJ70A~85A, 1.5SMBJ36CA~58CA	China RoHS2 EFUP50 - TVS Diodes
SMCJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMCJ5.0A~350A, SMCJ5.0CA~170CA SMCJ400A~495A, SMCJ180CA~495CA	China RoHS2 EFUP50 - TVS Diodes
SMCJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMCJ-Q	China RoHS2 EFUP50 - TVS Diodes
SMLJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMLJ5.0A~170A, 5.0CA~43CA SMLJ45CA~170CA	China RoHS2 EFUP50 - TVS Diodes
SMLJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SMLJ-Q	China RoHS2 EFUP50 - TVS Diodes
5.0SMDJ Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	5.0SMDJ	China RoHS2 EFUP50 - TVS Diodes
5.0SMDJ-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	5.0SMDJ-Q
SM8S-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SM8S-Q	China RoHS2 EFUP50 - TVS Diodes
15KPA-SD-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	15KPA-SD-Q	China RoHS2 EFUP50 - TVS Diodes
SM8SF-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	SM8SF-Q	China RoHS2 EFUP50 - TVS Diodes
P4SMA Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P4SMA_MDS2 P4SMA_MDS1	China RoHS2 EFUP50 - TVS Diodes
P4SMA-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P4SMA-Q	China RoHS2 EFUP50 - TVS Diodes
P6SMB Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P6SMB_MDS1 P6SMB_MDS2	China RoHS2 EFUP50 - TVS Diodes
P6SMB-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	P6SMB-Q	China RoHS2 EFUP50 - TVS Diodes
1.5SMC Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	1.5SMC_MDS2 1.5SMC6.8A~440A, 1.5SMC6.8CA~120CA	China RoHS2 EFUP50 - TVS Diodes
1.5SMC-Q Series		SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	1.5SMC-Q	China RoHS2 EFUP50 - TVS Diodes
CD1005-S01575	1	SMD - Semiconductor Packages	Label Diodes1	e3	CD 1	Request Report	CD1005 MDS	China RoHS2 - TVS Diodes
CD1005-S0180	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS	China RoHS2 - TVS Diodes
CD1005-S0180R	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS	China RoHS2 - TVS Diodes
CD214A-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214A-T150CA~T170CA MDS CD214A-T5.0A T170A T5.0CA T130CA MDS	China RoHS2 EFUP50 - TVS Diodes
CD214B-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214B-Tx_MDS	China RoHS2 EFUP50 - TVS Diodes
CD214C-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214C-Tx_MDS	China RoHS2 EFUP50 - TVS Diodes
CD214L-T Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 3	Request Report	CD214L-T5.0A T170A T5.0CA T43CA MDS CD214L-T45CA_170CA MDS	China RoHS2 EFUP50 - TVS Diodes
CDSOD323-T05S-Q Series	1	SMD (Semiconductor Packages)	Label Diodes1	e3	CD 1	Request Report	CDSOD323	China RoHS2 - TVS Diodes
CD0603-B0130L	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD0603
CD0603-Zxxx	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD0603
CD1005-B0140L	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS
CD1005-B0230	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS
CD1005-B0240	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS
CD1005-Zxxx	1	SMD - Semiconductor Packages	Label Diodes1	e4	CD 1	Request Report	CD1005 MDS
