Hybrid

Specifications

Bourns® hybrid varistors are created by combining different varistor technologies for increased performance and space savings. They have extended temperature ranges, bidirectional protection, and low leakage.

Conflict Mineral Source Reporting for Varistor products CMRT

Product Series
Parametric Table
RoHS Files
Request Samples
Contact Us
Series Data Sheet Description Product Photo Device Symbol Technology & Package Sizes (mm) or Pkg Max Continuous Voltage (Vrms) Max Continuous Voltage (Vdc) Peak Single Pulse Current 8/20µs (Imax) Response Time Temperature Rating ⁰C Agency Listing Engineering RoHS Compliant
IsoM3 IsoM3 Hybrid Protection Component isomov_part isomov_electrical_symbol Through Hole 10 mm 175-320 225-415 6 kA <0.3 µs -40 to +125 UL1449 Type 4
E313168 		Yes
IsoM5 IsoM5 Hybrid Protection Component isomov_part isomov_electrical_symbol Through Hole 14 mm 175-555 225-745 10 kA <0.3 µs -40 to +125 UL1449 Type 4
E313168 		Yes
IsoM8 IsoM8 Hybrid Protection Component isomov_part isomov_electrical_symbol Through Hole 20 mm 250-555 320-745 15 kA <0.3 µs -40 to +125 UL1449 Type 4
E313168 		Yes

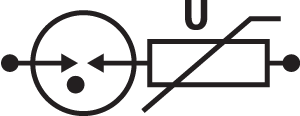

GMOV14 GMOV14 Hybrid MOV-GDT gmov14_part device_symbol_hybrid MOV-GDT through-hole 14 mm 45 – 320 V 56 – 415 V 6 kA <0.3 µs –40 to +85 UL 1449
E313168 		Yes
GMOV20 GMOV20 Hybrid MOV-GDT gmov20_part device_symbol_hybrid MOV-GDT through-hole 20 mm 45 – 320 V 56 – 415 V 10 kA <0.3 µs –40 to +85 UL 1449
E313168 		Yes
MV MV Dual function MLV & filter cap mv_th_part MLV capacitor through-hole 9 mm 2 – 95 V 3 – 125 V 150 A <25 ns –55 to +125 N/A Yes

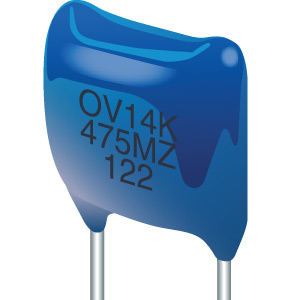

OV OV Automotive dual function MLV & filter cap ov_th_part MLV capacitor through-hole 9 mm, 12 mm 14 – 40 V 16 – 56 V 800 A, 1200 A <25 ns –55 to +125 N/A Yes
