ZOV

Surge ratings enable protected equipment to thrive in environments exposed to the most severe disturbances. Bourns® High Energy Varistors have customizable metal blocks with rigid terminals.

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS
AV	1	See Data Sheet	TBD	e3	Var2	Request Report	AV
BVR0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR0805
BVR1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVR1206
BVR1210	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1210
BVR1812	1	See Data Sheet	TBD	e3	Var2	Request Report	BVR1812
BVRA0402	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0402
BVRA0603	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0603
BVRA0805	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA0805
BVRA1206	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1206
BVRA1210	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1210
BVRA1812	1	See Data Sheet	TBD	e3	Var1	Request Report	BVRA1812
CV	1	See Data Sheet	TBD	e3	Var2	Request Report	CV
CVQ	1	See Data Sheet	TBD	e3	Var2	Request Report	CVQ
DV	1	See Data Sheet	TBD	e3	Var2	Request Report	DV
EV	1	See Data Sheet	TBD	e3	EV CoC	Request Report	EV
MV	1	See Data Sheet	TBD	e3	Var1	Request Report	MV
PV	1	See Data Sheet	TBD	e3	Var2	Request Report	PV
SV	1	See Data Sheet	TBD	e3	Var2	Request Report	SV
ZV	1	See Data Sheet	TBD	e3	Var2	Request Report	ZV
ZV50S2220452NIR1	1	See Data Sheet	TBD	e3	Var3	Request Report	ZV50S2220452NIR1
ZV-TH	1	See Data Sheet	TBD	e3	Var1	Request Report	ZV-TH

File	Type	Size	Uploaded on	Download
Protecting High Speed Communication Ports	PDF	843.57 KB	28 May, 2015	Download

fields marked with an asterisk are required

Name

Company

Address

City

State

Zip Code

Country

Work Phone

Part Number/Description

Sample Qty

Delivery Date

Est. Annual Volume

Application

Usage

Private
School/Student
Electronic Industry

fields marked with an asterisk are required

First Name*

Last Name*

Email Address*

Phone

Company*

Address*

City*

State*

Zip*

Country*

Type of Inquiry

Questions or Comments

Data Sheet

Specifications

Series	ZOV
Data Sheet
Description	High energy square shaped

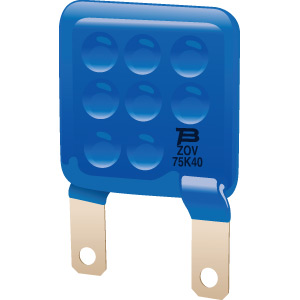

Product Photo
Device Symbol
Packing Types	Epoxy coated with rigid terminals and metalized blocks
Sizes (mm) or Pkg	23, 25, 32, 40, 60
Customized Packaging Available	Yes
Max Continuous Voltage (V_rms)	60 – 680 V
Max Continuous Voltage (Vdc)	85 – 895 V
Peak Single Pulse Current 8/20 µs (I_max)	18 – 80 kA
Response Time	<25 ns
Temperature Rating °C	–40 to +85
Agency Listing	UL 1449 E313168
Engineering
RoHS Compliant	Yes
