Tact Switches

Specifications

Bourns® switches are low voltage, low current, signal level devices designed for selection, operation or programming. Key and tactile switches are push/momentary devices. Rotary switches are single-pole, double-throw devices.

Switch applications include instrumentation, industrial controls, communications equipment, computers, security systems, appliances, automotive, and audio/visual devices.

Bourns offers a Design Kit for this product line.

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Data Sheet	Photo	Function	Mounting	Sealed or Open	Size (mm)	Actuation (Top or Side)	Terminal Styles	MDS	Design Files	Engineering	Buy Now

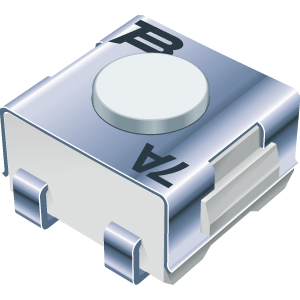

7914			Tact	SMT, Leaded	Sealed	4 mm	Top, Side	J,G,H,S	7914S 7914J 7914H 7914G	Downloads		Buy

Bourns Switch Selection Matrix

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS	China RoHS
7813	See Note	SMD	7813 Label	e3	Switch 1	Request Report	7813J 7813S	China RoHS2 Trimpot Switches

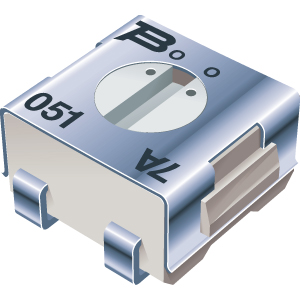

7814	See Note	SMD	7814 Label	e3	Switch 1	Request Report	7814 023 7814 051	China RoHS2 Trimpot Switches

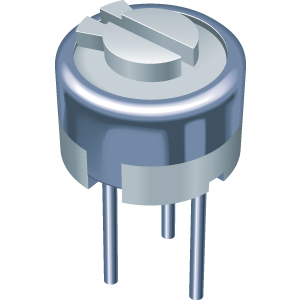

7829	See Note	PTH	7829 Label	e3	Switch 2	Request Report	7829H 7829S	China RoHS2 Trimpot Switches
7914	See Note	SMD	7914 Label	e3	Switch 1	Request Report	7914G 7914H 7914J 7914S	China RoHS2 Trimpot Switches
