Contacting Linear Motion

Contacting Linear Motion
Specifications

A spin-off of the Trimpot® trimming potentiometer product line, the contacting linear motion position sensor was developed to meet the needs of designers wishing to detect movement of position. Applications for these compact components include: Solenoid positioning sensors for automated controllers, volume control on audio equipment, joystick controllers, satellite dish positioning, and robotics.

Mineral Source Reporting for Sensors, Panel Controls, Encoders, Precision Potentiometerss, Dials: CMRT

Product Series
Parametric Table
Collateral
Videos
Request Samples
Contact Us
Series Data Sheet Photo Buy Now Standard Electrical Travel Standard Resistance Standard Resistance Tolerance Independent Linearity Resolution Power Rating @ 70ºC (158ºF) Operating Temperature Insulation Resistance MDS Engineering Design Files

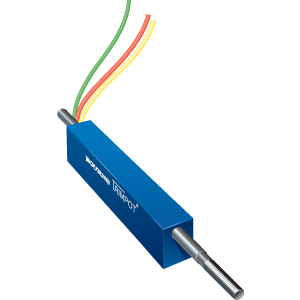

3046 3046 3046 Buy 0.15, 0.25, 0.35 in. 1K to 50K Ω ±20 % ±5 % Infinite 0.125 W -55 ºC to +125 ºC 50 MΩ @ 500 VDC 3046
Downloads
3048 3048 motpot Buy 0.2, 0.3, 0.4, 0.5 in. 1K to 50K Ω ±20 % ±5 % Infinite Range 2, 3 - 0.12 W Range 4, 5 - 0.25 W -55 ºC to +125 ºC 50 MΩ @ 500 VDC 3048
