SMD Shielded Power Inductors for DC-DC Converters

Power Inductors - SMD Shielded
Specifications

Bourns® Shielded SMD Power Inductor is an essential component of power supplies that perform DC-DC conversion.

Power inductors are an essential component in the voltage regulator topology. Virtually every circuit that regulates power in automobiles, electronics and DC-DC converters requires an inductor. Bourns® Shielded SMD Power Inductors have low footprints and a wide range of inductance. Bourns® best-selling shielded SMD power inductors are manufactured with a shielded housing designed to achieve the low EMI levels required of automotive design and as a power supply for portable communication equipment.

All models are RoHS compliant, with AEC-Q200 compliancy available on multiple series. Bourns® SRP family of power inductors combines flat wire technology and a powdered iron core to achieve a compact and efficient package for DC-DC converter applications. Bourns® Model SRR and SRU shielded SMD power inductors are especially ideal for smart meter power circuits as they are designed to handle high current and control electromagnetic interference (EMI). Shielded SMD power inductors are the preferred choice when microcontrollers or high frequency components are used in neighboring circuits or within the board assembly itself.

Bourns® is a professional manufacturer for cost effective, AEC-Q200 compliant, shielded power inductors. Our power inductors are essential solutions for reducing core losses in applications where voltage conversion is necessary. As a shielded power inductor manufacturer, Bourns produces a complete line of power inductors including power supply inductors, SMD power inductors, high current inductors, high power inductors, surface mount inductors, and other circuitry requiring power inductors. Bourns Inc power inductors feature a wide inductance range, low DC resistance, and the high current values required for industrial applications.

Mineral Source Reporting for Power Inductors: CFSI_CMRT4-01

Product Series
Parametric Table
RoHS Files
Collateral
Videos
Request Samples
Contact Us
Series Data Sheet Photo Shielded Size Inductance Range Current Range MDS Design Files Engineering Buy Now
SPB0705 SPB0705 Yes 6.7 x 6.5 x 4.7 mm 72 - 150 nH 43 A SPB0705
Downloads Buy
SPB1005 SPB1005 Yes 10.2 x 7 x 5 mm 100 - 220 nH 53 A SPB1005
Downloads Buy
SPB1007 SPB1007 Yes 10.5 x 8 x 7.5 mm 115 - 300 nH 61 A SPB1007
Downloads Buy
SPB1012 SPB1012 Yes 10 x 6.2 x 12 mm 100 - 330 nH 60 A SPB1012
Downloads Buy
SPB1308 SPB1308 Yes 13.5 x 13 x 8 mm 210 - 440 nH 50 A SPB1308
Downloads Buy
SRE6603 SRE6603 SRE6603_part Yes 6.6 x 4.5 mm 1500 - 10,000 µH 0.02 - 0.12 A SRE6603
Downloads Buy
SRR0603 SRR0603 srr0603 Yes 6.5 x 3.3 mm 1.5 - 1000 µH .1 - 2.2 A SRR0603
Downloads Buy
SRR0604 SRR0604 srr0603 Yes 6.5 x 4.8 mm 1.5 - 2200 µH .10 - 2.8 A SRR0604
Downloads Buy
SRR0745A SRR0745A SRR0745A_part Yes 7.3 x 7.3 x 4.5 mm 10 - 1000 µH 0.2 - 2.1 A SRR0745A
Downloads Buy

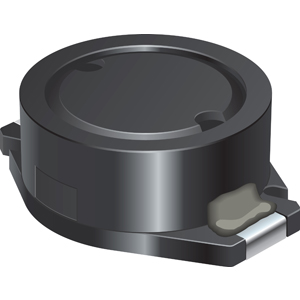

SRR0804 SRR0804 srr08045 Yes 10.5 x 3.8 mm 5- 470 µH .16 - 1.7 A SRR0804
Downloads Buy
SRR0805 SRR0805 srr08045 Yes 10.5 x 4.7 mm 2.2 - 1000 µH .15 - 2.5 A SRR0805
Downloads Buy
SRR0905 SRR0905 SRR0905_part Yes 9.9 x 4.5 mm 10 - 470 µH .33 - 2.1 A SRR0905
Downloads Buy
SRR0906 SRR0906 srr09068 Yes 10.5 x 6 mm 2.7 - 10,000 µH .07 - 3.2 A SRR0906
Downloads Buy
SRR0908 SRR0908 srr09068 Yes 10.5 x 7.5 mm 1.5 - 15,000 µH .08 - 5.6 A SRR0908
Downloads Buy
SRR1003 SRR1003 srr08045 Yes 12.7 x 3 mm 1.8 - 470 µH .16 - 3 A SRR1003
Downloads Buy
SRR1005 SRR1005 srr08045 Yes 12.7 x 5.2 mm 1- 3,300 µH .1 - 4.5 A SRR1005
Downloads Buy
SRR1050A SRR1050A SRR1050A Yes 10.2 x 10 x 4.8 mm 0.68 - 330 µH .73 - 9.5 A SRR1050A
Downloads Buy
SRR1050HA SRR1050HA SRR1050HA Yes 10 x 10.2 x 4.8 mm 0.68 – 470 µH 0.6 – 9.5 A SRR1050HA
Downloads Buy
SRR1205 SRR1205 srr1205 Yes 12.7 x 5.5 mm 2.5 - 820 µH .3 - 5 A SRR1205
Downloads Buy
SRR1206 SRR1206 srr1205 Yes 12.7 x 6.5 mm 2.5 - 1,500 µH .2 - 6.2 A SRR1206
Downloads Buy
SRR1208 SRR1208 srr1205 Yes 12.7 x 8.5 mm 2.5 - 10,000 µH .18 - 7.5 A SRR1208
Downloads Buy
SRR1210 SRR1210 SRR1210_part Yes 12.0 x 10.0 mm 1.0 - 1,000 µH .75 - 11.0 A SRR1210
Downloads Buy
SRR1210A SRR1210A SRR1210A_part Yes 12 x 12 x 10 mm 1 - 1000 µH 0.75 - 11 A SRR1210A
Downloads Buy
SRR1240 SRR1240 srr1240_part_photo Yes 12.5 x 4 mm 1.0- 1000 µH 1.25 - 9.2 A SRR1240
Downloads Buy
SRR1260 SRR1260 SRR1260_part_photo Yes 12.5 x 6 mm 1.0- 1000 µH 1.7 - 9.2 A SRR1260
Downloads Buy
SRR1260A SRR1260A SRR1260_part_photo Yes 12.5 x 12.5 x 6 mm 1 - 1000 µH 0.68 - 9.4 A SRR1260A
Downloads Buy
SRR1280 SRR1280 SRR1260_part_photo Yes 12.5 x 7.5 mm 1.1 - 1000 µH 0.68 - 10.2 A SRR1280
Downloads Buy
SRR1280A SRR1280A SRR1260_part_photo Yes 12.5 x 12.5 x 7.5 mm 4.7 - 1000 µH 0.68 - 8.2 A SRR1280A
Downloads Buy
SRR1305 SRR1305 srr1305 Yes 12.5 x 5 mm .9 - 2.7 µH 12 - 20 A SRR1305
Downloads Buy
SRR1806 SRR1806 srr1806_part_photo Yes 18.3 x 6.8 mm 10 - 1000 µH .45 - 4 A SRR1806
Downloads Buy
SRR3011 SRR3011 srr3011_part_photo Yes 3.8 x 1.15 mm 1.5 - 100 µH .18 - 1.6 A SRR3011
Downloads Buy
SRR3818A SRR3818A SRR3818A_part Yes 3.8 x 3.8 x 1.8 mm 1 - 100 µH 0.34 - 3.6 A SRR3818A
Downloads Buy
SRR4011 SRR4011 srr4011_part_photo Yes 4.8 x 1.15 mm .47 - 150 µH .25 - 3.2 A SRR4011
Downloads Buy
SRR4018 SRR4018 SRR4018_part Yes 4.8 x 4.8 mm 1 - 180 µH .18 - 2.70 A SRR4018
Downloads Buy
SRR4028 SRR4028 SRR4028_part Yes 4.8 x 4.8 mm 1.2 - 560 µH .22 - 3.1 A SRR4028 (Except 331)
Downloads Buy
SRR4528A SRR4528A SRR4528A_part Yes 5 x 5 x 2.8 mm 1.2 - 390 µH 0.28 - 4.82 A SRR4528A
Downloads Buy
SRR4818A SRR4818A SRR4818A_part Yes 4.8 x 4.8 x 1.8 mm 1 - 47 µH 0.75 - 5.1 A SRR4818A
Downloads Buy
SRR4828A SRR4828A SRR4828A_part Yes 4.8 x 4.8 x 2.8 mm 1.2 - 220 µH 0.5 - 5 A SRR4828A
Downloads Buy
SRR5018 SRR5018 SRR5018_part Yes 5.8 x 5.8 mm 1.2 - 220 µH .23 - 3.0 A SRR5018
Downloads Buy
SRR5028 SRR5028 SRR5028_part Yes 5.8 x 5.8 mm 2.6 - 680 µH .13 - 3.0 A SRR5028
Downloads Buy
SRR6028 SRR6028 SRR6028_part Yes 6.8 x 6.8 mm 1.5 - 1000 µH 0.15 - 3.4 A SRR6028
Downloads Buy
SRR6038 SRR6038 SRR6038_part Yes 6.8 x 6.8 mm 3.3 - 100 µH .65 - 3.5 A SRR6038
Downloads Buy
SRR6040A SRR6040A SRR6040A_part Yes 6.7 x 6.7 x 4 mm 1 - 100 µH 0.65 - 5 A SRR6040A Series (1R0~8R2, 120~270, 390~101)
Downloads Buy
SRR6603 SRR6603 srr6603_part_photo Yes 6.6 x 3 mm 1 - 10,000 µH .04 - 1.77 A SRR6603
Downloads Buy
SRR7032 SRR7032 srr7032_part_photo Yes 7 x 3.2 mm 2.2 - 1000 µH .15 - 2.65 A SRR7032
Downloads Buy
SRR7045 SRR7045 srr7045_part_photo Yes 7 x 4.5 mm 1.0 - 1000 µH .25 - 3.5 A Downloads Buy
SRU1028 SRU1028 SRU1028_part Yes 10 x 10 mm 1 - 150 µH .65 - 7 A SRU1028 (1R0~680)
SRU1028 (820~151)
Downloads Buy
SRU1038 SRU1038 SRU1038_part Yes 10 x 10 mm 1.5 - 330 µH .55 - 7.2 A SRU1038
Downloads Buy
SRU1048 SRU1048 SRU1048_part Yes 10 x 10 mm 0.8 - 330 µH .65 - 7.8 A SRU1048
Downloads Buy
SRU1063 SRU1063 SRU1028_part Yes 10 x 10 mm 1.6 - 100 µH 1.1 - 8.0 A SRU1063
Downloads Buy
SRU1063A SRU1063A SRU1063A Yes 10 x 10 x 6.5 mm 4.7 -100 µH 1.1 - 5.5 A SRU1063A
Downloads Buy
SRU2009 SRU2009 sru2009_part Yes 2.8 x 2.8 mm 1.0 - 22 µH .22 - 1.45 A SRU2009
Downloads Buy
SRU2011 SRU2011 sru2009_part Yes 2.8 x 2.8 mm 1.0 - 33 µH .23 - 1.65 A SRU2011
Downloads Buy
SRU2013 SRU2013 sru2009_part Yes 2.8 x 2.8 mm 1.0 - 47 µH .25 - 2.2 A SRU2013
Downloads Buy

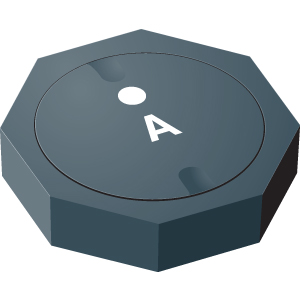

SRU2016 SRU2016 SRU2016 Yes 2.8 x 2.8 mm 1.0 - 100 µH .19 - 2.2 A SRU2016
Downloads Buy
SRU3011 SRU3011 sru3011_part_photo Yes 3.5 x 3.3 mm 1.5 - 10 µH .35 - 1.1 A SRU3011
Downloads Buy
SRU3014 SRU3014 sru3014_part Yes 3.5 x 3.3 mm 1.2 - 22 µH .32 - 1.85 A SRU3014
Downloads Buy
SRU3017 SRU3017 SRU3017 Yes 3.5 x 3.3 mm 2.2 - 47 µH .36 - 1.7 A SRU3017
Downloads Buy
SRU3028 SRU3028 SRU3017 Yes 3.5 x 3.3 mm 10 - 100 µH .19 - .72 A SRU3028
Downloads Buy
SRU5011 SRU5011 sru5011_part_photo Yes 5.2 x 5.2 mm 1.5 - 100 µH .2 - 1.8 A SRU5011
Downloads Buy
SRU5016 SRU5016 sru5016_part_photo Yes 5.2 x 5.2 mm 1.8 - 100 µH .3 - 1.75 A SRU5016
Downloads Buy
SRU5018 SRU5018 sru5018_part_photo Yes 5.2 x 5.2 mm 1 - 100 µH .32 - 2.8 A SRU5018
Downloads Buy
SRU5028 SRU5028 SRU5028_part_photo Yes 5.2 x 5.2 mm 1.2 - 100 µH .47 - 3.5 A SRU5028
Downloads Buy
SRU6011 SRU6011 SRU1028_part Yes 6.5 X 6.2 mm 1.4 - 68 µH .46 - 2.6 A SRU6011
Downloads Buy
SRU6013 SRU6013 SRU1028_part Yes 6.5 X 6.2 mm 1.0 - 68 µH 0.6 - 3.2 A SRU6013
Downloads Buy
SRU6018 SRU6018 SRU1028_part Yes 6.5 X 6.2 mm 1.2 - 100 µH 0.5- 3.6A SRU6018
Downloads Buy
SRU6025 SRU6025 SRU1028_part Yes 6.5 X 6.2 mm 1.2 - 220 µH 0.42 - 4.0 A SRU6025
Downloads Buy
SRU8028 SRU8028 SRU8028_part Yes 8 x 8 mm 1 - 100 µH 0.75 - 7.0 A SRU8028-1R0Y
SRU8028 Series (2R5-4R7)
SRU8028 Series (6R8-220)
SRU8028 Series (330-101)
Downloads Buy
SRU8043 SRU8043 sru8043_part Yes 8 x 8 mm 2.2 - 100 µH 1 - 5.4 A SRU8043 (1R0, 3R3, 6R8-101)
SRU8043 (2R2, 3R9, 4R7)
Downloads Buy
SRU8045A SRU8045A SRU8045A Yes 8 x 8 x 4.5 mm 3.5 -100 µH 1 - 5 A SRU8045A (470Y-101Y)
SRU8045A (3R5Y - 330Y)
Downloads Buy
Inductance (μH) min
0
max
120,000
Current Rating (A) min
0.0005
max
70
Current Saturation (A) min
0.0003
max
118
DCR (Ohms) min
0
max
484
Height (mm) min
0
max
54
Length (mm) min
0
max
54
Width (mm) min
0
max
38.1
Material Core
Shielding
Ratings
Model/Datasheet Photo MSL Soldering Profiles Packaging Label Terminal CofC 3rd Party Test Reports MDS China RoHS
SPB07051See Data Sheet
Ch Pwr Ind
Sn (e3)SPB CoC
Request Report
SPB0705
China RoHS - SMD S
SPB10051See Data Sheet
Ch Pwr Ind
Sn (e3)SPB CoC
Request Report
SPB1005
China RoHS - SMD S
SPB10071See Data Sheet
Ch Pwr Ind
Sn (e3)SPB CoC
Request Report
SPB1007
China RoHS - SMD S
SPB10121See Data Sheet
Ch Pwr Ind
Sn (e3)SPB CoC
Request Report
SPB1012
China RoHS - SMD S
SPB13081See Data Sheet
Ch Pwr Ind
Sn (e3)SPB CoC
Request Report
SPB1308
China RoHS - SMD S
SRE6603SRE6603_part1See Data Sheet
TBD
TBDSRE
Request Report
SRE6603
China RoHS - SMD S
SRR0603srr0603Conf 2
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0603
China RoHS - SMD S
SRR0604srr0603_mpartConf 2
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0604
China RoHS - SMD S
SRR0735ASRR1280_partSee Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0735A
China RoHS - SMD S
SRR0745ASRR0745A_partSee Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0745A
China RoHS - SMD S
SRR0804srr08045_mpartSee Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0804
China RoHS - SMD S
SRR0905SRR0905_partSee Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0905
China RoHS - SMD S
SRR0906srr09068Conf 2
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0906
China RoHS - SMD S
SRR0908srr09068Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR0908
China RoHS - SMD S
SRR1003srr08045_mpart1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1003
China RoHS - SMD S
SRR1005srr08045_mpart1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1005
China RoHS - SMD S
SRR1050ASRR1050A1See Data Sheet
TBD
Sn (e3)SRR
Request Report
SRR1050A
China RoHS - SMD S
SRR1050HASRR1050HA1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1050HA
China RoHS - SMD S
SRR1205srr12051Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1205
China RoHS - SMD S
SRR1206srr12051Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1206
China RoHS - SMD S
SRR1208srr12051Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1208
China RoHS - SMD S
SRR1210SRR1210_part1Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1210
China RoHS - SMD S
SRR1210ASRR1210A_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1210A
China RoHS - SMD S
SRR1240srr1240_part_photo1Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1240 & PM124SH Series
SRR1240
China RoHS - SMD S
SRR1260SRR1260_part_photo1Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1260
China RoHS - SMD S
SRR1260ASRR1260_part_photo1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1260A
China RoHS - SMD S
SRR1280SRR1280_part1Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1280
China RoHS - SMD S
SRR1280ASRR1280_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1280A
China RoHS - SMD S
SRR1305srr13051Conf 3
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1305
China RoHS - SMD S
SRR1806srr1806_part_photo1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR1806
China RoHS - SMD S
SRR3011srr3011_part_photo1Conf 1
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR3011
China RoHS - SMD S
SRR3818ASRR3818A_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR3818A
China RoHS - SMD S
SRR4011srr4011_part_photo1Conf 1
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR4011
China RoHS - SMD S
SRR4018SRR4018_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR4018
China RoHS - SMD S
SRR4028SRR4028_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR4028 (Except 331)
China RoHS - SMD S
SRR4528ASRR4528A_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR4528A
China RoHS - SMD S
SRR4818ASRR4818A_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR4818A
China RoHS - SMD S
SRR4828ASRR4828A_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR4828A
China RoHS - SMD S
SRR5018SRR5018_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR5018
China RoHS - SMD S
SRR5028SRR5028_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR5028
China RoHS - SMD S
SRR6028SRR6028_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR6028
China RoHS - SMD S
SRR6038SRR6038_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR6038
China RoHS - SMD S
SRR6040ASRR6040A_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR6040A Series (1R0~8R2, 120~270, 390~101)
SRR6040A Series (100 & 330)
China RoHS - SMD S
SRR6603srr6603_part_photo1See Data Sheet
Ch Pwr Ind
Au (e4)SRR
Request Report
SRR6603
China RoHS - SMD S
SRR7032srr7032_part_photo1Conf 2
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR7032
China RoHS - SMD S
SRR7045srr7045_part_photo1Conf 2
Ch Pwr Ind
Sn (e3)SRR
Request Report
SRR7045 (1R0-151) MDS
SRR7045 (181-102) MDS
China RoHS - SMD S
SRU1028SRU1028_part1Conf 2
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU1028 (1R0~680)
SRU1028 (820~151)
China RoHS - SMD S
SRU1028ASRU1028_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU1028A
China RoHS - SMD S
SRU1038SRU1038_part1Conf 3
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU1038
China RoHS - SMD S
SRU1038ASRU1038_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU1038A
China RoHS - SMD S
SRU1048SRU1048_part1Conf 3
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU1048
China RoHS - SMD S
SRU1048ASRU1048_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU1048A
China RoHS - SMD S
SRU1063SRU1028_part1Conf 3
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU1063
China RoHS - SMD S
SRU1063ASRU1063A1See Data Sheet
TBD
Sn (e3)SRU
Request Report
SRU1063A
China RoHS - SMD S
SRU2009sru2009_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU2009
China RoHS - SMD S
SRU2011sru2009_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU2011
China RoHS - SMD S
SRU2013sru2009_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU2013
China RoHS - SMD S
SRU2016sru2009_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU2016
China RoHS - SMD S
SRU3011sru3011_part_photo1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU3011
China RoHS - SMD S
SRU3014sru3014_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU3014
China RoHS - SMD S
SRU3017SRU30171Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU3017
China RoHS - SMD S
SRU3028SRU30171Conf 2
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU3028
China RoHS - SMD S
SRU3028ASRU30171See Data Sheet
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU3028A
China RoHS - SMD S
SRU5011sru5011_part_photo1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU5011
China RoHS - SMD S
SRU5016sru5016_part_photo1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU5016
China RoHS - SMD S
SRU5018sru5018_part_photo1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU5018
China RoHS - SMD S
SRU5028SRU5028_part_photo1Conf 2
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU5028
China RoHS - SMD S
SRU5028ASRU5028A_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU5028A
China RoHS - SMD S
SRU6011SRU1028_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU6011
China RoHS - SMD S
SRU6013SRU1028_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU6013
China RoHS - SMD S
SRU6018SRU1028_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU6018
China RoHS - SMD S
SRU6025SRU8028_part1Conf 1
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU6025
China RoHS - SMD S
SRU6025ASRU8028_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU6025A
China RoHS - SMD S
SRU8028SRU8028_part1Conf 2
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU8028 (1R0Y)
SRU8028 (2R5~4R7)
SRU8028 (6R8~220)
SRU8028 (330~101)
China RoHS - SMD S
SRU8028ASRU8028_part1See Data Sheet
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU8028A
China RoHS - SMD S
SRU8043sru8043_part1Conf 2
Ch Pwr Ind
Sn (e3)SRU
Request Report
SRU8043 (2R2, 3R9, 4R7)
SRU8043 (1R0, 3R3, 6R8-101)
China RoHS - SMD S
SRU8045ASRU8045A1See Data Sheet
TBD
Sn (e3)SRU
Request Report
SRU8045A (470Y-101Y)
SRU8045A (3R5Y - 330Y)
China RoHS - SMD S
FileTypeSizeUploaded onDownload
Protecting High Speed Communication PortsPDF843.57 KB28 May, 2015 Download
fields marked with an asterisk are required
Usage*


fields marked with an asterisk are required
https://www.youtube.com/embed/Nm_DJI66OI4

Bourns® Model AMS22 and AMM20 Programmer Systems

https://www.youtube.com/embed/e0LD62lj5xI

Bourns® Model AMS22 Demo

https://www.youtube.com/embed/nEB-WvEg7HA

Bourns® Model AMM20 Demo

https://www.youtube.com/embed/JfhRGnoSB3Q

Bourns® Model PWR220T

https://www.youtube.com/embed/0g-4yO34LfM

Bourns® Automotive Steering Sensors

https://www.youtube.com/embed/BS8zGqggp7U

Bourns® Pro Audio Components

https://www.youtube.com/embed/Gfielg2zKWQ

Bourns® Model 82 Vintage Premium Guitar Potentiometer

https://www.youtube.com/embed/PDyFhNtQ4us

Bourns Soldering Tips

https://www.youtube.com/embed/cZFbV1oijh4

Bourns Push-Pull Switch Guitar Application

https://www.youtube.com/embed/nRD6kc-NEtQ

Bourns Pickguard Upgrade Application

https://www.youtube.com/embed/NF-FN90Tkmk

Bourns Blend-Balance Bass Guitar Application

https://www.youtube.com/embed/HZI3tmGyOcw

Helpful Tips for Installing Guitar Potentiometers

https://www.youtube.com/embed/adTlZytoXgE

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 3: Grounding and Soldering

https://www.youtube.com/embed/smoO4Ytp4ec

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 2: Lubrication and Wear

https://www.youtube.com/embed/6uyti330_-4

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 1: Elements and Contacts

https://www.youtube.com/embed/x5XJVXOlL5Y

Bourns® Model 82 Guitar Potentiometer Factory Tour

https://www.youtube.com/embed/hEgygGlBDPg

Bourns® Overload Protection of Offline Flyback Converter

https://www.youtube.com/embed/UJ3rlY5K1bA

Bourns AEC-Q200 Competency

https://www.youtube.com/embed/euXfej62BFA

Bourns® Resettable Fuses - Multifuse® PPTC

https://www.youtube.com/embed/Y37ZDjIBpKw

Bourns® AA Series Mini-Breaker (Miniature Thermal Cutoff Device)

https://www.youtube.com/embed/28CFXzOnadU

Bourns Protecting Li-Ion Batteries with Thermal Cut Off Devices

https://www.youtube.com/embed/LBNex6kh3m0

Bourns Battery Management

https://www.youtube.com/embed/W0BkHB1unD8

Bourns® FLAT® Technology Gas Discharge Tube (GDT) Surge Arrestors

https://www.youtube.com/embed/v6D39knjJ30

Bourns® RS-485 Evaluation Board Video

https://www.youtube.com/embed/teaVJbITCng

A Brief Introduction to Bourns® TBU® High Speed Protectors

https://www.youtube.com/embed/d9_aSYBCy1M

Protecting Li-Ion Batteries with Thermal Cut Off Devices

https://www.youtube.com/embed/8cKyOytCv0M

Introducing Bourns® GMOV™ Components

https://www.youtube.com/embed/Eh3vfn1KAX8

Bourns® Environmental Sensors

https://www.youtube.com/embed/mbSBI5XLdB8

A Brief Introduction to RS-485 Evaluation Board 1

https://www.youtube.com/embed/nCloWgsLah4

Overtemperature Protection for USB Type-C Cables

https://www.youtube.com/embed/6GSSjDPV9So

Bourns® PQ Series Inductors

https://www.youtube.com/embed/OJD5OoJSNPs

Bourns® SM41126EL Transformer

https://www.youtube.com/embed/GbfNc3X5WpE

Bourns® Sensor Capabilities

https://www.youtube.com/embed/xEfveaks8V4

Bourns Magnetic Capabilities

https://www.youtube.com/embed/UuVEEXet3SM

Bourns® IsoMOV™ Hybrid Protector

https://www.youtube.com/embed/MwL6m0FqEKg

Bourns - Surge Suppression Component Superimposed With Live AC

https://www.youtube.com/embed/NweconkUlyA

Surging single MOV vs 2 in Parallel

https://www.youtube.com/embed/x70Wi_vgiYs

Demonstration of Universal AC Power Protection Solution on 120 Vac Line

https://www.youtube.com/embed/uud7z6JqXpo

Temporary Overvoltage Demo on IsoMOV M5-275

https://www.youtube.com/embed/wUqQ-cqc4o8

4030 Test Set

https://www.youtube.com/embed/t6VyHyNoxcY

Bourns Webinar: Magnetics Component Design Considerations for SMPS Applications (SiC and GaN)

https://www.youtube.com/embed/3U9drK0vxws

Bourns Webinar: Power & Signal Magnetics Solutions in Battery Management Systems

https://www.youtube.com/embed/P4vQ2WIBkbs

Bourns Webinar: Solutions for Low Power Conversion Drivers/Flyback Topology

https://www.youtube.com/embed/XFOz5FF48dA

Bourns Webinar: UL/IEC 62368-1 Got You Down? IsoMOV™ to the Rescue!

https://www.youtube.com/embed/hvcnul-xoQM

Bourns Webinar: Improving Battery Management Systems with High Accuracy Shunt Current Measurement

https://www.youtube.com/embed/6-5TcJx2pHw

Bourns Webinar: Latest BMS Design Solutions to Enhance Safety & Extend Battery Life

https://www.youtube.com/embed/bXV4OQjGSoU

Training: Bourns® Model CSS Series Current Sense Resistors

https://www.youtube.com/embed/mmL5zo6ctRE

Training: Bourns® Current Sense Resistors

https://www.youtube.com/embed/r7r0t0wmZWw

Training: Bourns® Power Resistors

https://www.youtube.com/embed/7OMppZzrdiM

Training: Bourns® Model AMM20B Non-Contacting Multiturn Rotary Position Sensors

https://www.youtube.com/embed/BsmGkZCSoXk

Training: Bourns® AMS22S Non-Contacting Analog Rotary Position Sensors

https://www.youtube.com/embed/MPj42VCMq1U

Training: Bourns® SRN Series Semi-Shielded Power Inductors

https://www.youtube.com/embed/qpnYLei_6n0

Training: Bourns® Model PWR263S-20 Fixed Resistor

https://www.youtube.com/embed/6ZqpjH8_1RU

Training: Bourns® FW Fusible Wirewound Resistor

https://www.youtube.com/embed/YKzAgeN2sa0

Training: Bourns® Magnetics Overview

https://www.youtube.com/embed/9DKj0rHayQE

Training: Bourns® Model AMS22B Non-Contacting Analog Rotary Position Sensor

https://www.youtube.com/embed/mLJb9i8PR_c

Training: Bourns® Model EMS22 Non-Contacting Magnetic Encoders

https://www.youtube.com/embed/j--IuFGVrNw

Training: Bourns® Model AMS22U Non-Contacting Analog Rotary Position Sensors

https://www.youtube.com/embed/HXnVnYTyAtA

Training: Bourns® Singlfuse™ SMD Fuses

https://www.youtube.com/embed/eBbFmpK8FDU

Training: Bourns® BPS240 Humidity Sensor

https://www.youtube.com/embed/t-c1pHyijp4

Training; Bourns® SinglFuse™ SMD Fuses - AEC-Q200-Equivalent Compliant

https://www.youtube.com/embed/NBd779BDNT4

Training: Bourns® GDT25 Next Generation 2-Electrode Gas Discharge Tube Arrestor

https://www.youtube.com/embed/PaiTMH8hv8I

Training: Bourns® Mini-Breakers (Miniature Thermal Cut Off Devices)

https://www.youtube.com/embed/AGH2Hvbs7bA

Training: Bourns® 1202 Series Type 1 Hybrid SPD

https://www.youtube.com/embed/YNJLq_18Pbw

Training: Bourns® IsoMOV™ Hybrid Protection Component Product Training Module

https://www.youtube.com/embed/MH1IGkZE7oI

Training: Bourns® TBU® High-Speed Protectors (HSP)

https://www.youtube.com/embed/fymZOv0Bp7g

Training: Bourns® Model 3382 Rotary Position Sensor Training

https://www.youtube.com/embed/VDXAtPDtcrg

Training: Bourns® Multifuse® MF-RM Series

https://www.youtube.com/embed/NLFeFe-tX4U

Training: Bourns® Polymeric Thermal Cutoff (P-TCO) Device

https://www.youtube.com/embed/6oMlO_A8rLo

Training: Bourns® Transient Current Suppressor (TCS™) High-Speed Protectors (HSPs)

https://www.youtube.com/embed/V6CfK8xPBAM

Training: Bourns® Multifuse® PPTC Resettable Fuses

https://www.youtube.com/embed/yuDDvzJV5jc

Training: Bourns® ESD Protection Devices

https://www.youtube.com/embed/47i6uPYaXvc

Training: Bourns® Pressure Sensors

https://www.youtube.com/embed/iuus5evFxJI

Training: Bourns® Power Transient Voltage Suppressor (PTVS) Diodes

https://www.youtube.com/embed/v6jeOjwF0tg

Training: Bourns® Model HCT Transformer

https://www.youtube.com/embed/ZxsWSn5Tqcg

Training: Bourns® Model 2051 Series Gas Discharge Tube (GDT)

https://www.youtube.com/embed/JsxH4eQlDrc

Training: Bourns® T-Series Fast Acting GDTs

https://www.youtube.com/embed/EoMwFN8tThs

Training: Bourns® Gas Discharge Tubes with FLAT® Technology

https://www.youtube.com/embed/o5DEqA1a7Ic

Bourns Webinar: Push-Pull Topology Highlights and Bourns Solutions for Low Power Conversion Drivers

https://www.youtube.com/embed/ZN2Vl6BAi7A

Training: Bourns® Gas Discharge Tube Surge Arrestors

https://www.youtube.com/embed/4rtsti1x74E

Training: Bourns® GMOV™ Hybrid Overvoltage Protection Component
