Power Inductors - AEC-Q200 Compliant

Power Inductors - AEC-Q200 Qualified for Automotive Applications

Specifications

Bourns Magnetics has extensive experience designing, building and supplying high reliability AEC-Q200 compliant electronic components. Bourns offers a wide variety of power inductors to reduce core loss during voltage conversion. In addition, Bourns® standard electronic components that are approved for typical automotive applications are manufactured in facilities that are fully certified to IATF 16949, and have been tested and qualified using the AEC-Q product validation standard for passive components and presented to the customer for selection and approval using PPAP.

Bourns® Automotive Grade power inductors are designed and developed to be AEC-Q200 compliant. Our new product and new process development meets or exceeds the requirements established in the latest AIAG revision of the Advanced Product Quality Planning (APQP) process.

Bourns has a long history of serving the automotive market with quality power inductors that meet the board level requirements of many automotive applications. With excellent customer service and the availability of field application engineers, Bourns works closely with automotive system designers in helping customers select the right electronic components and providing ongoing support.

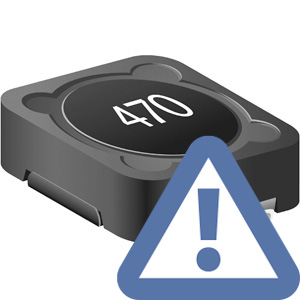

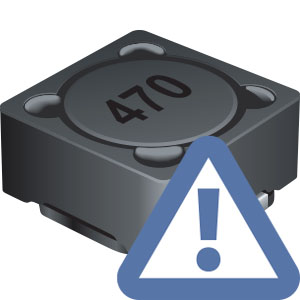

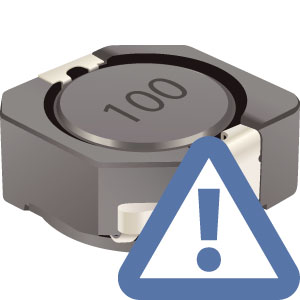

Products marked with this symbol are currently available, although not recommended for new designs.

Conflict Mineral Source Reporting for Power Inductors: CFSI_CMRT4-01

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Shielded	Size	Inductance Range	Current Range	MDS	Design Files	Buy Now
PQ2614BHA	Yes	28 x 28 x 16 mm	2.2 - 33 µH	30 A	PQ2614BHA-xxxK	Downloads	Buy
PQ2614BLA	Yes	28 x 28 x 16 mm	1 - 33 µH	30 A	PQ2614BLA-1R0K PQ2614BLA-xxxK	Downloads	Buy
PQ2617BHA	Yes	28 x 28 x 19 mm	3.3 - 33 µH	28 A	PQ2617BHA-xxxK	Downloads	Buy
SDE0403A	No	4.5 x 4 x 3.2 mm	1 - 68 µH	0.4 - 2.7 A	SDE0403A	Downloads	Buy

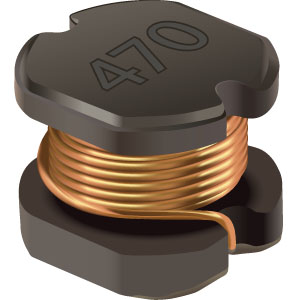

SDE0604A	No	5.8 x 5.2 x 4.5 mm	1.2 - 220 µH	0.47 - 5.3 A	SDE0604A	Downloads	Buy

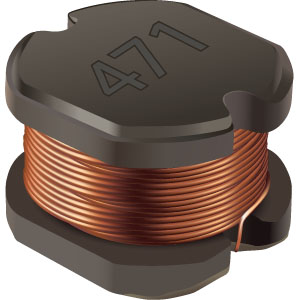

SDE0805A	No	7.8 x 7 x 5 mm	1.5 - 470 µH	0.55 - 5.8 A	SDE0805A	Downloads	Buy

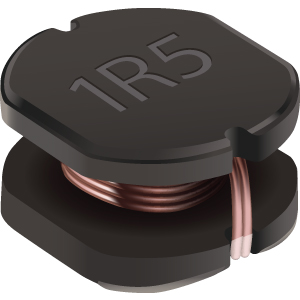

SDE1006A	No	10 x 9 x 5.4 mm	1.5 - 820 µH	0.45 - 7.2 A	SDE1006A	Downloads	Buy
SDR1307A	No	13 x 13 x 7 mm	1.5 - 1000 µH	0.65 - 9.5 A	SDR1307A	Downloads	Buy
SRF0703A	Yes	7.6 x 7.6 x 3.4 mm	8.2 - 1335 µH	0.211 - 2.19 A	SRF0703A	Downloads	Buy

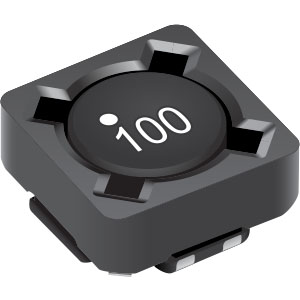

SRF0703HA	Yes	7.6 x 7.6 x 3.4 mm	4.7 - 1000 µH	0.128 - 2.7 A	SRF0703HA	Downloads	Buy
SRF0905A	Yes	9.2 x 6 x 5 mm	10 - 6500 µH	0.3 - 1.6 A	SRF0905A	Downloads	Buy

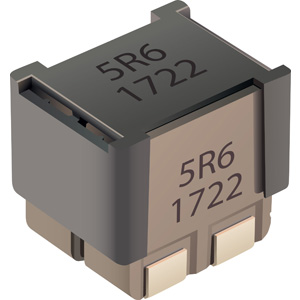

SRF1010DA	Yes	12 x 9.6 x 11.3 mm	0.43 - 15 µH	4.6 - 27 A	SRF1010DA	Downloads	Buy
SRF1260A	Yes	12.5 x 12.5 x 6 mm	0.47 - 4000 µH	0.283 - 8.8 A	SRF1260A	Downloads	Buy

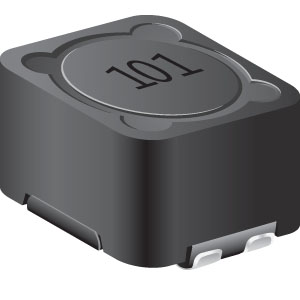

SRF1280A	Yes	12.5 x 12.5 x 8 mm	0.47 - 4000 µH	0.307 - 17.9 A	SRF1280A	Downloads	Buy
SRN2010BTA	Semi	2 x 1.6 x 0.9 mm	0.24 - 8.2 µH	0.8 - 5.2 A	SRN2010BTA	Downloads	Buy

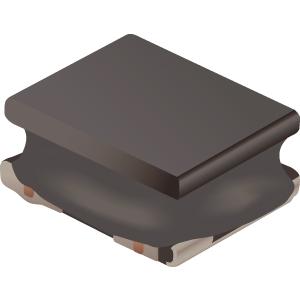

SRN2010TA	Semi	2 x 1.6 x 1 mm	0.47 - 22 µH	0.27 - 2.35 A	SRN2010TA	Downloads	Buy

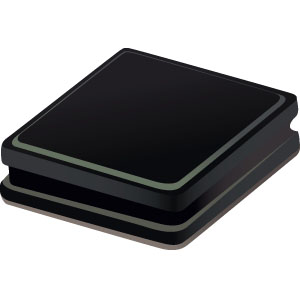

SRN2508A	Semi	2.5 x 2 x 0.8 mm	0.47 - 10 µH	0.45 - 1.45 A	SRN2508A	Downloads	Buy

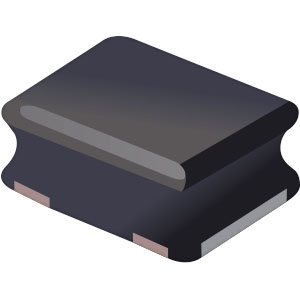

SRN2510BTA	Semi	2 x 2.5 x 0.9 mm	0.47 - 15 µH	0.8 - 3 A	SRN2510BTA	Downloads	Buy
SRN3010BTA	Semi	3 x 3 x 0.9 mm	1.0 - 22 µH	0.7 - 3.4 A	SRN3010BTA	Downloads	Buy

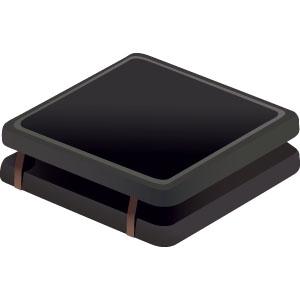

SRN3010TA	Semi	3 x 3 x 1 mm	1 - 22 µH	0.6 - 2.1 A	SRN3010TA	Downloads	Buy

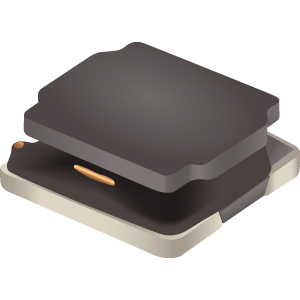

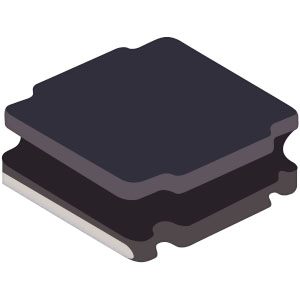

SRN3012BTA	Semi	3 x 3 x 1 mm	0.22 - 47 µH	0.65 - 6.2 A	SRN3012BTA	Downloads	Buy
SRN3012TA	Semi	3 x 3 x 1.2 mm	1 - 22 µH	0.61 - 2 A	SRN3012TA	Downloads	Buy

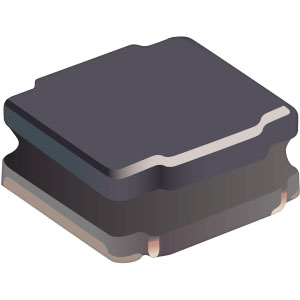

SRN3015BTA	Semi	3 x 3 x 1.3 mm	0.24 - 47 µH	0.7 - 5 A	SRN3015BTA	Downloads	Buy

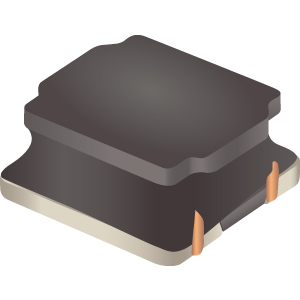

SRN3015TA	Semi	3 x 3 x 1.5 mm	1 - 47 µH	0.4 - 2.2 A	SRN3015TA	Downloads	Buy
SRN3030HA	Semi	3 x 3 x 3 mm	1 - 100 µH	0.25 - 2.6 A	SRN3030HA	Downloads	Buy
SRN4012BTA	Semi	4 x 4 x 1 mm	0.47 - 47 µH	0.65 - 5.5 A	SRN4012BTA	Downloads	Buy
SRN4012TA	Semi	4 x 4 x 1.2 mm	0.47 - 22 µH	0.62 - 3.2 A	SRN4012TA	Downloads	Buy
SRN4018BTA	Semi	4 x 4 x 1.6 mm	0.47 - 100 µH	0.28 - 5.5 A	SRN4018BTA	Downloads	Buy
SRN4018TA	Semi	4 x 4 x 1.8 mm	1 - 220 µH	0.3 - 3.7 A	SRN4018TA	Downloads	Buy

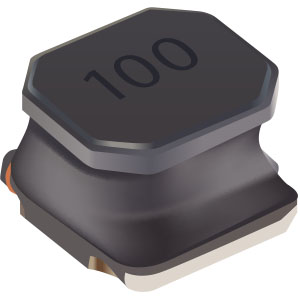

SRN4030HA	Semi	4 x 4 x 3 mm	1 - 100 µH	0.55 - 5.5 A	SRN4030HA	Downloads	Buy

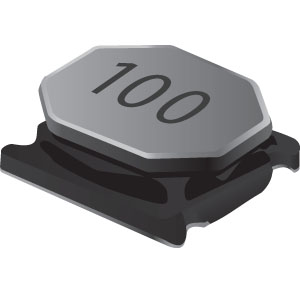

SRN5020TA	Semi	5 x 5 x 1.8 mm	1 - 47 µH	0.7 - 4.1 A	SRN5020TA	Downloads	Buy

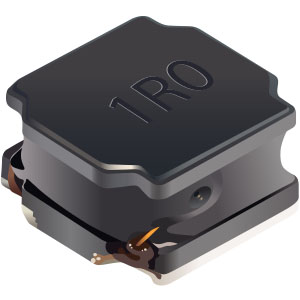

SRN5030HA	Semi	5 x 5 x 3 mm	0.47 - 100 µH	0.45 - 7 A	SRN5030HA	Downloads	Buy

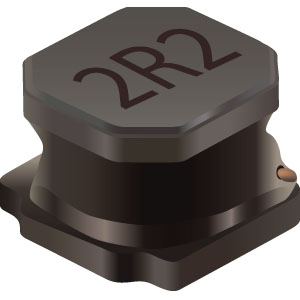

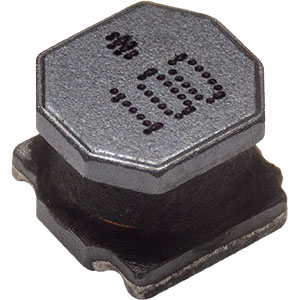

SRN5040TA	Semi	4.95 x 4.95 x 3.8/3.9 mm	0.6 - 100 µH	0.72 - 8 A	SRN5040TA	Downloads	Buy
SRN6045HA	Semi	6 x 6 x 4.7 mm	0.55 – 100 µH	0.72 – 7 A	SRN6045HA	Downloads	Buy

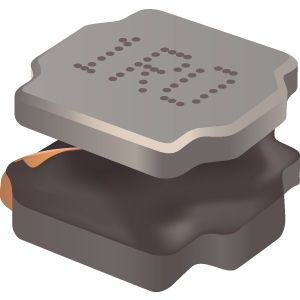

SRN6045TA	Semi	6 x 6 x 4.2 mm	1 - 470 µH	0.4 - 8 A	SRN6045TA	Downloads	Buy

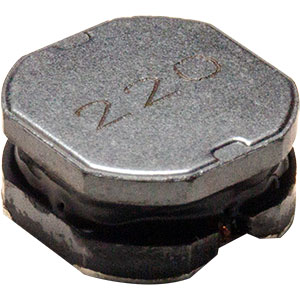

SRN8040HA	Semi	7.9 x 8.15 x 4.2 mm	0.5 - 100 µH	1 - 10 A	SRN8040HA	Downloads	Buy

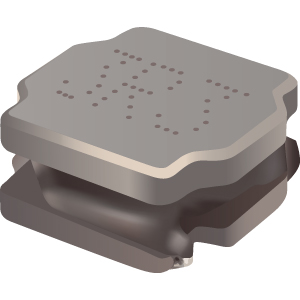

SRN8040TA	Semi	8 x 8 x 3.7 mm	0.5 - 330 µH	0.7 - 12 A	SRN8040TA	Downloads	Buy
SRP1038A	Yes	11 x 10 x 3.8 mm	0.22 - 47 µH	3 - 35 A		Downloads	Buy
SRP1038AA	Yes	11 x 10 x 3.8 mm	0.15 - 47 µH	3.5 - 44 A	SRP1038AA (R15 - 1R5) (non-leadframe) SRP1038AA (2R2 - 470) (leadframe)	Downloads	Buy
SRP1038WA	Yes	11 x 10 x 3.8 mm	0.47 – 47 µH	3.6 – 34 A	SRP1038WA	Downloads	Buy
SRP1040VA	Yes	11 x 10 x 3.8 mm	1 - 68 µH	3.5 - 27 A	SRP1040VA	Downloads	Buy
SRP1050WA	Yes	11 x 10 x 5.1 mm	1.0 - 100 µH	2.7 - 30 A	SRP1050WA	Downloads	Buy
SRP1238A	Yes	13.5 x 12.5 x 3.3 mm	0.1 - 10 µH	7 - 43 A	SRP1238A (R10 - R47)	Downloads	Buy
SRP1245A	Yes	13.5 x 12.5 x 4.8 mm	0.33 - 18 µH	7.5 - 42 A	SRP1245A (R20 - R68)	Downloads	Buy
SRP1265A	Yes	13.5 x 12.5 x 6.2 mm	0.15 - 47 µH	6.5 - 55 A	SRP1265A (R15 - R56) SRP1265A (R68 - 470)	Downloads	Buy
SRP1265WA	Yes	13.6 x 12.6 x 6.2 mm	0.68 – 47 µH	5.2 – 36.5 A	SRP1265WA	Downloads	Buy
SRP1510CA	Yes	16.5 x 15.5 x 9.7 mm	4.7 - 33 µH	18.7 - 43 A	SRP1510CA	Downloads	Buy
SRP1513CA	Yes	16.5 x 15.5 x 12.7 mm	4.7 - 33 µH	19 - 44 A	SRP1513CA	Downloads	Buy
SRP1580CA	Yes	16.5 x 15.5 x 7.7 mm	1 – 5.3 µH	35 - 80 A	SRP1580CA	Downloads	Buy
SRP1770TA	Yes	17.3 x 16.9 x 6.7 mm	1 - 100 µH	5.3 - 52 A	SRP1770TA	Downloads	Buy
SRP2010DPA	Yes	2.0 x 1.6 x 1 mm	0.47 - 4.7 µH	1.1 - 3.6 A	SRP2010DPA	Downloads	Buy

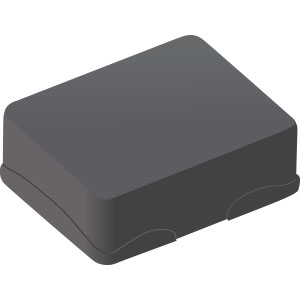

SRP2010TMA	Yes	2 x 1.6 x 0.8 mm	0.24 - 2.2 µH	2.3 – 6.5 A	SRP2010TMA	Downloads	Buy
SRP2012TMA	Yes	2 x 1.6 x 1 mm	0.22 - 2.2 µH	2.5 – 7 A	SRP2012TMA	Downloads	Buy
SRP2313AA	Yes	23.5 x 22 x 12.6 mm	1 - 100 µH	11 - 70 A	SRP2313AA	Downloads	Buy
SRP2510A	Yes	2.5 x 2 x 1 mm	0.22 - 4.7 µH	1.36 - 5.9 A	SRP2510A	Downloads	Buy
SRP2510TMA	Yes	2.5 x 2 x 0.8 mm	0.22 - 2.2 µH	2.8 – 7.2 A	SRP2510TMA	Downloads	Buy
SRP2512A	Yes	2.5 x 2 x 1.2 mm	0.47 - 4.7 µH	1.55 - 4.6 A	SRP2512A	Downloads	Buy
SRP2512TMA	Yes	2.5 x 2 x 1 mm	0.24 – 2.2 µH	3.1 – 7.3 A	SRP2512TMA	Downloads	Buy
SRP3012TA	Yes	3.5 x 3.2 x 1 mm	0.15 - 10 µH	1 - 10 A	SRP3012TA	Downloads	Buy
SRP3020TA	Yes	3.5 x 3.2 x 1.8 mm	0.1 - 10 µH	1.4 - 10.5 A	SRP3020TA	Downloads	Buy
SRP3212A	Yes	3.2 x 2.5 x 1 mm	0.33 – 4.7 µH	2.2 – 8.5 A	SRP3212A	Downloads	Buy
SRP4012TA	Yes	4.45 x 4 x 1 mm	0.1 - 10 µH	1.3 - 11.5 A	SRP4012TA	Downloads	Buy
SRP4018FA	Yes	4.1 x 4.1 x 1.8 mm	0.33 - 1.2 µH	9.5 - 15 A	SRP4018FA	Downloads	Buy
SRP4020FA	Yes	4.1 x 4.1 x 1.9 mm	0.47 - 4.7 µH	5.1 - 13.2 A	SRP4020FA	Downloads	Buy
SRP4020TA	Yes	4.45 x 4 x 1.8 mm	0.1 - 22 µH	1.2 - 12 A	SRP4020TA	Downloads	Buy
SRP4030FA	Yes	4.1 x 4.1 x 2.8 mm	0.9 - 6.8 µH	4 - 11.2 A	SRP4030FA	Downloads	Buy

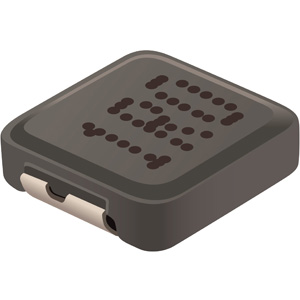

SRP5015TA	Yes	5.7 x 5.2 x 1.3 mm	0.15 - 22 µH	1.2 - 16 A	SRP5015TA	Downloads	Buy
SRP5020TA	Yes	5.7 x 5.2 x 1.8 mm	0.33 - 10 µH	2.3 - 12 A	SRP5020TA	Downloads	Buy
SRP5030CA	Yes	5.5 x 5.3 x 2.9 mm	0.15 - 4.7 µH	5.9 - 22.2 A	SRP5030CA	Downloads	Buy
SRP5030TA	Yes	5.7 x 5.2 x 2.8 mm	0.1 - 10 µH	2.75 - 23 A	SRP5030TA	Downloads	Buy
SRP5030WA	Yes	5.5 x 5.25 x 2.8 mm	0.68 - 22 µH	2.2 - 12 A	SRP5030WA	Downloads	Buy
SRP5050FA	Yes	5.5 x 5.3 x 4.8 mm	5.6 - 8.2 µH	6.1 - 7.2 A	SRP5050FA	Downloads	Buy
SRP6030CA	Yes	6.6 x 6.4 x 2.9 mm	0.18 - 4.5 µH	7 - 32 A	SRP6030CA	Downloads	Buy
SRP6030VA	Yes	7.1 x 6.6 x 2.8 mm	0.47 - 22 µH	3.4 - 20 A	SRP6030VA	Downloads	Buy
SRP6030WA	Yes	7.1 x 6.6 x 2.8 mm	0.47 - 22 µH	2.9 - 19 A	SRP6030WA	Downloads	Buy
SRP6050CA	Yes	6.6 x 6.4 x 4.8 mm	1 - 4.7 µH	8.5 - 20 A	SRP6050CA	Downloads	Buy
SRP6060FA	Yes	6.6 x 6.4 x 5.8 mm	2.2 - 22 µH	5 - 14 A	SRP6060FA	Downloads	Buy
SRP6530A	Yes	7.1 x 6.6 x 3 mm	0.1 - 10 µH	4 – 34 A	SRP6530A (R10) SRP6530A (R22-100)	Downloads	Buy
SRP7020TA	Yes	7 x 6.6 x 1.8 mm	0.1 – 10 µH	2.8 - 21 A	SRP7020TA	Downloads	Buy
SRP7028A	Yes	7.3 x 6.6 x 2.8 mm	0.10 - 33 µH	2 - 32.5 A	SRP7028A	Downloads	Buy
SRP7028AA	Yes	7.1 x 6.6 x 2.8 mm	0.15 - 22 µH	2.5 - 30 A	SRP7028AA	Downloads	Buy
SRP7030CA	Yes	7.8 x 7.6 x 2.9 mm	1 - 8.2 µH	5.9 - 21.8 A	SRP7030CA	Downloads	Buy
SRP7050AA	Yes	7.3 x 6.6 x 4.8 mm	0.47 - 47 µH	2.6 - 22 A	SRP7050AA	Downloads	Buy

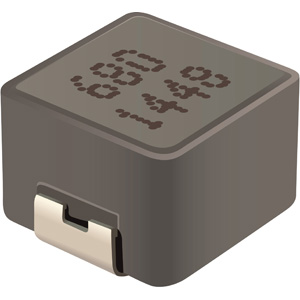

SRP7050TA	Yes	7.3 x 6.6 x 4.8 mm	0.33 - 68 µH	1.2 - 25 A	SRP7050TA	Downloads	Buy
SRP7050WA	Yes	7.9 x 7.3 x 5.2 mm	1 - 100 µH	2.2 - 20 A	SRP7050WA	Downloads	Buy
SRP8540A	Yes	8.8 x 8.4 x 3.8 mm	0.22 - 22 µH	3.9 - 31 A	SRP8540A	Downloads	Buy
SRR0735A	Yes	7.3 x 7.3 x 3.5 mm	10 - 680 µH	0.21 - 2.1 A	SRR0735A	Downloads	Buy
SRR0735HA	Yes	7.3 x 7.3 x 3.5 mm	10 - 1000 µH	0.17 - 2.1 A	SRR0735HA	Downloads	Buy
SRR0745A	Yes	7.3 x 7.3 x 4.5 mm	10 - 1000 µH	0.2 - 2.1 A	SRR0745A	Downloads	Buy

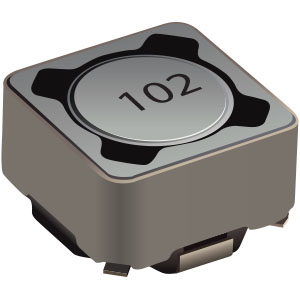

SRR0745HA	Yes	7.3 x 7.3 x 4.5 mm	10 - 1000 µH	0.2 - 2.1 A	SRR0745HA	Downloads	Buy
SRR1050A	Yes	10.2 x 10 x 4.8 mm	0.68 - 330 µH	0.73 - 9.5 A	SRR1050A	Downloads	Buy
SRR1050HA	Yes	10 x 10.2 x 4.8 mm	0.68 – 470 µH	0.6 – 9.5 A	SRR1050HA	Downloads	Buy
SRR1210A	Yes	12 x 12 x 10 mm	1 - 1000 µH	0.75 - 11 A	SRR1210A	Downloads	Buy
SRR1260A	Yes	12.5 x 12.5 x 6 mm	1 - 1000 µH	0.68 - 9.4 A	SRR1260A	Downloads	Buy
SRR1280A	Yes	12.5 x 12.5 x 7.5 mm	4.7 - 1000 µH	0.68 - 8.2 A	SRR1280A	Downloads	Buy
SRR3818A	Yes	3.8 x 3.8 x 1.8 mm	1 - 100 µH	0.34 - 3.6 A	SRR3818A (1R0-150)	Downloads	Buy
SRR4528A	Yes	5 x 5 x 2.8 mm	1.2 - 390 µH	0.28 - 4.82 A	SRR4528A	Downloads	Buy
SRR4818A	Yes	4.8 x 4.8 x 1.8 mm	1 - 47 µH	0.75 - 5.1 A	SRR4818A	Downloads	Buy
SRR4828A	Yes	4.8 x 4.8 x 2.8 mm	1.2 - 220 µH	0.5 - 5 A	SRR4828A	Downloads	Buy

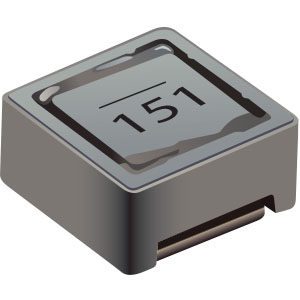

SRR5228A	Yes	5.2 x 5.2 x 2.8 mm	1.2 - 1000 µH	0.21 - 5.2 A	SRR5228A (1R2Y-121M) SRR5228A (151M-102M)	Downloads	Buy

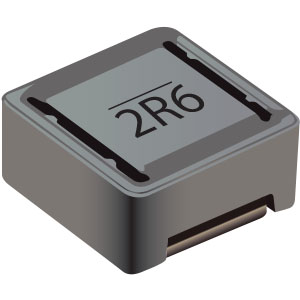

SRR5828A	Yes	5.8 x 5.8 x 2.8 mm	2.6 - 1000 µH	0.21 - 4.5 A	SRR5828A (2R6Y-331M) SRR5828A (681M-102M)	Downloads	Buy
SRR6040A	Yes	6.7 x 6.7 x 4 mm	1 - 100 µH	0.65 - 5 A	SRR6040A Series (1R0~8R2, 120~270, 390~101)	Downloads	Buy

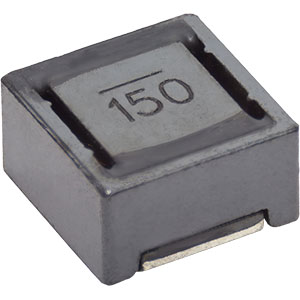

SRR6838A	Yes	6.8 x 6.8 x 3.8 mm	1.0 - 100 µH	0.75 - 6.8 A	SRR6838A	Downloads	Buy
SRU1028A	Yes	10 x 10 x 2.8 mm	1 - 150 µH	0.6 - 7 A	SRU1028A	Downloads	Buy
SRU1038A	Yes	10 x 10 x 3.8 mm	1.5 - 330 µH	0.55 - 7.2 A	SRU1038A	Downloads	Buy
SRU1048A	Yes	10 x 10 x 4.8 mm	1.5 - 330 µH	0.65 - 7 A	SRU1048A	Downloads	Buy
SRU1063A	Yes	10 x 10 x 6.5 mm	4.7 - 100 µH	1.1 - 5.5 A	SRU1063A	Downloads	Buy
SRU3028A	Yes	3.5 x 3.3 x 2.8 mm	10 - 33 µH	0.47 - 0.72 A	SRU3028A	Downloads	Buy
SRU5028A	Yes	5.2 x 5.2 x 2.8 mm	1.2 - 100 µH	0.47 - 3.5 A	SRU5028A	Downloads	Buy
SRU6025A	Yes	6.2 x 6.5 x 2.5 mm	1.2 - 220 µH	0.42 - 4 A	SRU6025A	Downloads	Buy
SRU8028A	Yes	8 x 8 x 2.8 mm	2.5 - 100 µH	0.75 - 4.5 A	SRU8028A	Downloads	Buy
SRU8045A	Yes	8 x 8 x 4.5 mm	3.5 - 100 µH	1 - 5 A	SRU8045A (470Y-101Y) SRU8045A (3R5Y - 330Y)	Downloads	Buy
