Air Coil Inductors

Home / Products / Magnetic Products / Air Coil Inductors
prodline_transformers_power
Specifications
Air coil inductors are essential passive electronic components that store and release energy in the form of a magnetic field when an electric current flows through them. Unlike their counterparts, such as ferrite core inductors, air coil inductors use air as their core material, offering advantages like low core losses and minimal saturation. Their versatility makes them suitable for a wide range of applications, including signal filtering, impedance matching, and frequency tuning in various electronic circuits.
Product Series
RoHS Files
Request Samples
Contact Us
Series Data Sheet Photo Type Size Inductance Range Current Range MDS Design Files Engineering Buy Now

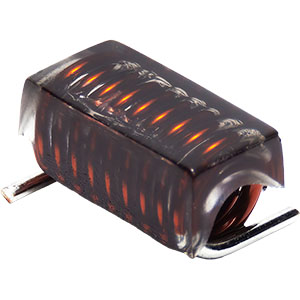

AC1060R AC1060R Air Coil 10.55 x 6.35 x 5.9 mm 90 - 538 nH 2 - 3.5 A AC1060R
 Downloads Buy

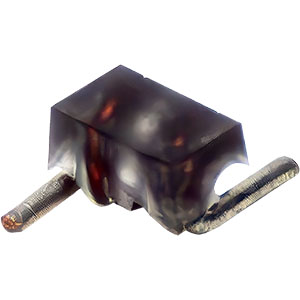

AC2213R AC2213R Air Coil 2.21 x 1.42 x 1.37 mm 1.65 - 5.45 nH 1.6 A AC2213R
 Downloads Buy

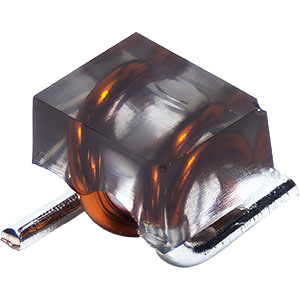

AC3630R AC3630R Air Coil 3.68 x 3.05 x 3.18 mm 2.5 - 18.5 nH 4 A AC3630R
 Downloads Buy

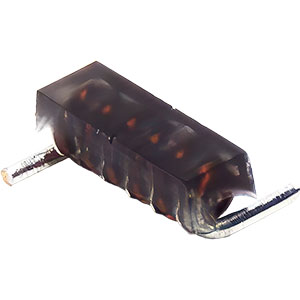

AC4013R AC4013R Air Coil 4.04 x 1.42 x 1.37 mm 5.6 - 12.55 nH 1.6 A AC4013R
 Downloads Buy

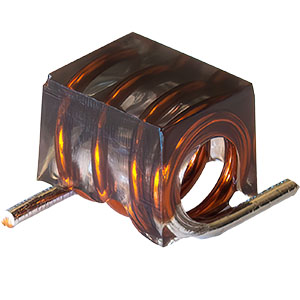

AC4842R AC4842R Air Coil 4.83 x 3.81 x 4.2 mm 22 - 120 nH 1.5 - 3.5 A AC4842R
 Downloads Buy

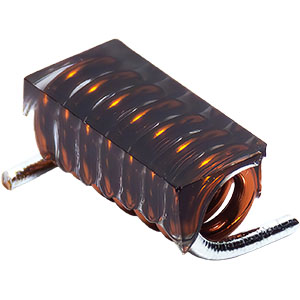

AC6830R AC6830R Air Coil 6.86 x 3.05 x 3.18 mm 17.5 - 43 nH 4 A AC6830R
 Downloads Buy
