Bourns® 1202-P Series Type 1 Surge Protective Device Training

New Product Introduction

1202 Series SPD

Description

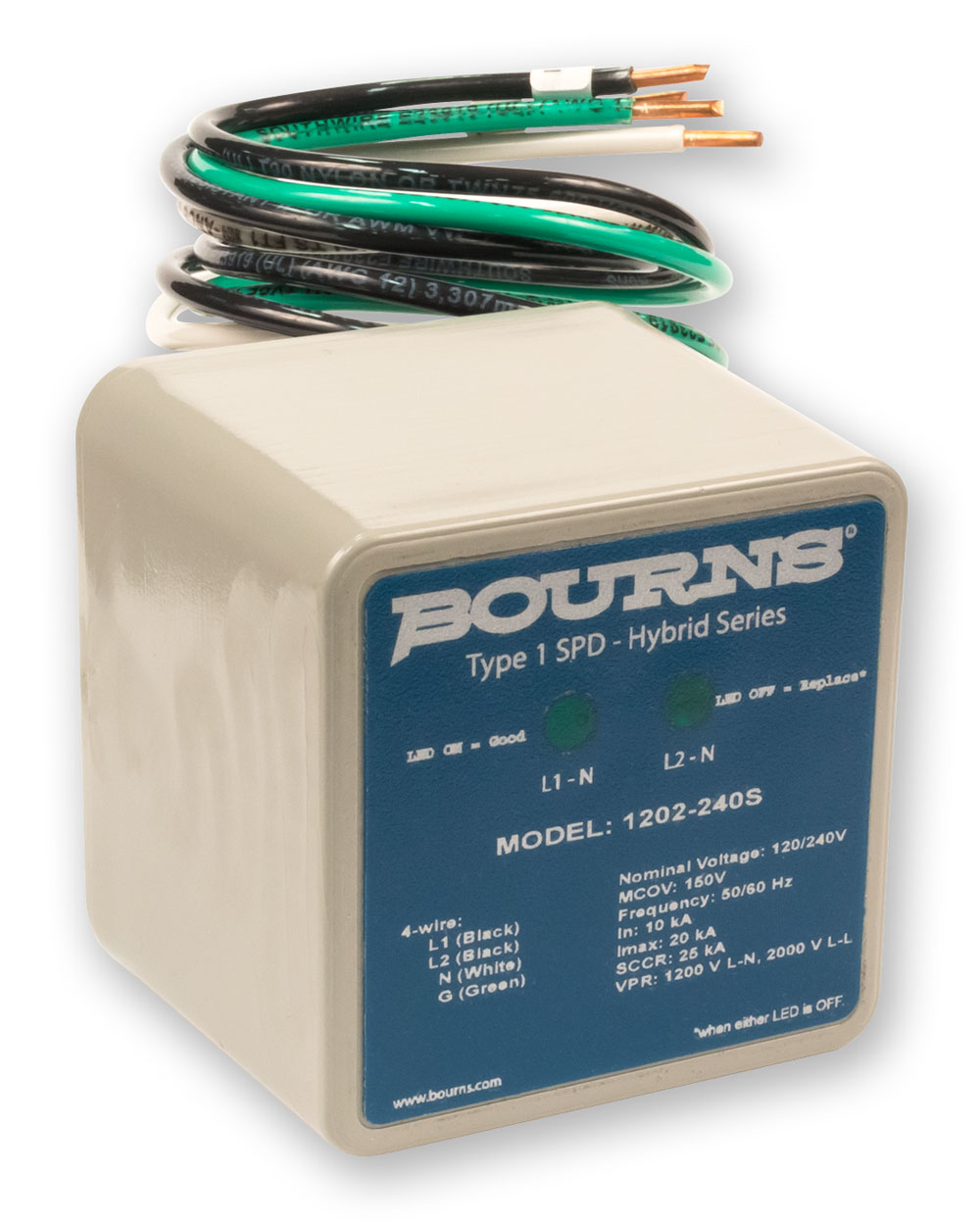

Bourns^® 1202-P Thermally Protected SPD Protective Device (SPD) is a Type 1 surge protector targeted for AC infrastructure requiring compact, reliable and robust protection.

Features

Thermally protected MOV technology
Two version supporting 120 V_rms single-phase and 120 / 240 V_rms split-phase systems
Multimode protection (L-L, L-N, N-G)
I_n - 20 kA/I_max - 50 kA rated
LED indicator status lights
IP66/NEMA 4X environment rating
UL 1449, 5th edition

Benefits

Interrupting abnormal current within rated limits
Rated for indoor or outdoors use
Type 1 SPD requires no series fusing
Compact form factor
RoHS compliant*

*RoHS Directive 2015/863, Mar 31, 2015 and Annex.

Audio Player

Listen to Audio Narration:

0:00 0:00

The Thermally Protected Advantage

Superior by Design

The 1202-P’s built-in thermal element responds to prolonged high-energy surges by activating when excessive heating is detected.
Provides robust surge-handling capability (Nominal Discharge Current (I_n) 20 kA and Maximum Discharge Current (I_max) 50 kA) to satisfy broader and stricter protection standards.

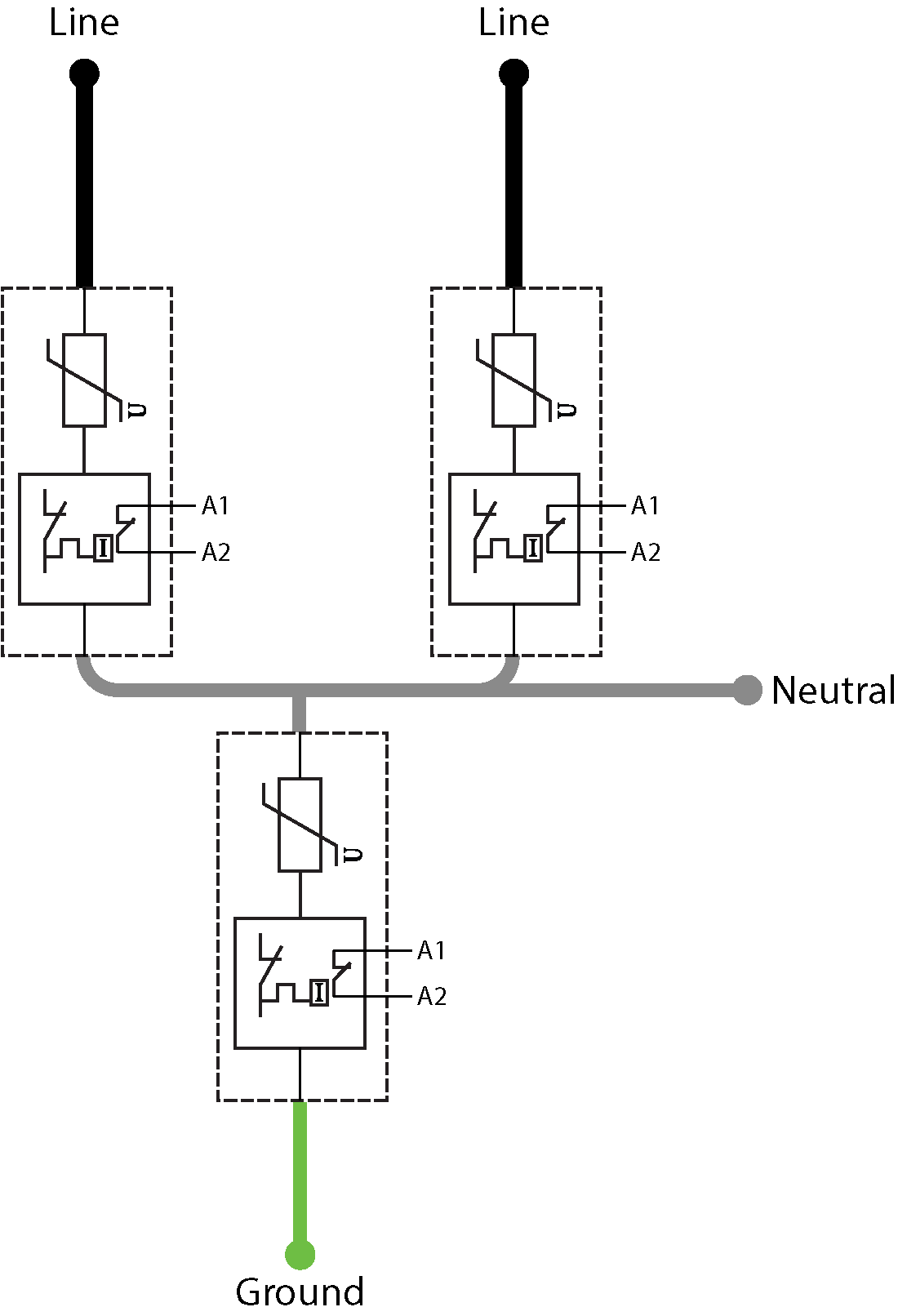

Thermal Protection Advantages

When the thermal element activates, it disconnects itself from the circuit.
This prevents sustained overheating and potential thermal runaway, enhancing the safety and reliability of the surge protection.

1202-P SPD Usage & Installation

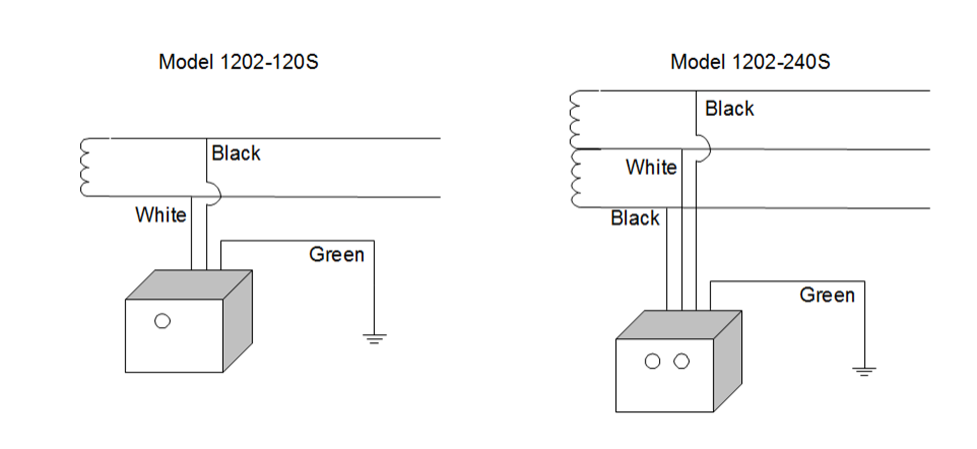

Wiring Configurations for Bourns® 1202 Series Type 1 SPDs

Per the National Electrical Code® (NEC) and ANSI/UL 1449, SPDs are designated as follows:

Type 1: Permanently connected, intended for installation between the secondary of the service transformer and the line side of the service disconnect overcurrent device (service equipment). Their main purpose is to protect insulation levels of the electrical system against external surges caused by lightning or utility capacitor bank switching.

Type 2: Permanently connected, intended for installation on the load side of the service disconnect overcurrent device (service equipment), including brand panel locations. Their main purpose is to protect the sensitive electronics and microprocessor based loads against residual lightning energy, motor generated surges and other internally generated surge events.
