Bourns provides a wide selection of standard resistance values, available with convex or concave termination styles in several popular sizes from 2 x 0201 up to 8 x 0603. Sulfur-resistant designs and AEC-Q200 compliant parts are also available. Chip arrays minimize space requirements, as well as reduce cost and component count. These products are manufactured using a thick film element which is printed onto a high purity ceramic substrate. Typical applications include: toys, cell phones, mobile devices and consumer, industrial and telecom goods. Please view our Table of Standard values (E Table) for standard values used in chip resistor arrays: Table of Standard Values (E Table).

Not Recommended Products marked with this symbol are currently available, although not recommended for new designs.

Mineral Source Reporting for Chip Arrays, Chip Resistors, CHV, CST: CFSI_CMRT4-01

Bourns® Resistive Products Overview White Paper

Characteristics
Size 2x0201, 4x0201, 2x0402, 4x0402, 2x0603, 4x0603 isolated; 8 resistors/10 pins bussed circuit
Rated power at 70 °C 0.031 to 0.0625 W / resistor
Resistance Range 3 ohms to 1 megohms
Resistance Tolerance ±1 %; ±5 %
Temperature Coefficient
± 200 to ±400 ppm/°C
Operating Temperature Range -55 to +125/155 °C

Quick link to the Sample Request: Request Sample

Available features

  • AEC-Q200 compliant available
  • Convex or concave terminations
  • 2, 4 or 8 pieces of 0201, 0402, 0603 size resistors for isolated circuits
  • Isolated and bussed circuits
  • Sulfur-resistant designs available
  • RoHS compliant*
  • Suitable for most types of soldering processes
  • Standard packaging on paper tape and reel
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.

Applications

  • Consumer
  • Industrial
  • Telecom
  • Automotive (AEC-Q200 compliant chip resistor arrays only)


Series Size Features Data Sheet Photo Resistance Range Tolerances Temperature Coefficient Power per Resistor MDS Design Files Engineering Buy Now

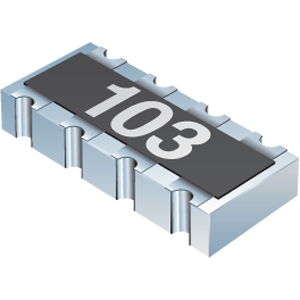

CAT10-J 4 x 0402 concave CAT10-J cat10_part_photo 10 ohms to 1 megohm ±5 % ±200 ppm/°C 0.0625 W CAT10-J
Downloads Buy
CAT10A 2 x 0402
4 x 0402
concave
AEC-Q200
CAT10A cat10_part 10 ohms to 1 megohm ±5 % ±300 ppm/°C 0.063 W CAT10A-J2LF
CAT10A-J4LF
Downloads Buy
CAT16 2 x 0603
4 x 0603
concave CAT16 CAT-103main 10 ohms to 1 megohm ±1 %; ±5 % ±200 ppm/°C 0.0625 W CAT16-F2
CAT16-F4
CAT16-J8
CAT16-X2
CAT16-X4
Downloads   Buy
CAT16A 4 x 0603 concave
AEC-Q200
CAT16A cat10_part 10 ohms to 1 megohm ±1 %;
±5 %
±200 ppm/°C,
±400 ppm/°C
0.063 W CAT16A-4LF
Downloads Buy
CAT16-J-AS 2 x 0603
4 x 0603
concave
sulfur resistant
CAT16-J-AS CAT16-J4AS_part 10 ohms to 1 megohm ±5 % ±200 ppm 0.063 W CAT16-J2AS
CAT16-J4AS
Downloads Buy
CAY06-J-AS 2 x 0201
4 x 0201
convex
sulfur resistant
CAY06-J-AS CAY06-J4AS_part 10 ohms to 1 megohm ±5 % ±200 ppm/°C 0.031 W CAY06-J2AS
CAY06-J4AS
Downloads Buy
CAY10-J 2 x 0402
4 x 0402
convex CAY10-J cay_10_part 3 ohms to 1 megohm ±5 % ±500 ppm/°C, ±200 ppm/°C 0.0625 W CAY10-J2
CAY10-J4
Downloads Buy
CAY10A 2 x 0402
4 x 0402
convex
AEC-Q200
CAY10A cat10_part 3 ohms to 1 megohm ±5 % ±250 ppm/°C,
±500 ppm/°C
0.063 W CAY10A-J2LF
CAY10A-J4LF
Downloads Buy
CAY10A-AS 2 x 0402
4 x 0402
convex
AEC-Q200
sulfur resistant
CAY10A-AS cay10_part 3 ohms to 1 megohm ±5 % ±250 ppm/°C,
±500 ppm/°C
0.063 W CAY10A-J2AS
CAY10A-J4AS
Downloads Buy
CAY10-J-AS 2 x 0402
4 x 0402
convex
sulfur resistant
CAY10-J-AS CAY10-J4AS_part 3 ohms to 1 megohm ±5 % ±200 ppm to ±500 ppm/°C 0.063 W CAY10-J2AS
CAY10-J4AS
Downloads Buy
CAY16 2 x 0603
4 x 0603
convex CAY16 CAT-103main 10 ohms to 1 megohm ±1 %; ±5 % ±200 ppm 0.0625 W CAY16-X2
CAY16-X4
CAY16-F2
CAY16-F4
CAY16-J8
Downloads Buy
CAY16A 4 x 0603 convex
AEC-Q200
CAY16A cat10_part 3 ohms to 1 megohm ±1 %;
±5 %
±200 ppm/°C,
±400 ppm/°C
0.063 W CAY16A-4LF
Downloads Buy

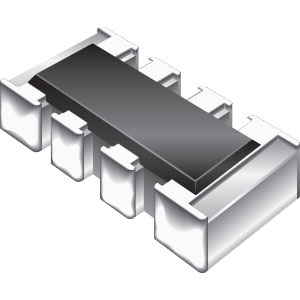

CAY16A-AS 4 x 0603 convex
AEC-Q200
sulfur resistant
CAY16A-AS cay16a_as_part 3 ohms to 1 megohm ±5 % ±200 ppm/°C,
±400 ppm/°C
0.063 W CAY16A-J4AS
Downloads Buy
CAY16-J-AS 4 x 0603 convex
sulfur resistant
CAY16-J-AS CAY16-J4AS_part 10 ohms to 1 megohm ±5 % ±200 ppm 0.063 W CAY16-J4AS
Downloads Buy
CAY17-J convex
bussed
CAY17-J CAY-17main CAY17-JA: 10 ohms to 100K ohms; CAY17-JB: 10 ohms to 43K ohms ±5 % ±250 ppm/°C 0.0625 W CAY17-J
Downloads Buy
CAT25-J CAT25-J CAT-103main 10 ohms to 1 megohm ±5 % ±200 ppm/°C 0.062 W CAT25-J
Downloads Buy
CAT16-LV2F6 CAT16-LV2F6 cat16_f6_dot_part_photo R1 = 165 ohms; R2 = 140 ohms ±1% ±200 ppm/°C 0.0625 W CAT16-LV2F6
Downloads Buy
CAT16-LV4F12 CAT16-LV4F12 cat16_f12_dot_part_photo R1 = 165 ohms; R2 = 140 ohms ±1 % ±200 ppm/°C 0.0625 W CAT16-LV4F12
Downloads Buy
CAT16-PC2F6 CAT16-PC2F6 cat16_f6_dot_part_photo R1 = 100 ohms; R2 = 187 ohms ±1 % ±200 ppm/°C 0.0625 W CAT16-PC2F6
Downloads Buy
CAT16-PC4F12 CAT16-PC4F12 cat16_f12_dot_part_photo R1 = 100 ohms; R2 = 187 ohms ±1 % ±200 ppm/°C 0.0625 W CAT16-PC4F12
Downloads Buy
CAT16-PC5F12 CAT16-PC5F12 cat16_f12_dot_part_photo R1 = 70 ohms; R2 = 187 ohms ±1 % ±200 ppm/°C 0.0625 W CAT16-PC5F12
Downloads Buy

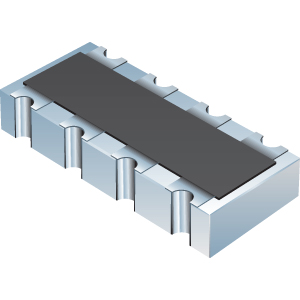

CAT16-PT2F2 CAT16-PT2F2 lv2pc2pt2 R1 = 100 ohms ±1 % ±200 ppm/°C 0.0625 W CAT16-PT2F2
Downloads Buy

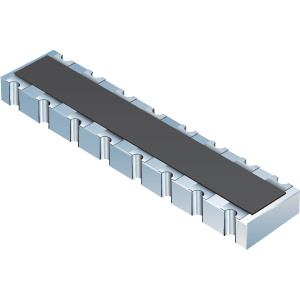

CAT16-PT4F4 CAT16-PT4F4 lv4pc4pt4 R1 = 100 ohms ±1 % ±200 ppm/°C 0.0625 W CAT16-PT4F4
Downloads Buy
