SMD Non-Shielded Power Inductors

Specifications

Bourns® SMD power inductor, non-shielded is low-cost and AEC-Q200 compliant.

Bourns® is a professional manufacturer for low-cost, AEC-Q200 compliant, non-shielded SMD power inductors. Our power inductors are essential solutions for reducing core losses in applications where voltage conversion is necessary. As an SMD power inductor manufacturer, Bourns produces a complete line of power inductors including power supply inductors, SMD power inductors, high current inductors, high power inductors, surface mount inductors, and other circuitry requiring power inductors. Bourns Inc power inductors feature a wide inductance range, low DC resistance, and the high current values required for industrial applications.

The power inductor models in Bourns® Model SDR Series are non-shielded surface mount electrical components that come in square, oval, and round shapes to fit a variety of needs. Non-shielded power inductors are used in power blocks for power conditioning and filtering. Small footprints, a wide range of inductance values and high current handling are the hallmarks of Bourns® non-shielded SMD power inductors. Bourns® Non-Shielded SMD Power Inductors produce low emissions and are among the more eco-friendly inductors available on the market today.

Obsolete

Products marked with this symbol are currently available, although not recommended for new designs.

Mineral Source Reporting for Power Inductors: CFSI_CMRT4-01

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Shielded	Size	Inductance Range	Current Range	MDS	Design Files	Buy Now

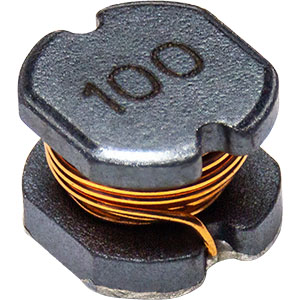

SDE0403A	No	4.5 x 4 x 3.2 mm	1 - 68 µH	0.4 - 2.7 A	SDE0403A	Downloads	Buy
SDE0604A	No	5.8 x 5.2 x 4.5 mm	1.2 - 220 µH	0.47- 5.3 A	SDE0604A	Downloads	Buy
SDE0805A	No	7.8 x 7 x 5 mm	1.5 - 470 µH	0.55 - 5.8 A	SDE0805A	Downloads	Buy
SDE6603	No	6.6 x 4.5 x 2.92 mm	1 - 1000 µH	0.07 - 2.9 A	SDE6603	Downloads	Buy
SDR0302	No	3 x 2.8 x 2.5 mm	1 - 1200 µH	0.06 - 2.1 A	SDR0302	Downloads	Buy
SDR0403	No	4.5 x 4 x 3.2 mm	1 - 1000 µH	0.2 - 3.8 A	SDR0403	Downloads	Buy
SDR0503	No	5 x 4.8 x 3 mm	10 - 15000 µH	0.02 - 1.3 A	SDR0503	Downloads	Buy
SDR0603	No	5.8 x 5.8 x 3.9 mm	1.5 - 470 µH	0.15 - 3 A	SDR0603	Downloads	Buy
SDR0604	No	5.8 x 5.8 x 4.8 mm	1.2 - 1000 µH	0.12 - 4.2 A	SDR0604	Downloads	Buy
SDR0703	No	6.5 x 4.5 x 2.7 mm	1 - 1000 µH	0.08 - 2.2 A	SDR0703	Downloads	Buy
SDR0805	No	7.8 x 7.8 x 5.3 mm	1.5 - 4700 µH	0.08 - 6 A	SDR0805 Series (1R5~3R9, 270) SDR0805 Series (4R7~220, 330~472)	Downloads	Buy

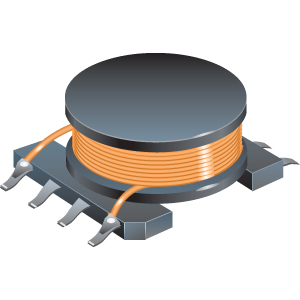

SDR0906	No	10.5 x 12.5 x 6.3 mm	2.2 - 10000 µH	0.04 - 4 A	SDR0906	Downloads	Buy
SDR1005	No	12.7 x 10 x 5 mm	0.68 - 10000 µH	0.1 - 8.5 A	SDR1005 (1R0~150) SDR1005 (220~103)	Downloads	Buy
SDR1006	No	9.8 x 9.8 x 5.8 mm	1.5 - 4700 µH	0.1 - 6.4 A	SDR1006 (1R5-3R9) SDR1006 (4R7-6R8)	Downloads	Buy
SDR1030	No	10 x 10 x 3 mm	2.7 - 1000 µH	0.2 - 3 A	SDR1030	Downloads	Buy
SDR1045	No	10 x 10 x 4.5 mm	2.7 - 1000 µH	0.38 - 4.8 A	SDR1045	Downloads	Buy

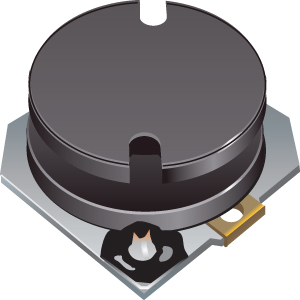

SDR1105	No	10 x 11.1 x 4.8 mm	10 - 200 µH	1 - 4 A	SDR1105	Downloads	Buy
SDR1305	No	12.7 x 12.7 x 4.8 mm	2.5 - 1000 µH	0.46 - 7.2 A	SDR1305	Downloads	Buy
SDR1307	No	13 x 13 x 7 mm	1.5 - 1000 µH	0.65 - 9.5 A	SDR1307	Downloads	Buy
SDR1307A	No	13 x 13 x 7 mm	1.5 - 1000 µH	0.65 - 9.5 A	SDR1307A	Downloads	Buy
SDR1806	No	18.3 x 14 x 6.6 mm	1 - 1000 µH	0.5 - 10 A	SDR1806	Downloads	Buy

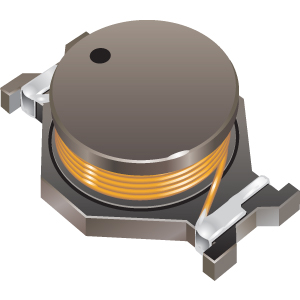

SDR2207	No	22 x 15 x 7 mm	0.78 - 1000 µH	0.6 - 16 A	SDR2207	Downloads	Buy
SDR6603	No	6.6 x 4.5 x 2.92 mm	1 - 1000 µH	0.07 - 2.9 A	SDR6603 (1R0-221) MDS	Downloads	Buy
SDR7030	No	7 x 7 x 3 mm	1 - 1000 µH	0.15 - 3 A	SDR7030	Downloads	Buy
SDR7045	No	7 x 7 x 4.5 mm	1.2 - 1000 µH	0.22 - 3.8 A	SDR7045 (1R2-331) SDR7045 (471-102)	Downloads	Buy
