Common Mode Chokes - AEC-Q200 Compliant

Specifications

Bourns® AEC-Q200 Compliant Common Mode Chokes are shielded, offering low radiation, and are suited for high current use. These CMCs are often used in power lines for EMI suppression and as noise filters.

Conflict Mineral Source Reporting for Common Mode Chip Inductors: CFSI_CMRT4-01

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Size	inductance_range	Impedance Range	Current Range	MDS	Design Files	Buy Now

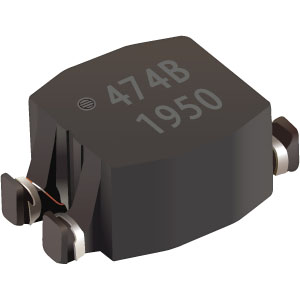

DR334A	9 x 5.8 x 3.6 mm	11 µH - 4700 µH	300 - 6000 Ω	0.2 - 0.5 A	DR334A	Downloads	Buy

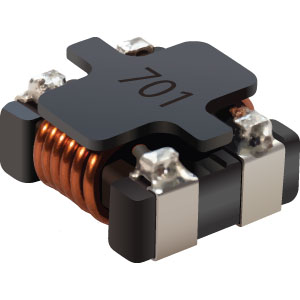

SRF1206A	12 x 11 x 6 mm	9 & 12.5 µH	700 & 1000 Ω	6 & 8 A	SRF1206A	Downloads	Buy
SRF7035A	7 x 6 x 3.5 mm	4 - 22.6 µH	300 - 3000 Ω	1.2 - 5 A	SRF7035A	Downloads	Buy

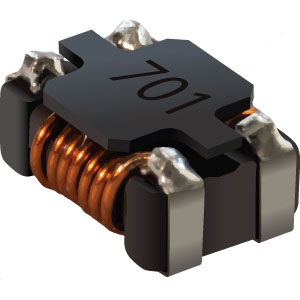

SRF9045A	9 x 7 x 4.5 mm	7.5 µH	700 Ω	5 A	SRF9045A	Downloads	Buy

Bourns Introduces High Clearance / Creepage Distance Isolation Power Transformer Series

Inductance (μH)	min 0	max 120,000
Current Rating (A)	min 0.0005	max 70
Current Saturation (A)	min 0.0003	max 118
DCR (Ohms)	min 0	max 484

Height (mm)	min 0	max 54
Length (mm)	min 0	max 54
Width (mm)	min 0	max 38.1
Material Core
Shielding
Ratings

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS	China RoHS

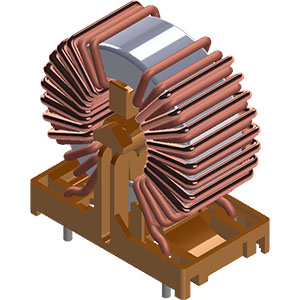

47700	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047700	TBD
47701	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047701	TBD
47702	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047702	TBD
47703	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047703	TBD
47704	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047704	TBD

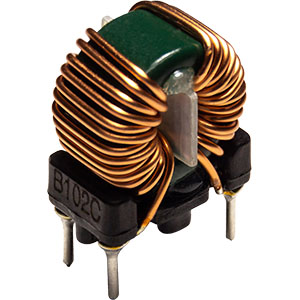

CM13093CT-102	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13093CT-102	Bourns Common Mode Chokes China RoHS

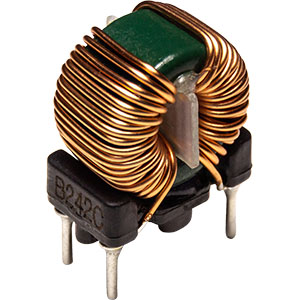

CM13093CT-242	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13090CT-242	Bourns Common Mode Chokes China RoHS

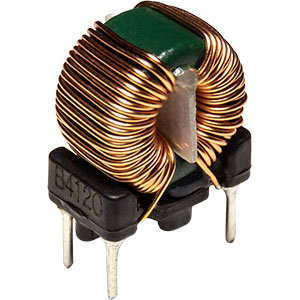

CM13093CT-412	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13092CT-412	Bourns Common Mode Chokes China RoHS
CM13093CT-872	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13091CT-872	Bourns Common Mode Chokes China RoHS
DR221	1		Ch Pwr Ind	Sn (e3)	CofC DR	Request Report	DR221	Bourns Common Mode Chokes China RoHS

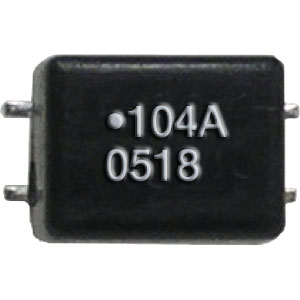

DR331	1		Ch Pwr Ind	Sn (e3)	CofC DR	Request Report	DR331	Bourns Common Mode Chokes China RoHS
DR334A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CofC DR	Request Report	DR334A	Bourns Common Mode Chokes China RoHS

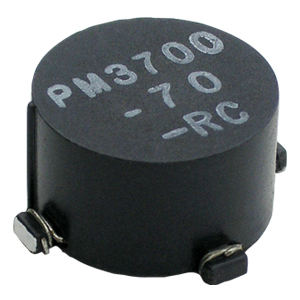

PM3700-RC	1	SP9	JWM Label	Sn (e3)	CofC-CM	Request Report	PM3700-RC	Bourns Common Mode Chokes China RoHS

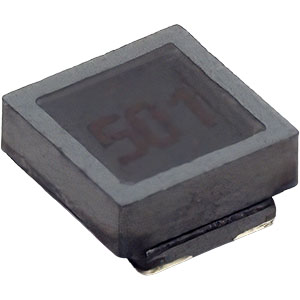

SRF0502	1	See data sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF0502	Bourns Common Mode Chokes China RoHS

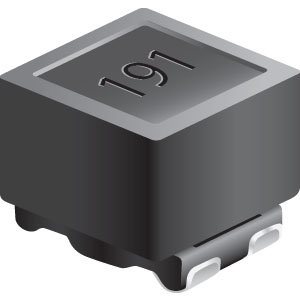

SRF0504	1	See data sheet	Ch Pwr Ind	e1	SRF	Request Report	SRF0504 (191Y~302Y) SRF0504 (402Y)	Bourns Common Mode Chokes China RoHS

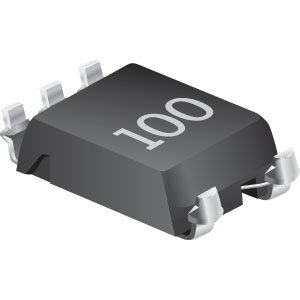

SRF0602	1	S3	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF0602	Bourns Common Mode Chokes China RoHS

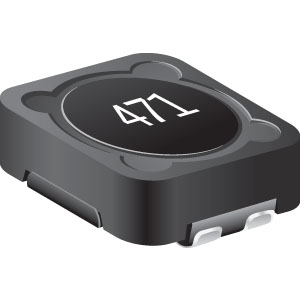

SRF0703	1	TBD	TBD	Sn (e3)	SRF	Request Report	SRF0703	Bourns Common Mode Chokes China RoHS

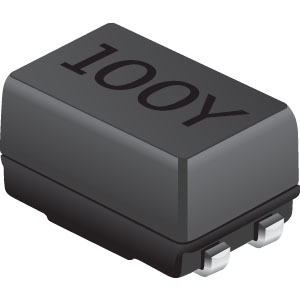

SRF0905	1	S3	Ch Pwr Ind	e1	SRF	Request Report	SRF0905	Bourns Common Mode Chokes China RoHS

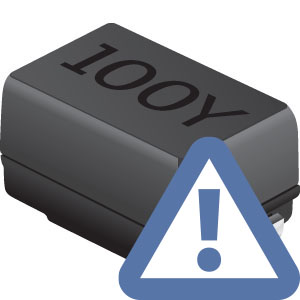

SRF0905A	1	See Data Sheet	Ch Pwr Ind	e1	SRF	Request Report	SRF0905A	Bourns Common Mode Chokes China RoHS

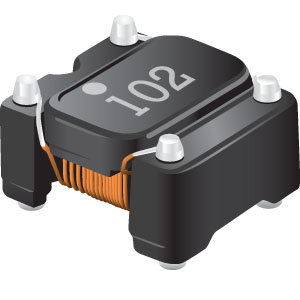

SRF1006	1	S3	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF1006 (121Y-102Y) SRF1006 (202Y-472Y)	Bourns Common Mode Chokes China RoHS
SRF1206A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF1206A	Bourns Common Mode Chokes China RoHS

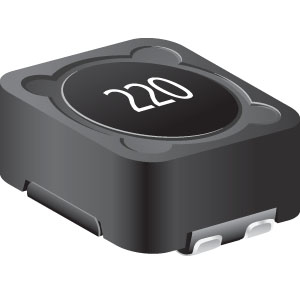

SRF1260	1	TBD	TBD	Sn (e3)	SRF	Request Report	SRF1260 (R47-221) SRF1260 (331-102)	Bourns Common Mode Chokes China RoHS

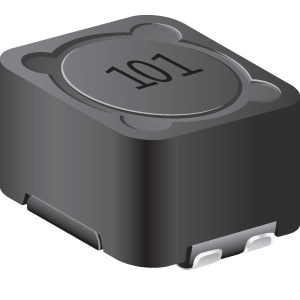

SRF1280	1	TBD	TBD	Sn (e3)	SRF	Request Report	SRF1280 (R47-331) SRF1280 (471-102)	Bourns Common Mode Chokes China RoHS

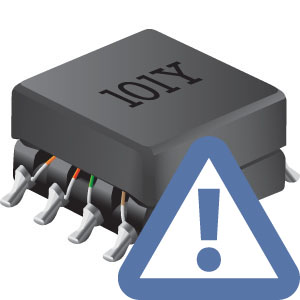

SRF1306	1	S3	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF1306	Bourns Common Mode Chokes China RoHS

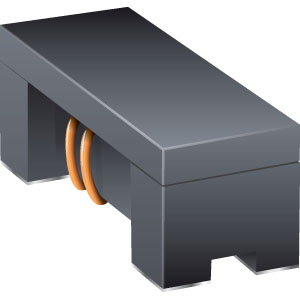

SRF2012AA	1			Sn (e3)	SRF	Request Report	SRF2012AA	Bourns Common Mode Chokes China RoHS

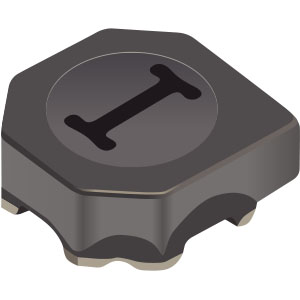

SRF3015	1	See data sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3015	Bourns Common Mode Chokes China RoHS

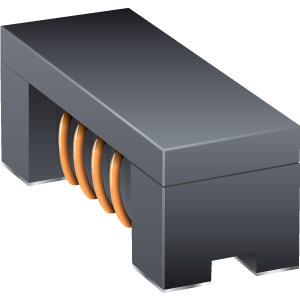

SRF3216A	1			Sn (e3)	SRF	Request Report	SRF3216A	Bourns Common Mode Chokes China RoHS

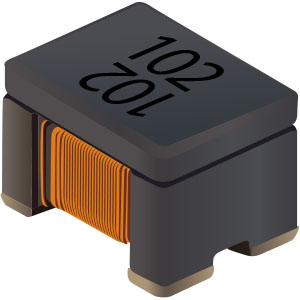

SRF3225TP	1	See Data Sheet	TBD	TBD	SRF	Request Report	SRF3225TP	Bourns Common Mode Chokes China RoHS

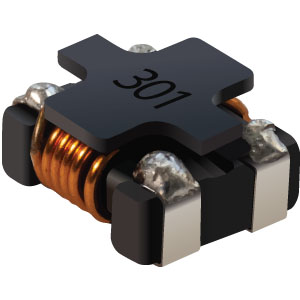

SRF7035A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF7035A	Bourns Common Mode Chokes China RoHS
SRF9045A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF9045A	Bourns Common Mode Chokes China RoHS

File	Type	Size	Uploaded on	Download
Protecting High Speed Communication Ports	PDF	843.57 KB	28 May, 2015	Download
