Chip Inductors - Multilayer

Specifications

Bourns® Multilayer Chip Inductors offer high frequency, nickel barrier, monolithic construction for high reliability, and magnetically shielded construction providing low radiation. They are well-suited for DC-DC converters, and prevention of electromagnetic interference to signals on the secondary side of electronic equipment, among many applications.

Products marked with this symbol are currently available, although not recommended for new designs.

Conflict Mineral Source Reporting for Magnetics & JW Miller® products CFSI_CMRT4-01

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Technology	Construction	Shielded	Size	Inductance Range	Range of SRF	Current Range	MDS	Design Files	Buy Now

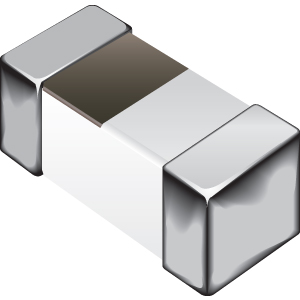

CE201210 (0805)	Multilayer	Sealed		2.0 x 1.0 x 1.25 mm	1.5 - 470 nH	200 - 4000 MHz	300 mA	CE201210 (0805): C=0.85 CE201210 (0805): C=1.25	Downloads	Buy
CI100505 (0402)	Multilayer	Sealed		1 x 0.5 x 0.5 mm	0.001 - 0.1 µH	550 - 6000 MHz	100 - 300 mA			Buy
CI160808 (0603)	Multilayer	Sealed		1.6 x 0.8 x 0.8 mm	0.001 - 0.22 µH	350 - 4000 MHz	200 - 300 mA	CI160808 (0603)	Downloads	Buy
CS160808 (0603)	Multilayer	Sealed	Yes	1.6 x 0.8 x 0.8 mm	0.047 - 2.7 µH	40 - 260 MHz	50 - 200 mA	CS160808 (0603)	Downloads	Buy
CV201210 (0805)	Multilayer	Sealed	Yes	2.0 x 1.25 x 1.25 mm	0.047 - 33 µH	13 - 320 MHz	5 - 300 mA	CV201210	Downloads	Buy
CVH160808 (0603)	Multilayer	Sealed	Yes	1.6 x 0.8 x 0.8 mm	0.24 - 2.2 µH	50 - 90 MHz	750 - 1200 mA	CVH160808	Downloads	Buy
CVH160808H	Multilayer	Sealed	Yes	1.6 x 0.8 x 0.8 mm	0.24 - 2.2 µH	-	1300 - 4000 mA	CVH160808H	Downloads	Buy
CVH201205 (0805)	Multilayer	Sealed	Yes	2 x 1.25 x 0.5 mm	0.47 - 2.2 µH	40 - 100 MHz	600 - 1100 mA	CVH201205	Downloads	Buy
CVH201610A (0805)	Multilayer	Sealed	Yes	2 x 1.6 x 0.9 mm	0.47 - 2.2 µH	50 - 80 MHz	1200 - 1600 mA	CVH201610A	Downloads	Buy
CVH252009 (1008)	Multilayer	Sealed	Yes	2.5 x 2 x 0.9 mm	0.47 - 4.7 µH	25 - 100 MHz	1100 - 1800 mA	CVH252009 (1008)	Downloads	Buy

Inductance (μH)

Current (mA)

Dimension-LxWxH (mm)

DCR (Ohms)

PART NUMBER	Inductance (μH)	Current (mA)	Dimension-LxWxH (mm)	DCR (Ohms)	Coil Type	ProductCategory	Engineering	Buy Now

PART NUMBER

Inductance (μH)

Current (mA)

Dimension-LxWxH (mm)

DCR (Ohms)

Coil Type

ProductCategory

Engineering

Buy Now

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS	China RoHS
CE201210 (0805)	1	Std	Ch Pwr Ind	Sn (e3)	CI-NS	Request Report	CE201210 (0805): C=0.85 CE201210 (0805): C=1.25	Bourns Chip Inductors Multilayer China RoHS
CI160808 (0603)	1	Std	Ch Pwr Ind	Sn (e3)	CI-NS	Request Report	CI160808 (0603)	Bourns Chip Inductors Multilayer China RoHS
CS160808 (0603)	1	Std	Ch Pwr Ind	Sn (e3)	CM-3	Request Report	CS160808 (0603)	Bourns Chip Inductors Multilayer China RoHS
CV201210 (0805)	1	CV201210 Soldering Profile	Ch Pwr Ind	Sn (e3)	CM-3	Request Report	CV201210	Bourns Chip Inductors Multilayer China RoHS
CVH160808 (0603)	1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH160808	Bourns Chip Inductors Multilayer China RoHS
CVH160808H	1	See Data Sheet	Ch Pwr Ind	Yes	CVH CoC	Request Report	CVH160808H	Bourns Chip Inductors Multilayer China RoHS
CVH201205 (0805)	1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH201205	Bourns Chip Inductors Multilayer China RoHS
CVH201610A (0805)	1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH201610A	Bourns Chip Inductors Multilayer China RoHS
CVH252009 (1008)	1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH252009 (1008)	Bourns Chip Inductors Multilayer China RoHS

File	Type	Size	Uploaded on	Download
Protecting High Speed Communication Ports	PDF	843.57 KB	28 May, 2015	Download
