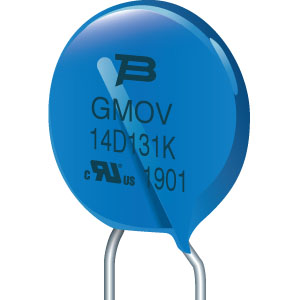

GMOV™ Components

Specifications

Bourns created its revolutionary GMOV™ hybrid overvoltage surge protection components to outperform typical MOV components in terms of performance and reliability.

The innovative GMOV™ component combines a Metal Oxide Varistor (MOV) and a Gas Discharge Tube (GDT) with our patented space-saving FLAT® space-saving technology. This hybrid device has a compact form and may be used in place of a normal 14 or 20 mm MOV.

Bourns® GMOV™ hybrid overvoltage protectors are suitable for use in all major market segments, including industrial, consumer, medical (low/medium risk)*, and communications. Surge Protective Devices (SPDs), surge strips, white goods, chargers, solar power, medical electronics (low/medium risk)*, and data line over power applications are some of the applications for GMOV™ components. In general, a GMOV™ component for overvoltage protection may be used in practically any application that is driven by AC or DC.

The GMOV™ hybrid overvoltage protector system has been tested, assessed, and shown to be effective against a wide range of hazards seen in the field.

GMOV™ Components Technical Library

*Bourns® products have not been designed for and are not intended for use in "lifesaving," "life-critical" or "life-sustaining" applications nor any other applications where failure or malfunction of the Bourns® product may result in personal injury or death. See Legal Disclaimer Notice www.bourns.com/docs/legal/disclaimer.pdf.

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Datasheet	Product Photo	Device Symbol	Max. Continuous Voltage (V_rms)	Max. Continuous Voltage (Vdc)	I_max 8/20 µs	Size	UL File No.	MDS	Design Files	Engineering	Buy Now
GMOV14D				45–320	56–415	6 KA	14 mm	E313168	GMOV14D	Downloads		Buy
GMOV20D				45–320	56–415	10 KA	20 mm	E313168	GMOV20D	Downloads		Buy

Bourns Introduces GMOV™ Overvoltage Protection Line Engineered to Address Reliability and Safety Limitations of MOVs Alone

Bourns® GMOV™ Hybrid Overvoltage Protection Component Brochure

Model/Datasheet	Photo	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS	China RoHS
GMOV14D		1	TBD	TBD	e3	GMOV	Request Report	GMOV14D	China RoHS2 - GMOV Components
GMOV20D		1	TBD	TBD	e3	GMOV	Request Report	GMOV20D	China RoHS2 - GMOV Components

File	Type	Size	Uploaded on	Download
Protecting High Speed Communication Ports	PDF	843.57 KB	28 May, 2015	Download
