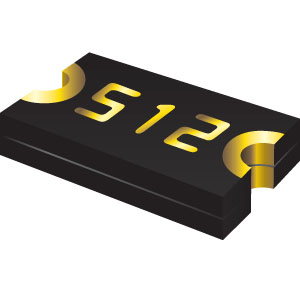

Polymeric Thermal Cutoff Devices (P-TCO)

Specifications

The new Bourns® Polymeric Thermal Cutoff (P-TCO) device family is intended to safeguard USB Type-C connections and other charging cables from potentially damaging thermal runaway occurrences. The P-TCO product line offers an effective resettable thermal sensor for overheating and overcurrent protection.

Available in EIA 1210 and 1206 size SMD footprints (P-TCO-U and P-TCO-N series, respectively), Bourns provides effective overtemperature protection from heat generated in charging cable connectors due to unintended faults within the connector circuitry. Typical applications include, but are not limited to USB Type-C cable configurations including USB-C to C cables, USB-C to B cables, USB-C to A cables; USB 3.2, 3.1, 3.0, and 2.0 protocols; and other charging cables.

When compared to other models in similar or bigger sizes, each P-TCO has a thermal cutoff temperature from 75 °C to 100 °C, ultra-low resistance, and high current, high voltage, and high breaking capacity performance even in a compact space-saving design and high power density.

Thermal Cutoff Devices (TCOs) Technical Library

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Data Sheet

MDS

Specifications

Series	P-TCO-U
Datasheet
Product Photo
Type	Surface Mount
Footprint	1210
Hold Current - I hold (Amps)	350: 3.5 400: 4.0 450: 4.5
V_max	12 Vdc
Thermal Cutoff (TCO) @ 3A (°C)	350: 75 ± 20 400: 80 ± 15 450: 85 ± 15
Thermal Cutoff (TCO) @ 2A (°C)	350: 90 ± 20 400: 95 ± 15 450: 100 ± 10
R_1max (Ω)	0.014 - 0.022
Agency Certificates	UL: E174545 TÜV
MDS	P-TCO-U
Design Files	Downloads
Engineering
Buy Now	Buy
