Metal Foil, Metal Strip Chip Resistors & EB Welded Shunts

Specifications

Bourns offers metal foil and metal strip chip resistors and EB welded metal strip shunts.

These high-power resistors have very low resistance values and TCR due to their metal strip resistive element and are suitable for all types of current sensing applications.

Metal foil resistors are constructed with a metal foil resistive element mounted on a ceramic substrate for excellent heat conductivity. The metal foil resistive element of these current sense resistors results in very low inductance, low noise and excellent reliability. Available with very low resistance values (down to five milliohms) and ideal for current sensing in consumer and telecommunication electronics and industrial automation applications.

Bourns offers the standard short terminal shape (CFN Series) and a wide terminal shape (CFG Series) wide terminal model CFG Series helps to provide improved heat dissipation and higher reliability due to larger terminations and solder joint surfaces.

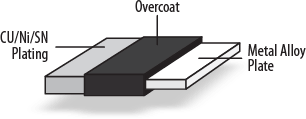

Metal strip chip resistors (Model CRA, CRE, CRF, CST Series) have electroplated tin (Sn) outer terminations for soldering onto the board. The resistive element is protected by an epoxy overcoat layer.

EB welded metal strip shunts (Bourns® Model CSS Series) are manufactured using an electron beam-welded metal strip with an iron chrome or manganese copper alloy resistive element, providing excellent electrical characteristics. They also feature copper alloy terminations that deliver additional mechanical strength and enable ease of solderability.

Characteristics
Size	0805, 1206 Short Terminal Metal Foil 0612 Wide terminal Metal Foil 0805 to 2512 Metal Strip Chip 2512 to 5931 EB Welded Metal Strip
Rated power at 70 °C	0.5 W to 15 W
Resistance Range	0.2 to 100 mΩ
Resistance Tolerance	±1 %, ±5 %
Temperature Coefficient	±50, 100, ±200 ppm/°C
Operating Temperature Range	–55 to +170 °C

Available features

RoHS compliant*
AEC-Q200 compliant
Very high power
Very low resistance
Excellent long-term stability
Low inductance values
Low thermal EMF
Low TCR
Four terminal designs
Suitable for most types of soldering processes

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Applications

Current sense
Automotive comfort, entertainment, and infotainment
Industrial
Consumer
Telecommunications
Battery management system
DC/DC converters
Motor drives
Power supplies

Documents

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Data Sheet

MDS

Specifications

Series	CFN0402A
Data Sheet
Resistance Range	0.01; 0.02 Ω
Tolerances	1 % / 5 %
Temperature Coefficient	±100 ppm
Power per Resistor	0.2 W
MDS	CFN0402
Design Files	Downloads
Engineering
Buy Now	Buy

Design Files

Brochures

Bourns® SMT Chip Resistors and Networks Information Sheet

Return to Product Line

Bourns® SMT Chip Resistors and Networks Information Sheet

Resistance (Ω)	min 0	max 20000000
Rated Power (Watts)
Tolerance (%)

Size (inch)
TCR (ppm/°C)
Resistive Material

Model/Datasheet	MSL	Soldering Profiles	Packaging Label	Terminal	CofC	3rd Party Test Reports	MDS	China RoHS
CFG Series	1	See Data Sheet		e3	CFG, CFN	Request Report	CFG0612	TBD
CFN Series	1	See Data Sheet		e3	CFG, CFN	Request Report	CFN0402 CFN0603 CFN0805 CFN1206	TBD
CFN-A Series	1	See Data Sheet		e3	CFG, CFN	Request Report	CFN0402 CFN0603 CFN0805 CFN1206	TBD
CHP Series	1	See Data Sheet	Chip Label A	e3	CHP/CHV	Request Report	CHP0603 CHP0805 CHP1206 CHP2512	China RoHS2 EFUP50 - Chip Resistors 7c-1
CHP-A Series	1	See Data Sheet	Chip Label A	e3	CHP/CHV	Request Report	CHP0603-A CHP0805-A CHP1206-A CHP2512-A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CHP-Q Series	1	See Data Sheet		e3	CHP/CHV	Request Report	CHP0805-Q_MDS CHP0603-Q_MDS CHP1206-Q_MDS	TBD
CHV Series	See note	Std	Chip Label A	e3	CHP/CHV	Request Report	CHV Series CHV2512	China RoHS2 EFUP50 - Chip Resistors 7c-1
CHV-A Series	See note	See Data Sheet	Chip Label A	e3	CHP/CHV	Request Report	CHV0603-A CHV0805-A CHV1206-A CHV2010-A CHV2512-A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CHV-ST Series	See note	See Data Sheet	Chip Label A	e3	CHP/CHV	Request Report	CHV0603-ST CHV0805-ST CHV1206-ST CHV2010-ST CHV2512-ST	China RoHS2 EFUP50 - Chip Resistors 7c-1
CMP Series	1	See Data Sheet	Chip Label A	e3	CMP/CMP-A/CMP-Q	Request Report	CMP0603 CMP1206 CMP2010 CMP2512	China RoHS2 EFUP50 - Chip Resistors 7c-1
CMP-A Series	1	See Data Sheet	Chip Label A	e3	CMP/CMP-A/CMP-Q	Request Report	CMP0603A CMP1206A CMP2010A CMP2512A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CMP-Q Series	1	See Data Sheet		e3	CRS/CRS-Q CMP/CMP-A/CMP-Q	Request Report	CMP0603-Q_MDS CMP0805-Q_MDS CMP1206-Q_MDS CMP2010-Q_MDS CMP2512-Q_MDS	TBD
CR01005	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR01005	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR0201	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0201	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR0201A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0201A	China RoHS2 - Chip Resistors
CR0201A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0201A-AS	China RoHS2 - Chip Resistors
CR0402	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0402	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR0402A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0402A	China RoHS2 - Chip Resistors
CR0402A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0402A-AS	China RoHS2 - Chip Resistors
CR0402-PF	1	See Data Sheet	Chip Label A	e3	CR-PF Series	Request Report	CR0402-PF ≤ 100 Ω CR0402-PF > 100 Ω	China RoHS2 - Chip Resistors
CR0603	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0603	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR0603A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0603A	China RoHS2 - Chip Resistors
CR0603A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0603A-AS	China RoHS2 - Chip Resistors
CR0603-PF	1	See Data Sheet	Chip Label A	e3	CR-PF Series	Request Report	CR0603-PF ≤ 100 Ω CR0603-PF > 100 Ω	China RoHS2 - Chip Resistors
CR0805	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0805	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR0805A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0805A	China RoHS2 - Chip Resistors
CR0805A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR0805A-AS	China RoHS2 - Chip Resistors
CR0805-PF	1	See Data Sheet	Chip Label A	e3	CR-PF Series	Request Report	CR0805-PF ≤ 100 Ω CR0805-PF > 100 Ω	China RoHS2 - Chip Resistors
CR1206	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR1206	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR1206A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR1206A	China RoHS2 - Chip Resistors
CR1206A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR1206A-AS	China RoHS2 - Chip Resistors
CR1206-PF	1	See Data Sheet	Chip Label A	e3	CR-PF Series	Request Report	CR1206-PF ≤ 100 Ω CR1206-PF > 100 Ω	China RoHS2 - Chip Resistors
CR1210A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR1210A	China RoHS2 - Chip Resistors
CR1210A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR1210A-AS	China RoHS2 - Chip Resistors
CR2010	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR2010	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR2010A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR2010A	China RoHS2 - Chip Resistors
CR2010A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR2010A-AS	China RoHS2 - Chip Resistors
CR2512	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR2512	China RoHS2 EFUP50 - Chip Resistors 7c-1
CR2512A	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR2512A	China RoHS2 - Chip Resistors
CR2512A-AS	See note	See Data Sheet	Chip Label A	e3	CRx	Request Report	CR2512A-AS	China RoHS2 - Chip Resistors
CRA2512	See note	Std	Chip Label A		CRx 2	Request Report	CRA2512	China RoHS2 - Chip Resistors
CRE2512	See note	See Data Sheet	Chip Label A	e3	CRx 2	Request Report	CRE2512	China RoHS2 - Chip Resistors
CRF Jumper Series		See Data Sheet			CRx 2	Request Report	CRF0805-J CRF1206-J CRF2010-J CRF2512-J	China RoHS2 - Chip Resistors
CRF0805	See note	See Data Sheet	Chip Label A	e3	CRx 2	Request Report	CRF0805	China RoHS2 - Chip Resistors
CRF1206	See note	See Data Sheet	Chip Label A		CRx 2	Request Report	CRF1206	China RoHS2 - Chip Resistors
CRF2512	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRF2512 Series NiCu	China RoHS2 - Chip Resistors
CRG2512	1	See Data Sheet		e3	CRx 2	Request Report	CRG2512	China RoHS2 - Chip Resistors
CRK Series	1	See Data Sheet		e3	CRx 2	Request Report	CRK0612 CRK0815	TBD
CRL0402	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRL0402 (0.1~0.91Ω)	China RoHS2 - Chip Resistors
CRL0603	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRL0603 (0.1~0.91Ω)	China RoHS2 - Chip Resistors
CRL0805	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRL0805 (0.1~0.91Ω)	China RoHS2 - Chip Resistors
CRL1206	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRL1206 (0.1~0.91Ω)	China RoHS2 - Chip Resistors
CRL2010	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRL2010 (0.1~0.91Ω)	China RoHS2 - Chip Resistors
CRL2512	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRL2512 (0.1~0.91Ω)	China RoHS2 - Chip Resistors
CRM0603A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRM0603A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM0805	See note	Std	Chip Label A	e3	CRx	Request Report	CRM0805 MDS (under 1Ω) CRM0805 MDS (over 1Ω)	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM0805A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRM0805A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM1206	See note	Std	Chip Label A	e3	CRx	Request Report	CRM1206 MDS (under 1Ω) CRM1206 MDS (over 1Ω)	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM1206A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRM1206A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM1210A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRM1210A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM2010	See note	Std	Chip Label A	e3	CRx	Request Report	CRM2010 MDS (under 1Ω) CRM2010 MDS (over 1Ω)	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM2010A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRM2010A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM2512	See note	Std	Chip Label A	e3	CRx	Request Report	CRM2512 MDS (under 1Ω) CRM2512 MDS (over 1Ω)	China RoHS2 EFUP50 - Chip Resistors 7c-1 China RoHS2 - Chip Resistors
CRM2512A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRM2512A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM2512-FT	See note	Std	Chip Label A	e3	CRx	Request Report	CRM2512-FT	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRM-Q Series		See Data Sheet		e3	CRx	Request Report	CRM1206-Q_MDS CRM2010-Q_MDS CRM2512-Q_MDS	TBD
CRS Series	See note	Std	Chip Label A	e3	CRx	Request Report	CRS0805 Series CRS1206 CRS2010 Series CRS2512	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRS0603A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRS0603A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRS0805A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRS0805A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRS1206A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRS1206A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRS1210A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRS1210A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRS2010A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRS2010A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRS2512A	1	See Data Sheet	Chip Label A	e3	CRx	Request Report	CRS2512A	China RoHS2 EFUP50 - Chip Resistors 7c-1
CRS-Q Series	1	See Data Sheet		e3	CRS/CRS-Q	Request Report	CRS2010-Q_MDS CRS1206-Q_MDS CRS2512-Q_MDS	TBD
CRT0402	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT0402	China RoHS2 - Chip Resistors
CRT0402-AS	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT0402-AS	China RoHS2 - Chip Resistors
CRT0603	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT0603	China RoHS2 - Chip Resistors
CRT0603-AS	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT0603-AS	China RoHS2 - Chip Resistors
CRT0805	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT0805	China RoHS2 - Chip Resistors
CRT0805-AS	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT0805-AS	China RoHS2 - Chip Resistors
CRT1206	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT1206	China RoHS2 - Chip Resistors
CRT1206-AS	See note	Std	Chip Label A	e3	CRx 2	Request Report	CRT1206-AS	China RoHS2 - Chip Resistors
CRT-A Series	See note	See Data Sheet	Chip Label A	e3	CRx 2	Request Report	CRT1206A CRT0805A CRT0603A CRT0402A	China RoHS2 - Chip Resistors
CST0612	See note	See Data Sheet	Chip Label A	e3	CST Series	Request Report	CST0612	China RoHS2 - Chip Resistors
