  Specifications

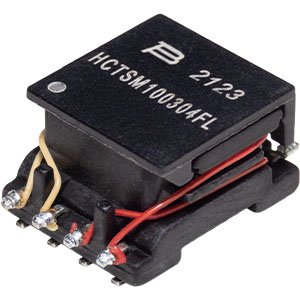

Series HCTSM100304FL
Data Sheet HCTSM100304FL
size 15.7 x 10.8 x 7.5 mm
input Voltage 3.3 - 5 VDC
Output Voltage 3.3 - 15 VDC
Output Current 0.35 A Peak
Frequency 250 - 550 kHz
Primary/Secondary Turns Ratio Various
MDS HCTSM100304FL
