Hybrid Series

Specifications

A hybrid GDT surge arrestor is a device that integrates two or more protection technologies into its design to provide an enhanced circuit protection solution.

Conflict Mineral Source Reporting for GDT, SPD, MOV: CMRT

Quick link to the Sample Request:

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Data Sheet

MDS

Specifications

Series	2026-xx-XX-MSP
Data Sheet

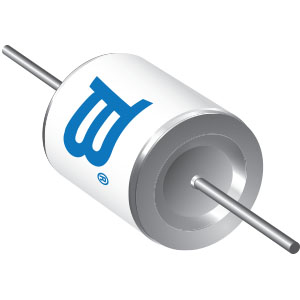

Description	Heavy Duty Multi-Stage 3-Electrode GDT Protector
Device Symbol
Dimensions (Diameter x Length mm)	8 x 14
Capacitance pF	<20
DC Breakdown Voltage Range V	300-400
Nominal 8/20µs Impulse Discharge Current (kA) 10	20
Max 8x20µs Impulse Current (kA) 1 Application	40
Max 10x350µs Impulse Current (kA) 1 Application	5
Operating Temperature Range C°	-55 to +85
Packaging Options	Bulk
RoHS Compliant	2026-xx-XX-MSP
MDS	2026-xx-XX-MSP
Design Files	Downloads
