功率電阻 - AEC-Q200認證汽車應用

Power Resistors - AEC-Q200 Qualified for Automotive Applications

更多AEC-Q200認證產品的相關資訊請下載Bourns汽車認證清單 and the Bourns® Automotive Component Selection Guide - Short Form Brochure

Conflict Mineral Source Reporting for Power Resistors, RF Resistors, FW, W, WS Series: CFSI_CMRT4-01

Series 資料表 產品圖片 阻值範圍 允許公差 溫度係數 功率 (瓦特) 單顆電阻功率 包裝 外觀 / 包裝類型 MDS 工程 工程文件
CAT10A CAT10A-LF
10 ohms to 1 megohm ±5 % ±300 ppm/°C 0.063 W Concave Chip Array CAT10A-J2LF
CAT10A-J4LF
CAT16A CAT16A-LF
10 ohms to 1 megohm ±1 %;
±5 %
±200 ppm/°C,
±400 ppm/°C
0.063 W Concave Chip Array CAT16A-4LF
CAY10A CAY10A-LF
3 ohms to 1 megohm ±5 % ±250 ppm/°C,
±500 ppm/°C
0.063 W Convex Chip Array CAY10A-J2LF
CAY10A-J4LF
CAY16A CAY16A-LF
3 ohms to 1 megohm ±1 %;
±5 %
±200 ppm/°C,
±400 ppm/°C
0.063 W Convex Chip Array CAY16A-4LF
CAY10A-AS CAY10A-AS
3 ohms to 1 megohm ±5 % ±250 ppm/°C,
±500 ppm/°C
0.063 W Convex Chip Array
Sulfur Resistant
CAY10A-J2AS
CAY10A-J4AS
CAY16A-AS CAY16A-AS
3 ohms to 1 megohm ±5 % ±200 ppm/°C,
±400 ppm/°C
0.063 W Convex Chip Array
Sulfur Resistant
CAY16A-J4AS
CR0201A CR-A
1 Ω to 10 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.05 W Chip CR0201A
CR0402A CR-A
1 Ω to 20 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.063 W Chip CR0402A
CR0603A CR-A
1 Ω to 20 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.1 W Chip CR0603A
CR0805A CR-A
1 Ω to 20 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.125 W Chip CR0805A
CR1206A CR-A
1 Ω to 20 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.25 W Chip CR1206A
CR1210A CR-A
1 Ω to 20 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.33 W Chip CR1210A
CR2010A CR-A
1 Ω to 20 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.5 W Chip CR2010A
CR2512A CR-A
1 Ω to 20 MΩ
1 %
5 %
-200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
1 W Chip CR2512A
CR0201A-AS CR-A-AS
1 ohm to 10 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.05 W Chip CR0201A-AS
CR0402A-AS CR-A-AS
1 ohm to 20 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.063 W Chip CR0402A-AS
CR0603A-AS CR-A-AS
1 ohm to 20 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.1 W Chip CR0603A-AS
CR0805A-AS CR-A-AS
1 ohm to 20 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.125 W Chip CR0805A-AS
CR1206A-AS CR-A-AS
1 ohm to 20 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.250 W Chip CR1206A-AS
CR1210A-AS CR-A-AS
1 ohm to 20 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.33 W Chip CR1210A-AS
CR2010A-AS CR-A-AS
1 ohm to 20 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
0.5 W Chip CR2010A-AS
CR2512A-AS CR-A-AS
1 ohm to 20 megohms 1 %, 5 % –200 to +600 ppm
±100 ppm
±200 ppm
±400 ppm
1 W Chip CR2512A-AS
CRM0603A CRM-A
0.05 ohm to 1 megohm 0.5 %, 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
±250 ppm
0.125 W Chip CRM0603A
CRM0805A CRM-A
0.05 ohm to 1 megohm 0.5 %, 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
±250 ppm
0.25 W Chip CRM0805A
CRM1206A CRM-A
0.05 ohm to 1 megohm 0.5 %, 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
±250 ppm
0.5 W Chip CRM1206A
CRM1210A CRM-A
0.05 ohm to 1 megohm 0.5 %, 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
±250 ppm
0.5 W Chip CRM1210A
CRM2010A CRM-A
0.05 ohm to 1 megohm 0.5 %, 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
±250 ppm
1 W Chip CRM2010A
CRM2512A CRM-A
0.05 ohm to 1 megohm 0.5 %, 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
±250 ppm
2 W Chip CRM2512A
CRS0603A CRS-A
1 ohm to 1 megohm 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
0.125 W Chip CRS0603A
CRS0805A CRS-A
1 ohm to 1 megohm 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
0.25 W Chip CRS0805A
CRS1206A CRS-A
1 ohm to 1 megohm 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
0.5 W Chip CRS1206A
CRS1210A CRS-A
1 ohm to 1 megohm 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
0.5 W Chip CRS1210A
CRS2010A CRS-A
1 ohm to 1 megohm 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
1 W Chip CRS2010A
CRS2512A CRS-A
1 ohm to 1 megohm 1 %, 5 % ±100 ppm
±150 ppm
±200 ppm
2 W Chip CRS2512A
CMP0603A CMP-A
10 Ω to 1 MΩ
1 %
5 %
±100 ppm
±200 ppm
0.25 W Chip CMP0603A
CMP0805A CMP-A
10 Ω to 1 MΩ
1 %
5 %
±100 ppm
±200 ppm
0.5 W Chip CMP0805A
CMP1260A CMP-A
10 Ω to 1 MΩ
1 %
5 %
±100 ppm
±200 ppm
0.75 W Chip CMP1206A
CMP2010A CMP-A
10 Ω to 1 MΩ
1 %
5 %
±100 ppm
±200 ppm
1 W Chip CMP2010A
CMP2512A CMP-A
10 Ω to 1 MΩ
1 %
5 %
±100 ppm
±200 ppm
1.5 W Chip CMP2512A
CHP0603A CHP-A
10 Ω to 1 MΩ 1 %
5 %
±100 ppm
±150 ppm
±200 ppm
0.33 W Chip CHP0603-A
CHP0805A CHP-A
10 Ω to 1 MΩ 1 %
5 %
±100 ppm
±150 ppm
±200 ppm
0.5 W Chip CHP0805-A
CHP1206A CHP-A
10 Ω to 1 MΩ 1 %
5 %
±100 ppm
±150 ppm
±200 ppm
0.75 W Chip CHP1206-A
CHP2512A CHP-A
10 Ω to 1 MΩ 1 %
5 %
±100 ppm
±150 ppm
±200 ppm
3 W Chip CHP2512-A
CHV0603-A CHV-A
100 kΩ to 22 MΩ 1 %
5 %
±100 ppm
±200 ppm
0.1 Chip CHV0603-A
CHV0805-A CHV-A
100 kΩ to 22 MΩ 1 %
5 %
±100 ppm
±200 ppm
0.125 Chip CHV0805-A
CHV1206-A CHV-A
100 kΩ to 100 MΩ 1 %
5 %
±100 ppm
±200 ppm
0.25 Chip CHV1206-A
CHV2010-A CHV-A
100 kΩ to 100 MΩ 1 %
5 %
±100 ppm
±200 ppm
0.5 Chip CHV2010-A
CHV2512-A CHV-A
100 kΩ to 100 MΩ 1 %
5 %
±100 ppm
±200 ppm
1 Chip CHV2512-A
CFN0402A CFN-A
0.01; 0.02 ohms 1 % / 5 %  ±100 ppm  0.2 W Chip CFN0402
CFN0603A CFN-A
0.005 to 0.02 ohms 1 % / 5 % ±50 ppm / ±100 ppm 0.5 W Chip CFN0603
CFN0805A CFN-A
0.005 to 0.03 ohms 1 % / 5 % ±50 ppm / ±100 ppm 0.75 W Chip CFN0805
CFN1206A CFN-A
0.005 to 0.04 ohms 1 % / 5 % ±50 ppm / ±100 ppm 1 W Chip CFN1206
CRF0805 CRF
0.003 to 0.02 ohms 1 %, 5 % ±50 ppm 0.5 W Chip CRF0805
CRF1206 CRF
0.001 to 0.03 ohms 1 %, 5 % ±50 ppm 1 W Chip CRF1206
CRF2512 CRF
0.001 ohm to 0.050 ohms 1 %, 5 % ±50 ppm 0.001 to 0.010 ohms: 2 W / 0.011 to 0.050 ohms: 1 W Chip CRF2512 Series NiCu
CRE2512 CRE
0.001 to 0.009 ohms 1 % ±50 ppm 2 W / 3 W Chip CRE2512
CRA2512 CRA
0.01 to 0.100 ohms 1 %, 5 % ±50 ppm 3 W Chip CRA2512

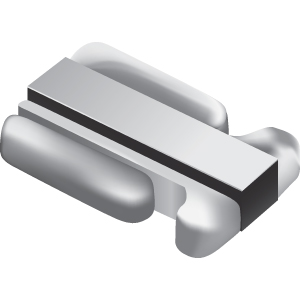

CST0612 CST0612
CST0612_part 0.5 to 5 milliohms 1 % ±100 ppm/±200 ppm 1 W 4-Terminal Chip CST0612
CSS2H-2512 CSS2H-2512
0.3 to 5 milliohms 1 %, 5 % ±50 ppm 1.5 to 6 W Surface Mount CSS2H-2512R
CSS2H-2512K
CSS2H-3920 CSS2H-3920
0.2 to 5 milliohms 1 %, 5 % ±50 ppm 2 to 12 W Surface Mount CSS2H-3920R
CSS2H-3920K
CSS2H-5930 CSS2H-5930
0.2 to 3 milliohms 1 %, 5 % ±50 ppm 4 to 10 W Surface Mount CSS2H-5930R
CSS2H-5930K
CSS4J-4026 CSS4J-4026
0.2 to 3 milliohms 1 %, 5 % ±50 ppm 3 to 5 W Surface Mount CSS4J-4026R
CSS4J-4026K
CSM2F-6918-0 CSM2F-6918-0
50 to 200 microohms 5 % ±50 ppm 36 W Surface Mount / Clearance Hole/ Bare Copper CSM2F-6918-L050J00
CSM2F-6918-L100J00
CSM2F-6918-L200J00
CSM2F-6918-1 CSM2F-6918-1
50 to 200 microohms 5 % ±50 ppm 36 W Surface Mount / Clearance Hole/ Pre-Plate CSM2F-6918-L050J01
CSM2F-6918-2 CSM2F-6918-2
50 to 200 microohms 5 % ±50 ppm 36 W Surface Mount / Clearance Hole/ Post Plated CSM2F-6918-L050J02
CSM2F-6918-L100J02
CSM2F-6918-L200J02
CSM2F-7036-0 CSM2F-7036-0
25 to 100 microohms 5 % ±50 ppm 50 W Surface Mount / Clearance Hole/ Bare Copper CSM2F-7036-L025J00
CSM2F-7036-L050J00
CSM2F-7036-L100J00
CSM2F-7036-1 CSM2F-7036-1
25 to 100 microohms 5 % ±50 ppm 50 W Surface Mount / Clearance Hole/ Pre-Plate CSM2F-7036-L050J01
CSM2F-7036-2 CSM2F-7036-2
25 to 100 microohms 5 % ±50 ppm 50 W Surface Mount / Clearance Hole/ Post Plated CSM2F-7036-L025J02
CSM2F-7036-L050J02
CSM2F-7036-L100J02
CSM2F-8518-0 CSM2F-8518-0
50 to 200 microohms 5 % ±50 ppm 36 W Surface Mount / Clearance Hole/ Bare Copper CSM2F-8518-L050J00
CSM2F-8518-L100J00
CSM2F-8518-L200J00
CSM2F-8518-1 CSM2F-8518-1
50 to 200 microohms 5 % ±50 ppm 36 W Surface Mount / Clearance Hole/ Pre-Plate CSM2F-8518-L050J01
CSM2F-8518-L100J01
CSM2F-8518-2 CSM2F-8518-2
50 to 200 microohms 5 % ±50 ppm 36 W Surface Mount / Clearance Hole/ Post Plated CSM2F-8518-L050J02
CSM2F-8518-L100J02
CSM2F-8518-L200J02
CSM2F-8536-0 CSM2F-8536-0
25 to 100 microohms 5 % ±50 ppm 50 W Surface Mount / Clearance Hole/ Bare Copper CSM2F-8536-L025J00
CSM2F-8536-L050J00
CSM2F-8536-L100J00
CSM2F-8536-1 CSM2F-8536-1
25 to 100 microohms 5 % ±50 ppm 50 W Surface Mount / Clearance Hole/ Pre-Plate CSM2F-8536-L025J01
CSM2F-8536-L050J01
CSM2F-8536-2 CSM2F-8536-2
25 to 100 microohms 5 % ±50 ppm 50 W Surface Mount / Clearance Hole/ Post Plated CSM2F-8536-L025J02
CSM2F-8536-L050J02
CSM2F-8536-L100J02

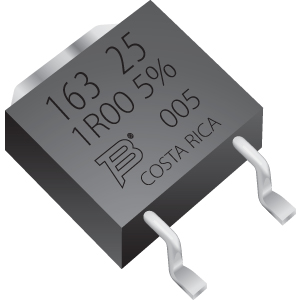

PWR163 PWR163 PWR163_part 0.02-130K ohms 1 %, 5 % ±100 ppm
±200 ppm
±600 ppm
25 25 DPAK Surface Mount DPAK PWR163
Downloads
PWR263S-20 PWR263S-20 PWR263_part 0.02-130K ohms 1 %, 5 % ±100 ppm
±200 ppm
±600 ppm
20 20 W D2PAK Surface Mount D2PAK PWR263S-20
Downloads

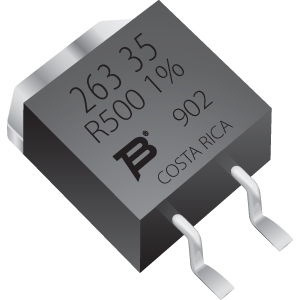

PWR263S-35 PWR263S-35 PWR263S-35_part 0.02 to 130K ohms 1 %, 5 % ±100 ppm
±200 ppm
±600 ppm
35 35 W D2PAK Surface Mount D2PAK PWR263S-35
Downloads

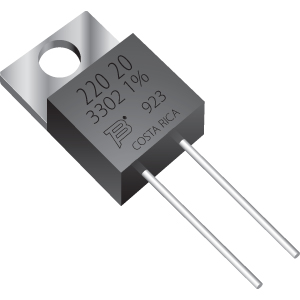

PWR220T-20 PWR220T-20 PWR220T_part 0.5 to 130K ohms 1 %, 5 % ±100 ppm
±200 ppm
±600 ppm
20 20 W TO-220 Through-hole TO-220 PWR220T-20
Downloads

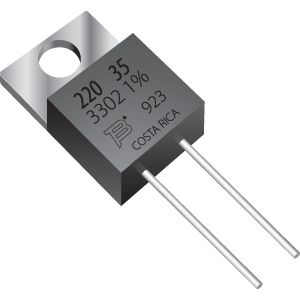

PWR220T-35 PWR220T-35 PWR220T-35_part 0.02 to 130K ohms 1 %, 5 % ±100 ppm
±200 ppm
±600 ppm
35 35 W TO-220 Through-hole TO-220 PWR220T-35
Downloads

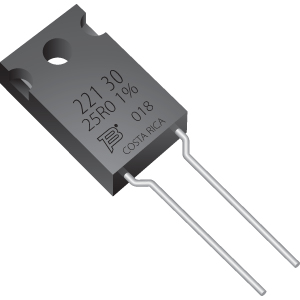

PWR221T-30 PWR221T-30 PWR221T-30_part 0.02 to 130K ohms 1 %, 5 % ±100 ppm
±200 ppm
±600 ppm
30 30 TO-220 Through-hole TO-220 PWR221T-30
Downloads
