SMD 遮蔽式功率电感

技术规格

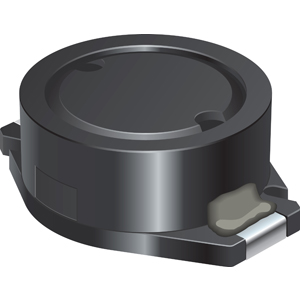

Bourns® 遮蔽式 SMD 功率电感 - 执行 DC-DC 转换电源的重要组件

功率电感是稳压器拓扑中的重要组件。实际上，汽车、电子产品和 DC-DC 转换器中每个调节电源的电路都需要一个电感器。Bourns® 遮蔽式 SMD 功率电感尺寸轻省，电感范围广。Bourns® 最畅销的遮蔽 SMD 功率电感器采用遮蔽外壳制造，旨在实现汽车设计所需的低 EMI 水平，并用作便携式通讯设备的电源。

Bourns® SRP 系列功率电感所有型号均符合 RoHS 标准，其中有多项系列亦符合 AEC-Q200 标准。Bourns® SRP 系列功率电感结合了扁线技术和粉末铁芯，为 DC-DC 转换器应用实现了紧凑高效的封装。Bourns® SRR 和 SRU 遮蔽 SMD 功率电感专为处理高电流和控制电磁干扰 (EMI) 而设计，特别适用于智能电表电源电路。当微控制器或高频组件用于相邻电路或电路板组件本身时，遮蔽式 SMD 功率电感是首选。

Bourns® 为专业生产具有成本效益、符合 AEC-Q200 标准的遮蔽功率电感的制造商，我们的功率电感器是在需要电压转换的应用中减少磁芯损耗的基本解决方案。身为遮蔽式功率电感制造商，Bourns 具备完整的功率电感产品线，包括电源电感、SMD 功率电感、大电流电感、大功率电感、表贴式电感以及其他需要功率电感的电路。Bourns Inc 功率电感具有广泛电感范围、低 DC 电阻和工业应用所需的高电流值。

Obsolete 产品标记此符号为目前可提供，但不建议作新设计使用。

矿产资源报告- 功率电感：CFSI_CMRT4-01

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	数据表	遮蔽式	尺寸	电感范围	电流范围	MDS	工程檔
SRR1260A		Yes	12.5 x 12.5 x 6 mm	1 - 1000 µH	0.68 - 9.4 A	SRR1260A	Downloads
SRR1280A		Yes	12.5 x 12.5 x 7.5 mm	4.7 - 1000 µH	0.68 - 8.2 A	SRR1280A	Downloads
SRE6603		Yes	4.45 x 6.6 x 4.5 mm	1500 - 10000 µH	0.02 - 0.12 A	SRE6603	Downloads
SRR0603		Yes	6.5 x 6.5 x 3.3 mm	1.5 - 1000 µH	0.1 - 2.2 A	SRR0603	Downloads
SRR0604		Yes	6.5 x 6.5 x 4.8 mm	1.5 - 2200 µH	0.1 - 2.8 A	SRR0604	Downloads
SRR0745A		Yes	7.3 x 7.3 x 4.5 mm	10 - 1000 µH	0.2 - 2.1 A	SRR0745A	Downloads
SRR0804		Yes	8 x 10.5 x 3.8 mm	5 - 470 µH	0.16 - 1.7 A	SRR0804	Downloads
SRR0805		Yes	8 x 10.5 x 4.7 mm	2.2 - 1000 µH	0.15 - 2.5 A	SRR0805	Downloads
SRR0905		Yes	9.9 x 9.9 x 4.5 mm	10 - 470 µH	0.33 - 2.1 A	SRR0905	Downloads
SRR0906		Yes	12.5 x 10 x 6 mm	2.7 - 10000 µH	0.07 - 3.2 A	SRR0906	Downloads
SRR0908		Yes	12.5 x 10 x 7.5 mm	1.5 - 15000 µH	0.08 - 5.6 A	SRR0908	Downloads
SRR1003		Yes	10.3 x 12.7 x 3 mm	1.8 - 470 µH	0.16 - 3 A	SRR1003	Downloads
SRR1005		Yes	10 x 12.7 x 5.2 mm	1 - 3300 µH	0.1 - 4.5 A	SRR1005	Downloads
SRR1205		Yes	12.7 x 12.7 x 5.5 mm	2.5 - 820 µH	0.3 - 5 A	SRR1205	Downloads
SRR1206		Yes	12.7 x 12.7 x 6.5 mm	2.5 - 1500 µH	0.2 - 6.2 A	SRR1206	Downloads
SRR1208	SRR1208	Yes	12.7 x 12.7 x 8.5 mm	2.5 - 10000 µH	0.18 - 7.5 A	SRR1208
SRR1210		Yes	12 x 12 x 10 mm	1 - 1000 µH	0.75 - 11 A	SRR1210	Downloads
SRR1210A		Yes	12 x 12 x 10 mm	1 - 1000 µH	0.75 - 11 A	SRR1210A	Downloads
SRR1240		Yes	12.5 x 12.5 x 4 mm	1- 1000 µH	1.25 - 9.2 A	SRR1240	Downloads
SRR1260		Yes	12.5 x 12.5 x 6 mm	1 - 1000 µH	1.7 - 9.2 A	SRR1260	Downloads
SRR1280		Yes	12.5 x 12.5 x 7.5 mm	1.1 - 1000 µH	0.68 - 10.2 A	SRR1280	Downloads
SRR1305		Yes	12.5 x 12.5 x 5 mm	0.9 - 2.7 µH	12 - 20 A	SRR1305	Downloads
SRR1806		Yes	14 x 18.3 x 6.8 mm	10 - 1000 µH	0.45 - 4 A	SRR1806	Downloads
SRR3011		Yes	3.8 x 3.8 x 1.15 mm	1.5 - 100 µH	0.18 - 1.6 A	SRR3011	Downloads
SRR4011		Yes	4.8 x 4.8 x 1.15 mm	0.47 - 150 µH	0.25 - 3.2 A	SRR4011	Downloads
SRR4018		Yes	4.8 x 4.8 x 1.8 mm	1 - 180 µH	0.18 - 2.7 A	SRR4018	Downloads
SRR4028		Yes	4.8 x 4.8 x 2.8 mm	1.2 - 560 µH	0.22 - 3.1 A	SRR4028 (Except 331)	Downloads
SRR5018		Yes	5.8 x 5.8 x 1.8 mm	1.2 - 220 µH	0.23 - 3 A	SRR5018	Downloads
SRR5028		Yes	5.8 x 5.8 x 2.8 mm	2.6 - 680 µH	0.13 - 3 A	SRR5028	Downloads
SRR6028		Yes	6.8 x 6.8 x 2.8 mm	1.5 - 1000 µH	0.15 - 3.4 A	SRR6028	Downloads
SRR6038		Yes	6.8 x 6.8 x 3.8 mm	3.3 - 100 µH	0.65 - 3.5 A	SRR6038	Downloads
SRR6040A		Yes	6.7 x 6.7 x 4 mm	1 - 100 µH	0.65 - 5 A	SRR6040A Series (1R0~8R2, 120~270, 390~101)	Downloads
SRR6603		Yes	4.4 x 6.6 x 3 mm	1 - 10000 µH	0.04 - 1.77 A	SRR6603	Downloads
SRR7032		Yes	7 x 7 x 3.2 mm	2.2 - 1000 µH	0.15 - 2.65 A	SRR7032	Downloads
SRR7045		Yes	7 x 7 x 4.5 mm	1.0 - 1000 µH	0.25 - 3.5 A		Downloads
SRU1028		Yes	10 x 10 x 2.8 mm	1 - 150 µH	0.65 - 7 A	SRU1028 (1R0~680) SRU1028 (820~151)	Downloads
SRU1038		Yes	10 x 10 x 3.8 mm	1.5 - 330 µH	0.55 - 7.2 A	SRU1038	Downloads
SRU1048		Yes	10 x 10 x 4.8 mm	0.8 - 330 µH	0.65 - 7.8 A	SRU1048	Downloads
SRU1063		Yes	10 x 10 x 6.5 mm	1.6 - 100 µH	1.1 - 8 A	SRU1063	Downloads
SRU2009		Yes	2.8 x 2.8 x 0.9 mm	1 - 22 µH	0.22 - 1.45 A	SRU2009	Downloads
SRU2011		Yes	2.8 x 2.8 x 1.1 mm	1 - 33 µH	0.23 - 1.65 A	SRU2011	Downloads
SRU2013		Yes	2.8 x 2.8 x 1.35 mm	1 - 47 µH	0.25 - 2.2 A	SRU2013	Downloads
SRU2016		Yes	2.8 x 2.8 x 1.65 mm	1 - 100 µH	0.19 - 2.2 A	SRU2016	Downloads
SRU3011		Yes	3.5 x 3.3 x 1.1 mm	1.5 - 10 µH	0.35 - 1.1 A	SRU3011	Downloads
SRU3014		Yes	3.5 x 3.3 x 1.4 mm	1.2 - 22 µH	0.32 - 1.85 A	SRU3014	Downloads
SRU3017		Yes	3.5 x 3.3 x 1.8 mm	2.2 - 47 µH	0.36 - 1.7 A	SRU3017	Downloads
SRU3028		Yes	3.5 x 3.3 x 2.8 mm	10 - 100 µH	0.19 - 0.72 A	SRU3028	Downloads
SRU5011		Yes	5.2 x 5.2 x 1.1 mm	1.5 - 100 µH	0.2 - 1.8 A	SRU5011	Downloads
SRU5016		Yes	5.2 x 5.2 x 1.6 mm	1.8 - 100 µH	0.3 - 1.75 A	SRU5016	Downloads
SRU5018		Yes	5.2 x 5.2 x 1.8 mm	1 - 100 µH	0.32 - 2.8 A	SRU5018 (1R0~6R8, 101) SRU5018 (100~680)	Downloads
SRU5028		Yes	5.2 x 5.2x 2.8 mm	1.2 - 100 µH	0.47 - 3.5 A	SRU5028	Downloads
SRU6011		Yes	6.5 x 6.2 x 1.1 mm	1.4 - 68 µH	0.46 - 2.6 A	SRU6011	Downloads
SRU6013		Yes	6.5 x 6.2 x 1.4 mm	1 - 68 µH	0.6 - 3.2 A	SRU6013	Downloads
SRU6018		Yes	6.5 x 6.2 x 1.8 mm	1.2 - 100 µH	0.5 - 3.6 A	SRU6018	Downloads
SRU6025		Yes	6.5 x 6.2 x 2.5 mm	1.2 - 220 µH	0.42 - 4 A	SRU6025	Downloads
SRU8028		Yes	8 x 8 x 2.8 mm	1 - 100 µH	0.75 - 7 A	SRU8028-1R0Y SRU8028 Series (2R5-4R7) SRU8028 Series (6R8-220) SRU8028 Series (330-101)	Downloads
SRU8043		Yes	8 x 8 x 4.3 mm	2.2 - 100 µH	1 - 5.4 A	SRU8043 (1R0, 3R3, 6R8-101) SRU8043 (2R2, 3R9, 4R7)	Downloads
SRU8045A	SRU8045A	Yes	8 x 8 x 4.5 mm	3.5 -100 µH	1 - 5 A	SRU8045A (470Y-101Y) SRU8045A (3R5Y - 330Y)
SRU1063A	SRU1063A	Yes	10 x 10 x 6.5 mm	4.7 -100 µH	1.1 - 5.5 A	SRU1063A
SRR1050A	SRR1050A	Yes	10.2 x 10 x 4.8 mm	0.68 - 330 µH	0.73 - 9.5 A	SRR1050A
SRR3818A	SRR3818A	Yes	3.8 x 3.8 x 1.8 mm	1 - 100 µH	0.34 - 3.6 A	SRR3818A (1R0-150) SRR3818A (220-221)
SRR4818A	SRR4818A	Yes	4.8 x 4.8 x 1.8 mm	1 - 47 µH	0.75 - 5.1 A	SRR4818A
SRR4828A	SRR4828A	Yes	4.8 x 4.8 x 2.8 mm	1.2 - 220 µH	0.5 - 5 A	SRR4828A
SRR4528A	SRR4528A	Yes	5 x 5 x 2.8 mm	1.2 - 390 µH	0.28 - 4.82 A	SRR4528A
SRR1050HA	SRR1050HA	Yes	10 x 10.2 x 4.8 mm	0.68 – 470 µH	0.6 – 9.5 A	SRR1050HA
SPB1308	SPB1308	Yes	13.5 x 13 x 8 mm	210 - 440 nH	50 A	SPB1308
SPB1012	SPB1012	Yes	10 x 6.2 x 12 mm	100 - 330 nH	60 A	SPB1012
SPB1007	SPB1007	Yes	10.5 x 8 x 7.5 mm	115 - 300 nH	61 A	SPB1007
SPB1005	SPB1005	Yes	10.2 x 7 x 5 mm	100 - 220 nH	53 A	SPB1005
SPB0705	SPB0705	Yes	6.7 x 6.5 x 4.7 mm	72 - 150 nH	43 A	SPB0705
SRR0745HA	SRR0745HA	Yes	7.3 x 7.3 x 4.5 mm	10 - 1000 µH	0.2 - 2.1 A	SRR0745HA
SRR0735HA	SRR0735HA	Yes	7.3 x 7.3 x 3.5 mm	10 - 1000 µH	0.17 - 2.1 A	SRR0735HA
SRR0735A		Yes	7.3 x 7.3 x 3.5 mm	10 - 680 µH	0.21 - 2.1 A	SRR0735A	Downloads
SRR5228A	SRR5228A	Yes	5.2 x 5.2 x 2.8 mm	1.2 - 1000 µH	0.21 - 5.2 A	SRR5228A (1R2Y-121M) SRR5228A (151M-102M)
SRR5828A	SRR5828A	Yes	5.8 x 5.8 x 2.8 mm	2.6 - 1000 µH	0.21 - 4.5 A	SRR5828A (2R6Y-331M) SRR5828A (681M-102M)

美国柏恩(Bourns)提供多元的半屏蔽式功率电感产品全面支持DC/DC电源转换器电源管理应用方案

美国柏恩(Bourns)发布薄型SMD大电流屏蔽式功率电感应用于携带式电子产品内的DC/DC电源转换器

Bourns 新型高电流功率电感将扁型配线技术用于DC/DC转换器

美国柏恩(Bourns) 推出新SMD功率电感系列產品滿足汽車應用需求

美国柏恩(Bourns)推出半屏蔽式功率电感系列产品最佳DC/DC电源转换器电源管理应用方案

美国柏恩(Bourns)推出新款功率电感产品提供汽车应用卓越的DC/DC转换性能

功率电感概观

Bourns® 表面黏着式功率电感与共模扼流圈

Inductance (μH)	min 0	max 120,000
Current Rating (A)	min 0.0005	max 70
Current Saturation (A)	min 0.0003	max 118
DCR (Ohms)	min 0	max 484

Height (mm)	min 0	max 54
Length (mm)	min 0	max 54
Width (mm)	min 0	max 38.1
Material Core
Shielding
Ratings

Model/Datasheet	潮湿敏感度等级 MSL	焊接图表	封装标签	端子	RoHS 规范证书 CofC	第三方测试报告	物质资料表 MDS	China RoHS
SRE6603	1	See Data Sheet	TBD	TBD	SRE	Request Report	SRE6603	China RoHS - SMD S
SRR0603		Conf 2	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0603	China RoHS - SMD S
SRR0604		Conf 2	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0604	China RoHS - SMD S
SRR0735A		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0735A	China RoHS - SMD S
SRR0745A		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0745A	China RoHS - SMD S
SRR0804		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0804	China RoHS - SMD S
SRR0905		See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0905	China RoHS - SMD S
SRR0906		Conf 2	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0906	China RoHS - SMD S
SRR0908		Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0908	China RoHS - SMD S
SRR1005	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1005	China RoHS - SMD S
SRR1205	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1205	China RoHS - SMD S
SRR1206	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1206	China RoHS - SMD S
SRR1208	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1208	China RoHS - SMD S
SRR1210	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1210	China RoHS - SMD S
SRR1210A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1210A	China RoHS - SMD S
SRR1240	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1240 & PM124SH Series SRR1240	China RoHS - SMD S
SRR1260	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1260	China RoHS - SMD S
SRR1260A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1260A	China RoHS - SMD S
SRR1280	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1280	China RoHS - SMD S
SRR1280A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1280A	China RoHS - SMD S
SRR1305	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1305	China RoHS - SMD S
SRR1806	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1806	China RoHS - SMD S
SRR3011	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR3011	China RoHS - SMD S
SRR4011	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR4011	China RoHS - SMD S
SRR4018	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR4018	China RoHS - SMD S
SRR4028	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR4028 (Except 331)	China RoHS - SMD S
SRR5018	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR5018	China RoHS - SMD S
SRR5028	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR5028	China RoHS - SMD S
SRR6028	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR6028	China RoHS - SMD S
SRR6038	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR6038	China RoHS - SMD S
SRR6040A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR6040A Series (1R0~8R2, 120~270, 390~101) SRR6040A Series (100 & 330)	China RoHS - SMD S
SRR6603	1	See Data Sheet	Ch Pwr Ind	Au (e4)	SRR	Request Report	SRR6603	China RoHS - SMD S
SRR7032	1	Conf 2	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR7032	China RoHS - SMD S
SRR7045	1	Conf 2	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR7045 (1R0-151) MDS SRR7045 (181-102) MDS	China RoHS - SMD S
SRU1028	1	Conf 2	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU1028 (1R0~680) SRU1028 (820~151)	China RoHS - SMD S
SRU1028A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU1028A	China RoHS - SMD S
SRU1038	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU1038	China RoHS - SMD S
SRU1038A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU1038A	China RoHS - SMD S
SRU1048	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU1048	China RoHS - SMD S
SRU1048A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU1048A	China RoHS - SMD S
SRU1063	1	Conf 3	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU1063	China RoHS - SMD S
SRU2009	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU2009	China RoHS - SMD S
SRU2011	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU2011	China RoHS - SMD S
SRU2013	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU2013	China RoHS - SMD S
SRU2016	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU2016	China RoHS - SMD S
SRU3011	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU3011	China RoHS - SMD S
SRU3014	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU3014	China RoHS - SMD S
SRU3028	1	Conf 2	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU3028	China RoHS - SMD S
SRU3028A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU3028A	China RoHS - SMD S
SRU5011	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU5011	China RoHS - SMD S
SRU5016	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU5016	China RoHS - SMD S
SRU5018	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU5018 (1R0~6R8, 101) SRU5018 (100~680)	China RoHS - SMD S
SRU5028	1	Conf 2	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU5028	China RoHS - SMD S
SRU5028A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU5028A	China RoHS - SMD S
SRU6011	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU6011	China RoHS - SMD S
SRU6013	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU6013	China RoHS - SMD S
SRU6018	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU6018	China RoHS - SMD S
SRU6025	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU6025	China RoHS - SMD S
SRU6025A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU6025A	China RoHS - SMD S
SRU8028	1	Conf 2	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU8028 (1R0Y) SRU8028 (2R5~4R7) SRU8028 (6R8~220) SRU8028 (330~101)	China RoHS - SMD S
SRU8028A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU8028A	China RoHS - SMD S
SRU8043	1	Conf 2	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU8043 (2R2, 3R9, 4R7) SRU8043 (1R0, 3R3, 6R8-101)	China RoHS - SMD S
SRR1003	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1003	China RoHS - SMD S
SRR3818A	1	See Data Sheet	Ch Pwr Ind	e1	SRR	Request Report	SRR3818A (1R0-150) SRR3818A (220-221)	China RoHS - SMD S
SRR4818A	1	See Data Sheet	Ch Pwr Ind	e1	SRR	Request Report	SRR4818A	China RoHS - SMD S
SRR4828A	1	See Data Sheet	Ch Pwr Ind	e1	SRR	Request Report	SRR4828A	China RoHS - SMD S
SRR4528A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR4528A	China RoHS - SMD S
SRR1050HA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR1050HA	China RoHS - SMD S
SPB1308	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SPB CoC	Request Report	SPB1308	China RoHS - SMD S
SPB1012	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SPB CoC	Request Report	SPB1012	China RoHS - SMD S
SPB1007	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SPB CoC	Request Report	SPB1007	China RoHS - SMD S
SPB1005	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SPB CoC	Request Report	SPB1005	China RoHS - SMD S
SPB0705	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SPB CoC	Request Report	SPB0705	China RoHS - SMD S
SRR0745HA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0745HA	China RoHS - SMD S
SRR0735HA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRR	Request Report	SRR0735HA	China RoHS - SMD S
SRR5828A	1	See Data Sheet	Ch Pwr Ind	e1	SRR	Request Report	SRR5828A (2R6Y-331M) SRR5828A (681M-102M)	China RoHS - SMD S
SRR5228A	1	See Data Sheet	Ch Pwr Ind	e1	SRR	Request Report	SRR5228A (1R2Y-121M) SRR5228A (151M-102M)	China RoHS - SMD S
SRR1050A	1	See Data Sheet	TBD	Sn (e3)	SRR	Request Report	SRR1050A	China RoHS - SMD S
SRU1063A	1	See Data Sheet	TBD	Sn (e3)	SRU	Request Report	SRU1063A	China RoHS - SMD S
SRU3017	1	Conf 1	Ch Pwr Ind	Sn (e3)	SRU	Request Report	SRU3017	China RoHS - SMD S
SRU8045A	1	See Data Sheet	TBD	Sn (e3)	SRU	Request Report	SRU8045A (470Y-101Y) SRU8045A (3R5Y - 330Y)	China RoHS - SMD S

File	Type	Size	Uploaded on	Download
高速套接字口保护	PDF	843.57 KB	28 5月, 2015	Download

所有带星号的字段都是必填字段

姓名*

公司*

地址*

城市*

州*

邮政编码*

国家/地区*

工作电话*

电子邮件地址*

零部件编号/简介*

样品数量*

发送日期

估计年需量*

应用*

用途*

私人发送日期电子工业

所有带星号的字段都是必填字段

名*

姓*

电子邮件地址*

Phone

公司*

地址*

城市*

州*

邮政编码*

国家/地区*

问询类型

问题或意见

https://www.youtube.com/embed/Nm_DJI66OI4

Bourns® Model AMS22 and AMM20 Programmer Systems

https://www.youtube.com/embed/e0LD62lj5xI

Bourns® Model AMS22 Demo

https://www.youtube.com/embed/nEB-WvEg7HA

Bourns® Model AMM20 Demo

https://www.youtube.com/embed/JfhRGnoSB3Q

Bourns® Model PWR220T

https://www.youtube.com/embed/0g-4yO34LfM

Bourns® Automotive Steering Sensors

https://www.youtube.com/embed/BS8zGqggp7U

Bourns® Pro Audio Components

https://www.youtube.com/embed/Gfielg2zKWQ

Bourns® Model 82 Vintage Premium Guitar Potentiometer

https://www.youtube.com/embed/PDyFhNtQ4us

Bourns Soldering Tips

https://www.youtube.com/embed/cZFbV1oijh4

Bourns Push-Pull Switch Guitar Application

https://www.youtube.com/embed/nRD6kc-NEtQ

Bourns Pickguard Upgrade Application

https://www.youtube.com/embed/NF-FN90Tkmk

Bourns Blend-Balance Bass Guitar Application

https://www.youtube.com/embed/HZI3tmGyOcw

Helpful Tips for Installing Guitar Potentiometers

https://www.youtube.com/embed/adTlZytoXgE

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 3: Grounding and Soldering

https://www.youtube.com/embed/smoO4Ytp4ec

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 2: Lubrication and Wear

https://www.youtube.com/embed/6uyti330_-4

Bourns® Pro Audio Standard and Premium Guitar Potentiometers - Part 1: Elements and Contacts

https://www.youtube.com/embed/x5XJVXOlL5Y

Bourns® Model 82 Guitar Potentiometer Factory Tour

https://www.youtube.com/embed/hEgygGlBDPg

Bourns® Overload Protection of Offline Flyback Converter

https://www.youtube.com/embed/UJ3rlY5K1bA

Bourns AEC-Q200 Competency

chipguard-esd-suppressors-aec-q200-compliant
chip-inductors-aec-q200-compliant
common-mode-chip-inductors-aec-q200-compliant
common-mode-chokes-aec-q200-compliant
diodes-aec-q101-compliant
fixed-resistors-aec-q200-compliant-resistors
power-inductors-aec-q200-compliant
resettable-fuses-multifuse-pptc-aec-q200-compliant
rotary-position-sensors-aec-q200-compliant
singlfuse-smd-fuses-aec-q200-compliant
tbu-high-speed-protectors-(hsps)-aec-q101-compliant
transformers-bms-aecq200
transformers-power-aec-q200-compliant
transformers-signal-aec-q200-compliant
trimpot-trimming-potentiometers-aec-q200-compliant
wirewound-chip-inductors-aec-q200-compliant
diodes-aec-q101-compliant-automotive-grade

https://www.youtube.com/embed/euXfej62BFA

Bourns® Resettable Fuses - Multifuse® PPTC

https://www.youtube.com/embed/Y37ZDjIBpKw

Bourns® AA Series Mini-Breaker (Miniature Thermal Cutoff Device)

https://www.youtube.com/embed/28CFXzOnadU

Bourns Protecting Li-Ion Batteries with Thermal Cut Off Devices

https://www.youtube.com/embed/LBNex6kh3m0

Bourns Battery Management

https://www.youtube.com/embed/W0BkHB1unD8

Bourns® FLAT® Technology Gas Discharge Tube (GDT) Surge Arrestors

https://www.youtube.com/embed/v6D39knjJ30

Bourns® RS-485 Evaluation Board Video

https://www.youtube.com/embed/teaVJbITCng

A Brief Introduction to Bourns® TBU® High Speed Protectors

https://www.youtube.com/embed/8cKyOytCv0M

Introducing Bourns® GMOV™ Components

https://www.youtube.com/embed/Eh3vfn1KAX8

Bourns® Environmental Sensors

https://www.youtube.com/embed/mbSBI5XLdB8

A Brief Introduction to RS-485 Evaluation Board 1

https://www.youtube.com/embed/nCloWgsLah4

Overtemperature Protection for USB Type-C Cables

https://www.youtube.com/embed/6GSSjDPV9So

Bourns® PQ Series Inductors

https://www.youtube.com/embed/OJD5OoJSNPs

Bourns® SM41126EL Transformer

https://www.youtube.com/embed/GbfNc3X5WpE

Bourns® Sensor Capabilities

https://www.youtube.com/embed/xEfveaks8V4

Bourns Magnetic Capabilities

transformers-htc
chip-beads
chip-inductors-common-mode
chip-inductors-aec-q200-compliant
chip-inductors-multilayer
chip-inductors-wirewound
common-mode-chip-inductors-aec-q200-compliant
common-mode-chokes
custom-magnetics
common-mode-chokes-aec-q200-compliant
custom-special-power-transformer-worksheet
custom-special-inductor-and-cmc-worksheet
j.w.-miller-through-hole-axial-lead-rf-chokes
j.w.-miller-through-hole-common-mode-chokes
j.w.-miller-through-hole-ferrite-beads-emi-filters
j.w.-miller-through-hole-high-current-chokes
j.w.-miller-through-hole-radial-lead-rf-chokes
j.w.-miller-through-hole-toroid-inductors
j-w-miller-smd-products
power-inductors-aec-q200-compliant
power-inductors-smd-dual-winding-shielded
power-inductors-smd-high-current-shielded
power-inductors-smd-non-shielded
power-inductors-smd-semi-shielded
power-inductors-smd-shielded
power-inductors-through-hole
power-magnetics-manufacturing-and-design
transformers-bms-aecq200
transformers-chip-lan
transformers-planar
transformers-power
transformers-power-aec-q200-compliant
transformers-signal
wirewound-chip-inductors-aec-q200-compliant
transformers-signal-aec-q200-compliant

https://www.youtube.com/embed/UuVEEXet3SM

Bourns® IsoMOV™ Hybrid Protector

https://www.youtube.com/embed/MwL6m0FqEKg

Bourns - Surge Suppression Component Superimposed With Live AC

https://www.youtube.com/embed/NweconkUlyA

Surging single MOV vs 2 in Parallel

https://www.youtube.com/embed/x70Wi_vgiYs

Demonstration of Universal AC Power Protection Solution on 120 Vac Line

https://www.youtube.com/embed/uud7z6JqXpo

Temporary Overvoltage Demo on IsoMOV M5-275

https://www.youtube.com/embed/wUqQ-cqc4o8

4030 Test Set

https://www.youtube.com/embed/t6VyHyNoxcY

Bourns Webinar: Magnetics Component Design Considerations for SMPS Applications (SiC and GaN)

https://www.youtube.com/embed/3U9drK0vxws

Bourns Webinar: Power & Signal Magnetics Solutions in Battery Management Systems

https://www.youtube.com/embed/P4vQ2WIBkbs

Bourns Webinar: Solutions for Low Power Conversion Drivers/Flyback Topology

https://www.youtube.com/embed/XFOz5FF48dA

Bourns Webinar: UL/IEC 62368-1 Got You Down? IsoMOV™ to the Rescue!

https://www.youtube.com/embed/hvcnul-xoQM

Bourns Webinar: Improving Battery Management Systems with High Accuracy Shunt Current Measurement

https://www.youtube.com/embed/6-5TcJx2pHw

Bourns Webinar: Latest BMS Design Solutions to Enhance Safety & Extend Battery Life

https://www.youtube.com/embed/bXV4OQjGSoU

Training: Bourns® Model CSS Series Current Sense Resistors

https://www.youtube.com/embed/mmL5zo6ctRE

Training: Bourns® Current Sense Resistors

https://www.youtube.com/embed/r7r0t0wmZWw

Training: Bourns® Power Resistors

https://www.youtube.com/embed/7OMppZzrdiM

Training: Bourns® Model AMM20B Non-Contacting Multiturn Rotary Position Sensors

https://www.youtube.com/embed/BsmGkZCSoXk

Training: Bourns® AMS22S Non-Contacting Analog Rotary Position Sensors

https://www.youtube.com/embed/MPj42VCMq1U

Training: Bourns® SRN Series Semi-Shielded Power Inductors

https://www.youtube.com/embed/qpnYLei_6n0

Training: Bourns® Model PWR263S-20 Fixed Resistor

https://www.youtube.com/embed/6ZqpjH8_1RU

Training: Bourns® FW Fusible Wirewound Resistor

https://www.youtube.com/embed/YKzAgeN2sa0

Training: Bourns® Magnetics Overview

transformers-htc
chip-beads
chip-inductors-aec-q200-compliant
chip-inductors-common-mode
chip-inductors-wirewound
chip-inductors-multilayer
common-mode-chip-inductors-aec-q200-compliant
common-mode-chokes
custom-magnetics
common-mode-chokes-aec-q200-compliant
custom-special-inductor-and-cmc-worksheet
custom-special-power-transformer-worksheet
j.w.-miller-through-hole-common-mode-chokes
j.w.-miller-through-hole-axial-lead-rf-chokes
j.w.-miller-through-hole-ferrite-beads-emi-filters
j.w.-miller-through-hole-high-current-chokes
j.w.-miller-through-hole-radial-lead-rf-chokes
j.w.-miller-through-hole-toroid-inductors
j-w-miller-smd-products
power-inductors-aec-q200-compliant
power-inductors-smd-shielded
power-inductors-smd-semi-shielded
power-inductors-smd-non-shielded
power-inductors-smd-high-current-shielded
power-inductors-smd-dual-winding-shielded
power-inductors-through-hole
power-magnetics-manufacturing-and-design
transformers-bms-aecq200
transformers-chip-lan
transformers-planar
transformers-power
transformers-power-aec-q200-compliant
transformers-signal-aec-q200-compliant
wirewound-chip-inductors-aec-q200-compliant
transformers-signal

https://www.youtube.com/embed/9DKj0rHayQE

Training: Bourns® Model AMS22B Non-Contacting Analog Rotary Position Sensor

https://www.youtube.com/embed/mLJb9i8PR_c

Training: Bourns® Model EMS22 Non-Contacting Magnetic Encoders

https://www.youtube.com/embed/j--IuFGVrNw

Training: Bourns® Model AMS22U Non-Contacting Analog Rotary Position Sensors

https://www.youtube.com/embed/HXnVnYTyAtA

Training: Bourns® Singlfuse™ SMD Fuses

https://www.youtube.com/embed/eBbFmpK8FDU

Training: Bourns® BPS240 Humidity Sensor

https://www.youtube.com/embed/t-c1pHyijp4

Training; Bourns® SinglFuse™ SMD Fuses - AEC-Q200-Equivalent Compliant

https://www.youtube.com/embed/NBd779BDNT4

Training: Bourns® GDT25 Next Generation 2-Electrode Gas Discharge Tube Arrestor

https://www.youtube.com/embed/PaiTMH8hv8I

Training: Bourns® Mini-Breakers (Miniature Thermal Cut Off Devices)

https://www.youtube.com/embed/AGH2Hvbs7bA

Training: Bourns® 1202 Series Type 1 Hybrid SPD

https://www.youtube.com/embed/YNJLq_18Pbw

Training: Bourns® IsoMOV™ Hybrid Protection Component Product Training Module

https://www.youtube.com/embed/MH1IGkZE7oI

Training: Bourns® TBU® High-Speed Protectors (HSP)

https://www.youtube.com/embed/fymZOv0Bp7g

Training: Bourns® Model 3382 Rotary Position Sensor Training

https://www.youtube.com/embed/VDXAtPDtcrg

Training: Bourns® Multifuse® MF-RM Series

https://www.youtube.com/embed/NLFeFe-tX4U

Training: Bourns® Polymeric Thermal Cutoff (P-TCO) Device

https://www.youtube.com/embed/6oMlO_A8rLo

Training: Bourns® Transient Current Suppressor (TCS™) High-Speed Protectors (HSPs)

https://www.youtube.com/embed/V6CfK8xPBAM

Training: Bourns® Multifuse® PPTC Resettable Fuses

https://www.youtube.com/embed/yuDDvzJV5jc

Training: Bourns® ESD Protection Devices

https://www.youtube.com/embed/47i6uPYaXvc

Training: Bourns® Pressure Sensors

https://www.youtube.com/embed/iuus5evFxJI

Training: Bourns® Power Transient Voltage Suppressor (PTVS) Diodes

https://www.youtube.com/embed/v6jeOjwF0tg

Training: Bourns® Model HCT Transformer

https://www.youtube.com/embed/ZxsWSn5Tqcg

Training: Bourns® Model 2051 Series Gas Discharge Tube (GDT)

https://www.youtube.com/embed/JsxH4eQlDrc

Training: Bourns® T-Series Fast Acting GDTs

https://www.youtube.com/embed/EoMwFN8tThs

Training: Bourns® Gas Discharge Tubes with FLAT® Technology

https://www.youtube.com/embed/o5DEqA1a7Ic

Bourns Webinar: Push-Pull Topology Highlights and Bourns Solutions for Low Power Conversion Drivers

https://www.youtube.com/embed/ZN2Vl6BAi7A

Training: Bourns® Gas Discharge Tube Surge Arrestors

https://www.youtube.com/embed/4rtsti1x74E
