J.W. Miller® - 插件式軸心引線RF扼流圈

J.W. Miller® - Through-Hole Axial Lead RF Chokes

技术规格

Bourns 很高兴在此宣布由Bell工业公司收购 J.W. Miller 磁性产品部门。J.W. Miller® 磁性产品成立于1924年，为知名的标准与订制磁性组件供货商，能满足少量或大批生产的需求。完整产品系列包括高质量线圈、扼流圈、电感、变压器等，配置方式有表面黏着式、插件式两种。

JW Miller® Magnetic Products 的冲突矿产资源报告：CMRT

产品

参数搜索

RoHS

产品信息

视频

索取样品

联系我们

Series	数据表	产品图片	遮蔽式	尺寸	电感范围	电流范围	MDS	工程	工程檔

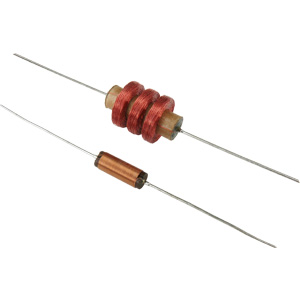

4600			No	7 mm Dia 53 mm Lg	1 - 10 µH				Downloads
5300			No	4 Dia x 12.7 Lg	1 - 10000 µH	0.05 - 3.3 A			Downloads

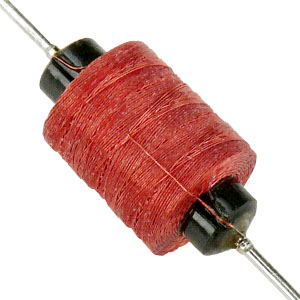

70F			No	10 mm Dia x 48 mm Lg	50000 - 100000 µH		70F		Downloads
77F			No	4 Dia x 10.4 Lg	1 - 1000 µH	0.1 - 0.9 A	77F		Downloads
78F			No	2.8 Dia x 7.1 Lg	0.033 - 1000 µH	0.04 - 0.5 A	78F (R10-820)		Downloads
8230			No	3 Dia x 7.6 Lg	0.1 - 1000 µH	0.04 - 1.1 A	8230		Downloads
8250			Yes	4.2 Dia x 11.4 Lg	0.1 - 100000 µH	0.02 - 3 A	8250		Downloads
9220			No	4.8 Dia x 11.2 Lg	270 - 1000 µH	0.08 - 0.11 A			Downloads
9230			No	2.4 Dia x 6.4 Lg	0.1 - 1000 µH	0.04 - 1.1 A	9230		Downloads
9250A			Yes	4.2 Dia x 10.4 Lg	0.1 - 8200 µH	0.26 - 1.8 A	9250A		Downloads

Model/Datasheet	产品照片	潮湿敏感度等级 MSL	焊接图表	封装标签	端子	RoHS 规范证书 CofC	第三方测试报告	物质资料表 MDS	China RoHS
5300		2	Std	Ch Pwr Ind		5300, 8230	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
77F		2	Std	Ch Pwr Ind		77F, 78F, 79F	Request Report	77F	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
78F		2	Std	Ch Pwr Ind		77F, 78F, 79F	Request Report	78F (R10-820)	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
8230		2	Std	Ch Pwr Ind		5300, 8230	Request Report	8230	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
8250		2	Std	Ch Pwr Ind		8250	Request Report	8250	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
9220		2	Std	Ch Pwr Ind		9220, 9230, 9310	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
9230		2	Std	Ch Pwr Ind		9220, 9230, 9310	Request Report	9230	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
9310		2	Std	Ch Pwr Ind		9220, 9230, 9310	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
9250A		2	Std	Ch Pwr Ind		9250, 9250A	Request Report	9250A	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
4600		2	Std	Ch Pwr Ind		4600	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS

File	Type	Size	Uploaded on	Download
高速套接字口保护	PDF	843.57 KB	28 5月, 2015	Download
