精密ポットマルチターン

技術仕様

精密ポテンショメーターは、精度と信頼性の高さが重要になる制御用途向けに設計されています。これらのデバイスには、導電性プラスチック型、巻線型、または Hybritron® 素子型があり、サイズも豊富です。シングルターンとマルチターンのモデルがあります。一般的な用途には、生産設備、工業試験および計測機器、そして医療機器における直線距離、角度あるいは回転の計測などがあります。

生産終了この記号が付いている製品は現在入手可能ですが、新設計での使用は推奨できません。

センサー、パネルコントロール、エンコーダ、精密ポテンショメーター、ダイヤルの鉱物材料報告書：CFSI_CMRT4-01

サンプル請求へのクイックリンク：

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Package Diameter	Shape	Rotational Life	Number of Turns	Sealable	Detents	Shaft	Bushing	Element	Terminal	Taper-Linear	Linearity	Resistance-Minimum	Resistance-Maximum	Power Rating	Ganging	MDS	Design Files	Buy Now

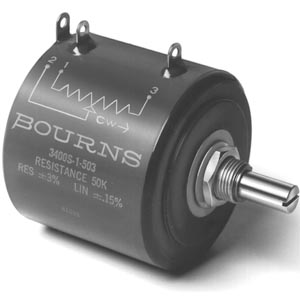

3400	1-13/16 "	Round	2M	10	IP40		Metal	Metal	Wirewound	Solder Lug/Side	x	±0.15 %	100 Ω	500K Ω	5 W	2	3400S-L		購入

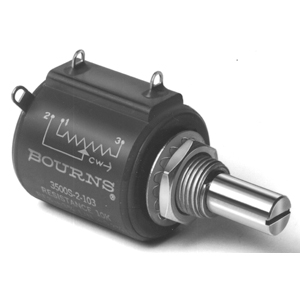

3500/3501	7/8 "	Round	2M	10	IP65		Metal	Metal	Wirewound/Hybritron®	Solder Lug/Side	x	±0.2 %	50 Ω	200K Ω	2 W	2	3500S-L 3501H-L	Downloads	購入 (3500) 購入 (3501)
3540, 3541	7/8 "	Round	1-5M	10	IP40		Metal	Metal	Wirewound/Hybritron®	Solder Lug/Side	x	±0.25 % / ±10 %	100/1K Ω	100K Ω	2 W	2	3540S-L 3541H-L	Downloads	購入 (3540) 購入 (3541)
3543/3545	7/8 "	Round	300/500K	3-5	IP40		Metal	Metal	Wirewound	Solder Lug/Side	x	±0.25 %	20/50 Ω	50K Ω	1-1.5 W	2	3543S-L 3545S-L		購入 (3543) 購入 (3545)
3547	7/8 "	Round	750K/1.5M	3	IP50		Nickel Plated Brass/Stainless Steel	Brass/Bronze	Wirewound/Hybritron®	Solder Lug/Side	x	±0.25 %	200/1K Ω	50K/10K Ω	1 W	2	3547H 3547S		購入
3548	7/8 "	Round	1M/2.5M	5	IP50		Nickel Plated Brass/Stainless Steel	Brass/Bronze	Wirewound/Hybritron®	Solder Lug/Side	x	±0.25 %	200/1K Ω	50K/10K Ω	1.5 W	2	3548H 3548S		購入
3549	7/8 "	Round	2M/5M/10M	10	IP50		Nickel Plated Brass/Stainless Steel	Brass/Bronze	Wirewound/Hybritron®	Solder Lug/Side	x	±0.2 %	100/1K Ω	100K/100K Ω	2 W	2	3549H 3549S 3549H-1AF	Downloads	購入
3590	7/8 "	Round	1M	10	IP65		Metal/Plastic	Metal/Plastic	Wirewound	PC Pins/Solder Lug/Side	x	±0.25 %	200 Ω	100K Ω	2 W		3590P-2-L 3590S-1-L 3590S-3L 3590S-2-L	Downloads	購入
3700/3701	1/2 "	Round	1M/4M	10	IP40		Metal	Metal	Wirewound/Hybritron®	Solder Lugs/Turret Lugs	x	±0.25 %	2K Ω	100K Ω	1 W		3700S-L 3701H-L		購入 (3700) 購入 (3701)
3750/3751	1/2 "	Round	1M/4M	10	IP40		Metal	Metal	Wirewound/Hybritron®	Solder Lugs/Turret Lugs	x	±0.25 %	1K Ω	100K Ω	1 W		3750S-L 3751-L		購入 (3750) 購入 (3751)

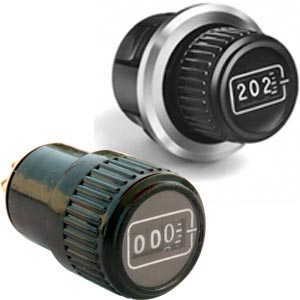

3610	7/8 "	Round	50K	10	IP60		Digital Clock Face	Digital Clock Face	Wirewound	J-Hook/Rear	x	±0.5 %	100 Ω	100K Ω	1.5 W			Downloads	購入

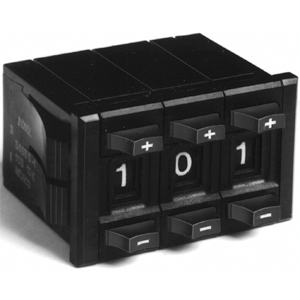

3680 Series	N/A	Square		N/A	IP40	x	Push Button	Metal	Cermet	Solder Lug/Rear	x	±0.1 %	50K Ω	1M Ω	2 W		3681S-L	Downloads	購入

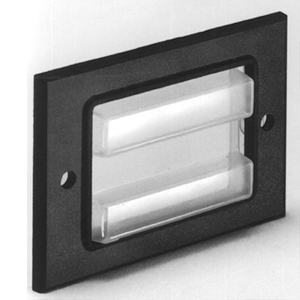

H-385	H-385 Notes: For use with Model 3680 digital pushbutton precision potentiometer. Protects front of the pot from unwanted entry of rain, dust, grease or oils.																		購入

Bourns Announces New Multiturn Precision Potentiometer Slip Clutch Option

センサーおよびコントロールソリューションガイド

精密ポテンショメーターおよび回転数カウントダイアル小冊子カタログ

Turns / Degrees

Resistance

Linearity %

Watts

Mounting

PART NUMBER	Turns / Degrees	Resistance	Linearity %	Watts	Mounting	Element Style	Body Size	Shaft Revs.	Engineering	Buy Now

PART NUMBER

Turns / Degrees

Resistance

Linearity %

Watts

Mounting

Element Style

Body Size

Shaft Revs.

Engineering

Buy Now

モデル/データシート	MSL	はんだ付けプロファイル	梱包ラベル	端子	適合証明書	サードパーティテストレポート	MDS
3400	See Note	See Data Sheet	Label	e4	PP1	Request Report	3400S-L
3500/3501	See Note	See Data Sheet	Label	e4	PP2	Request Report	3500S-L 3501H-L
3540/3541	See Note		Label	e4	PP3	Request Report	3540S-L 3541H-L
3543/3545	See Note	See Data Sheet	Label	e4	PP3	Request Report	3543S-L 3545S-L
3547	See Note	See Data Sheet	Label	e4	PP2	Request Report	3547H 3547S
3548	See Note	See Data Sheet	Label	e4	PP2	Request Report	3548H 3548S
3549	See Note	See Data Sheet	Label	e4	PP2	Request Report	3549H 3549S 3549H-1AF
3590	See Note	See Data Sheet	Label	e3	PP2	Request Report	3590S-1-L 3590S-3L 3590S-2-L 3590S-6L
3700/3701	See Note	See Data Sheet	Label	e4	PP2	Request Report	3700S-L 3701H-L
3750/3751	See Note	See Data Sheet	Label	e4	PP2	Request Report	3750S-L 3751-L
3610	See Note	See Data Sheet	TBD	e3	PP1	Request Report	3610S
3680	See Note	See Data Sheet	Label	e3	PP4	Request Report	3681S-L
H-385	See Note	N/A	TBD	N/A	PP1	Request Report	H-385
6534	See Note	See Data Sheet	Label	e4	PP1	Request Report	6534S
6537/6538	See Note	See Data Sheet	Label	e4	PP2	Request Report	6538S

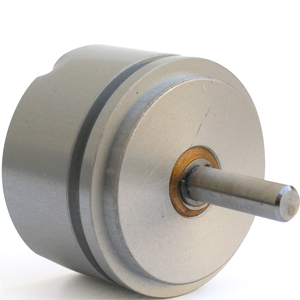

6539/6639	See Note	See Data Sheet	Label	e4	PP2	Request Report	6539S 6639S

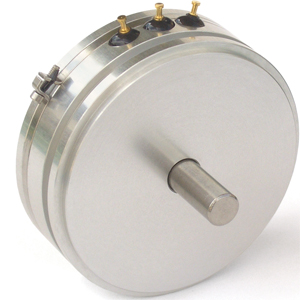

6574	See Note	See Data Sheet	Label	e4	PP2	Request Report	6574S
6637	See Note	See Data Sheet	Label	e4	PP2	Request Report	6637S

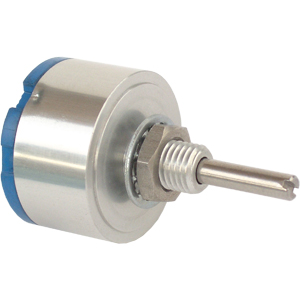

6638	See Note	See Data Sheet	Label	e4	PP2	Request Report	6638S

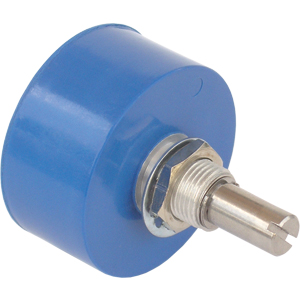

6657	See Note	See Data Sheet	Label	e4	PP2	Request Report	6657S
