商用パネル制御

dataprodline_potentiometers_pot_rot
技術仕様

パネルコントロール製品は一般に、頻繁に調整する必要がある用途向けに設計されています。ロータリー式とスライド式があります。素子には、カーボン、セメント、および導電性プラスチックの選択肢があります。これらのデバイスには、さまざまなサイズとシャフト/ブッシングの組み合わせがあります。一部のモデルには、ロータリースイッチとシールのオプションがあります。

代表的な用途として、オーディオミキシングコンソール、試験および測定機器、家電製品、医療機器などがあります。回転数カウントダイヤルは、回転数表示デバイスまたは調整設定/ロックデバイスが必要となる、ロータリー式の精密ポテンショメーターまたはその他のタイプのパネルコントロール製品での使用を目的に設計されています。

これらのデバイスは、デジタルまたは同心目盛(アナログ)の読取りオプションにより、さまざまなシャフトサイズにフィットします。代表的な用途として、電源供給、オシロスコープ、医療機器、業務用自動機器などが挙げられます。

設計キット
Bourns では、この製品群用に設計キットを提供しています。

関連文書
テーパー特性およびその他の文書については、当社のライブラリをご覧ください。

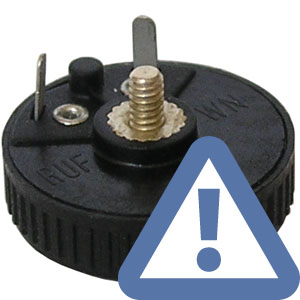

生産終了この記号が付いている製品は現在入手可能ですが、新設計での使用は推奨できません。

センサー、パネルコントロール、エンコーダ、精密ポテンショメーター、ダイヤルの鉱物に関する報告書CFSI_CMRT4-01

製品
パラメトリック検索
RoHS
コラタラル
サンプル請求
お問い合わせ
Series Data Sheet Photo Package Diameter Shape Number of Turns Sealable Detents Shaft Shaft End Bushing Element Terminal Taper-Linear Taper-CW Audio Taper-CCW Audio Standard Resistance Tolerance Resistance Range Minimum Ohm Resistance Range Maximum Ohm Power-Linear Power-Audio Rotational Life (no load) Cycles Options-Ganging MDS Design Files 工学 Buy Now
PDA24 PDA24 24 mm Round 1 Metal Knurled, Plain Brass Carbon Rear Facing Solder Lugs/Long Solder Lug Option x x ±15 % 10K 1M 0.5 W 0.25 W 200K 0 PDA241
購入
PDB12 PDB12
12 mm Round 1 IP30 Center Insulated Flatted No Bushing Carbon Rear, Side, & Snap Mount PC Pins x x ±20 % 1K 1M 0.08 W 0.04 W 15K 2 PDB 12
購入
PDB18 PDB18 17 mm Round 1 IP30 Center Metal Knurled, Flatted,
Plain
Metal Carbon Rear, Side & Front PC Pins x x ±20 % 1K 1M 0.20 W 0.10 W 15K 2 PDB181-xxxP
PDB182-xxxP
PDB18
Downloads 購入
PDB181-GTR PDB181-GTR 17 mm Round 1 IP30 Metal Knurled, Plain Metal Carbon Rear Facing Solder Lugs x x x ±20 % 10K 1M 0.125 to 0.2 W 0.06 to 0.1 W 15K 2 PDB 181 GTR
Downloads 購入
PDB182-GTRB PDB182-GTRB 17 mm Round 1 Metal Knurled, Plain Metal Carbon Rear Facing Solder Lugs x ±20 % 250K 500K 0.06 W 15K 2 PDB182-GTRB
Downloads 購入
PDB183 PDB183 17 mm Round/Square Switch 1 IP30 Center Metal Knurled, Plain Metal Carbon Rear Facing Solder Lugs/Rear Facing PC Pins x x x ±20 % 1K 1M 0.2 W 0.1 W 15K 2 購入
PDB183-GTR PDB183-GTR 17 mm Round 1 IP30 Metal Knurled, Plain Metal Carbon Side Solder Lugs/Side PC Pins x x x ±20 % 10K 1M 0.2 W 0.1 W 15K 2 PDB183
購入
PDB185-GTR PDB185-GTR 17 mm Round 1 Metal Knurled, Slotted Metal Carbon Side Solder Lugs/Side PC Pins x x x ±20 % 10K 1M 0.1 W 0.05 W 15K 1 PDB185-GTR01
PDB185-GTR31
Downloads 購入
PDB24 PDB24 24 mm Round 1 IP30 Center Metal Knurled, Flatted,
Plain
Metal Carbon Rear & Down Facing Solder Lugs/Front PC Pins x x x ±20 % 1K 1M 0.5 W 0.25 W Standard: 15K; High: 500K 1 PDB 24
購入
PDB241-GNL PDB241-GNL 24 mm Round 1 IP30 Metal Knurled, Plain Metal Carbon Solder Lugs x x x ±20 % 10K 1M 0.25 W 0.25 W 15K 1 PDB241-GNL01
PDB241-GNL02
PDB241-GNL03
購入
PDB241-GTR PDB241-GTR 24 mm Round 1 IP30 Metal Knurled, Plain Metal Carbon Solder Lugs x x x ±20 % 10K 1M 0.25 W 0.25 W 15K 1 PDB241-GTR
Downloads 購入
PRM16 PRM16 16 mm Round/Square 1 IP30 Metal Knurled, slotted Metal Carbon PC Pins x x x 1K 1M 0.1 W 0.05 W 15K Dual Selection 購入
PRS11S PRS11S 11 mm Square 1 Metal Knurled, Flatted Metal Carbon SMD x x x ±20 % 1K 1M 0.05 W 0.025 W 15K 0 PRS11S
Downloads 購入
PTD90 PTD90 9 mm Round 1 IP40 Center Metal Knurled Flatted Metal Carbon PC Pins x x ±10 % to ±20 % 1K 1M 0.05 W 0.025 W 15K 8 PTD901
PTD902
PTD904
Downloads 購入
PTH90 PTH90
9 mm Round 1 IP40 Center Metal Knurled, Flatted,
Slotted
Metal Carbon PC Pins x x x ±20 % to ±30 % 1K 0.05 W 0.025 W 15K 4 購入
PTJ90 PTJ90 9 mm Square 1 IP40 Yes Metal Slotted, Flatted Metal Carbon PC Pins x x x ±20 % to ±30 % 1K 0.05 W 0.025 W 15K 2 PTJ
購入
PTM90 PTM90 9 mm Square 1 IP40 Yes Metal Slotted, Knurled,
Flatted
Metal Carbon PC Pins x x x ±20 % to ±30 % 1K 1M 0.05 W 0.025 W 15K 2 PTM
購入
PTR90 PTR90 9 mm Square 1 IP40 Yes Metal Flatted, Knurled Metal Carbon PC Pins x x x ±10 % to ±20 % 1K 1M 0.05 W 0.025 W 15K 8 PTR901
PTR902
Downloads 購入
PTP90 PTP90 9 mm Square 1 No Yes Metal Slotted, Knurled,
Flatted
Metal Carbon PC Pins x x x ±20 % to ±30 % 1K 1M 0.05 W 0.025 W 15K 2 PTP
購入
PTV09 PTV09 9 mm Square 1 IP40 Center Plastic Flatted, Knurled Metal Carbon PC Pins Rear & Side x x x ±20 % 1K 1M 0.05 W 0.05 W 15K PTV09A-1
PTV09A-2
PTV09A-3
PTV09A-4
PTV09A-5
PTV09A-6
PTV09A-7
PTV09A-8
Downloads 購入
PTV/PTT PTVPTT
12 mm Square 1 IP40 Center Plastic Flatted Metal Carbon PC Pins Rear & Side x x ±20 % 1K 1M 0.05 W 0.05 W 15K PTV/PTT
購入
(PTV)

購入
(PTT)
PDF24 PDF24
24 mm Round 1 IP40 Metal Flatted,
Plain
Metal Carbon Solder Lugs x x ±10 % 1K 1M 0.5 W 0.25 W 500K 0 PDF24
購入
PRS11R PRS11R
11 mm Square 1 IP40 Metal Flatted Metal Carbon PC pins x x x ±20 % to ±30 % 5K 250K 0.05 W 0.05 W 15K 1 PRS11R
購入
PRS12R PRS12R
12 mm Square 1 IP40 Center Metal Flatted, Slotted, Knurled Metal Carbon PC pins x x x ±20 % to ±30 % 5K 500K 0.05 W 0.05 W 10K 1 PRS12R-2xxxx-xxxx
PRS12R-4xxxx-xxxx
購入
PRS14R PRS14R
14 mm Square 1 IP40 Center Plastic Flatted Metal Carbon PC pins x x x ±20 % 5K 500K 0.05 W 0.05 W 15K 1 TBD
購入
PDB08 PDB08
8 mm Round 1 Center Plastic Plain No Bushing Carbon PC Pins x x ±30 % 5K 500K 0.03 W 0.03 W 10K 2 PDB08
購入
Taper
Resistance
Turns / Degrees
Watts
Mounting
PART NUMBERTaperResistanceTurns / DegreesWattsMountingElement StyleBody SizeShaft Revs.Terminal スイッチEngineeringBuy Now
モデル/データシート 写真 MSL はんだ付けプロファイル 梱包ラベル 端子 適合証明書 サードパーティテストレポート MDS 中国版 RoHS
04730473TBD
TBD
TBD
TBDPC1
Request Report
TBD
06200620TBD
TBD
TBD
TBDPC1
Request Report
TBD
06210621TBD
TBD
TBD
TBDPC1
Request Report
TBD
331033103315_partSee Note
TBD
e2PC6
Request Report
3310C-L
3310Y-L
3310H-L
3851/52/563851_partSee Note
TBD
e2/e2/e3PC4
Request Report
3852A-L
38623862See Note
Label
e3PC5
Request Report
3862C-L
3939_partSee Note
Label
e3 (1,3) e4 (2)PC5
Request Report
3900 Pot Push Momentary
3900 Pot Rotary Switch
Model 39
51/5350_partSee Note
Label
e3PC3
Request Report
51-L Cermet
51-L CP
53-L Cermet
53-L CP
5454_partTBD
TBD
TBD
TBDPC6
Request Report
54
5656_partTBD
TBD
TBD
TBDPC5
Request Report
56
81/8282_partTBD
TBD
TBDPC5
Request Report
81-L シリーズ CP
83/848384_partSee Note
Label
e3PC2
PC3
Request Report
83 L Single Cup
84 L Single Cup
85/868586_partSee Note
Label
e3PC5
Request Report
85-L シリーズ Cermet
85-L シリーズ CP
86-L シリーズ Cermet
86 シリーズ CPL
91-9591_95_partSee Note
Label
e3PC5
Request Report
91-94 シリーズ CP
91-94 シリーズ Cermet
91-95 Long Life91-95LL_partSee Note
TBD
TBD
e3PC5
Request Report
91 シリーズ CP Long Life
95 シリーズ CP Long Life
9696_partSee Note
Label
e3PC6
Request Report
96-L Cermet
96-L C-P
97, 9997_99_partSee Note
Label
e3PC4
Request Report
91-94 シリーズ CP
9595_partSee Note
TBD
TBDPC5
Request Report
95
PC-Slimline Potslimline_partSee Note
Label
e3PC1
Request Report
PC-L
PDA24pda24See Note
TBD
TBD
TBDPC1
Request Report
PDA241
PDB 12pdb12_partSee Note
TBD
e3PC1
Request Report
PDB 12
PDB 18/PDB18_partSee Note
TBD
e2PC1
Request Report
PDB181-xxxP
PDB182-xxxP
PDB18
PDB181-GTRPDB181-GTR_partSee Note
TBD
TBDPC1
Request Report
PDB 181 GTR
PDB182-GTRBPDB182-GTRB_partTBD
TBD
TBDPC1
Request Report
PDB182-GTRB
PDB183-GTRPDB183-GTR_partSee Note
TBD
TBDPC2
Request Report
PDB183
PDB185-GTRPDB185-GTR_partSee Note
TBD
TBD
TBDPC1
Request Report
PDB185-GTR01
PDB185-GTR31
PDB 24pdb24_partSee Note
TBD
TBDPC1
Request Report
PDB 24
PDB241-GNLPDB241-GNL_partSee Note
TBD
TBD
TBDPC2
Request Report
PDB241-GNL01
PDB241-GNL02
PDB241-GNL03
PDB241-GTRPDB241-GTR_partSee Note
TBD
TBDPC2
Request Report
PDB241-GTR
PRS11SPRS11S_partTBD
TBD
TBD
TBDPC1
Request Report
PRS11S
PSMpsm_partTBD
TBD
TBD
TBDPC2
Request Report
PSM
PTAPTA_partSee Note
TBD
e2PC1
Request Report
PTA
PTBPTB_partSee Note
TBD
e2PC1
Request Report
PTB
PTD 90ptd90_partSee Note
TBD
e2PC1
Request Report
PTD901
PTD902
PTD904
PTD906
PTHpth90_partSee Note
TBD
TBDPC2
Request Report
PTH
PTJptj90_partSee Note
TBD
TBDPC2
Request Report
PTJ
PTLptl_partSee Note
TBD
TBDPC1
Request Report
PTL01 MDS
PTL45 MDS
PTMptm90_partSee Note
TBD
TBDPC1
Request Report
PTM
PTPptp90_partSee Note
TBD
TBDPC1
Request Report
PTP
PTR90ptr90_partSee Note
TBD
e2PC1
Request Report
PTR901
PTR902
PTSpts45_partSee Note
TBD
TBDPC1
Request Report
PTS01 MDS
PTS60 MDS
PTV09ptv09_partSee Note
TBD
e2PC1
Request Report
PTV09A-1
PTV09A-2
PTV09A-3
PTV09A-4
PTV09A-5
PTV09A-6
PTV09A-7
PTV09A-8
PTV/PTT 111ptv111_partSee Note
TBD
e3PC1
Request Report
PTV/PTT
PSPPSP_partSee Note
TBD
TBDPC2
Request Report
PSP60
PSP01
PSLPSL_partSee Note
TBD
TBDPC1
Request Report
PSL60
PSL01
PDF24PDF24_part1TBD
TBD
e3PC1
Request Report
PDF24
PRS11RPRS11RTBD
TBD
TBD
TBDPC1
Request Report
PRS11R
PRS12RPRS11RTBD
TBD
TBD
TBDPC1
Request Report
PRS12R-2xxxx-xxxx
PRS12R-4xxxx-xxxx
PRS14Rprs14r_partTBD
TBD
TBD
TBDPC1
Request Report
TBD
PDB08PDB08See Note
TBDTBD
TBDPC1
Request Report
PDB08
