設計包-二極體

由於行動通訊運算與視聽設備市場之小型化需求,半導體產業研發出更小型的電子元件,目前在設計小型電子系統時面臨到主機板空間不足的問題,因此加速電子元件替代封裝的需求。功能整合與小型化為成功關鍵!

為達到小型化需求,Bourns新一代晶片二極體因應而生,能以最少成本封裝提供矽二極體。鍍有銅/鎳/金接點的小訊號二極體為無鉛產品,適用於無鉛製程,符合許多工業與政府關於無鉛零組件的規範。

Bourns供應MITE(最大時間間隔誤差)蕭特基二極體在小型晶片封裝DO-216AA尺寸格式的整流應用。 CD216A-B1蕭特基整流二極體系列提供正向電流1安培與重複逆向最大電壓20 V 至40 V。

Bourns®晶片二極體通過JEDEC驗證標準,也能使用在自動插件設備上,平整的包裝免於產品滾動的困擾。

優點

Bourns® 晶片二極體產品較其他同業提供了更獨特的優點,如:

  • 封裝尺寸:晶片二極體為無引腳式,電路板設計能更省空間,晶片二極體提供薄型封裝,比SOD80 (MiniMELF)型更省空間。
  • 環境:所有小訊號二極體接點皆無鉛且鍍有銅/鎳/金符合許多全球性業界及政府規範。
  • 製造便利性:晶片二極體可適用於業界的標準表面黏著自動插件設備。產品平整包裝更便於使用,減少了一般管狀封包零件在生產操作時零件滾動的問題。

如您想索取設計包,請向所在地之Bourns 營業處或授權代理商洽詢

設計包號碼 設計包圖片 描述 料號
CD-LAB2 cdlab2_part 蕭特基整流二極體 CD0603-B0340R
CD1206-B2100
CD1206-B260

CD1408-FF11500
CD1408-FF11000
CD1408-F11000
CD1408-FU1800
CD1408-FU1600
CD1408-FU1400
CD1408-FU1200

CD123D-B140LR
CD214A-B360R
CD214A-B340LR

CD214A-B1100R
CD214A-B160R
CD214A-B140LR

CD214B-FS3K
CD214B-FS3J
CD214B-FS3G
CD214B-FS3D

CD214B-B360R
CD214B-B340R

CD-MBL210SL
CD-HD201L
CD-HD2006L

CD214C-S3M
CD214C-FS3J
CD214C-FS3G
CD214C-FS3D

CD214C-B3100R
CD214C-B340R

CD-DF410SL
CD-LAB3 cdlab3_part 齊納二極體 0603 封裝 CD0603-Z2
CD0603-Z2V2
CD0603-Z2V4
CD0603-Z2V7
CD0603-Z3
CD0603-Z3V3
CD0603-Z3V6
CD0603-Z3V9
CD0603-Z4V3
CD0603-Z4V7
CD0603-Z5V1
CD0603-Z5V6
CD0603-Z6V2
CD0603-Z6V8
CD0603-Z7V5
CD0603-Z8V2
CD0603-Z9V1
CD0603-Z10
CD0603-Z11
CD0603-Z12
CD0603-Z13
CD0603-Z15
CD0603-Z16
CD0603-Z18
CD0603-Z20
CD0603-Z22
CD0603-Z24
CD0603-Z27
CD0603-Z30
CD0603-Z33
CD0603-Z36
CD0603-Z39
CD-LAB4 cdlab4_part 離散TVS 二極體 SMC封裝 CD214C-T10ALF
CD214C-T10CALF
CD214C-T12CALF
CD214C-T13ALF
CD214C-T14CALF
CD214C-T15CALF
CD214C-T170ALF
CD214C-T17CALF
CD214C-T18CALF
CD214C-T20CALF
CD214C-T24ALF
CD214C-T24CALF
CD214C-T30ALF
CD214C-T33CALF
CD214C-T36ALF
CD214C-T43ALF
CD214C-T5.0ALF
CD214C-T5.0CALF
CD214C-T51CALF
CD214C-T58CALF
CD214C-T6.0ALF
CD214C-T6.5ALF
CD214C-T6.5CALF
CD214C-T60ALF

CD214L-T16ALF
CD214L-T20ALF
CD214L-T20CALF
CD214L-T64ALF

CD214C-T85CALF
CD214C-T9.0ALF
CD214C-T90CALF
CD214C-T170ALF
CD-LAB5 cdlab5_part 開關&小訊號蕭特基二極體 CD0603-B00340
CD0603-B0130L
CD0603-B0140L
CD0603-B0140R
CD0603-B0230
CD0603-B0240
CD0603-S01575
CD0603-S0180
CD0603-S0180R
CD1005-B00340
CD1005-B0130L
CD1005-B0140L
CD1005-B0140R
CD1005-B0230
CD1005-B0240
CD1005-B0520
CD1005-S01575
CD1005-S0180
CD1005-S0180R
CD1206-S01575

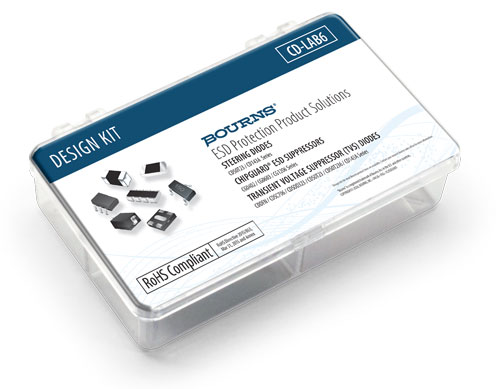

CD-LAB6 cdlab6_part 蕭特基整流二極體 CD214A-B120LF
