按壓開關

技術規格

Bourns® 開關為低電壓、低電流、訊號強度裝置設計為可選、可操作、可程序化。按壓與接觸式開關為觸壓裝置。旋轉開關為單刀雙擲的裝置。

開關應用包括樂器、工業控制器、通訊設備、電腦、保全設備、電器產品、汽車電子產品、視聽設備、呼叫器等。

Bourns 提供此產品系列的設計包

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	資料表	產品圖片	功能	安裝方式	封閉式或開放式	尺寸(公釐)	調整方式(上調/側調)	工程	端子形式
1543			Push	SMT	Sealed	10 mm	Side		Side PC Pins

Bourns 開關產品選用參考表

Model/Datasheet	濕度敏感等級 MSL	焊接圖表	封裝標籤	端子	RoHS 規範證書 CofC	第三方測試報告	物質資料表 MDS	China RoHS

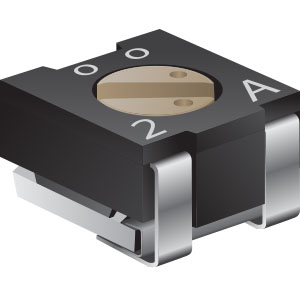

7813	See Note	SMD	7813 Label	e3	Switch 1	Request Report	7813J 7813S	China RoHS2 Trimpot Switches
7814	See Note	SMD	7814 Label	e3	Switch 1	Request Report	7814 023 7814 051	China RoHS2 Trimpot Switches
7829	See Note	PTH	7829 Label	e3	Switch 2	Request Report	7829H 7829S	China RoHS2 Trimpot Switches
7914	See Note	SMD	7914 Label	e3	Switch 1	Request Report	7914G 7914H 7914J 7914S	China RoHS2 Trimpot Switches

File	Type	Size	Uploaded on	Download
高速通訊端口保護	PDF	843.57 KB	28 五月, 2015	Download
