Series Data Sheet Photo size input Voltage Output Voltage Output Current Frequency Primary/Secondary Turns Ratio Design Files 工程 Buy Now

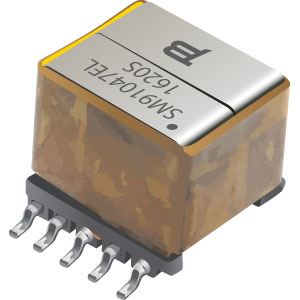

SM91047EL SM91047EL
17.8 x 13.5 x 12.7 mm 100 - 375 VDC 5 V DC 0.4 A 50kHz 1 : 11.875 Buy
BS64042CS BS64042CS
9.8 x 10.5 x 11 mm 4.5 - 60 V 6 - 28 V 25 mA 100 kHz 1 : 1 Buy

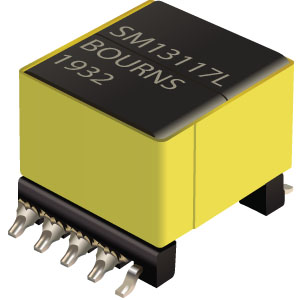

SM13117EL SM13117EL
17.8 x 13.5 x 12.7 mm 36 - 72 VDC 12 V DC 1.08 A 250 kHz 1 : 0.5 : 0.5 : 0.5 Buy

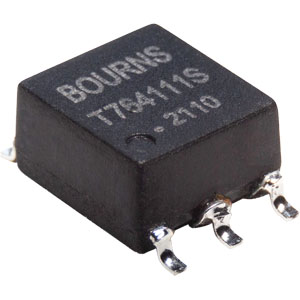

PAD00x-T764 PAD00x-T764
9.85 x 6.55 x 4.0 mm 3.3 - 5 VDC 3.3 - 15 VDC 0.35 A Peak 250 - 550 kHz Various Buy

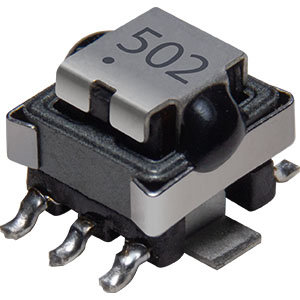

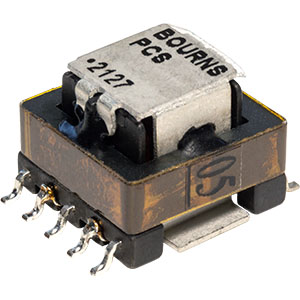

PCS020 PCS
8.0 x 8.13 x 5.3 mm 500 Vrms Various 20 A 10 kHz - 1 MHz Various Buy
PCS040 PCS
14.55 x 19.91 x 10.50 mm 800 Vrms Various 40 A 10 kHz - 1 MHz Various Buy

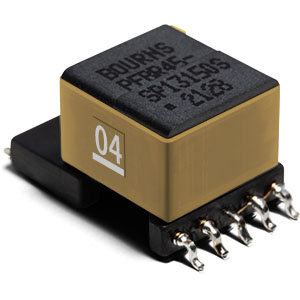

PFB PFB
13.9 x 14.0 x 13.5 mm
14.5 x 24.7 x 12.7 mm
15 V 15 V 0.3 A 100 - 500 kHz 1 : 1 Center tap on secondary side Buy
BA60951CS BA60951CS
16.9 x 10.5 x 5.97 mm 7 - 24 VDC 15 VDC 0.15 A 120 kHz 1 : 0.77 Buy

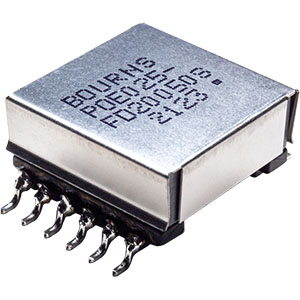

POE050-FD25120S POE-FD
33.0 x 26.0 x 14.5 mm 42.5 - 57 VDC 12 VDC 4.2 A 250 kHz 4.5 : 1 Buy
POE028-FD20050S POE-FD
28.6 x 21.1 x 12.0 mm 36 - 57 VDC 5 VDC 5 A 250 kHz 5.5 : 1 Buy

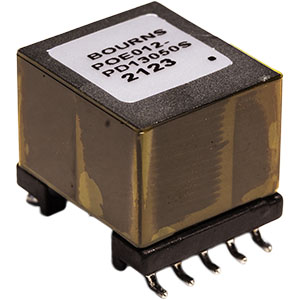

POE070-PD13050S POE-EP_PD
14.0 x 16.2 x 14.5 mm 41 - 57 VDC 5 / 5 VDC 7 / 7 A 250 kHz 3.33 : 1 / 3.33 : 1 Buy
POE072-PD13120S POE-EP_PD
14.0 x 16.2 x 14.5 mm 41 - 57 VDC 12 / 12 VDC 3 / 3 A 250 kHz 1.5 : 1 / 1.5 : 1 Buy
POE030-PD13050S POE-EP_PD
14.0 x 16.2 x 14.5 mm 33 - 57 VDC 5 VDC 6 A 200 kHz 3.14 : 1 Buy
POE025-PD13120S POE-EP_PD
14.0 x 16.2 x 14.5 mm 36 - 57 VDC 12 VDC 2.1 A 220 kHz 2.375 : 1 Buy
POE025-PD13050S POE-EP_PD
14.0 x 16.2 x 14.5 mm 36 - 57 VDC 5 VDC 5 A 250 kHz 6 : 1 Buy
POE012-PD13120S POE-EP_PD
14.0 x 16.2 x 14.5 mm 36 - 72 VDC 12 VDC 1.08 A 250 kHz 2 : 1 Buy
POE012-PD13050S POE-EP_PD
14.0 x 16.2 x 14.5 mm 36 - 57 VDC 5 VDC 2.4 A 250 kHz 6 : 1 Buy
POE025-EP13050S POE-EP_PD
14.0 x 15.1 x 14.0 mm 33 - 57 VDC 5 VDC 5 A 250 kHz 4 : 1 Buy
POE012-EP13033S POE-EP_PD
14.0 x 15.1 x 14.0 mm 36 - 57 VDC 3.3 / 10 VDC 3.3 / 0.01 A 250 kHz 9 : 1 / 4.5 : 1 Buy
POE060-FD20120S POE-FD
28.6 x 21.1 x 12.0 mm 36 - 72 VDC 12 VDC 5 A 250 kHz 1.71 : 1 Buy
POE025-FD20050S POE-FD
28.6 x 21.1 x 12.0 mm 40 - 57 VDC 3.3 / 5 / 10.5 VDC 2.5 / 3.8 / 0.06 A 250 kHz 10 : 1 / 6.67 : 1 / 3.33 : 1 Buy
