工业用面板控制器

技术规格

面板控制器是针对经常需要调整的应用而设计。旋转式与滑动式二种面板控制器类型均有供应。内部组件有碳性、陶瓷金属，以及导电塑料可供选择。这些装置皆提供了各种不同尺寸的轴长／轴衬套管的组合。有些型号可提供旋转式开关和封闭式选择。

典型的应用包含视听音响混音平台、测试及测量设备、消费性电子产品，以及医疗设备等。

针对曲线特性及更多的数据，请点选参阅我们的数据库

Obsolete 产品标记此符号为目前可提供，但不建议作新设计使用。

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	封装直径	形状	转数	密封性	止动装置	转轴	轴色	套管	组件	端子	曲线-线性	曲线 - 顺时针声频	曲线 - 逆时针声频	标准值的公差	最小电阻范围	最大电阻范围	功率 - 线性	功率 - 声频	选择性 - 开关	选择性 - 同轴	MDS	工程檔
3310	9 mm	Square	1	IP67		Plastic	White	Plastic/Metal	Conductive Plastic	PC Board/Bushing Mount	x	x	x	±20 %	1K	1M	0.25 W		x	2	3310C-L 3310H-L 3310Y-L	Downloads
3360	6 mm	Square	1	IP67		Plastic	White	Plastic	Conductive Plastic	PC Board/Bushing Mount	x	x	x	±20 %	1K	1M	0.25 W	0.125 W			3360	Downloads
3851-3852-3856	3/4 "	Round	1	IP40		Metal	Metal	Metal	Conductive Plastic/Cermet	PC Pins/Solder Lug/Side	x	x	x	±5 %, ±10 %, ±20 %	1K-100	1M	1-2 W	1-2 W			3852A-L	Downloads
3862	1/2 "	Round	1	IP40		Metal	Metal	Metal	Cermet	PC Pins/Solder Lug/Side	x			±5 % / ±10 %	1K	1M	1 W	1 W			3862C-L	Downloads
39	13 mm	Round	1	IP40		Metal	Metal	Metal	Conductive Plastic	PC Pins	x	x	x	±20 %	5K	100K	0.25 W	0.125 W	x		Model 39	Downloads
51/53	1/2 "	Square	1	IP64	x	Metal	Metal	Metal	Conductive Plastic/Cermet	PC Pins/Solder Lug/Side	x	x	x	±5 %, ±10 %, ±20 %	150	500K	0.5 W	0.25 W		6	51-L Cermet 51-L CP 53-L Cermet 53-L CP	Downloads
54	1/2 "	Square	1	IP64		Metal	Metal	Metal	Conductive Plastic	PC Pins	x	x		±10 %, ±20 %	1K	500K	0.5 W	0.25 W	Push-Pull	1	54
56	1/2 "	Square	1	IP64		Metal	Metal	Metal	Conductive Plastic	PC Pins	x	x		±10 %, ±20 %	1K	500K	0.5 W	0.25 W	Rotary	1	56

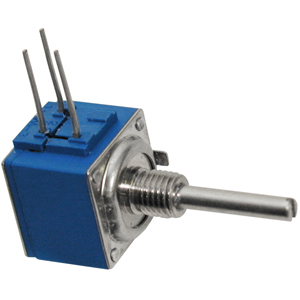

81/82	5/8 "	Square	1	IP40		Metal	Metal	Metal	Conductive Plastic/Cermet	PC Pins/Solder Lug/Side	x	x	x	±5 %, ±10 %, ±20 %	50	1M	1 W	0.5-1 W		4	81-L Series Cermet 81-L Series CP 82-L Series Cermet	Downloads
82	5/8 "	Square	1	IP40		Metal		Metal	Conductive Polymer	Rear Facing J-Hooks		x		±10 %	250K	500K		0.25 W		1	81-L Series CP
83-84	5/8 "	Square	10	IP40		Metal	Metal	Metal	Wirewound/Hybritron®	PC Pins/Solder Lug/Side	x			±5 % / ±10 %	200	100K	1 W			2	83 L Single Cup	Downloads
85/86	5/8 "	Square	1	IP40		Metal	Metal	Metal	Conductive Plastic/Cermet	J-hook/PC Pins/Side	x	x	x	±5 %, ±10 %, ±20 %	50	1M	1 W	0.5-1 W	x	4	85-L Series Cermet 85-L Series CP 86-L Series Cermet	Downloads
91-95	5/8 "	Square	1	IP40		Metal/Plastic	Blue	Metal/Unthreaded Plastic	Conductive Plastic/Cermet	PC Pins/J-hooks/Solder Lug/Side	x	x	x	±5 %, ±10 %, ±20 %	100	1M	0.5-2 W	0.25-1 W		2	91-94 Series CP	Downloads
91-95 Long Life	5/8 "	Square	1	IP40		Metal	Metal	Metal	Conductive Plastic	PC Pins/J-hooks/Solder Lugs	x			±10 %	1K	10K	1 W			2	91 Series CP Long Life 95 Series CP Long Life
96	5/8"	Square	1	IP65		Metal/Plastic	Blue	Metal/Unthreaded Plastic	Conductive Plastic/Cermet	PC Pins/J-hooks/Solder Lug/Side	x	x	x	±5%, 10%, 20%	100	1M	0.5-2 W	0.25-1 W		1	96-L Cermet 96-L C-P
97, 99	5/8 "	Square	1	IP40		Metal/Plastic	Blue	Metal/Unthreaded Plastic	Conductive Plastic/Cermet	PC Pins/J-hooks/Solder Lug/Side	x	x	x	±5 %, ±10 %, ±20 %	100	1M	0.5-2 W	0.25-1 W	Yes	2	91-94 Series CP
95	5/8 "	Square	1	IP40		Metal	Metal	Metal	Conductive Polymer	Solder Lugs	x	x		±20 %	25K	500K		0.25 W			95
PC-Slimline Pot	7/16 "	Square	1	IP40	x	Plastic	Black	Plastic	Conductive Plastic	PC Pins	x	x	x	±20 %	500	1M	0.75 W	0.25 W			PC-L	Downloads
0473	15 mm	Round	1			Shaftless			Carbon	Rear, Side PC Pins	x			±20 % & ±30 %, ±5 % & ±10 % available as special	100	4.7M	0.2 W

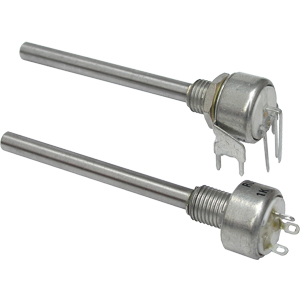

0620	13 mm	Round	1			Metal		Metal	Cermet	Solder Lugs/Side & Front PC Pins	x			±20 % & ±30 %, ±5 % & ±10 % available as special	100	4.7M	1 W

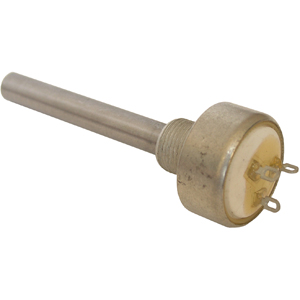

0621	20 mm	Round	1			Metal		Metal	Cermet	Solder Lugs	x			±20 % & ±30 %, ±5 % & ±10 % available as special	100	1M	2 W
