J.W. Miller® -插件式环形线圈电感

J.W. Miller® - Through-Hole Toroid Inductors

技术规格

Bourns 很高兴在此宣布由Bell工业公司收购 J.W. Miller 磁性产品部门。J.W. Miller® 磁性产品成立于1924年，为知名的标准与订制磁性组件供货商，能满足少量或大批生产的需求。完整产品系列包括高质量线圈、扼流圈、电感、变压器等，配置方式有表面黏着式、插件式两种。

JW Miller® Magnetic Products 的冲突矿产资源报告：CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	数据表	遮蔽式	尺寸	电感范围	电流范围	工程檔
2000 (V/H)		Yes	17.3 OD x 10.4 Thk	1.2 - 47 µH	3.2 - 20.2 A	Downloads

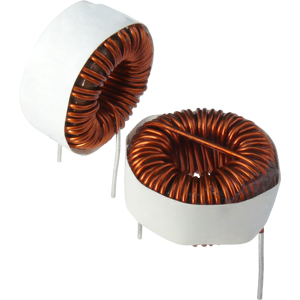

2100 (V/H)		Yes	21.8 OD x 11.4 Thk	10 - 1000 µH	1.3 - 10.8 A	Downloads
2100HT (V/H)		Yes	21.8 OD x 11.4 Thk	1 - 1000 µH	1.6 - 21.7 A	Downloads
2100LL (V/H)		Yes	21.8 OD x 11.4 Thk	1 - 1000 µH	1.5 - 21.4 A	Downloads
2200 (V/H)		Yes	24.1 OD x 14 Thk	10 - 1000 µH	1.9 - 12.5 A	Downloads
2200HT (V/H)		Yes	24.1 OD x 14 Thk	1.2 - 1000 µH	1.9 - 23.8 A	Downloads
2200LL (V/H)		Yes	28 OD x 14 Thk	1 - 1000 µH	2.4 - 26.1 A	Downloads
2300 (V/H)		Yes	32.5 OD x 16.5 Thk	10 - 10000 µH	2.4 - 20 A	Downloads
2300HT (V/H)		Yes	32.5 OD x 16.5 Thk	1.2 - 1000 µH	2.9 - 38.7 A	Downloads
2300LL (V/H)		Yes	32.5 OD x 16.5 Thk	1.5 - 1000 µH	3.5 - 34 A	Downloads
5700	5700_series	Yes	14 - 54 OD x 5.1 - 23.8 Thk	10 - 8000 µH	1 - 11 A

Bourns Acquires Assets of J.W. Miller Division of Bell Industries

Model/Datasheet	潮湿敏感度等级 MSL	焊接图表	封装标签	端子	RoHS 规范证书 CofC	第三方测试报告	物质资料表 MDS	China RoHS

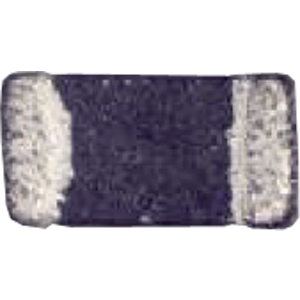

PM0603	1	SP1	JWM Label	Sn (e3)	CofC-CI	Request Report	PM0603	Bourns JW Miller SMD Products China RoHS

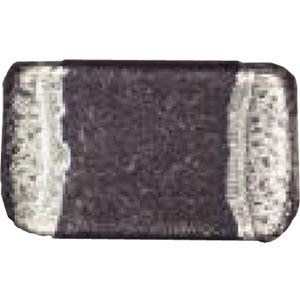

PM0805	1	SP1	JWM Label	Sn (e3)	CofC-CI	Request Report	PM0805	Bourns JW Miller SMD Products China RoHS

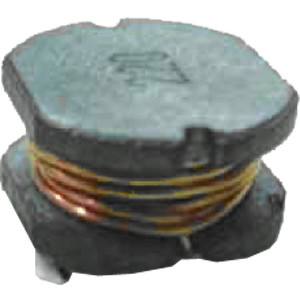

PM32-125S	1	Conf 1	JWM Label	Sn (e3)	CofC-PN	Request Report	PM32-125S	Bourns JW Miller SMD Products China RoHS
PM42S-104SH	1	See Data Sheet	JWM Label	Sn (e3)	PS1	Request Report	PM42S-104SH	Bourns JW Miller SMD Products China RoHS
PM43	1	Conf 2	JWM Label	Sn (e3)	CofC-PN	Request Report	PM43	Bourns JW Miller SMD Products China RoHS
PM54	1	Conf 2	JWM Label	Sn (e3)	CofC-PN	Request Report	PM54	Bourns JW Miller SMD Products China RoHS
PM75	1	Conf 2	JWM Label	Sn (e3)	CofC-PN	Request Report	PM75	Bourns JW Miller SMD Products China RoHS
PM74SB	1	Conf 2	JWM Label	Sn (e3)	PS2	Request Report	PM74SB	Bourns JW Miller SMD Products China RoHS

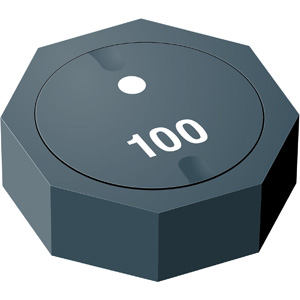

PM104SH		TBD	TBD	TBD	PS1	Request Report	TBD	Bourns JW Miller SMD Products China RoHS

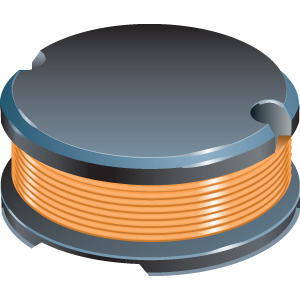

PM105	1	Conf 3	JWM Label	Sn (e3)	CofC-PN	Request Report	PM105	Bourns JW Miller SMD Products China RoHS

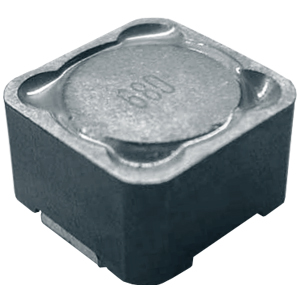

PM124SH	1	Conf 3	JWM Label	Sn (e3)	PS1	Request Report	PM124SH	Bourns JW Miller SMD Products China RoHS
PM125SH	1	Conf 3	JWM Label	Sn (e3)	PS1	Request Report	PM125SH	Bourns JW Miller SMD Products China RoHS
PM127SH	1	Conf 3	JWM Label	Sn (e3)	PS1	Request Report	PM127SH	Bourns JW Miller SMD Products China RoHS

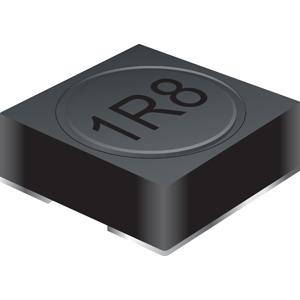

PM428S	1	See Data Sheet	TBD	TBD	PS1	Request Report	PM428S	Bourns JW Miller SMD Products China RoHS

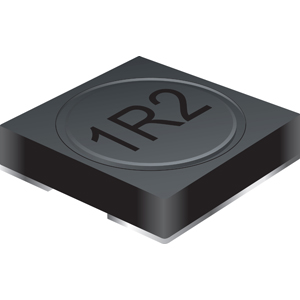

PM518S	1	See Data Sheet	TBD	TBD	PS1	Request Report	PM518S	Bourns JW Miller SMD Products China RoHS
PM528S	1	See Data Sheet	TBD	TBD	PS1	Request Report	PM528S	Bourns JW Miller SMD Products China RoHS
PM628S	1	See Data Sheet	TBD	TBD	PS1	Request Report	PM628S	Bourns JW Miller SMD Products China RoHS
PM1008	1	SP1	JWM Label	Sn (e3)	CofC-CI	Request Report	PM1008	Bourns JW Miller SMD Products China RoHS

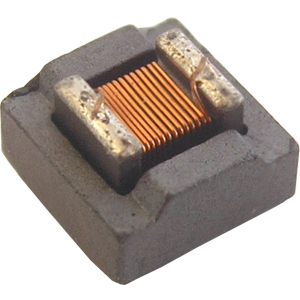

PM1008S	1	Conf 2	JWM Label	Sn (e3)	CofC-CI	Request Report	PM1008S	Bourns JW Miller SMD Products China RoHS
PM1038S	1	See Data Sheet	JWM Label	Sn (e3)	PS2	Request Report	PM1038S	Bourns JW Miller SMD Products China RoHS

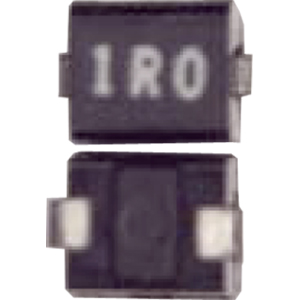

PM1210	1	See Data Sheet	JWM Label	Sn (e3)	CofC-CI	Request Report	PM1210	Bourns JW Miller SMD Products China RoHS

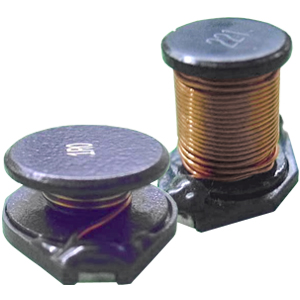

PM1608	1	Conf 2	JWM Label	Sn (e3)	CofC-PN	Request Report	PM1608 (1R0-221) MDS PM1608 (471, 331, 681, 102) MDS	Bourns JW Miller SMD Products China RoHS
PM1608S		Conf 2	TBD	Sn (e3)	PS1	Request Report	PM1608S	Bourns JW Miller SMD Products China RoHS

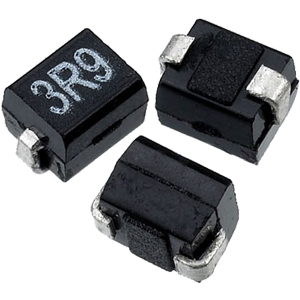

PM1812	1	See Data Sheet	JWM Label	Sn (e3)	CofC-CI	Request Report	PM1812 PM1812 Series (R10-121) PM1812 Series (151-102)	Bourns JW Miller SMD Products China RoHS

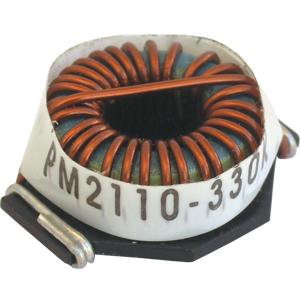

PM2110	1	SP9	JWM Label	Sn (e3)	CC-HCT	Request Report	PM2110	Bourns JW Miller SMD Products China RoHS

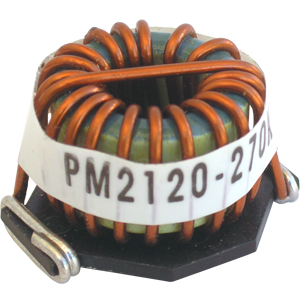

PM2120	1	SP9	JWM Label	Sn (e3)	CC-HCT	Request Report	PM2120	Bourns JW Miller SMD Products China RoHS
PM3316S	1	See Data Sheet	JWM Label	Sn (e3)	PS1	Request Report	PM3316 (1R0-150) PM3316 (220-103)	Bourns JW Miller SMD Products China RoHS

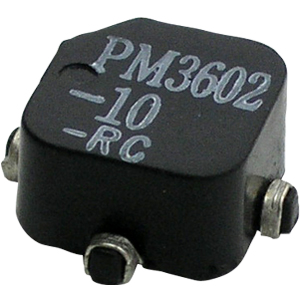

PM3602	1	SP9	JWM Label	Sn (e3)	CofC-CM	Request Report	PM3602	Bourns JW Miller SMD Products China RoHS
PM3604	1	SP9	JWM Label	Sn (e3)	CofC-CM	Request Report	PM3604	Bourns JW Miller SMD Products China RoHS
PM5022S	1	See Data Sheet	TBD	SN (e3)	PS1	Request Report	PM5022S	Bourns JW Miller SMD Products China RoHS

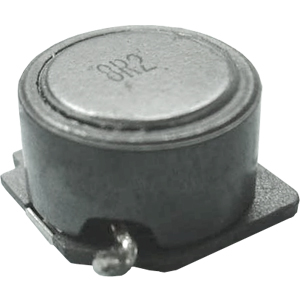

PM7032S-12565S	1	SP1	JWM Label	Sn (e3)	PS1	Request Report	PM7032S	Bourns JW Miller SMD Products China RoHS
PM7232S	1	See Data Sheet	JWM Label	Sn (e3)	PS1	Request Report	PM7232S	Bourns JW Miller SMD Products China RoHS
PM12639S	1	SP1	JWM Label	Sn (e3)	PS2	Request Report	PM12639S	Bourns JW Miller SMD Products China RoHS
PM12645S	1	SP1	JWM Label	Sn (e3)	PS2	Request Report	PM12645S	Bourns JW Miller SMD Products China RoHS
PM12651S	1	SP1	JWM Label	Sn (e3)	PS2	Request Report	PM12651S	Bourns JW Miller SMD Products China RoHS
PM13560S	1	SP1	JWM Label	Sn (e3)	PS2	Request Report	PM13560S	Bourns JW Miller SMD Products China RoHS
PM13656S	1	SP1	JWM Label	Sn (e3)	PS2	Request Report	PM13656S	Bourns JW Miller SMD Products China RoHS
PM13666S	1	SP1	JWM Label	Sn (e3)	PS2	Request Report	PM13666S	Bourns JW Miller SMD Products China RoHS
PM5022	1	See Data Sheet	TBD	SN (e3)	CofC-PN	Request Report	PM5022	Bourns JW Miller SMD Products China RoHS
PM74SH	1	Conf 2	JWM Label	Sn (e3)	PS2	Request Report	PM74SH	Bourns JW Miller SMD Products China RoHS
PM105SB	1	Conf 3	JWM Label	Sn (e3)	PS1	Request Report	PM105SB	Bourns JW Miller SMD Products China RoHS

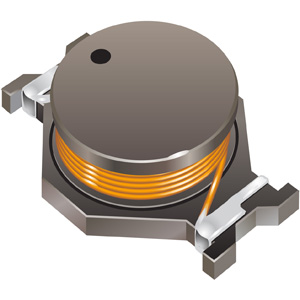

PM5022H	1	See Data Sheet	TBD	SN (e3)	CofC-PN	Request Report	PM5022H	Bourns JW Miller SMD Products China RoHS
