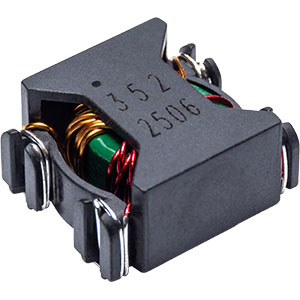

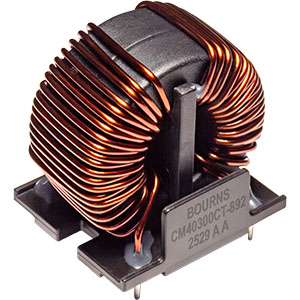

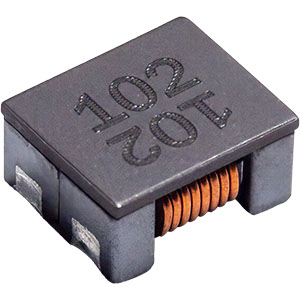

コモンモードチョーク

技術仕様

Bourns 製品には、パワーチョークがあります。これらのコンポーネントはコンピュータのほか、通信、計器、産業、および医療用途に用いられています。

磁気製品の紛争鉱物報告書：CFSI_CMRT4-01

サンプル請求へのクイックリンク：

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Data Sheet	Dual Choke	Size	Inductance Range	Impedance Range	Current Range	MDS	Design Files	Buy Now
DR221		Yes	6 x 3 mm	11 µH - 50 µH	200 Ω - 2K Ω	0.1 - 0.25 A	DR221	Downloads	購入
DR331		Yes	9 x 6.4 mm	11 µH - 4.7 mH	200 Ω - 10K Ω	0.2 - 0.5 A	DR331	Downloads	購入
SRF0504	SRF0504		5.2 x 5 mm	0.55 μH - 2.5 μH	150 Ω - 2500 Ω	0.2 - 5 A	SRF0504 (191Y~302Y) SRF0504 (402Y)		購入
SRF0602			6.5 x 3.6 mm	10 μH - 330 μH	140 Ω - 900 Ω	0.3 A	SRF0602	Downloads	購入
SRF0703		Yes	7.6 x 7.6 x 3.4 mm	0.33 µH - 4000 µH		0.128 - 3.1 A	SRF0703	Downloads	購入
SRF0905			9.2 x 6 mm	10 μH - 6.5 mH	200 Ω - 5K Ω	0.3 - 1.6 A	SRF0905	Downloads	購入
SRF1006			10 x 8.7 mm	120 μH - 5 mH	200 Ω - 6.2K Ω	0.25 - 1.4 A	SRF1006 (121Y-102Y)	Downloads	購入
SRF1260		Yes	12.5 x 12.56 x 6 mm	0.47 µH - 4000 µH		0.283 - 8.8 A	SRF1260 (R47-221) SRF1260 (331-102)	Downloads	購入
SRF1280		Yes	12.5 x 12.56 x 8 mm	0.47 µH - 4000 µH		0.307 - 8.94 A	SRF1280 (R47-331) SRF1280 (471-102)	Downloads	購入

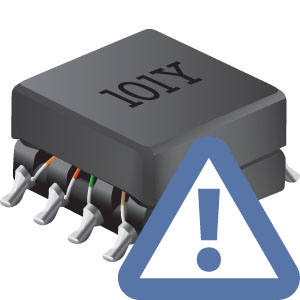

SRF1306			12.7 x 10.5 mm	35 μH - 1.0 mH	400 Ω - 2.2K Ω	0.35 - 2.7 A	SRF1306	Downloads	購入
SRF0905A			9.2 x 6 x 5 mm	10 - 6500 µH		0.3 - 1.6 A	SRF0905A	Downloads	購入
DR334A	DR334A	Yes	9 x 5.8 x 3.6 mm	11 µH - 4700 µH	300 Ω - 6000 Ω	0.2 - 0.5 A	DR334A		購入
SRF9045A	SRF9045A		9 x 7 x 4.5 mm	7.5 µH	700 Ω	5 A	SRF9045A		購入
SRF1206A	SRF1206A		12 x 11 x 6 mm	9 & 12.5 µH	700 Ω & 1000 Ω	6 & 8 A	SRF1206A		購入
SRF7035A	SRF7035A		7 x 6 x 3.5 mm	4 - 22.6 µH	300 Ω - 3000 Ω	1.2 - 5 A	SRF7035A		購入
47704	04770x		40 x 38 x 22 mm	3.3 ± 30 %	TBD	10 A	047704		購入
47703	04770x		40 x 38 x 22 mm	2.7 ± 30 %	TBD	11 A	047703		購入
47702	04770x		40 x 38 x 22 mm	2.2 ± 30 %	TBD	12 A	047702		購入
47701	04770x		40 x 38 x 22 mm	1.8 ± 30 %	TBD	13 A	047701		購入
47700	04770x		40 x 38 x 22 mm	1.5 ± 30 %	TBD	14 A	047700		購入
SRF0502	SRF0502		5 x 5 x 2.5 mm	0.55 - 2.6 µH	100 - 1400 Ω	1.5 - 5 A	SRF0502		購入
SRF3015	SRF3015		3.3 x 3.3 x 1.4 mm	1.0 - 22 µH		0.26 - 1.1 A	SRF3015		購入
CM13093CT-102	CM1309		13 x 16 x 9.2 mm	1.0 +50 %/-35 %	10 Ω – 5,000 Ω	2.8 A	CM13093CT-102		購入
CM13093CT-242	CM1309		13 x 16 x 9.2 mm	2.4 +50 %/-35 %	25 Ω – 9,000 Ω	2.0 A	CM13090CT-242		購入
CM13093CT-412	CM1309		13 x 16 x 9.2 mm	4.1 +50 %/-35 %	50 Ω – 20,000 Ω	1.2 A	CM13092CT-412		購入
CM13093CT-872	CM1309		13 x 16 x 9.2 mm	8.7 +50 %/-35 %	100 Ω – 40,000 Ω	0.7 A	CM13091CT-872		購入

モデル/データシート	MSL	はんだ付けプロファイル	梱包ラベル	端子	適合証明書	サードパーティテストレポート	MDS	中国版 RoHS
SRF0905A	1	See Data Sheet	Ch Pwr Ind	e1	SRF	Request Report	SRF0905A	Bourns Common Mode Chokes China RoHS
DR221	1		Ch Pwr Ind	Sn (e3)	CofC DR	Request Report	DR221	Bourns Common Mode Chokes China RoHS
DR331	1		Ch Pwr Ind	Sn (e3)	CofC DR	Request Report	DR331	Bourns Common Mode Chokes China RoHS
PM3700-RC	1	SP9	JWM Label	Sn (e3)	CofC-CM	Request Report	PM3700-RC	Bourns Common Mode Chokes China RoHS
SRF0504	1	See data sheet	Ch Pwr Ind	e1	SRF	Request Report	SRF0504 (191Y~302Y) SRF0504 (402Y)	Bourns Common Mode Chokes China RoHS
SRF0602	1	S3	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF0602	Bourns Common Mode Chokes China RoHS
SRF0703	1	TBD	TBD	Sn (e3)	SRF	Request Report	SRF0703	Bourns Common Mode Chokes China RoHS
SRF0905	1	S3	Ch Pwr Ind	e1	SRF	Request Report	SRF0905	Bourns Common Mode Chokes China RoHS
SRF1006	1	S3	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF1006 (121Y-102Y) SRF1006 (202Y-472Y)	Bourns Common Mode Chokes China RoHS
SRF1260	1	TBD	TBD	Sn (e3)	SRF	Request Report	SRF1260 (R47-221) SRF1260 (331-102)	Bourns Common Mode Chokes China RoHS
SRF1280	1	TBD	TBD	Sn (e3)	SRF	Request Report	SRF1280 (R47-331) SRF1280 (471-102)	Bourns Common Mode Chokes China RoHS
SRF1306	1	S3	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF1306	Bourns Common Mode Chokes China RoHS
SRF2012AA	1			Sn (e3)	SRF	Request Report	SRF2012AA SRF2012A-900YA	Bourns Common Mode Chokes China RoHS
SRF3216A	1			Sn (e3)	SRF	Request Report	SRF3216A	Bourns Common Mode Chokes China RoHS
DR334A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CofC DR	Request Report	DR334A	Bourns Common Mode Chokes China RoHS
SRF9045A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF9045A	Bourns Common Mode Chokes China RoHS
SRF1206A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF1206A	Bourns Common Mode Chokes China RoHS
SRF7035A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF7035A	Bourns Common Mode Chokes China RoHS
47704	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047704	TBD
47703	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047703	TBD
47702	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047702	TBD
47701	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047701	TBD
47700	N/A	See Data Sheet	TBD	TBD	04770x Series	Request Report	047700	TBD
SRF3225TP	1	See Data Sheet	TBD	TBD	SRF	Request Report	SRF3225TP	Bourns Common Mode Chokes China RoHS
SRF0502	1	See data sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF0502	Bourns Common Mode Chokes China RoHS
SRF3015	1	See data sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3015	Bourns Common Mode Chokes China RoHS
CM13093CT-102	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13093CT-102	Bourns Common Mode Chokes China RoHS
CM13093CT-242	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13090CT-242	Bourns Common Mode Chokes China RoHS
CM13093CT-412	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13092CT-412	Bourns Common Mode Chokes China RoHS
CM13093CT-872	1	See Data Sheet	TBD	TBD	TBD	Request Report	CM13091CT-872	Bourns Common Mode Chokes China RoHS

File	Type	Size	Uploaded on	Download
高速通信ポートの保護	PDF	843.57 KB	28 5, 2015	Download
