チップインダクタ - マルチレイヤー

Chip Inductors - Multilayer

技術仕様

磁気製品および JW Miller® 製品の紛争鉱物報告書：CFSI_CMRT4-01

製品

パラメトリック検索

RoHS

コラタラル

ビデオ

サンプル請求

お問い合わせ

Series	Data Sheet	Photo	Technology	Construction	Shielded	Size	Inductance Range	Range of SRF	Current Range	RoHS Compliant	MDS	Design Files	工学	Buy Now
CE201210 (0805)	CE201210		Multilayer	Sealed		2.0 x 1.0 x 1.25 mm	1.5 - 470 nH	200 - 4000 MHz	300 mA		CE201210 (0805): C=0.85 CE201210 (0805): C=1.25			購入
CI100505 (0402)			Multilayer	Sealed		1 x 0.5 x 0.5 mm	0.001 - 0.1 µH	550 - 6000 MHz	100 - 300 mA					購入
CI160808 (0603)			Multilayer	Sealed		1.6 x 0.8 x 0.8 mm	0.001 - 0.22 µH	350 - 4000 MHz	200 - 300 mA		CI160808 (0603)	Downloads		購入

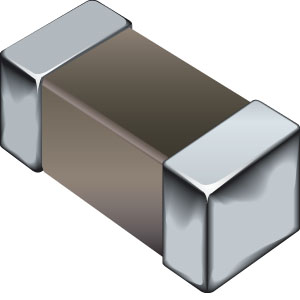

CS160808 (0603)			Multilayer	Sealed	Yes	1.6 x 0.8 x 0.8 mm	0.047 - 2.7 µH	40 - 260 MHz	50 - 200 mA		CS160808 (0603)	Downloads		購入
CV201210 (0805)			Multilayer	Sealed	Yes	2.0 x 1.25 x 1.25 mm	0.047 - 33 µH	13 - 320 MHz	5 - 300 mA		CV201210	Downloads		購入
CVH252009 (1008)			Multilayer	Sealed	Yes	2.5 x 2 x 0.9 mm	0.47 - 4.7 µH	25 - 100 MHz	1100 - 1800 mA		CVH252009 (1008)	Downloads		購入
CVH201610A (0805)	CVH201610A		Multilayer	Sealed	Yes	2 x 1.6 x 0.9 mm	0.47 - 2.2 µH	50 - 80 MHz	1200 - 1600 mA		CVH201610A			購入
CVH201205 (0805)	CVH201205		Multilayer	Sealed	Yes	2 x 1.25 x 0.5 mm	0.47 - 2.2 µH	40 - 100 MHz	600 - 1100 mA		CVH201205			購入
CVH160808 (0603)	CVH160808		Multilayer	Sealed	Yes	1.6 x 0.8 x 0.8 mm	0.24 - 2.2 µH	50 - 90 MHz	750 - 1200 mA		CVH160808			購入

モデル/データシート	写真	MSL	はんだ付けプロファイル	梱包ラベル	端子	適合証明書	サードパーティテストレポート	MDS	中国版 RoHS
CI160808 (0603)		1	Std	Ch Pwr Ind	Sn (e3)	CI-NS	Request Report	CI160808 (0603)	Bourns Chip Inductors Multilayer China RoHS
CE201210 (0805)		1	Std	Ch Pwr Ind	Sn (e3)	CI-NS	Request Report	CE201210 (0805): C=0.85 CE201210 (0805): C=1.25	Bourns Chip Inductors Multilayer China RoHS
CS160808 (0603)		1	Std	Ch Pwr Ind	Sn (e3)	CM-3	Request Report	CS160808 (0603)	Bourns Chip Inductors Multilayer China RoHS
CV201210 (0805)		1	CV201210 Soldering Profile	Ch Pwr Ind	Sn (e3)	CM-3	Request Report	CV201210	Bourns Chip Inductors Multilayer China RoHS
CVH252009 (1008)		1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH252009 (1008)	Bourns Chip Inductors Multilayer China RoHS
CVH201610A (0805)		1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH201610A	Bourns Chip Inductors Multilayer China RoHS
CVH201205 (0805)		1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH201205	Bourns Chip Inductors Multilayer China RoHS
CVH160808 (0603)		1	Std	Ch Pwr Ind	Sn (e3)	CVH-1	Request Report	CVH160808	Bourns Chip Inductors Multilayer China RoHS

File	Type	Size	Uploaded on	Download
高速通信ポートの保護	PDF	843.57 KB	28 5, 2015	Download
