Multifuse® PPTC 可恢復式保險絲- AEC-Q200 認證汽車應用

技術規格

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	Datasheet	Type	Footprint	Vmax	Hold Current - I hold (Amps)	R1_max(Ω)	Operating Temp. (°C)	Agency Certificates	MDS	Design Files	Buy Now

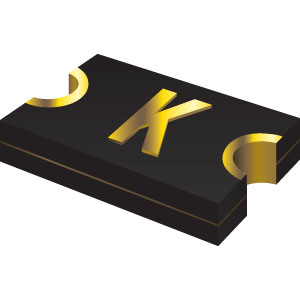

MF-PSHT		Surface Mount	0805	12 - 16 Vdc	0.05 - 0.50	12.000	-40 – +125	cUL E174545 TÜV R 50384138	MF-PSHT	Downloads	Buy
MF-NSMF	MF-NSMF	Surface Mount	1206	6 – 30 Vdc	0.12 – 2.00	0.085 – 8.500	-40 – +85	cUL: E174545 TÜV: R 50256634	MF-NSMF		Buy

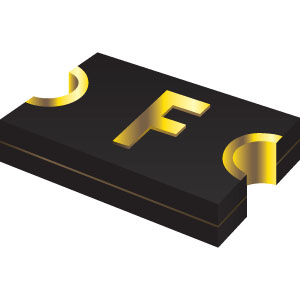

MF-NSHT	MF-NSHT	Surface Mount	1206	30 Vdc	0.16 - 0.35	2.600 – 6.000	-40 – +125	cUL: E174545 TUV: R50384138	MF-NSHT		Buy

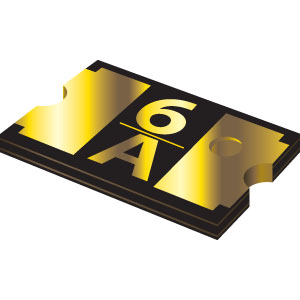

MF-USMF		Surface Mount	1210	6 – 30 Vdc	0.05 - 1.75	0.090 – 50.000	-40 – +85	cUL: E174545 TÜV: R 50256634	MF-USMF	Downloads	Buy

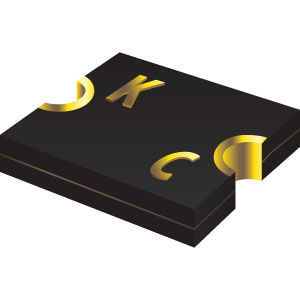

MF-USHT	MF-USHT	Surface Mount	1210	9 - 30 Vdc	0.35 - 0.50	1.600 – 2.200	-40 – +125	cUL: E174545 TÜV: R 50384138	MF-USHT		Buy

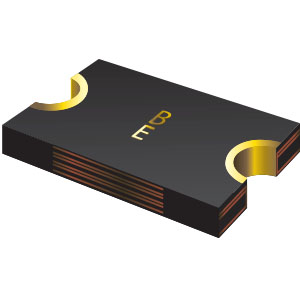

MF-MSMF		Surface Mount	1812	6 – 60 Vdc	0.10 - 2.60	0.080 – 15.000	-40 – +85	cUL: E174545 TÜV: R 50256634	MS-MSMF	Downloads	Buy

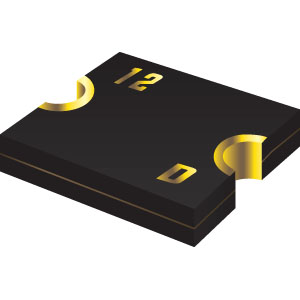

MF-MSHT	MF-MSHT	Surface Mount	1812	9 - 42 Vdc	0.2 - 1.75	0.17 - 4.5	-40 – +125	cUL: E174545 TÜV: R 50384138	MF-MSHT		Buy
MF-LSMF		Surface Mount	2920	6 – 33 Vdc	0.75 - 6.0	0.050 – 0.150	-40 – +85	cUL: E174545 TÜV: R 50256634	MF-LSMF	Downloads	Buy

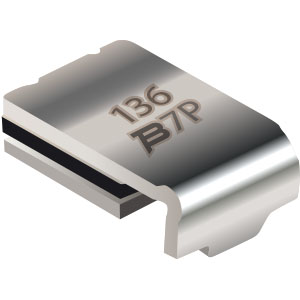

MF-SMHT		Surface Mount	Refer to Data Sheet	16 Vdc	1.36 - 1.60	0.150 – 0.330	-40 – +125		MF-SMHT	Downloads	Buy

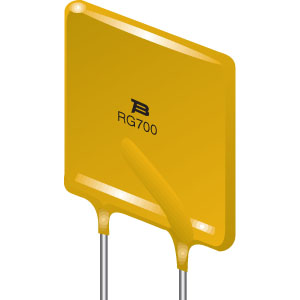

MF-RG		Radial Leaded Through Hole	Refer to Data Sheet	16 Vdc	3.0 - 11.0	0.0089 – 0.0975	-40 – +85	cUL: E174545	MF-RG	Downloads	Buy
MF-RHT		Radial Leaded Through Hole	Refer to Data Sheet	16 – 32 Vdc	0.5 - 13.0	0.010 – 1.100	-40 – +125		MF-RHT	Downloads	Buy

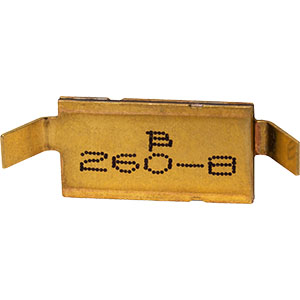

MF-DC	MF-DC	Metal Terminal	Refer to Data Sheet	16 Vdc	50		-40 – +125	Available Upon Request	TBD		Buy

Bourns 發表freeXpansion™ 技術應用於Multifuse® 熱敏電阻可恢復式保險絲

Multifuse® 熱敏電阻可恢復式保險絲-聚合物熱敏電阻與陶瓷熱敏電阻產品手冊

Multifuse® 產品之汽車電子應用手冊

工業保護用可恢復式熱敏電阻調節器

醫療器材用可恢復式熱敏電阻

Hold Current (A)

Max. Voltage (V)

Mounting Style

尺寸

Part Number	Hold Current (A)	Max. Voltage (V)	Mounting Style	尺寸	Max. Current (A)	Interrupt Rating	Rated Temperature	Agency Approval	Engineering	Buy Now

Part Number

Hold Current (A)

Max. Voltage (V)

Mounting Style

尺寸

Max. Current (A)

Interrupt Rating

Rated Temperature

Agency Approval

Engineering

Buy Now

Model/Datasheet	濕度敏感等級 MSL	焊接圖表	封裝標籤	端子	RoHS 規範證書 CofC	第三方測試報告	物質資料表 MDS	China RoHS

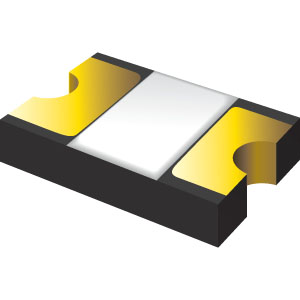

MF-ASML/X	See Note	See Data Sheet		TBD	MF 1	Request Report	MF-ASML/X	MF China RoHS

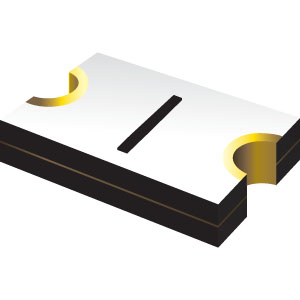

MF-FSMF	See Note	See Data Sheet	MF-FSMF Label	TBD	MF 1	Request Report	MF-FSMF	MF China RoHS
MF-FSML/X	See Note	See Data Sheet		TBD	MF 1	Request Report	MF-FSML/X	MF China RoHS

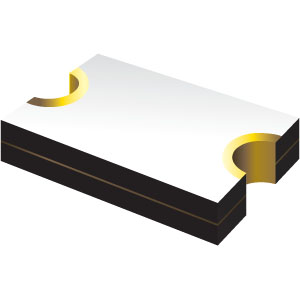

MF-FSHT	See Note	See Data Sheet		TBD	MF 1	Request Report	MF-FSHT	MF China RoHS
MF-PSMF	See Note	See Data Sheet	MF-PSMF Label	TBD	MF 1	Request Report	MF-PSMF	MF China RoHS

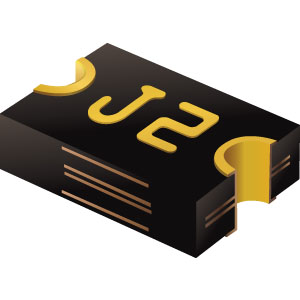

MF-PSML/X	See Note	See Data Sheet		TBD	MF 1	Request Report	MF-PSML/X	MF China RoHS
MF-PSHT	See Note	See Data Sheet	Label	TBD	MF 1	Request Report	MF-PSHT	MF China RoHS
MF-NSMF	See Note	See Data Sheet	Label	TBD	MF 1	Request Report	MF-NSMF	MF China RoHS

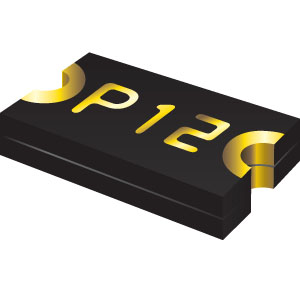

MF-NSML/X	See Note	See Data Sheet	MF-NSML Label	TBD	MF 1	Request Report	MF-NSML/X	MF China RoHS
MF-NSHT	See Note	See Data Sheet	MF-NSHT Label	TBD	MF 1	Request Report	MF-NSHT	MF China RoHS
MF-USMF	See Note	See Data Sheet	Label	TBD	MF 1	Request Report	MF-USMF	MF China RoHS

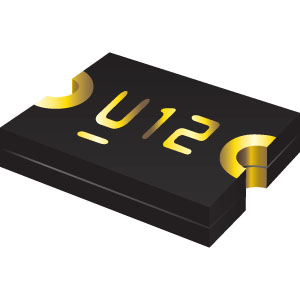

MF-USML/X	See Note	See Data Sheet	MF-USML Label	TBD	MF 1	Request Report	MF-USML/X	MF China RoHS
MF-USHT	See Note	See Data Sheet	MF-USHT Label	TBD	MF 1	Request Report	MF-USHT	MF China RoHS
MF-MSMF	See Note	See Data Sheet	MF-MSMF Label	TBD	MF 1	Request Report	MS-MSMF	MF China RoHS
MF-MSHT	See Note	See Data Sheet		TBD	MF 1	Request Report	MF-MSHT	MF China RoHS

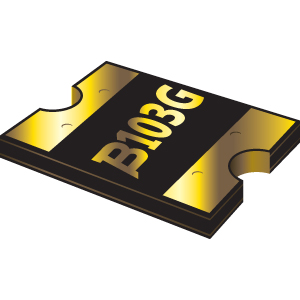

MF-SMDF	See Note	See Data Sheet	Label	TBD	MF 1	Request Report	MF-SMDF	MF China RoHS
MF-LSMF	See Note	See Data Sheet	MF-LSMF Label	TBD	MF 1	Request Report	MF-LSMF	MF China RoHS

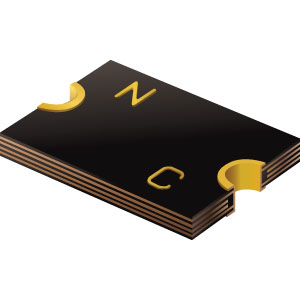

MF-GSMF	See Note	See Data Sheet		TBD	MF 1	Request Report	MF-GSMF	MF China RoHS

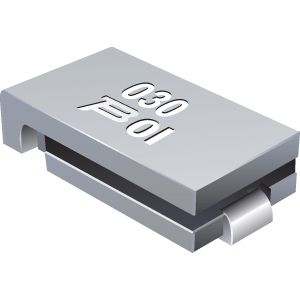

MF-SM	See Note	See Data Sheet	Label	TBD	MF 3	Request Report	MF-SM	MF China RoHS
MF-SMHT	See Note	See Data Sheet	Label	TBD	MF 3	Request Report	MF-SMHT	MF China RoHS

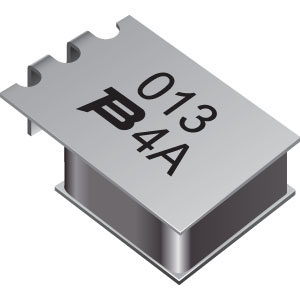

MF-SM/250	See Note	See Data Sheet	Label	TBD	MF 3	Request Report	MF-SM-250	MF China RoHS

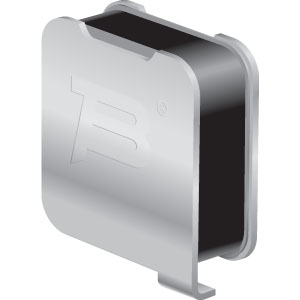

MF-SM/250V	See Note	See Data Sheet	Label	TBD	MF 3	Request Report	MF-SM-250V	MF China RoHS

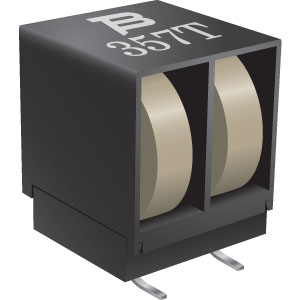

MF-SD/250	See Note	See Data Sheet	MF-SD Label	TBD	MF 3	Request Report	MF-SD/250	MF China RoHS

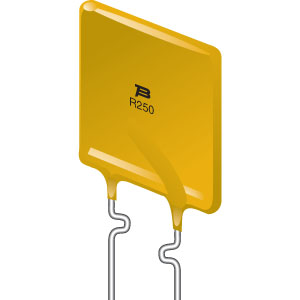

MF-R	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 2	Request Report	MF-R	MF China RoHS
MF-RG	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 2	Request Report	MF-RG	MF China RoHS
MF-RHT	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 2	Request Report	MF-RHT	MF China RoHS

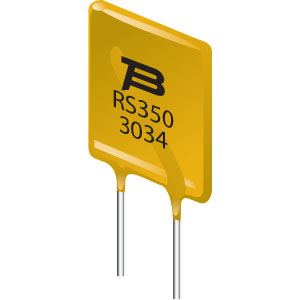

MF-RHS	See Note	See Data Sheet	Label	TBD	TBD	Request Report	MF-RHS	MF China RoHS

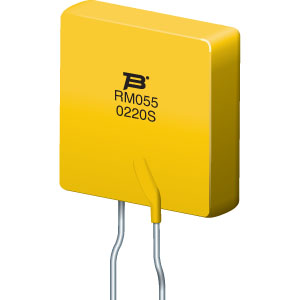

MF-RM	See Note	Multifuse® 聚合物熱敏電阻焊接建議	MF-RM Label	TBD	MF 2	Request Report	MF-RM	MF China RoHS

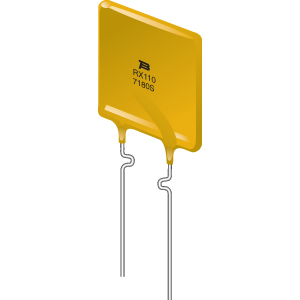

MF-RX/72	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 2	Request Report	MF-RX/72	MF China RoHS

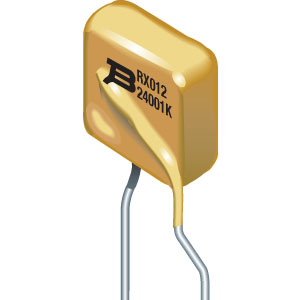

MF-RX/250	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 2	Request Report	MF-RX/250	MF China RoHS

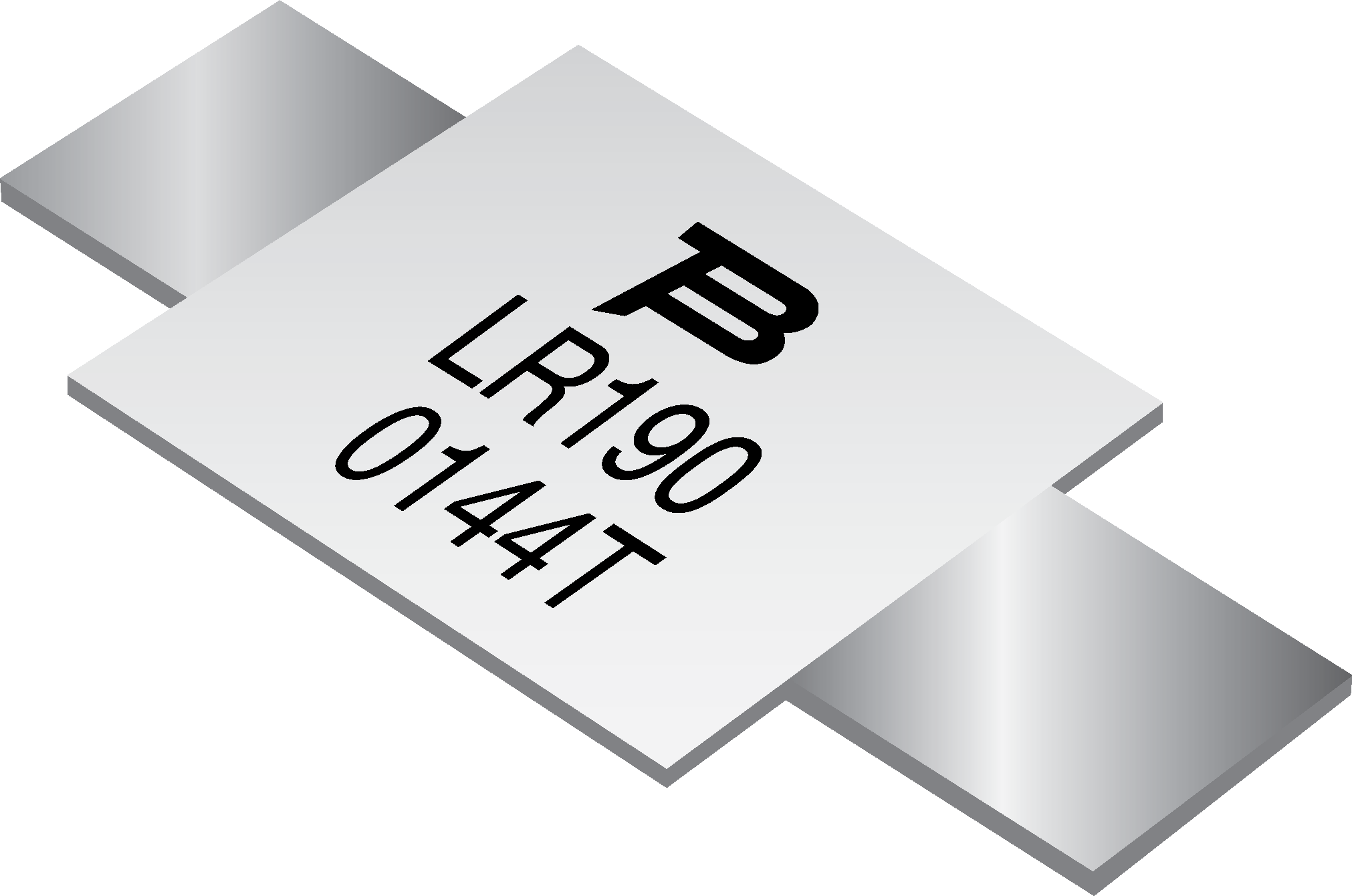

MF-LR	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 4	Request Report	MF-LR	MF China RoHS
MF-LS	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 4	Request Report	MF-LS	MF China RoHS

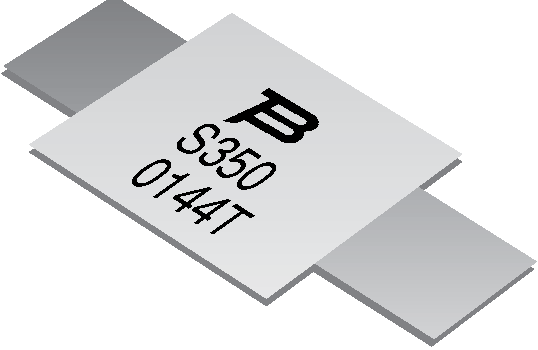

MF-S	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 4	Request Report	MF-S	MF China RoHS
MF-VS	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 4	Request Report	MF-VS	MF China RoHS

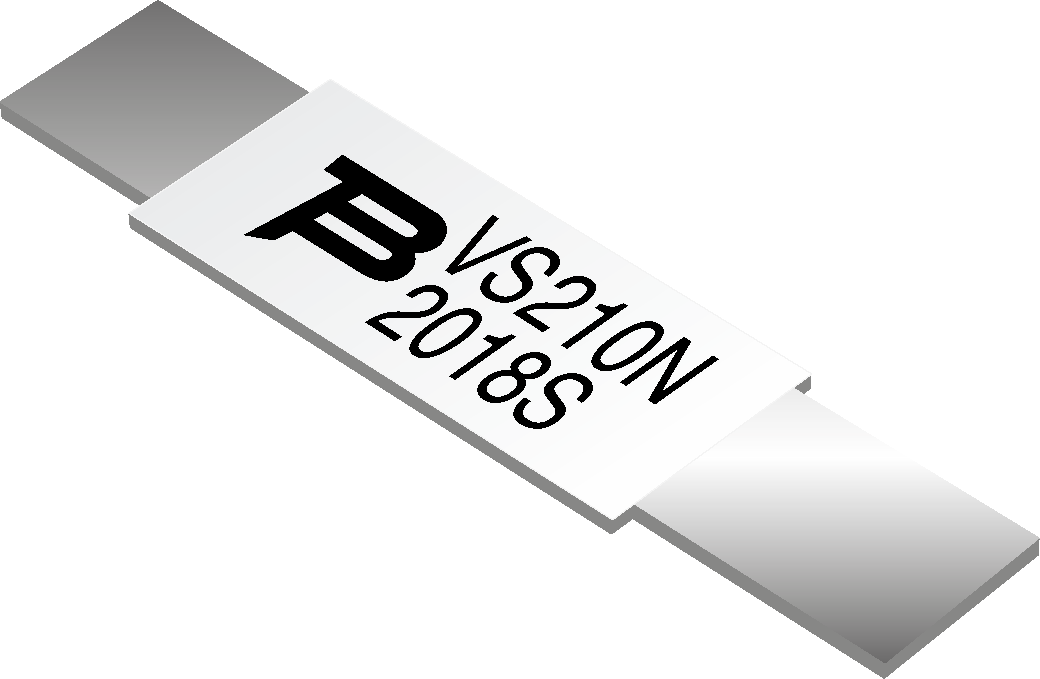

MF-VS Narrow Body	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 4	Request Report	MF-VS Narrow Body	MF China RoHS

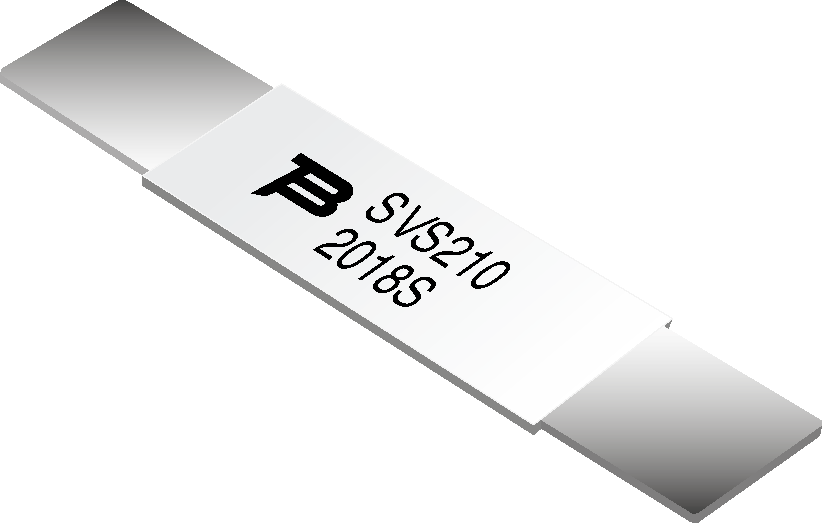

MF-SVS	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 4	Request Report	MF-SVS	MF China RoHS

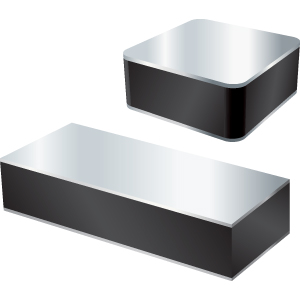

MF-D	See Note	Multifuse® 聚合物熱敏電阻焊接建議	Label	TBD	MF 3	Request Report	TBD	MF China RoHS
MF-DC	See Note	Multifuse® 聚合物熱敏電阻焊接建議		TBD	TBD	Request Report	MF-DC	TBD
