Multifuse® PPTC 可恢復式保險絲

Resettable Fuses - Multifuse® PPTC

Bourns® Multifuse® 聚合物正溫度係數 (PPTC) 可恢復式保險絲提供的過流保護廣泛用於電路保護應用。最新型 125 °C 聚合物 PTC 裝置經特定開發,在具高壓溫度的一系列苛刻環境中,可減少短路且提供強大且具有成本效益的保護。這些元件可消除此類應用中任何基於溫度的誤跳閘的需求,同時在節省空間的表貼式封裝中提供強化的高電阻保護。

您可以仰賴 Bourns® 可恢復式聚合物 PTC 熱敏電阻來提高電路保護的電阻和靈活性,其緊湊的 SMD 裝置為在佈局空間受限中工作的設計人員提供比相似款徑向引線裝置更大的自由度。更廣泛的應用選擇包括:汽車電路保護、高可靠性電子設備的過流浪湧保護、工業運輸、通信、安全和消費電子設備的強大可恢復式故障保護

立即線上申請樣品:Request Sample

表貼式 (SMD) 低阻值系列

Series Data Sheet Photo Footprint Vmax Ihold (A) Operating Temp. (°C) Agency Certificates MDS Design Files 工程 Buy Now
MF-ASML/X MF-ASML-X
0402 6 Vdc 0.10 - 0.50 -40 – +85 cUL: E174545
TÜV: R 50391579
MDS Design Files Buy
MF-FSML/X MF-FSML-X
0603 6 – 8 Vdc 0.35 - 3.00 -40 – +85 cUL: E174545
TÜV: R 50391579
MDS Design Files Buy
MF-PSML MF-PSML
0805 6 Vdc 0.75 - 3.50 -40 – +85 cUL: E174545
TÜV: R 50302873
MDS Design Files Buy
MF-PSML/X MF-PSML-X
0805 6 – 12 Vdc 0.75 - 4.50 -40 – +85 cUL: E174545
TÜV: R 50391579
MDS Design Files Buy
MF-NSML MF-NSML
MF-NSML_part 1206 6 Vdc 1.50 - 6.00 -40 – +85 cUL: E174545
TÜV: R 50302873
MDS Design Files Buy
MF-NSML/X MF-NSML-X
1206 6 – 12 Vdc 1.5 - 6.0 -40 – +85 cUL: E174545
TÜV: R 50391579
MDS Design Files Buy
MF-USML MF-USML
MF-USML_part 1210 6 Vdc 1.75 - 7.00 -40 – +85 cUL: E174545
TÜV: R 50302873
MDS Design Files Buy
MF-USML/X MF-USML-X
1210 6 – 12 Vdc 1.75 - 7.0 -40 – +85 cUL: E174545
TÜV: R 50391579
MDS Design Files Buy

表貼式 (SMD) 高溫系列

Series Data Sheet Photo Footprint Vmax Ihold (A) Operating Temp. (°C) Agency Certificates MDS Design Files 工程 Buy Now
MF-FSHT MF-FSHT
0603 12 Vdc 0.05 - 0.16 -40 – +125 cUL: E174545
TÜV: R 50384138
MDS Design Files Buy
MF-PSHT MF-PSHT MF-PSHT_part 0805 12 – 16 Vdc 0.05 - 0.50 –40 – +125 cUL: E174545
TÜV: R 50384138
MDS Design Files Buy
MF-NSHT MF-NSHT
1206 12 – 30 Vdc 0.10 - 0.75 –40 – +125 cUL: E174545
TÜV: R 50384138
MDS Design Files Buy
MF-USHT MF-USHT
1210 9 – 30 Vdc 0.10 - 1.50 –40 – +125 cUL: E174545
TÜV: R 50384138
MDS Design Files Buy
MF-MSHT MF-MSHT
1812 9 - 42 Vdc 0.2 - 1.75 -40 – +125 cUL: E174545
TÜV: R 50384138
MDS Design Files Buy
MF-SMHT MF-SMHT mfsmht Refer to Data Sheet 16 Vdc 1.36 - 3.0 -40 – +125 MDS Design Files Buy

表貼式 (SMD) 標準系列

Series Data Sheet Photo Footprint Vmax Ihold (A) Operating Temp. (°C) Agency Certificates MDS Design Files 工程 Buy Now
MF-FSMF MF-FSMF mffsmf_part 0603 6 – 15 Vdc 0.10 - 0.50 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy
MF-PSMF MF-PSMF mfpsmf_part 0805 6 – 24 Vdc 0.10 - 1.10 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy
MF-NSMF MF-NSMF
mfnsmf_part 1206 6 - 30 Vdc 0.12 - 2.00 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy
MF-USMF MF-USMF mfusmf_part 1210 6 – 30 Vdc 0.05 - 1.75 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy
MF-MSMF MF-MSMF mfmsmf_part 1812 6 - 60 Vdc 0.1 - 3.0 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy
MF-SMDF MF-SMDF mfsmdf_053g_ai10_part 2018 10 – 60 Vdc 0.30 - 2.60 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy
MF-LSMF MF-LSMF MF-LSMF_part 2920 6 – 33 Vdc 0.75 - 6.0 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy
MF-GSMF MF-GSMF
3425 36 Vdc 3.0 -40 – +85 cUL: E174545
TÜV: R 50256634
MDS Design Files Buy

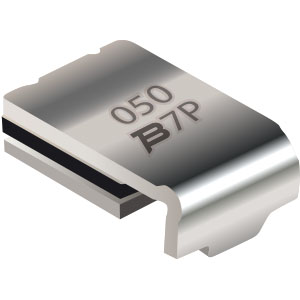

MF-SM MF-SM mfsm_lg Refer to Data Sheet 6 – 60 Vdc 0.3 – 3.0 -40 – +85 cUL: E174545
TÜV: R 50362083
MDS Design Files Buy
MF-SM/250 MF-SM/250 Refer to Data Sheet 60 Vdc
250 Vac
0.08 – 0.13 -40 – +85 cUL: E174545
TÜV: R 50362083
MDS Design Files Buy
MF-SM/250V MF-SM/250V Refer to Data Sheet 60 Vdc
250 Vac
0.13 -40 – +85 cUL: E174545
TÜV: R 50362083
MDS Design Files Buy
MF-SD/250 MF-SD/250 Refer to Data Sheet 60 Vdc
250 Vac
0.13 -40 – +85 cUL: E174545 MDS Design Files Buy

徑向引線、通孔式系列

Series Data Sheet Photo Vmax Ihold (A) Operating Temp. (°C) Agency Certificates MDS Design Files 工程 Buy Now
MF-R MF-R 16 – 60 Vdc 0.05 - 11.0 -40 – +85 cUL: E174545
TÜV: R 50366745
MDS Design Files Buy
MF-RG MF-RG mfrg700_part 16 Vdc 3.0 - 11.0 -40 – +85 cUL: E174545 MDS Design Files Buy
MF-RX/72 MF-RX/72 mfrx72 72 Vdc 0.2 - 3.75 -40 – +85 cUL: E174545
TÜV: R 50366745
MDS Design Files Buy
MF-RHT MF-RHT mfrht_part 16 – 32 Vdc 0.5 - 13.0 -40 – +125 cUL: E174545
TÜV: R 50494578
MDS Design Files Buy
MF-RM MF-RM MF-RM_part 240 Vac
265 Vac
0.05 - 0.55 -20 – +85 cUL: E174545
TÜV: R 50232433
MDS Design Files Buy
MF-RX/250 MF-RX/250 60 Vdc
250 Vac
0.12 - 0.18 -40 – +85 cUL: E174545
TÜV: R 50260658
MDS Design Files Buy

軸向引線(帶)系列

Series Data Sheet Photo Vmax Ihold (A) Operating Temp. (°C) Agency Certificates MDS Design Files 工程 Buy Now
MF-LR MF-LR 10 – 20 Vdc 1.9 - 9.0 -40 – +85 cUL: E174545
TÜV: R 50410733
MDS Design Files Buy
MF-LS MF-LS 15 – 24 Vdc 1.8 - 3.4 -40 – +85 cUL: E174545
TÜV: R 50410733
MDS Design Files Buy
MF-S MF-S 15 – 30 Vdc 1.2 - 4.2 -40 – +85 cUL: E174545
TÜV: R 50410733
MDS Design Files Buy
MF-SVS MF-SVS 10 Vdc 1.7 - 2.7 -40 – +85 cUL: E174545
TÜV: R 50410733
MDS Design Files Buy
MF-VS MF-VS 16 Vdc 1.7 - 2.1 -40 – +85 cUL: E174545
TÜV: R 50410733
MDS Design Files Buy
MF-VS Narrow Body MF-VS Narrow Body 12 Vdc 1.7 - 2.1 -40 – +85 cUL: E174545
TÜV: R 50410733
MDS Design Files Buy

客製化和 DC 電機系列

Series Data Sheet Photo Vmax Ihold (A) Operating Temp. (°C) Agency Certificates MDS Design Files 工程 Buy Now
MF-D MF-D mfd_part 15 Vdc 2.5 - 12.2 -40 – +85 cUL: E174545 MDS Design Files Buy
MF-DC MF-DC
16 Vdc 50 -40 – +125 Available Upon Request MDS Available Upon Request Buy
