J.W. Miller® -插件式RF扼流圈

J.W. Miller® - Through-Hole Radial Lead RF Chokes

技术规格

Bourns 很高兴在此宣布由Bell工业公司收购 J.W. Miller 磁性产品部门。J.W. Miller® 磁性产品成立于1924年，为知名的标准与订制磁性组件供货商，能满足少量或大批生产的需求。完整产品系列包括高质量线圈、扼流圈、电感、变压器等，配置方式有表面黏着式、插件式两种。

JW Miller® Magnetic Products 的冲突矿产资源报告：CMRT

Obsolete 产品标记此符号为目前可提供，但不建议作新设计使用。

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	数据表	遮蔽式	尺寸	电感范围	电流范围	MDS	工程檔

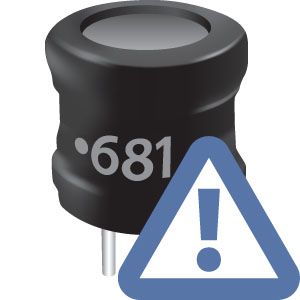

6000		No	9 Dia x 12.2 Ht	1 - 47000 µH	0.08 - 10 A	6000 (1R0-103) 6000 (123-473)	Downloads
6100		No	11 Dia x 10.5 Ht	10 - 18000 µH	0.16 - 6.3 A		Downloads

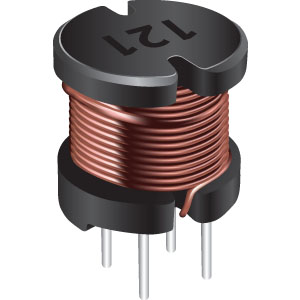

RL110		No	10 Dia x 10 Ht	10 - 1000 µH	0.53 - 5.3 A		Downloads
RL181S		Yes	10.5 Dia x 14 Ht	1000 - 12000 µH	0.01 - 0.09 A	RL181S	Downloads
RL187		No	8 Dia x 11.2 Ht	100 - 33000 µH	0.03 - 0.2 A	RL187	Downloads
RL262		No	8 Dia x 6.2 Ht	100 - 15000 µH	0.02 - 0.2 A		Downloads

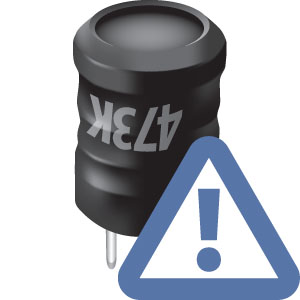

RL622		No	11 Dia x 8.5 Ht	1 - 100000 µH	0.2 - 10 A	RL622	Downloads

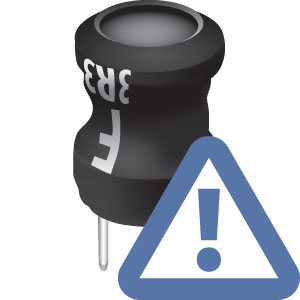

RL822		No	11 Dia x 8.5 Ht	1 - 1000 µH	0.16 - 3.7 A		Downloads
RL824		No	10.5 Dia x 15.5 Ht	10 - 3900 µH	0.18 - 2.2 A		Downloads
RL855		No	7.8 Dia x 5.5 Ht	10 - 10000 µH	0.08 - 2.5 A		Downloads

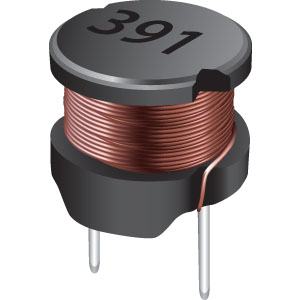

RL875		No	7.8 Dia x 7.5 Ht	10 - 10000 µH	0.08 - 2.9 A		Downloads

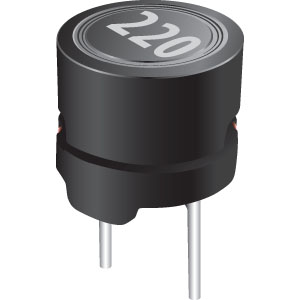

RL875S		Yes	7.8 Dia x 7.5 Ht	10 - 10000 µH	0.07 - 2.4 A		Downloads

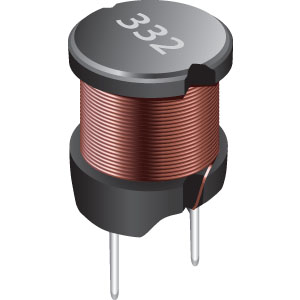

RL895	rl895	No	7.8 Dia x 9.5 Ht	10 - 47000 µH	0.04 - 2.6 A	RL895

Bourns Acquires Assets of J.W. Miller Division of Bell Industries

Model/Datasheet	潮湿敏感度等级 MSL	焊接图表	封装标签	RoHS 规范证书 CofC	第三方测试报告	物质资料表 MDS	China RoHS
RL895	2	Std	Ch Pwr Ind	6000, RL	Request Report	RL895	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
6000	2	Std	Ch Pwr Ind	6000, RL	Request Report	6000 (1R0-103) 6000 (123-473)	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
6100	2	Std	Ch Pwr Ind	6000, RL	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL110	2	Std	Ch Pwr Ind	6000, RL	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL181S	2	Std	Ch Pwr Ind	6000, RL	Request Report	RL181S	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL187	2	Std	Ch Pwr Ind	6000, RL	Request Report	RL187	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL262	2	Std	Ch Pwr Ind	6000, RL	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL622	2	Std	Ch Pwr Ind	6000, RL	Request Report	RL622	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL822	2	Std	Ch Pwr Ind	6000, RL	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL824	2	Std	Ch Pwr Ind	6000, RL	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL855	2	Std	Ch Pwr Ind	6000, RL	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL875	2	Std	Ch Pwr Ind	6000, RL	Request Report	TBD	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
RL875S	2	Std	Ch Pwr Ind	6000, RL	Request Report	RL875S	Bourns JW Miller Through-Hole Radial Lead RF Chokes China RoHS
