Chip Inductors - Multilayer

Magnetics & JW Miller® 的冲突矿产资源报告 :CMRT

Obsolete 产品标记此符号为目前可提供,但不建议作新设计使用。

Product Series
Parametric Table
RoHS Files
Request Samples
Contact Us
Series 数据表 产品图片 技术 结构 遮蔽式 尺寸 电感范围 共振频率范围 电流范围 RoHS 规 范 MDS 工程 工程檔

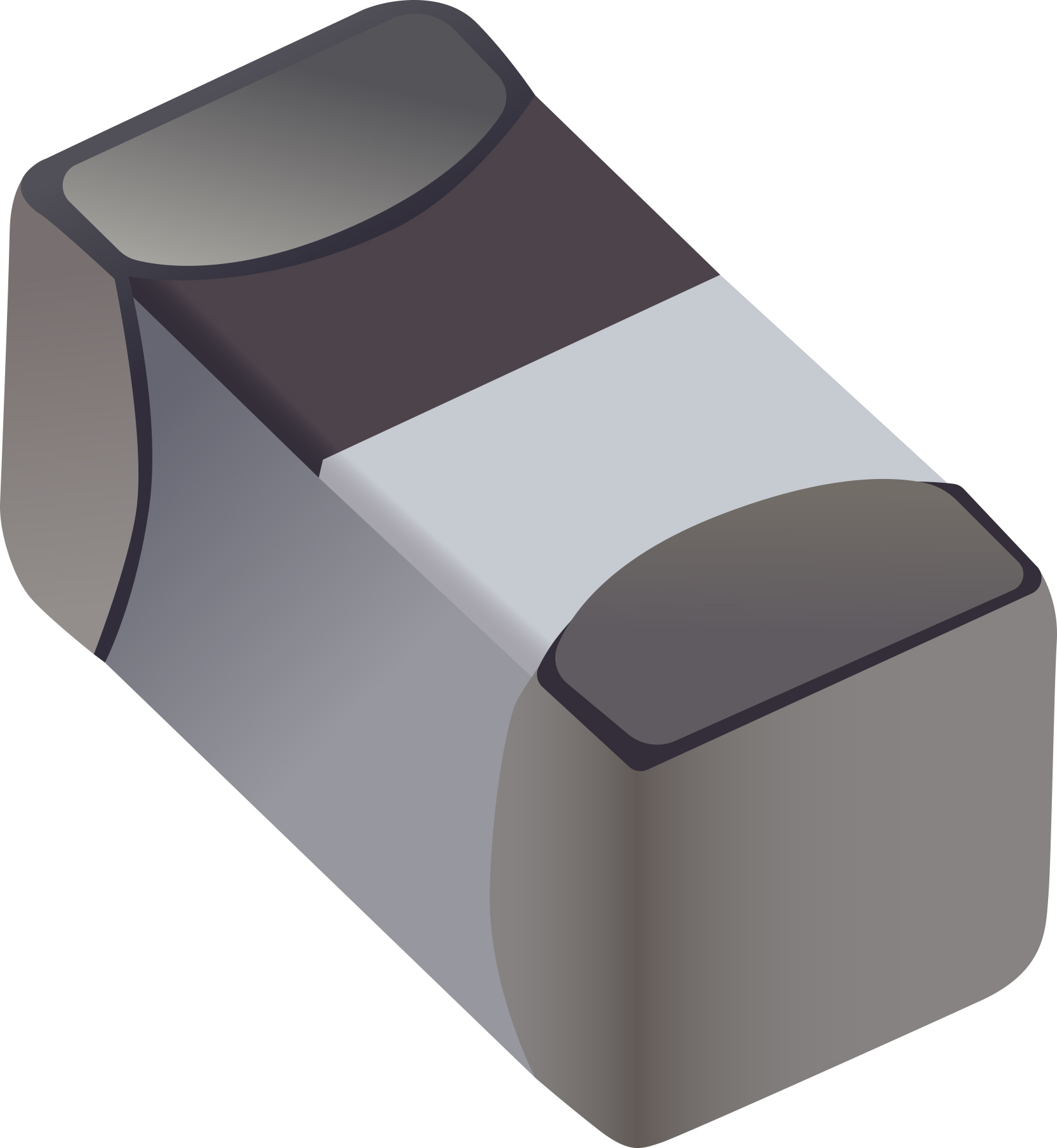

CE201210 (0805) CE201210
ci Multilayer Sealed 2.0 x 1.0 x 1.25 mm 1.5 - 470 nH 200 - 4000 MHz 300 mA CE201210 (0805): C=0.85
CE201210 (0805): C=1.25
CI100505 (0402) CI100505 Multilayer Sealed 1 x 0.5 x 0.5 mm 0.001 - 0.1 µH 550 - 6000 MHz 100 - 300 mA
CI160808 (0603) CI160808 (0603) ci Multilayer Sealed 1.6 x 0.8 x 0.8 mm 0.001 - 0.22 µH 350 - 4000 MHz 200 - 300 mA CI160808 (0603)
CS160808 (0603) CS160808 (0603) cs Multilayer Sealed Yes 1.6 x 0.8 x 0.8 mm 0.047 - 2.7 µH 40 - 260 MHz 50 - 200 mA CS160808 (0603)
CV201210 (0805) CV201210 (0805) cs Multilayer Sealed Yes 2.0 x 1.25 x 1.25 mm 0.047 - 33 µH 13 - 320 MHz 5 - 300 mA CV201210
CVH252009 (1008) CVH252009 (1008) Multilayer Sealed Yes 2.5 x 2 x 0.9 mm 0.47 - 4.7 µH 25 - 100 MHz 1100 - 1800 mA CVH252009 (1008)
CVH201610A (0805) CVH201610A
Multilayer Sealed Yes 2 x 1.6 x 0.9 mm 0.47 - 2.2 µH 50 - 80 MHz 1200 - 1600 mA CVH201610A
CVH201205 (0805) CVH201205
Multilayer Sealed Yes 2 x 1.25 x 0.5 mm 0.47 - 2.2 µH 40 - 100 MHz 600 - 1100 mA CVH201205
CVH160808 (0603) CVH160808
Multilayer Sealed Yes 1.6 x 0.8 x 0.8 mm 0.24 - 2.2 µH 50 - 90 MHz 750 - 1200 mA CVH160808
Inductance (μH) min
Current Rating (A) min
Current Saturation (A) min
DCR (Ohms) min
Height (mm) min
Length (mm) min
Width (mm) min
Material Core
