Leistungsinduktoren – SMD, ungeschirmt

Spezifikationen

Konfliktmineralien- Herkunftsbericht für Power Inductors ：CMRT

Obsolete Mit diesem Symbol gekennzeichnete Produkte sind verfügbar, werden jedoch nicht für Neuentwicklungen empfohlen.

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Serie	Datenblatt	Geschirmt	Größe	Induktivitätsbereich	Strombereich	MDS	Design Dateien
SDE6603		No	6.6 x 4.5 x 2.92 mm	1 - 1000 µH	0.07 - 2.9 A	SDE6603	Downloads
SDE0403A		No	4.5 x 4 x 3.2 mm	1 - 68 µH	0.4 - 2.7 A	SDE0403A	Downloads
SDE0604A		No	5.8 x 5.2 x 4.5 mm	1.2 - 220 µH	0.47- 5.3 A	SDE0604A	Downloads
SDE0805A		No	7.8 x 7 x 5 mm	1.5 - 470 µH	0.55 - 5.8 A	SDE0805A	Downloads
SDR0302		No	3 x 2.8 x 2.5 mm	1 - 1200 µH	0.06 - 2.1 A	SDR0302	Downloads
SDR0403		No	4.5 x 4 x 3.2 mm	1 - 1000 µH	0.2 - 3.8 A	SDR0403	Downloads
SDR0503		No	5 x 4.8 x 3 mm	10 - 15000 µH	0.02 - 1.3 A	SDR0503	Downloads
SDR0603		No	5.8 x 5.8 x 3.9 mm	1.5 - 470 µH	0.15 - 3 A	SDR0603	Downloads
SDR0604		No	5.8 x 5.8 x 4.8 mm	1.2 - 1000 µH	0.12 - 4.2 A	SDR0604	Downloads

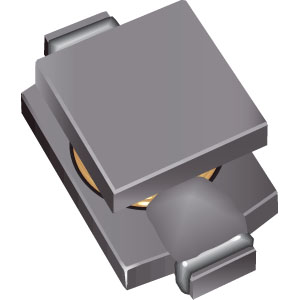

SDR0703		No	6.5 x 4.5 x 2.7 mm	1 - 1000 µH	0.08 - 2.2 A	SDR0703	Downloads
SDR0805	SDR0805	No	7.8 x 7.8 x 5.3 mm	1.5 - 4700 µH	0.08 - 6 A	SDR0805 Series (1R5~3R9, 270) SDR0805 Series (4R7~220, 330~472)

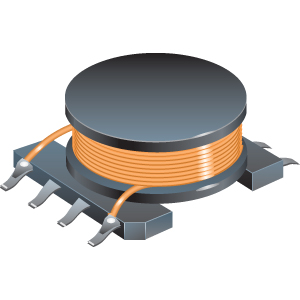

SDR0906		No	10.5 x 12.5 x 6.3 mm	2.2 - 10000 µH	0.04 - 4 A	SDR0906	Downloads
SDR1005		No	12.7 x 10 x 5 mm	0.68 - 10000 µH	0.1 - 8.5 A	SDR1005 (1R0~150) SDR1005 (220~103)	Downloads
SDR1006		No	9.8 x 9.8 x 5.8 mm	1.5 - 4700 µH	0.1 - 6.4 A	SDR1006 (1R5-3R9) SDR1006 (4R7-6R8)	Downloads
SDR1030		No	10 x 10 x 3 mm	2.7 - 1000 µH	0.2 - 3 A	SDR1030	Downloads

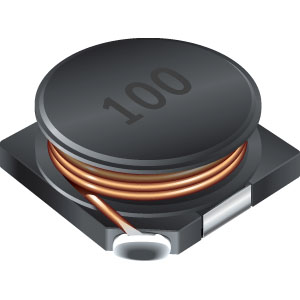

SDR1045		No	10 x 10 x 4.5 mm	2.7 - 1000 µH	0.38 - 4.8 A	SDR1045	Downloads

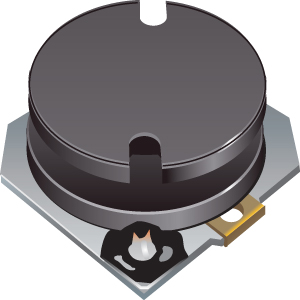

SDR1105		No	10 x 11.1 x 4.8 mm	10 - 200 µH	1 - 4 A	SDR1105	Downloads
SDR1305		No	12.7 x 12.7 x 4.8 mm	2.5 - 1000 µH	0.46 - 7.2 A	SDR1305	Downloads

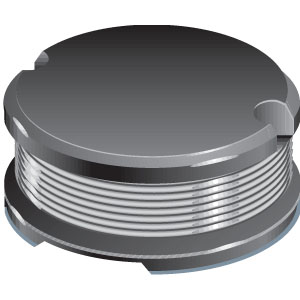

SDR1307		No	13 x 13 x 7 mm	1.5 - 1000 µH	0.65 - 9.5 A	SDR1307	Downloads

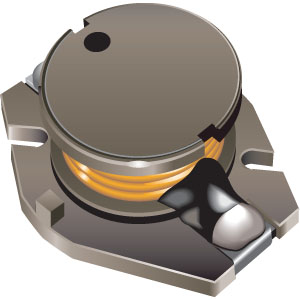

SDR1806		No	18.3 x 14 x 6.6 mm	1 - 1000 µH	0.5 - 10 A	SDR1806	Downloads

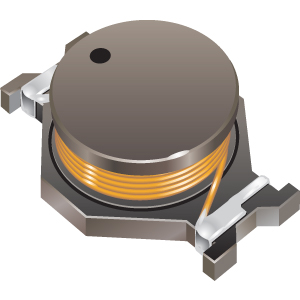

SDR2207		No	22 x 15 x 7 mm	0.78 - 1000 µH	0.6 - 16 A	SDR2207	Downloads
SDR6603		No	6.6 x 4.5 x 2.92 mm	1 - 1000 µH	0.07 - 2.9 A	SDR6603 (1R0-221) MDS	Downloads

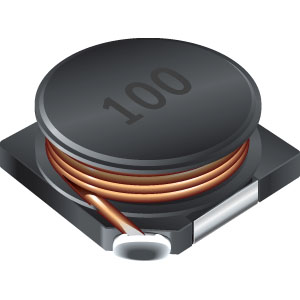

SDR7030		No	7 x 7 x 3 mm	1 - 1000 µH	0.15 - 3 A	SDR7030	Downloads

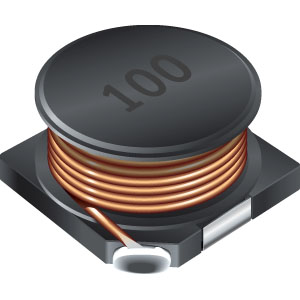

SDR7045		No	7 x 7 x 4.5 mm	1.2 - 1000 µH	0.22 - 3.8 A	SDR7045 (1R2-331) SDR7045 (471-102)	Downloads
SDR1307A		No	13 x 13 x 7 mm	1.5 - 1000 µH	0.65 - 9.5 A	SDR1307A	Downloads

Bourns umfangreiches Sortiment an halbgeschirmten Leistungsinduktoren sorgt für umfassendes Leistungsmanagement bei DC/DC-Wandlern

Bourns stellt flache, geschirmte SMD-Hochstrom-Leistungsinduktoren für DC/DC-Wandler in mobilen Elektronikgeräten vor

Bourns stellt neue Hochleistungsinduktoren mit moderner Flachdrahtspulentechnik in DC/DC-Wandlern vor.

Bourns kündigt neue SMD-Leistungsinduktorserie für Anwendungen im Automobilbereich an

Bourns kündigt Leistungsinduktorserie mit halbmagnetischer Abschirmung für den Einsatz in Power Management-Anwendungen für DC/DC-Wandler an

Bourns kündigt neue Leistungsinduktorenserie mit hervorragender DC/DC-Wandlungsleistung für Anwendungen im Automobilbereich an

Übersicht Leistungsinduktoren

Oberflächenmontierte Leistungsinduktoren und Gleichtaktdrosseln von Bourns®

Inductance (μH)	min 0	max 120,000
Current Rating (A)	min 0.0005	max 70
Current Saturation (A)	min 0.0003	max 118
DCR (Ohms)	min 0	max 484

Height (mm)	min 0	max 54
Length (mm)	min 0	max 54
Width (mm)	min 0	max 38.1
Material Core
Shielding
Ratings

Model/Datasheet	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB	China RoHS
SDE0403A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SDE	Request Report	SDE0403A	China RoHS - SMD NS
SDE0604A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SDE	Request Report	SDE0604A	China RoHS - SMD NS
SDE0805A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SDE	Request Report	SDE0805A	China RoHS - SMD NS
SDE1006A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SDE	Request Report	SDE1006A	China RoHS - SMD NS
SDE6603	1	See Data Sheet	TBD	TBD	SDE	Request Report	SDE6603	China RoHS - SMD NS
SDR0302	1	Conf 1	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR0302	China RoHS - SMD NS
SDR0403	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR0403	China RoHS - SMD NS
SDR0503	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR0503	China RoHS - SMD NS
SDR0603	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR0603	China RoHS - SMD NS
SDR0604	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR0604	China RoHS - SMD NS
SDR0703	1	Conf 2	Ch Pwr Ind	e1 (SnAgCu)	SDR	Request Report	SDR0703	China RoHS - SMD NS
SDR0805	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR0805 Series (1R5~3R9, 270) SDR0805 Series (4R7~220, 330~472)	China RoHS - SMD NS
SDR0906	1	Conf 3	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR0906	China RoHS - SMD NS
SDR1005	1	Conf 3	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1005 (1R0~150) SDR1005 (220~103)	China RoHS - SMD NS
SDR1006	1	Conf 3	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1006 (1R5-3R9) SDR1006 (4R7-6R8) SDR1006 Series (4R7-6R8, 100-220, 390-222, 272-472)	China RoHS - SMD NS
SDR1030	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1030	China RoHS - SMD NS
SDR1045	1	Conf 3	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1045	China RoHS - SMD NS
SDR1105	1	Conf 3	Ch Pwr Ind	Au (e4)	SDR	Request Report	SDR1105	China RoHS - SMD NS
SDR1305	1	Conf 3	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1305	China RoHS - SMD NS
SDR1307	1	Conf 3	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1307	China RoHS - SMD NS
SDR1307A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1307A	China RoHS - SMD NS
SDR1806	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR1806	China RoHS - SMD NS
SDR2207	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR2207	China RoHS - SMD NS
SDR6603	1	See Data Sheet	Ch Pwr Ind	Au (e4)	SDR	Request Report	SDR6603 (1R0-221) MDS SDR6603 (471, 331, 681, 102) MDS	China RoHS - SMD NS
SDR7030	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR7030	China RoHS - SMD NS
SDR7045	1	Conf 2	Ch Pwr Ind	Sn (e3)	SDR	Request Report	SDR7045 (1R2-331) SDR7045 (471-102)	China RoHS - SMD NS
