單轉式可調式電阻

Trimpot® Trimming Potentiometers - Single-turn

技術規格

可變電阻應用於各種電子設備上的電路調整。實體結構的多樣化及符合現今製造環境要求的能力，提供了使用者在設計應用上可選擇到最佳可變電阻的彈性。在全球 Bourns 的可變電阻幾乎被應用於每一項電子產品上。

請詳讀關於仿冒Bourns®可變電阻產品的安全性問題

QPL 部件料號清單

Bourns 提供此產品線的設計包

針對產品應用資料及更多的說明，請點選參閱我們的資料庫

Trimpot®, Switch, and Modular Contact 的衝突礦產資源報告：CMRT

Obsolete 產品標記此符號為目前可提供, 但不建議作新設計使用

產品

參數搜尋

RoHS

產品資訊

視頻

索取樣品

聯絡我們

Series	資料表	旋轉壽命	轉數	定額功率	固定型式	阻值範圍	CRV/ENR	結構	工程文件
3306		50 cycles	1	0.2 W	through-hole	100 Ω to 1 MΩ	3 % max.	open frame	Downloads
3312		25 cycles	1	0.1 W	surface mount	10 Ω to 2 MΩ	5 % or 3 Ω (whichever is greater)	sealed	Downloads
3313		100 cycles	1	0.125 W	surface mount	10 Ω to 2 MΩ	3 % or 3 Ω (whichever is greater)	sealed	Downloads
3314		100 cycles	1	0.25 W	surface mount	10 Ω to 2 MΩ	3 % or 3 Ω (whichever is greater)	sealed	Downloads
3329	3329	200 cycles	1	0.5 W	through-hole	100 Ω to 1 MΩ	3 % or 3 Ω (whichever is greater)	sealed
3345		200 cycles	1	1 W	through-hole	10 Ω to 50K Ω	100 Ω ENR max.	sealed	Downloads
3352		200 cycles	1	0.5 W	through-hole	10 Ω to 2 MΩ	1 % or 1 Ω (whichever is greater)	open frame	Downloads
3361		200 cycles	1	0.5 W	surface mount	10 Ω to 2 MΩ	3 % or 3 Ω max. (whichever is greater)	sealed	Downloads
3362		200 cycles	1	0.5 W	through-hole	10 Ω to 2 MΩ	1 % or 3 Ω max. (whichever is greater)	sealed	Downloads
3386		200 cycles	1	0.5 W	through-hole	10 Ω to 2 MΩ	2 % or 3 Ω	sealed	Downloads

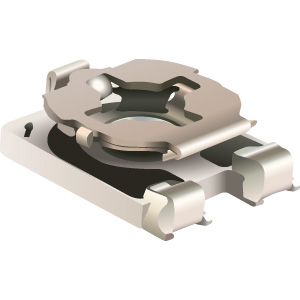

TC33	TC33	20 cycles	1	0.1 W	surface mount	100 Ω to 1 MΩ	5 % max.	open frame
TC42		20 cycles	1	0.1 W	surface mount	100 Ω to 1 MΩ	5 % max.	open frame	Downloads
PV32	PV32	200 cycles	1	0.5 W	through-hole	100 Ω to 1 MΩ	3 % or 3 Ω (whichever is greater)	sealed
PVG3	PVG3	50 cycles	1	0.25 W	surface mount	10 Ω to 2 MΩ	2 % or 3 Ω (whichever is greater)	sealed

Number of Turns

Mounting

Resistance

Power Rating

Construction

PART NUMBER	Number of Turns	Mounting	Resistance	Power Rating	Construction	Element	Body Size	Engineering	Buy Now

PART NUMBER

Number of Turns

Mounting

Resistance

Power Rating

Construction

Element

Body Size

Engineering

Buy Now

Model/Datasheet	濕度敏感等級 MSL	焊接圖表	封裝標籤	端子	RoHS 規範證書 CofC	第三方測試報告	物質資料表 MDS	China RoHS
3005	Seeking	焊接與清洗種類介紹	3005 Label	e4	CofC 3005	Request Report	3005	CRHOS3005
3006	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 1	Request Report	3006 (10 to 200 ohms) 3006 (250 to 50K ohms) 3006 (100K to 2M ohms)	CRHOS3006
3009	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 1	Request Report	3009 (10 to 200 ohms) 3009 (250 to 50K ohms) 3009 (100K to 2M ohms)	CRHOS3009
3057	Seeking	焊接與清洗種類介紹	Label	e4	TRIM 5	Request Report	3057L 3057	CRHOS3057
3059	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 5	Request Report	3059 (10 to 250 Ohms) 3059 (250 to 50K Ohms) 3059 (50K to 2M Ohms)	CRHOS3059
3082	Seeking	焊接與清洗種類介紹	Label	TBD	TRIM 1	Request Report	3082 (10 to 250 ohms) 3082 (250 to 50k ohms) 3082 (51k to 500K ohms) 3082 (500K to 2M ohms)	CRHOS3082
3214	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	e3	TRIM 4	Request Report	3214 (10 to 200 ohms) 3214 (250 to 20k ohms) 3214 (25k to 2M ohms)	CRHOS3214
3223	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	e3	TRIM 1	Request Report	3223 (10 to 200 ohms) 3223 (250 to 50k ohms) 3223 (51k to 2M ohms)	CROHS3223
3224	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	e3	TRIM 4	Request Report	3224 (10 to 200 ohms) 3224 (250 to 20k ohms) 3224 (25k to 2M ohms)	CRHOS3224
3250	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 5	Request Report	3250 L 3250 P, W	CRHOS3250
3252	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 1	Request Report	3252 (10 to 250 ohms) 3252 (251 to 50K ohms) 3252 (51K to 5M ohms)	CRHOS3252
3260	Seeking	焊接與清洗種類介紹	Label	e4	TRIM 5	Request Report	3260	CRHOS3260
3262	3262 (10 to 200) Seeking	焊接與清洗種類介紹	3262W Label	e3	TRIM 4	Request Report	3262 (10K) 3262 (10 to 250 ohms) 3262 (50K to 500K) 3262 (51K to 1M ohms) 3262 (250 to 25K) 3262 (251 to 50K ohms) 3262 (501K to 1M)	CRHOS3262
3266	Seeking	焊接與清洗種類介紹	3266W Label	e3	TRIM 4	Request Report	3266 (10K ohms) 3266 (10 - 250 ohms) 3266 (251 - 25K ohms) 3266 (50K - 500K ohms) 3266 (501K - 1M ohms)	CRHOS3266
3269		焊接形式介紹-無鉛表面黏著式可變電阻	Label	e3	TRIM 4	Request Report	3269 (10-200) 3269 (201-50k) 3269 (51k-500K) 3269 (500K-1M)	CRHOS3269
3290	Seeking	焊接與清洗種類介紹	Label	e4	TRIM 5	Request Report	3290	CRHOS3290
3292	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 1	Request Report	3292 (10 to 250 ohms) 3292 (251 to 50K ohms) 3292 (51K to 1M ohms) 3292 (1M to 2M ohms)	CRHOS3292
3296	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 1	Request Report	3296 (10 to 250 ohms) 3296 (251 to 50K ohms) 3296 (51K to 1M ohms) 3296 (1M to 2M ohms)	CRHOS3296
3299	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 1	Request Report	3299 (10 to 250 ohms) 3299 (250 to 50K ohms) 3299 (51K to 1M ohms) 3299 (1M to 2M ohms)	CRHOS3299
3306	Seeking	焊接與清洗種類介紹	Label	TBD	TRIM 8	Request Report	3306F (1KΩ ≤ RC) 3306F (RC ≥ 100K Ω) 3306F (500 Ω ≤ RC ≤ 100K Ω) 3306K (RC ≥ 100KΩ) 3306K (1KΩ < RC<100KΩ) 3306K (1KΩ ≤ RC) 3306W (1KΩ ≤ RC) 3306W (RC ≥ 100K Ω) 3306W (500 Ω ≤ RC ≤ 100K Ω) 3306P (1KΩ ≤ RC) 3306P (RC ≥ 100KΩ) 3306P (1KΩ < RC < 100KΩ)	CRHOS3306
3312	See Note	TBD	Label	TBD	TRIM 3	Request Report	3312 (10-200 ohms) 3312 (200 - 5K ohms) 3312 (5K-2M ohms)	TBD
3313	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	e4	TRIM 3	Request Report	3313 (10-200 ohms) 3313 (250-25K ohms) 3313 (26K-2M ohms) 3313 (10-200 ohms) Halogen Free 3313 (200-25K ohms) Halogen Free 3313 (26K-2M ohms) Halogen Free	CRHOS3313
3314	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	e4	TRIM 3	Request Report	3314 (10-200 ohms) 3314 (500-25K ohms) 3314 (26K-2M ohms)	CRHOS3314
3329	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 2	Request Report	3329 H, P, U (10 to 250 ohms) 3329 H, P, U (250 to 25K ohms) 3329 H, P, U (50K to 500K ohms) 3329 H, P, U (500K to 1M ohms) 3329 M, S, W, X (10 to 250 ohms) 3329 M, S, W, X (250 to 25K ohms) 3329 M, S, W, X (50K to 500K ohms) 3329 M, S, W, X (500K to 1M ohms)	CRHOSH3329
3339	Seeking	焊接與清洗種類介紹	3339P Label	e3	TRIM 2	Request Report	3339 (10 to 250 ohms) 3339 (250 to 250K ohms) 3339 (50K to 500K ohms) 3339 (500K to 1M ohms)	CRHOSH3339
3345	Seeking	焊接與清洗種類介紹	Label	e4	TRIM 6	Request Report	3345	CRHOS3345
3352	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 2	Request Report	3352 (10 to 300 ohms) 3352 (300 to 51K ohms) 3352 (51K to 2M ohms)	CRHOS3352
3360	Seeking	焊接與清洗種類介紹	3360Y Label	TBD	TRIM 2	Request Report	3360	CRHOS3360
3361	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	TBD	TRIM 3	Request Report	3361 (10 to 200 ohms) 3361 (10K) 3361 (51K to 500K) 3361 (250 to 50K) 3361 (501K to 2M)	CRHOS3361
3362	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 3	Request Report	3362 (10 - 200 ohms) 3362 (250 - 25K ohms) 3362 (10K ohms) 3362 (50K - 500K ohms) 3362 (501K - 2M ohms)	CRHOS3362
3386	Seeking	焊接與清洗種類介紹	Label	e3	TRIM 3	Request Report	3386 (250 to 50K ohms) 3386 (51K to 1M ohms) 3386 (1.1M to 2M ohms) 3386 (10 to 200 ohms)	CRHOS3386
H-90, H-91, H-92	Seeking		TBD	N/A	Tools	Request Report	H-91 H-92 H-90
TC33	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	TBD	TRIM 8	Request Report	TC33X-1 (RC ≤ 1KΩ) TC33X-1 (RC ≥ 100K Ω) TC33X-1 (1K Ω ≤ RC ≤ 100K Ω) TC33X-2 (RC ≤ 1K Ω) TC33X-2 (RC ≥ 100K Ω) TC33X-2 (1K Ω ≤ RC ≤ 100K Ω)	CRHOSTC33
TC42	See Note	焊接形式介紹-無鉛表面黏著式可變電阻	Label	TBD	TRIM 8	Request Report	TC42 (RC ≤ 1K Ω) TC42 (RC ≥ 100K Ω) TC42 (1K Ω ≤ RC ≤ 100K Ω)	China RoHS - TC42X
PVG5	Seeking	焊接形式介紹-無鉛表面黏著式可變電阻	PVG5 label	e3	TRIM 4	Request Report	PVG5 (10 to 200 ohms) PVG5 (250 to 25K ohms) PVG5 (50K to 2M ohms)	CRHOSPVG5
PV12	Seeking	焊接與清洗種類介紹	PV12 label	e3	TRIM 2	Request Report	PV12 (10 to 200 ohms) PV12 (250 to 25K ohms) PV12 (50K to 500K ohms) PV12 (501K to 1M ohm)	CRHOSPV12PV32
PV32	Seeking	焊接與清洗種類介紹	PV32 label	e3	TRIM 2	Request Report	PV32H, P (10 to 250 ohms) PV32H, P (251 to 25K ohms) PV32H, P (51K to 500K ohms) PV32H, P (501K to 1M ohm) PV32N (10 to 250 ohms) PV32N (251 to 25K ohms) PV32N (51K to 500K ohms) PV32N (501K to 1M ohm)	CRHOSPV12PV32
PV36	Seeking	焊接與清洗種類介紹	PV36 label	e3	TRIM 4	Request Report	PV36 (10 to 250 ohms) PV36 (251 to 50K ohms) PV36 (51K to 500K ohms) PV36 (1.01M to 2M ohms)	CRHOSPV36PV37
PV37	Seeking	焊接與清洗種類介紹	PV37 label	e3	TRIM 4	Request Report	PV37 (10 to 250 ohms) PV37 (10K ohms) PV37 (251 to 25K ohms) PV37 (51K to 500K ohms) PV37 (501K to 1M ohm)	CRHOSPV36PV37
PVG3	1	焊接與清洗種類介紹	PVG3 label	e3	TRIM 3	Request Report	PVG3 (10 to 200 ohms) PVG3 (500 to 20K ohms) PVG3 (50K to 2M ohms)	PVG3
