SMD半屏蔽式功率電感

Power Inductors - SMD Semi-Shielded
技術規格

Bourns® 半屏蔽 SMD 功率電感相較於非屏蔽電感,可提供更小尺寸和節省成本。

功率電感為穩壓器拓撲中的重要元件。實際上,在汽車、電子產品和 DC-DC 轉換器中調節功率的每個電路都需要一個電感器。 Bourns® 半屏蔽功率電感結合了非屏蔽和屏蔽電感特性,提供二者的優勢,使其適用於專為行動電子設備、電腦、數據存儲設備、可再生能源設備等提供電源管理的 DC-DC 轉換器。與非屏蔽電感器相比,Bourns 半屏蔽 SMD 功率電感器可精省空間並節省成本。

Bourns® 為具有成本效益、符合 AEC-Q200 標準的半屏蔽功率電感專業製造商。Bourns® 功率電感為需要電壓轉換的應用中減少磁芯損耗的重要解決方案。作為半屏蔽功率電感器製造商,Bourns 生產完整的功率電感器產品線,包括電源電感器、SMD 功率電感器、大電流電感器、大功率電感器、表貼式電感器以及其他具電路要求的功率電感。Bourns Inc 功率電感具有寬電感範圍、低 DC 電阻和工業應用所需的高電流值。

Bourns 半屏蔽 SMD 功率電感專為用戶提供額外的電感選擇設計,可彌合屏蔽和非屏蔽功率電感的性能差距。Bourns® SRN 半屏蔽 SMD 功率電感利用磁性環氧樹脂作為屏蔽層,與非屏蔽功率電感相比,可提供有效的磁屏蔽,同時輻射更低。此外,與同等尺寸的屏蔽電感相比,Bourns® 功率電感可節省空間和成本。 Bourns® 半屏蔽功率電感具備小尺寸、寬範圍電感值和高電流處理能力的特點,亦為市場上更加環保的電感器。

功率電感產品衝突礦產資源報告 : CFSI_CMRT4-01

立即線上申請樣品: Request Sample
Product Series
Parametric Table
RoHS Files
Collateral
Videos
Request Samples
Contact Us
Series 資料表 產品圖片 尺寸 電感範圍 電流範圍 MDS 工程 工程文件
SRN1060 SRN1060 SRN1060_part 10 x 9.8 x 6 mm 10 - 470 µH 0.8 - 5.4 A SRN1060
Downloads
SRN2010 SRN2010 SRN2010_part 2.0 x 1.6 x 1.0 mm 0.24 - 2.2 µH 1.7 - 4.4 A SRN2010
Downloads

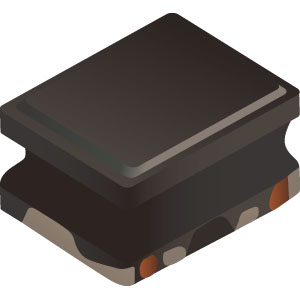

SRN2012 SRN2012 SRN2012_part 2.0 x 1.6 x 1.2 mm 0.24 - 2.2 µH 1.3 - 3.5 A SRN2012
