绕线式贴片式电感

技术规格

Magnetics & JW Miller® 的冲突矿产资源报告：CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	数据表	技术	结构	遮蔽式	尺寸	电感范围	共振频率范围	电流范围	MDS	工程檔

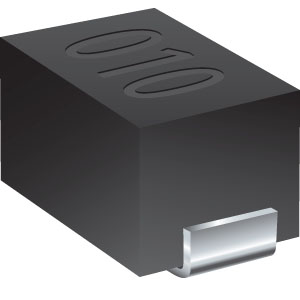

CC453232 (1812)		Wirewound	Sealed		4.2 x 3.2 x 4.5 mm	1 - 680 µH	2.5 - 180 MHz	65 - 1050 mA	CC453232 (1R0-221) CC453232 (271-681)	Downloads
CM322522 (1210)		Wirewound	Sealed		3.2 x 2.5 x 2.2 mm	0.12 – 150 µH	7 - 680 MHz	45 - 450 mA	CM322522 (R12-R82) CM322522 (1R0-820) CM322522 (101-151)	Downloads
CM453232 (1812)	CM	Wirewound	Sealed		4.5 x 3.2 x 3.2 mm	0.1 - 1000 µH	2.5 - 300 MHz	30 - 800 mA	CM453232 (R10-R82) CM453232 (1R0-101) CM453232 (151-102) CM453232 (121)
CMH322522 (1210)		Wirewound	Sealed	Yes	3.2 x 2.5 x 2.2 mm	0.1 – 100 µH	9 - 700 MHz	40 - 450 mA	CMH322522 (1210)	Downloads
CW100505 (0402)		Wirewound	Open		1 x 0.55 x 0.5 mm	0.01 - 0.12 µH	1100 - 6000 MHz	100 - 1360 mA	CW100505 (0402)	Downloads
CW160808 (0603)		Wirewound	Open		1.6 x 1 x 1 mm	0.0018 - 0.27 µH	990 - 6000 MHz	170 - 700 mA	CW160808 (0603)	Downloads
CW201212 (0805)		Wirewound	Open		2 x 1.5 x 1.3 mm	0.0022 - 0.91 µH	180 - 6,000 MHz	180 - 600 mA	CW201212 (2N2~R39)	Downloads
CW252016 (1008)		Wirewound	Open		2.5 x 2 x 1.6 mm	0.01 - 4.7 µH	50 - 4100 MHz	260 - 1000 mA	CW252016 (1008)	Downloads
CW105550A (0402)	CW105550A	Wirewound	Open		1 x 0.55 x 0.5 mm	1 - 120 nH	1100 - 6000 MHz	110 - 1360 mA	CW105550A
CW161009A (0603)	CW161009A	Wirewound	Open		1.65 x 1.15 x 0.9 mm	1.6 - 390 nH	350 - 12500 MHz	130 - 700 mA	CW161009A
CC322522A	CC322522A	Wirewound	Sealed		3.2 x 2.5 x 2.2 mm	1 - 100 µH	8 - 100 MHz	0.15 - 1.35 A	CC322522A
CC453232A	CC453232A	Wirewound	Sealed		4.2 x 3.2 x 3.2 mm	1 - 1000 µH	2 - 180 MHz	0.09 - 2.3 A	CC453232A
CWF2414	CWF2414	Wirewound	Open		2.2 x 1.4 x 1.3 mm	1 - 22 µH	20 - 208 MHz	340 - 1300 mA	CWF2414
CWF1610	CWF1610	Wirewound	Open		1.6 x 1 x 1 mm	1 - 22 µH	24 - 390 MHz	200 - 700 mA	CWF1610
CWP3230A	CWP3230A	Wirewound	Open		3.2 x 2.5 x 3 mm	2.2 - 47 µH	50 - 300 MHz	500 - 1900 mA	CWP3230A (2R2M) CWP3230A (6R8M, 100M, 220M) CWP3230A (470M)

Inductance (μH)	min 0	max 120,000
Current Rating (A)	min 0.0005	max 70
Current Saturation (A)	min 0.0003	max 118
DCR (Ohms)	min 0	max 484

Height (mm)	min 0	max 54
Length (mm)	min 0	max 54
Width (mm)	min 0	max 38.1
Material Core
Shielding
Ratings

Model/Datasheet	潮湿敏感度等级 MSL	焊接图表	封装标签	端子	RoHS 规范证书 CofC	第三方测试报告	物质资料表 MDS	China RoHS
CC453232 (1812)	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CM-1	Request Report	CC453232 (1R0-221) CC453232 (271-681)	Bourns Chip Inductors Wirewound China RoHS
CM322522 (1210)	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CM-1	Request Report	CM322522 (R12-R82) CM322522 (1R0-820) CM322522 (101-151)	Bourns Chip Inductors Wirewound China RoHS
CM453232 (1812)	1		Ch Pwr Ind	Sn (e3)	CM-1	Request Report	CM453232 (R10-R82) CM453232 (1R0-101) CM453232 (151-102) CM453232 (121)	Bourns Chip Inductors Wirewound China RoHS
CMH322522		TBD	TBD	TBD	CMH322522 CofC	Request Report	CMH322522 (1210)	Bourns Chip Inductors Wirewound China RoHS
CW100505 (0402)	1	See Data Sheet	Ch Pwr Ind	Au (e4)	CM-1	Request Report	CW100505 (0402)	Bourns Chip Inductors Wirewound China RoHS
CW160808 (0603)	1	See Data Sheet	Ch Pwr Ind	Au (e4)	CM-1	Request Report	CW160808 (0603)	Bourns Chip Inductors Wirewound China RoHS
CW201212 (0805)	1	Conf 1	Ch Pwr Ind	Au (e4)	CM-1	Request Report	CW201212 (2N2~R39) CW201212 (R47-R91)	Bourns Chip Inductors Wirewound China RoHS
CW252016 (1008)	1	Conf 1	Ch Pwr Ind	Au (e4)	CM-1	Request Report	CW252016 (1008)	Bourns Chip Inductors Wirewound China RoHS
CW105550A (0402)	1	See Data Sheet	Ch Pwr Ind	Au (e4)	CM-1	Request Report	CW105550A	Bourns Chip Inductors Wirewound China RoHS
CW161009A (0603)	1	See Data Sheet	Ch Pwr Ind	Au (e4)	CM-1	Request Report	CW161009A	Bourns Chip Inductors Wirewound China RoHS
CC322522A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CM-1	Request Report	CC322522A	Bourns Chip Inductors Wirewound China RoHS
CC453232A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CM-1	Request Report	CC453232A	Bourns Chip Inductors Wirewound China RoHS
CWF2414	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CWF CofC	Request Report	CWF2414	Bourns Chip Inductors Wirewound China RoHS
CWF1610	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CWF CofC	Request Report	CWF1610	Bourns Chip Inductors Wirewound China RoHS
CWP3230A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	CM-1	Request Report	CWP3230A (2R2M) CWP3230A (6R8M, 100M, 220M) CWP3230A (470M)	Bourns Chip Inductors Wirewound China RoHS
