Kontaktlos Multiturn-Geber

Spezifikationen

Ein Drehpositionssensor wandelt die mechanische Winkelposition in ein elektrisches Signal um. Drehpositionssensoren sind für Anwendungen vorgesehen, die in der Regel häufige Einstellungen erfordern. Dank der wellenlosen Konstruktion sind verschiedene Einsatzmechanismen möglich, z. B. maßgeschneiderte Wellen, Motorsteuerungen, Einstellvorrichtungen für Mensch-Maschine-Schnittstellen oder Positionsgeber für mechanische Arme. Drehpositionssensoren eignen sich für Anwendungen, in denen der Benutzer eine variable Ausgabe wie eine Frequenz, Geschwindigkeit oder Lautstärke regeln soll. Zu den typischen Anwendungen gehören Prüf- und Messgeräte, Unterhaltungselektronik, Kleinmotoren, Robotik und medizinische Geräte.

Bourns – Online-Produktschulung

Konfliktmineralien- Herkunftsbericht für Sensors, Panel Controls, Encoders, Precision Potentiometers, Dials ：CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Serie	Datenblatt	Bild	Typ	Gehäusedurchmesser	Abdichtbar	Schaltsperren	Welle	Nennleistung	Anschlusskonfiguration	Auflösungsbereich	Drehgeschwindigkeit	Lebensdauer Umdrehungen	Montageart	Anz. Umdrehungen	MDS	Ingenieurwesen	Design Dateien

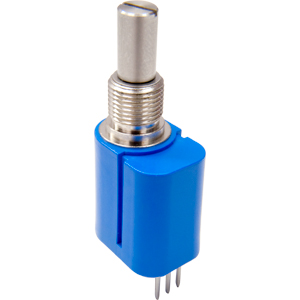

AMM20B			Non-Contacting Analog Rotary Position Sensor	20 mm x 14 mm	IP50	No	Metal	5.0	Axial PC Pins	12 bits	500 RPM	50 million shaft revolutions	Bushing Mount	3-16	AMM20B		Downloads
HES38U-RS485	HES38U-RS485		Hybrid Position Sensor	34 mm round	IP65	No	Metal			163, 840	200 RPM max.	50 million shaft revolutions	Servo Mount	10	HES38U-RS485
