Präzisionspotis Singleturn

Spezifikationen

Präzisionspotentiometer eignen sich für Anwendungen, in denen es auf Genauigkeit und eine hohe Zuverlässigkeit ankommt. Diese Komponenten sind in Ausführungen aus leitfähigem Kunststoff, mit Drahtwicklungs- oder Hybritron®-Technik und in verschiedenen Größen erhältlich. Es gibt Singleturn- und Multiturn-Modelle.

Zu den typischen Anwendungen gehören die Messung linearer Wege und die Erfassung von Winkeln und Rotationen in Fertigungseinrichtungen, industriellen Prüf- und Messgeräten und medizinischen Geräten.

Konfliktmineralien- Herkunftsbericht für Sensors, Panel Controls, Encoders, Precision Potentiometers, Dials ：CMRT

Mit diesem Symbol gekennzeichnete Produkte sind verfügbar, werden jedoch nicht für Neuentwicklungen empfohlen.

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Serie	Datenblatt	Gehäusedurchmesser	Form	Lebensdauer Umdrehungen	Anz. Umdrehungen	Abdichtbar	Welle	Buchse	Element	Anschluss	Charakteristik Linear	Linearität	Min. Widerstand	Max. Widerstand	Nennleistung	Mehrfachanordnung	MDS	Design Dateien

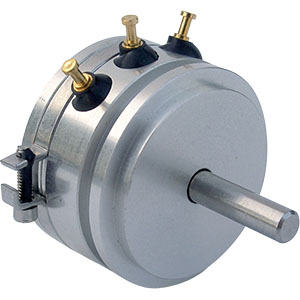

6534		7/8 "	Round	25M	1 (Continuous Mechanical Rotation)	IP40	Metal	Servo Lid	Conductive Plastic	Turret Lugs	x	±0.5 %	1K Ω	100K Ω	1 W	10	6534S	Downloads
6537/6538		7/8 "	Round	10-20M	1 (Continuous Mechanical Rotation)	IP40 (6537); IP50 (6538)	Metal	Servo Lid	Conductive Plastic	Turret Lug/Rear	x	±1 %	1K Ω	100K Ω	1 W		6538S	Downloads
6539/6639		7/8 "	Round	10M	1 (Continuous Mechanical Rotation)	IP40	Metal	Servo Lid/Metal	Conductive Plastic	Turret Lug/Rear	x	±2 %	1K Ω	100K Ω	1 W		6539S 6639S	Downloads
6574		2 "	Round	25M	1 (Continuous Mechanical Rotation)	IP40	Metal	Servo Lid	Conductive Plastic	Turret Lug/Rear	x	±0.25 %	1K Ω	100K Ω	2 W	10		Downloads
6630		7/8 "	Round	5M	1 (Continuous Mechanical Rotation)	IP40	Metal/Slotted or Flatted	Metal	Conductive Plastic	Solder Lug/Axial or Radial	x	±2 %	1K Ω	20K Ω	1 W		6630S
6637		7/8 "	Round	10M	1 (Continuous Mechanical Rotation)	IP40	Metal	Metal	Conductive Plastic	Turret Lug/Rear	x	±1 %	1K Ω	100K Ω	1 W		6637S
6638		7/8 "	Round	20M	1 (Continuous Mechanical Rotation)	IP40	Metal Ball Bearing	Metal	Conductive Plastic	Turret Lug/Rear	x	±1 %	1K Ω	100K Ω	1 W		6638S
6657	6657	1-5/16 "	Round	20M	1 (Continuous Mechanical Rotation)	IP40	Metal	Metal	Conductive Plastic	Turret Lug/Rear	x	±1 %	1K Ω	100K Ω	1 W		6657S

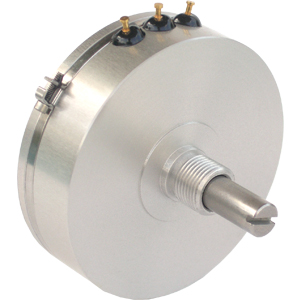

6674		2 "	Round	25M	1 (Continuous Mechanical Rotation)	IP40	Metal	Metal	Conductive Plastic	Turret Lugs	x	±0.25 %	1K Ω	100K Ω	2 W		6674S

Bourns stellt neue mit doppeltem Kugellager ausgestattete Option der beliebten 10-Gang-Präzisionspotis vor

Bourns stellt neue Rutschkupplung für Präzisionsmehrgang-Potenziometer vor

Sensoren & Steuerungen – Lösungsleitfaden

Kurzbroschüre Präzisionspotentiometer und Umdrehungszähler

Anwendungsbeschreibung Hybritron®-Präzisionspotentiometer Bourns® in nichtimplantierbaren medizinischen Infusionseinrichtungen

Linearity %

Resistance

Turns / Degrees

Mounting

Watts

PART NUMBER	Linearity %	Resistance	Turns / Degrees	Mounting	Watts	Element Style	Body Size	Shaft Revs.	Engineering	Buy Now

PART NUMBER

Linearity %

Resistance

Turns / Degrees

Mounting

Watts

Element Style

Body Size

Shaft Revs.

Engineering

Buy Now

Model/Datasheet	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB
3400	See Note	See Data Sheet	Label	e4	PP1	Request Report	3400S-L
3500/3501	See Note	See Data Sheet	Label	e4	PP2	Request Report	3500S-L 3501H-L
3540/3541	See Note		Label	e4	PP3	Request Report	3540S-L 3541H-L
3543/3545	See Note	See Data Sheet	Label	e4	PP3	Request Report	3543S-L 3545S-L
3547	See Note	See Data Sheet	Label	e4	3547 CoC	Request Report	3547H-1xA, 3547H-1xB 3547H-1xC, 3547H-1xD 3547H-1xE 3547H-2xE 3547S-1xA, 3547S-1xB 3547S-1xC, 3547S-1xD 3547S-1xH, 3547S-1xG 3547S-1xE 3547S-2xA, 3547S-2xB 3547S-2xE
3548	See Note	See Data Sheet	Label	e4	3548x CofC	Request Report	3548H-1xA, 3548H-1xB 3548H-1xC, 3548H-1xD 3548H-1xE-xxxx 3548S-1xA, 3548S-1xB 3548S-1xC, 3548S-1xD 3548S-1xE 3548S-1xG, 3548S-1xH 3548S-2xA, 3548S-2xB
3549	See Note	See Data Sheet	Label	e4	PP2	Request Report	3549H 3549S 3549H-1AF
3590	See Note	See Data Sheet	Label	e3	PP2	Request Report	3590S-1-L 3590S-3L 3590S-2-L 3590S-6L
3700/3701	See Note	See Data Sheet	Label	e4	PP2	Request Report	3700S-L 3701H-L
3750/3751	See Note	See Data Sheet	Label	e4	PP2	Request Report	3750S-L 3751-L
3610	See Note	See Data Sheet	TBD	e3		Request Report	3610S
3680	See Note	See Data Sheet	Label	e3	PP4	Request Report	3681S-L
H-385	See Note	N/A	TBD	N/A	PP1	Request Report	H-385
6534	See Note	See Data Sheet	Label	e4	PP1	Request Report	6534S
6537/6538	See Note	See Data Sheet	Label	e4	PP2	Request Report	6538S
6539/6639	See Note	See Data Sheet	Label	e4	PP2	Request Report	6539S 6639S
6574	See Note	See Data Sheet	Label	e4	PP2	Request Report	6574S
6637	See Note	See Data Sheet	Label	e4	PP2	Request Report	6637S
6638	See Note	See Data Sheet	Label	e4	PP2	Request Report	6638S
6657	See Note	See Data Sheet	Label	e4	PP2	Request Report	6657S
6674	See Note	See Data Sheet	Label	e4	PP1	Request Report	6674S
