Bourns - TISP82xx – Unidirektionaler rückwärtssperrender Dual-Thyristor-Überspannungsableiter

Gerätenummer	Gehäuseoptionen	Schutzspannung (V)	Werte gemäß Blitzschutzstandards – IEC 61000-4-5 8/20 μs (A)	Werte gemäß Blitzschutzstandards – ITU-T K.20/45/21 5/310 μs (A)	Werte gemäß Blitzschutzstandards – GR-1089-CORE 10/1000 μs (A)	RoHS-konform	Design Dateien
TISP8200H	DM	0 to -110	500	150	100	TISP8200H	Downloads
TISP8200M	DR	0 to -90	210	70	45	TISP8200M	Downloads
TISP8201H	DM	0 to +110	500	150	100	TISP8201H	Downloads
TISP8201M	DR	0 to +90	210	70	45	TISP8201M	Downloads
TISP8210M	DR	0 to -110	167	70	60	TISP8210M	Downloads
TISP8211M	DR	0 to +110	167	70	60	TISP8211M	Downloads

Model/Datasheet	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB	China RoHS
TISP1xxx Series	1	TSP-SMD	TISP Label	e3	8-SOIC	Request Report	DR - Package MDS	China RoHS2 - TSP SOIC, 8-SOIC, SOT23-5, SOT23-6

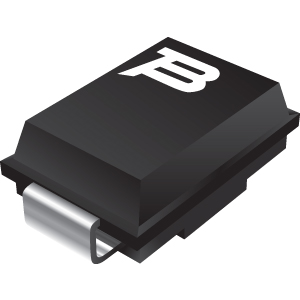

TISP4xxx Series (SMB)	1	TSP-SMD	TISP Label	e3	SMx	Request Report	BJR-Package (DO-214AA) MDS (L)	China RoHS2 EFUP50 - Thyristor Surge Protectors SMx

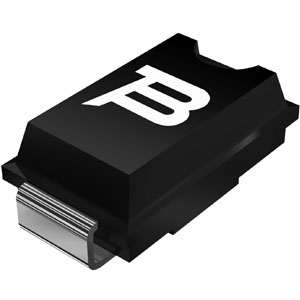

TISP4xxx Series (SMA)	1	TSP-SMD	TISP Label	e3	SMx	Request Report	AJR-Package MDS	China RoHS2 EFUP50 - Thyristor Surge Protectors SMx

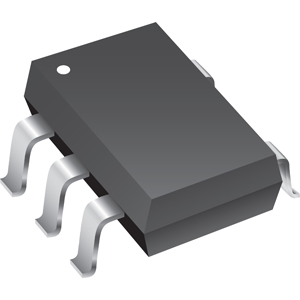

TISP4xxx Series (SOT23-5)	1	TSP-SMD	TISP Label	e3	CoC_SOT23-5_SOT23-6	Request Report	NDR-Package (SOT23-5-Cu) MDS (A) NDR-Package (SOT23-5) MDS (C)	China RoHS2 EFUP50 - Thyristor Surge Protectors SMx

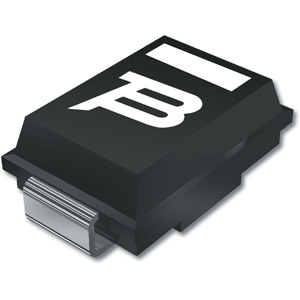

TISP5xxx Series (SMB)	1	TSP-SMD	TISP Label	e3	SMx	Request Report	BJR-Package (DO-214AA) MDS (L)	China RoHS2 EFUP50 - Thyristor Surge Protectors SMx

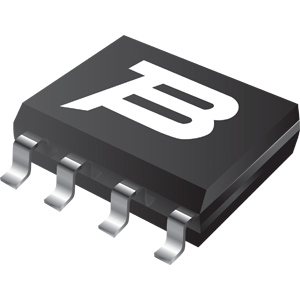

TISP6xxx Series (8-SOIC)	1	TSP-SMD	TISP Label	e3	8-SOIC	Request Report	DR - Package MDS	China RoHS2 - TSP SOIC, 8-SOIC, SOT23-5, SOT23-6
TISP6xxx Series (8-SOIC/210 MIL)	1	TSP-SMD	TISP Label	e3	8-SOIC	Request Report	DMR-Package (8-SOIC) MDS	China RoHS2 - TSP SOIC, 8-SOIC, SOT23-5, SOT23-6
TISP7xxx Series (8-SOIC)	1	TSP-SMD	TISP Label	e3	8-SOIC	Request Report	DR - Package MDS	China RoHS2 - TSP SOIC, 8-SOIC, SOT23-5, SOT23-6
TISP8xxx (8-SOIC)	1	TSP-SMD	TISP Label	e3	8-SOIC	Request Report	DR - Package MDS	China RoHS2 - TSP SOIC, 8-SOIC, SOT23-5, SOT23-6
TISP8xxx Series (8-SOIC/210 MIL)	1	TSP-SMD	TISP Label	e3	8-SOIC	Request Report	DMR-Package (8-SOIC) MDS	China RoHS2 - TSP SOIC, 8-SOIC, SOT23-5, SOT23-6
TISP9xxx Series (8-SOIC/210 MIL)	1	TSP-SMD	TISP Label	e3	8-SOIC	Request Report	DMR-Package (8-SOIC) MDS	China RoHS2 EFUP50 - Thyristor Surge Protectors SMx
ACTP	1	TSP-SMD	TISP Label	e3	SMx	Request Report	BJR-Package (DO-214AA) MDS (L)	China_RoHS2_EFUP50-Thyristor_Surge_Protectors_SMx
TISP4xxx Series (SOT23-6)	1	TSP-SMD	TISP Label	e3	CoC_SOT23-5_SOT23-6	Request Report	SOT23-6 Package MDS	China RoHS2 EFUP50 - Thyristor Surge Protectors SMx
