Geräte für den Überspannungsschutz von Signal- und Datenübertragung

Signal and Data Line Surge Protective Devices

Spezifikationen

Herkunftsbericht für GDT, SPD, MOV ：CMRT

Obsolete Mit diesem Symbol gekennzeichnete Produkte sind verfügbar, werden jedoch nicht für Neuentwicklungen empfohlen.

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Serie	Datenblatt	Beschreibung	Anwendungen	Installation Instructions	Design Dateien
2510 Series	2510	DIN-Rail SPD for two data and signal line protection	RS-232 , RS-422 and RS-485 interfaces	2510 and 2520 Install
2520 Series	2520	DIN-Rail SPD for two data and signal line protection	RS-232 , RS-422 and RS-485 interfaces	2510 and 2520 Install

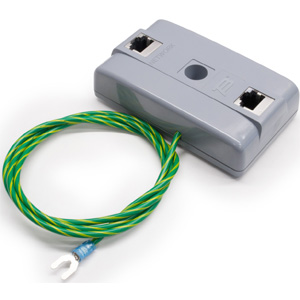

1500 Series		High speed data line SPD for indoor/controlled environments	Gigabit Ethernet (unpowered)	1500 Series Installation
1530 Series		Power over Ethernet Surge Protector	Gigabit Ethernet (powered)	1530 Series Installation	Downloads
1669 Series		Weatherproof/harsh environment SPD	4-20 mA control loops	1669 Series Installation	Downloads
1675-01		Railway SPD w/Visual Indicators	Protection of Railway Signals and Track Circuits	1675-01 Installation

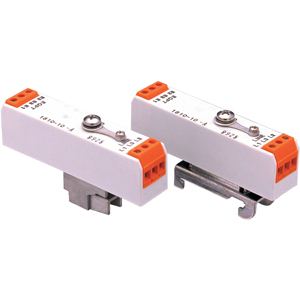

1800 Series		General purpose DIN rail SPD for indoor/controlled environment applications	4-20 mA control loops, RS-232, RS-422, RS-423, RS-485	1800 Series Installation	Downloads
1830 Series		DIN rail SPD for indoor/controlled environment applications	T1/E1 dataline	1830 Series Installation	Downloads

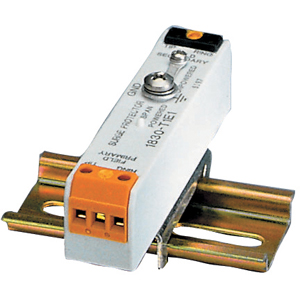

1830A Series		T1/E1 kit	T1/E1 dataline		Downloads
1840 Series	1840	Enhanced performance design DIN rail SPD for indoor/controlled environment applications	RS-232, RS-422, RS-423, RS-485 and with 4-20 mA and 50 mA instrumentation loops	1840 Series Installation
1540 Series	1540	Power over Ethernet (PoE) SPD for outdoor environments	Gigabit Ethernet (powered)	1540 Install

Model/Datasheet	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB
2510 Series	1	TBD	TBD	TBD	SPD CoC2	Request Report	2510
2520 Series	1	TBD	TBD	TBD	SPD CoC2	Request Report	2520
1530 Series	1	TBD	TBD	TBD	TBD	Request Report	1530-1X-W
1540 Series	1	TBD	TBD	TBD	TBD	Request Report	1540-01 1540-02
1675-01	1	TBD	TBD	TBD	TBD	Request Report	1675-01
1840 Series	TBD	TBD	TBD	TBD	TBD	Request Report	1840 Series

File	Type	Size	Uploaded on	Download
Schutz für Hochgeschwindigkeits-Kommunikationsanschlüsse	PDF	843,57 KB	28 Mai, 2015	Download
