Strommess-, Impulsleistungs- & Hochleistungswiderstände

Current sense resistors are recognized as cost-effective components that help improve system efficiency and reduce losses due to their high measurement accuracy compared to other technologies.

While they are ideal for applications in virtually all market segments, current sense resistors are particularly useful in helping developers precisely measure current in their consumer and industrial designs.

Bourns offers current sense chip resistors with thick film, metal foil and metal strip resistive elements and electro-beam welded metal strip shunts.

Characteristics
Size	0603 to 2512 Thick Film Chip 0805 to 1206 Metal Foil Chip 0805 to 2512 Metal Strip Chip 2512 to 5931 EB Welded Shunts 6918 to 8536 Metric EB Welded Shunts
Rated power at 70 °C	0.1 to 50 W
Resistance Range	25 microhms to 9.1 ohms
Resistance Tolerance	±0.5 %, ±1 %, ±5 %
Temperature Coefficient	±50 to ±200 ppm/°C
Operating Temperature Range	–55 to +155/+170 °C

Available Features

RoHS compliant*
Suitable for most types of soldering processes
EB welded shunts
AEC-Q200 compliant
Very high power
Very low resistance
Excellent long term stability
Low inductance value
Low thermal EMF
Low TCR
Four terminal designs available
Bare copper and tin-plated terminals
Sulfur resistant

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Applications

Consumer
Industrial
Telecommunication

Documents

Spezifikationen

Produkte

Parametrische

RoHS

Produktinformation

Videos

Muster anfordern

Kontaktieren

Series	Data Sheet	Resistance Range	Tolerances	Temperature Coefficient	Power (Watts)	Profile/Package Style	Material	MDS	Design Files	Buy Now
CFG	CFG	0.005; 0.01 Ω	1 %	±100 ppm	1 W	Wide Terminal Chip	Metal Foil	CFG0612		Buy
CFN	CFN	0.01; 0.02 Ω	1 % / 5 %	±100 ppm	0.25 W	Chip	Metal Foil	CFN0402		Buy
	CFN	0.005; 0.01; 0.02 Ω		±50 ppm / ±100 ppm	0.5 W			CFN0603		Buy
	CFN	0.005; 0.01; 0.02; 0.03 Ω			0.5 W			CFN0805		Buy
	CFN	0.005; 0.01; 0.02; 0.04 Ω			1 W			CFN1206		Buy
CFN-A	CFN-A	0.01; 0.02 Ω		±100 ppm	0.2 W			CFN0402		Buy
	CFN-A	0.005 to 0.02 Ω		±50 ppm / ±100 ppm	0.5 W			CFN0603		Buy
	CFN-A	0.005 to 0.03 Ω			0.75 W			CFN0805		Buy
	CFN-A	0.005 to 0.04 Ω			1 W			CFN1206		Buy
CRK	CRK	0.001; 0.005; 0.01 Ω	1 % / 5 %	±50 ppm	1 W	Wide Terminal Chip	Metal Strip	CRK0612		Buy
CRK	CRK	0.004; 0.005; 0.01 Ω	1 % / 5 %	±50 ppm	1 W	Wide Terminal Chip	Metal Strip	CRK0815		Buy
CRL	CRL0603	0.10 to 9.1 Ω	1 % / 5 %	±200 ppm	0.1 W	Chip	Thick Film	CRL0603 (0.1~0.91Ω)	Downloads	Buy
	CRL0805	0.05 to 9.1 Ω		±200 ppm/±400 ppm	0.125 W			CRL0805 (0.1~0.91Ω)	Downloads	Buy
	CRL1206	0.02 to 9.1 Ω		±200 ppm/±600 ppm	0.25 W			CRL1206 (0.1~0.91Ω)	Downloads	Buy
	CRL2010	0.02 to 9.1 Ω			0.5 W			CRL2010 (0.1~0.91Ω)	Downloads	Buy

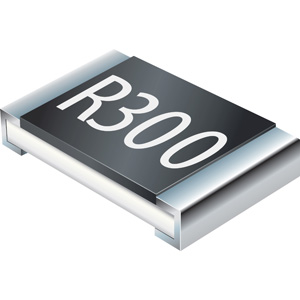

	CRL2512	0.01 to 9.1 Ω			1 W			CRL2512 (0.1~0.91Ω)	Downloads	Buy
CRM	CRM0805_1206_2010	47 mΩ to 1 MΩ		±100 ppm/±150 ppm/±200 ppm	0.25 W			CRM0805 MDS (under 1Ω) CRM0805 MDS (over 1Ω)		Buy
	CRM0805_1206_2010				0.5 W			CRM1206 MDS (under 1Ω) CRM1206 MDS (over 1Ω)		Buy
	CRM0805_1206_2010				1 W			CRM2010 MDS (under 1Ω) CRM2010 MDS (over 1Ω)		Buy
	CRM			±100 ppm/±200 ppm	2 W			CRM2512 MDS (under 1Ω) CRM2512 MDS (over 1Ω)		Buy
CRM-A	CRM-A	0.05 Ω to 1 MΩ	0.5 % / 1 % / 5 %	±100 ppm/±150 ppm/±200 ppm/±250 ppm	0.125 W			CRM0603A		Buy
	CRM-A			±100 ppm/±150 ppm/±200 ppm	0.25 W			CRM0805A		Buy
	CRM-A			±100 ppm/±200 ppm	0.5 W			CRM1206A		Buy
	CRM-A				0.5 W			CRM1210A		Buy
	CRM-A				1 W			CRM2010A		Buy
	CRM-A				2 W			CRM2512A		Buy
CHP	CHP	0.1 Ω to 1 MΩ	1 % / 5 %		3 W			CHP2512		Buy
CRF	CRF	0.001 to 0.025 Ω		±50 ppm	0.5 W		Metal Strip	CRF0805		Buy
	CRF	0.001 to 0.050 Ω			1 W					Buy
	CRF	0.001 to 0.050 Ω			0.001 to 0.010 Ω: 2 W 0.011 to 0.050 Ω: 1 W			CRF2512 Series NiCu		Buy
CRE	CRE	0.001 to 0.009 Ω	1 %		2 W / 3 W			CRE2512		Buy
CRG	CRG2512	0.11 to 0.68 Ω	1 % / 5 %	±50 ppm	1 W, 2 W	Chip	Metal Strip	CRG2512		Buy
CRA	CRA	0.01 to 0.100 Ω	1 % / 5 %	±50 ppm	3 W	Chip	Metal Strip	CRA2512		Buy
CST	CST0612	0.5 to 5 mΩ	1 %	±100 ppm/±200 ppm	1 W	4-Terminal Chip	Metal Strip	CST0612		Buy
CSI2H	CSI2H-2512	0.3 to 3.5 mΩ	1 %, 2%, 5 %	±50 ppm	2 to 6 W	Surface Mount	Metal Element	CSI2H-2512K CSI2H-2512R		Buy
	CSI2H-3920	0.2 to 3 mΩ			3 to 12 W			CSI2H-3920K CSI2H-3920R		Buy
	CSI2H-5930	0.2 to 2 mΩ			4 to 15 W			CSI2H-5930R CSI2H-5930K		Buy
CSI4J	CSI4J-4026	0.2 to 2 mΩ			4 to 5 W			CSI4J-4026K CSI4J-4026R		Buy
CSS2H	CSS2H-2512	0.3 to 5 mΩ	1 % / 5 %	±50 ppm	1.5 to 6 W	Surface Mount		CSS2H-2512R CSS2H-2512K		Buy
	CSS2H-3920	0.2 to 5 mΩ			2 to 12 W			CSS2H-3920R CSS2H-3920K		Buy
	CSS2H-5930	0.2 to 3 mΩ			6 to 15W			CSS2H-5930K CSS2H-5930R		Buy
CSS4J	CSS4J-4026	0.2 to 3 mΩ			3 to 5 W			CSS4J-4026K CSS4J-4026R		Buy
CSM2F-6918	CSM2F-6918-0	50 to 200 μΩ	5 %		36 W	Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-6918-L050J00 CSM2F-6918-L100J00 CSM2F-6918-L200J00		Buy
	CSM2F-6918-1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-6918-L050J01		Buy
	CSM2F-6918-2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-6918-L050J02 CSM2F-6918-L100J02 CSM2F-6918-L200J02		Buy
CSM2F-6918 with 2 or 3 sensing pins	CSM2F-6918-x0					Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-6918-L050Jx0 CSM2F-6918-L200Jx0 CSM2F-6918-L100Jx0		Buy
	CSM2F-6918-x1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-6918-L050Jx1		Buy
	CSM2F-6918-x2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-6918-L050Jx2 CSM2F-6918-L100Jx2 CSM2F-6918-L200Jx2		Buy
CSM2F-7036	CSM2F-7036-0	25 to 100 μΩ			50 W	Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-7036-L025J00 CSM2F-7036-L050J00 CSM2F-7036-L100J00		Buy
	CSM2F-7036-1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-7036-L050J01		Buy
	CSM2F-7036-2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-7036-L025J02 CSM2F-7036-L050J02 CSM2F-7036-L100J02		Buy
CSM2F-7036 with 2 or 3 sensing pins	CSM2F-7036-x0					Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-7036-L050Jx0 CSM2F-7036-L025Jx0 CSM2F-7036-L100Jx0		Buy
	CSM2F-7036-x1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-7036-L050Jx1		Buy
	CSM2F-7036-x2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-7036-L050Jx2 CSM2F-7036-L025Jx2 CSM2F-7036-L100Jx2		Buy
CSM2F-8518	CSM2F-8518-0	50 to 200 μΩ			36 W	Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-8518-L050J00 CSM2F-8518-L100J00 CSM2F-8518-L200J00		Buy
	CSM2F-8518-1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-8518-L050J01 CSM2F-8518-L100J01		Buy
	CSM2F-8518-2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-8518-L050J02 CSM2F-8518-L100J02 CSM2F-8518-L200J02		Buy
CSM2F-8518 with 2 or 3 sensing pins	CSM2F-8518-x0					Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-8518-L050Jx0 CSM2F-8518-L100Jx0 CSM2F-8518-L200Jx0		Buy
	CSM2F-8518-x1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-8518-L050Jx1		Buy
	CSM2F-8518-x2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-8518-L050Jx2 CSM2F-8518-L100Jx2 CSM2F-8518-L200Jx2		Buy
CSM2F-8536	CSM2F-8536-0	25 to 100 μΩ			50 W	Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-8536-L025J00 CSM2F-8536-L050J00 CSM2F-8536-L100J00		Buy
	CSM2F-8536-1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-8536-L025J01 CSM2F-8536-L050J01		Buy
	CSM2F-8536-2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-8536-L025J02 CSM2F-8536-L050J02 CSM2F-8536-L100J02		Buy
CSM2F-8536 with 2 or 3 sensing pins	CSM2F-8536-x0					Surface Mount/ Clearance Hole/ Bare Copper		CSM2F-8536-L050Jx0 CSM2F-8536-L100Jx0 CSM2F-8536-L025Jx0		Buy
	CSM2F-8536-x1					Surface Mount/ Clearance Hole/ Pre-Plate		CSM2F-8536-L025Jx1 CSM2F-8536-L050Jx1		Buy
	CSM2F-8536-x2					Surface Mount/ Clearance Hole/ Post Plated		CSM2F-8536-L025Jx2 CSM2F-8536-L050Jx2 CSM2F-8536-L100Jx2		Buy
M	MS	0.005 - 0.1 Ω	1 %, 5 %	±125 - ±500 ppm	1, 3, and 5 W	Through-hole Welded	Metal Element	MS_MDS		Buy
	MSR	0.005 - 0.1 Ω	1 %, 5 %	±125 - ±500 ppm	1, 3, and 5 W	Through-hole Welded	Metal Element	MSR		Buy
	MT	0.003 - 0.1 Ω	0.1 % - 5 %	±20 ppm	1 - 10 W	Through-hole Wirewound	Metal Film	MT		Buy
RS	RSABC	0.0417-20 mΩ	0.25 %	±15 PPM/°C	0.25 – 120 W	Panel Mounted Shunt	Metal Element	RSA_MDS RSB_MDS RSC_MDS		Buy
	RSH	0.083 - 6.67 mΩ			0.75 – 60 W	Busbar Mounted Shunt		RSH_MDS		Buy
	RSI	0.042 - 0.333 mΩ			15 – 120 W			RSI_MDS		Buy
	RSJ	0.0083 - 0.067 mΩ			75 – 600 W			RSJ_MDS		Buy
	RSK	0.0167 - 0.1 mΩ			50 – 300 W			RSK_MDS		Buy
	RSN	0.1 - 100 mΩ	0.10 %		0.05 – 50 W	Panel Mounted Shunt		RSN-1~RSN-50_MDS RSN-100~RSN-500_MDS		Buy
	RSW	0.25 - 10 mΩ	0.25 %		0.25 – 10 W	Busbar Mounted Shunt		RSW-5~RSW-80_MDS RSW-100~RSW-200_MDS		Buy
